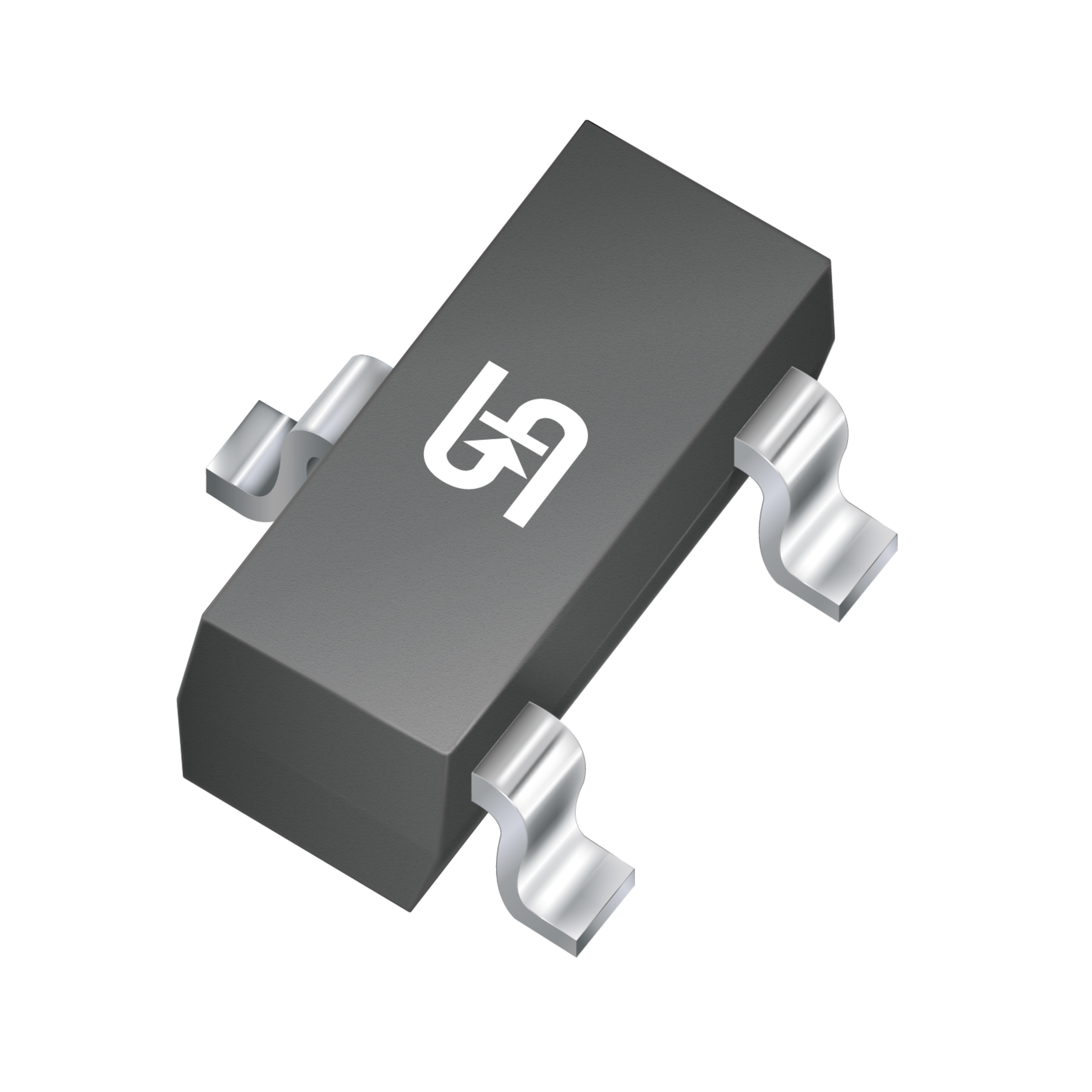

TSM2328CX
Taiwan Semiconductor SMD/SMT Power MOSFET N-Channel 1,5A 1,38W 250mOhm SOT-23
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.900 Pcs. in stock
Planned delivery time
Ø 99 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
NRND
Not Recommended for New Designs
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Number of Channels
- 1
- Polarity
- N-Channel
- (Id) Continuous Drain Current
- 1,5 A
1,5 A - (Pd) Power Dissipation
- 1.38 W
- (RDS(on)) Drain-Source Widerstand max.
- 250 mOhm
- Manufacturer Package
- SOT-23
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 150 °C
Electrical properties
- (Uds) Max. Drain-Source Voltage Q1
- 100 V
- (Uds) Max. Drain-Source Voltage
- 100 V
- 100 V
- (Id) Continuous Drain Current Q1
- 1.5 A
- (Id) Continuous Drain Current
- 1,5 A
- 1,5 A
- (Ugs) Gate-Source Voltage Q1
- 20 V V
- (Ugs) Gate-Source Voltage
- 20 V
- 20 V
- Number of Channels
- 1
- Polarity
- N-Channel
- (Pd) Power Dissipation
- 1.38 W
- (RDS(on)) Drain-Source Widerstand max.
- 250 mOhm
- (Qg) Gate Charge Q1
- 11.1 nC
- (Qg) Gate Charge
- 11,1 nC
- 11,1 nC
