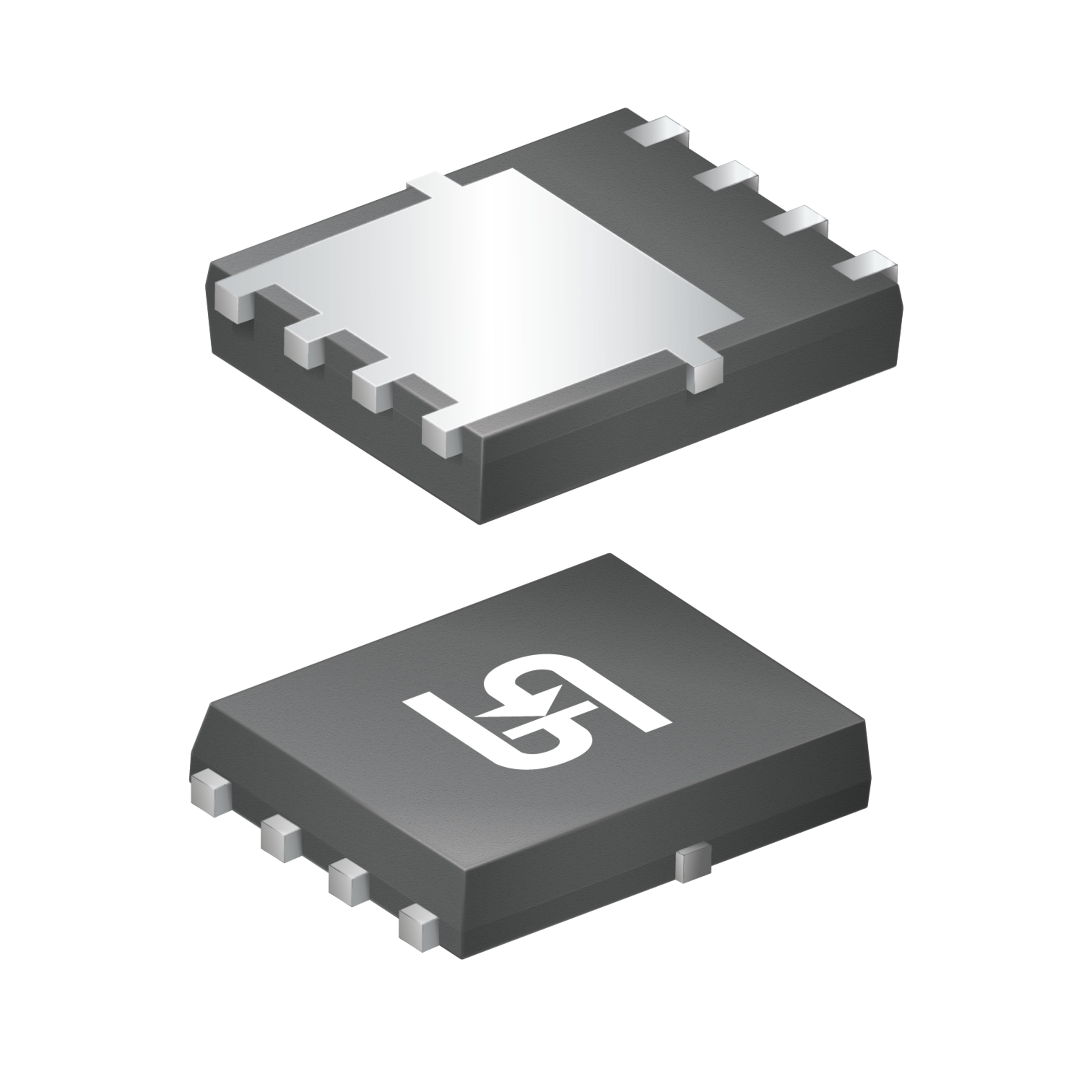

TSM120N06LCR RLG
Taiwan Semiconductor SMD/SMT Power MOSFET N-Channel 54A 69W 15mOhm PDFN56-8
Manufacturer Part No.
TSM120N06LCR RLG
Schukat Part No.
TSM120N06LCR
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.300 Pcs. in stock
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
NRND
Not Recommended for New Designs
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Number of Channels
- 1
- Polarity
- N-Channel
- (Id) Continuous Drain Current
- 54 A
- (Pd) Power Dissipation
- 69 W
- (RDS(on)) Drain-Source Resistance Max.
- 15 mOhm
- Manufacturer Package
- PDFN56-8
- RoHS-Conform
