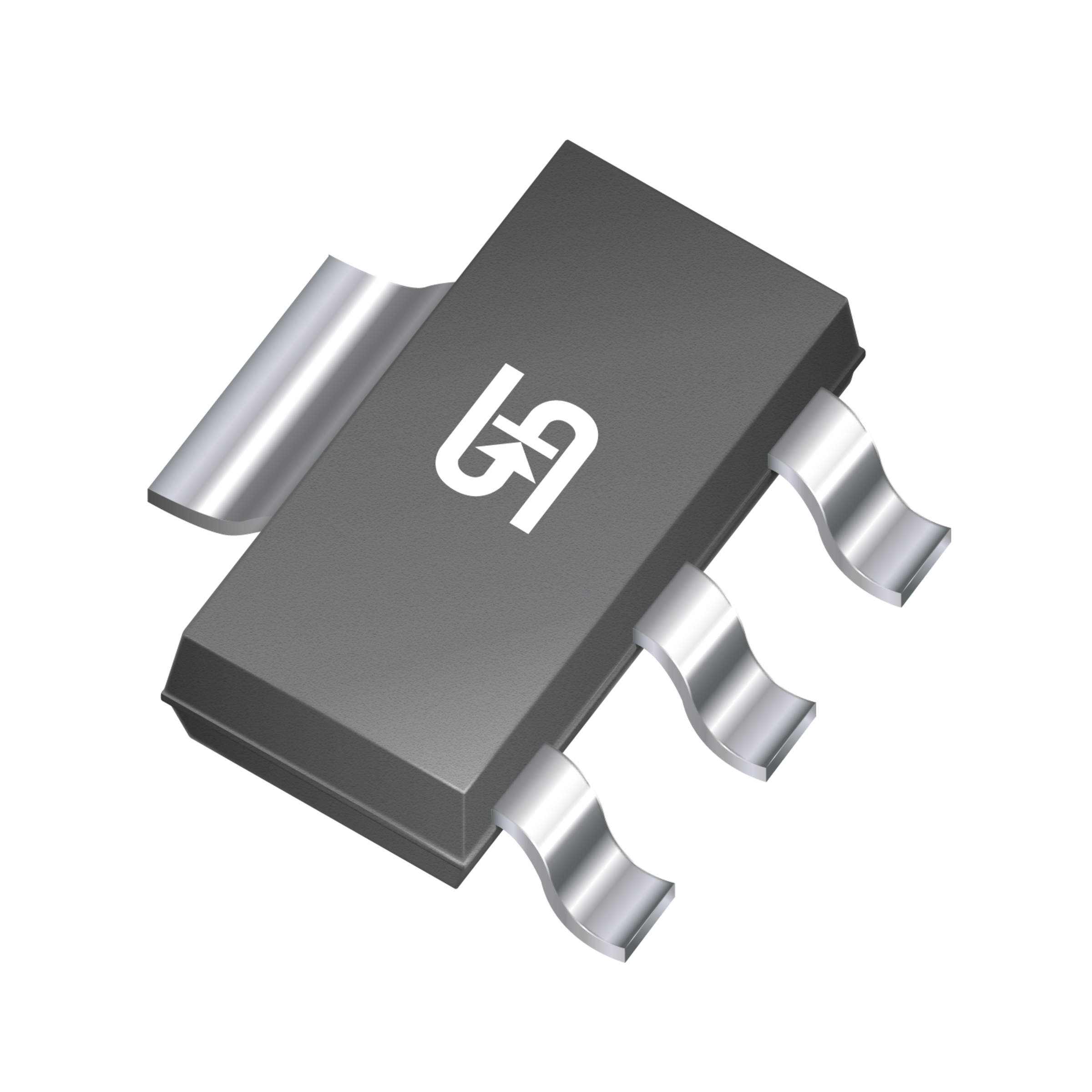

TSC966CW RPG
Taiwan Semiconductor SMD/SMT High Voltage Transistor NPN 400V 1,0W 90 SOT-223
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
400 Pcs. in stock
Next Stock Receipt
Week 28/2025
2.500 Pcs.
2.500 Pcs.
Planned delivery time
Ø 104 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Transistor Polarity
- NPN
- (UCEO) Collector Emitter Voltage
- 400 V
- (IC) Collector Current
- 0.3 A
- (hfe) DC Current Gain Min.
- 90
- (Pd) Power Dissipation
- 1 W
- Manufacturer Package
- SOT-223
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Max.
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- Transistor Polarity
- NPN
- (UCEO) Collector Emitter Voltage
- 400 V
- (IC) Collector Current
- 0.3 A
- (hfe) DC Current Gain Min.
- 90
- (Pd) Power Dissipation
- 1 W
- (fT) Transition Frequency
- 0.05 GHz
