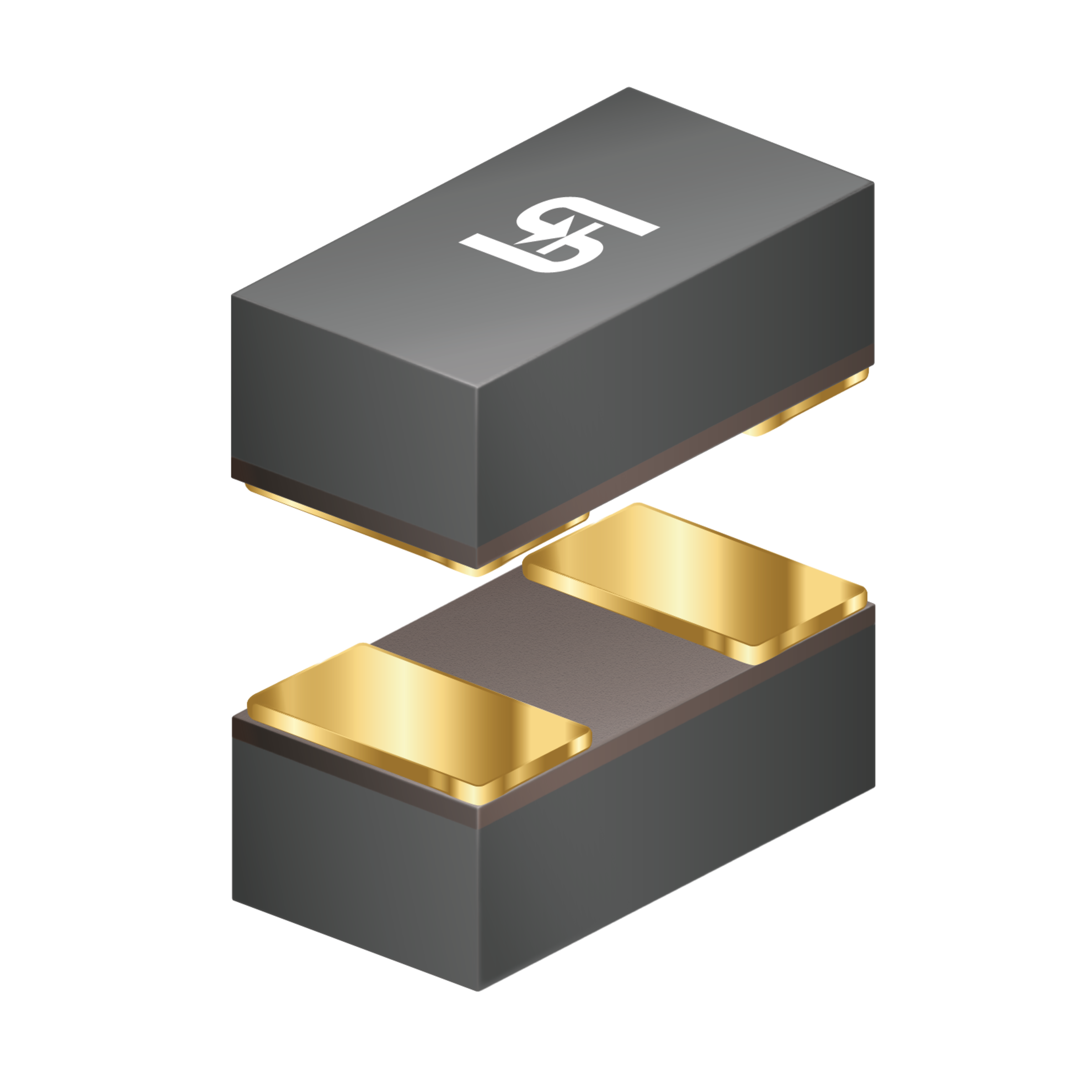

TS4448 RWG
Taiwan Semiconductor SMD/SMT Si Standard Diode 100V 1V 125mA 1005
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
7.000 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 11.05.2024
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 4000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 1 V
- (If) Forward Current
- 125 mA
- Peak Let-Through Surrent Max.
- 2,000 mA
- (Ur) Reverse Voltage
- 80 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
- Storage Temperature Min.
- -40 °C
- Storage Temperature Max.
- 125 °C
Electrical properties
- (Uf) Forward Voltage
- 1 V
- (If) Forward Current
- 125 mA
- Peak Let-Through Surrent Max.
- 2,000 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 100 V
- (Ur) Reverse Voltage
- 80 V
- (Ir) Reverse Current
- 100 nA
- (Pd) Power Dissipation
- 0.2 W
- Reset Time
- 9 ns
