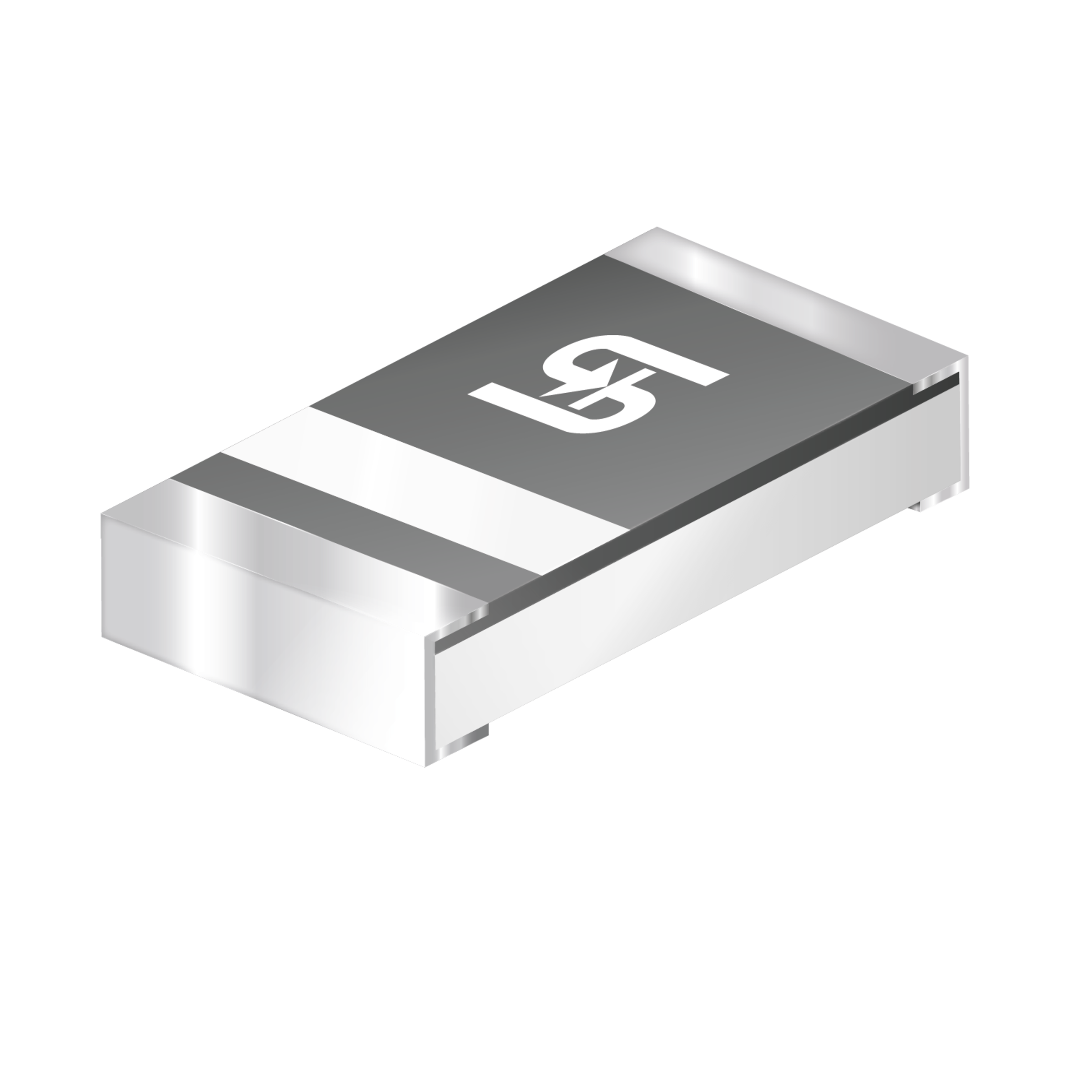

TS4148 RXG
Taiwan Semiconductor SMD/SMT Si Standard Diode 75V 1V 150mA 1206
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 04.09.2024
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 1 V
- (If) Forward Current
- 150 mA
- Peak Let-Through Surrent Max.
- 2,000 mA
- (Ur) Reverse Voltage
- 75 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- Barrier Layer temperature, min. (TJ)
- -55 °C
- Barrier Layer Temperature, max. (TJ)
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- (Uf) Forward Voltage
- 1 V
- (If) Forward Current
- 150 mA
- Peak Let-Through Surrent Max.
- 2,000 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 75 V
- (Ur) Reverse Voltage
- 75 V
- (Ir) Reverse Current
- 5,000 nA
- Reset Time
- 4 ns
Documents
EOL_PDN24005 rev0_EN.pdf
