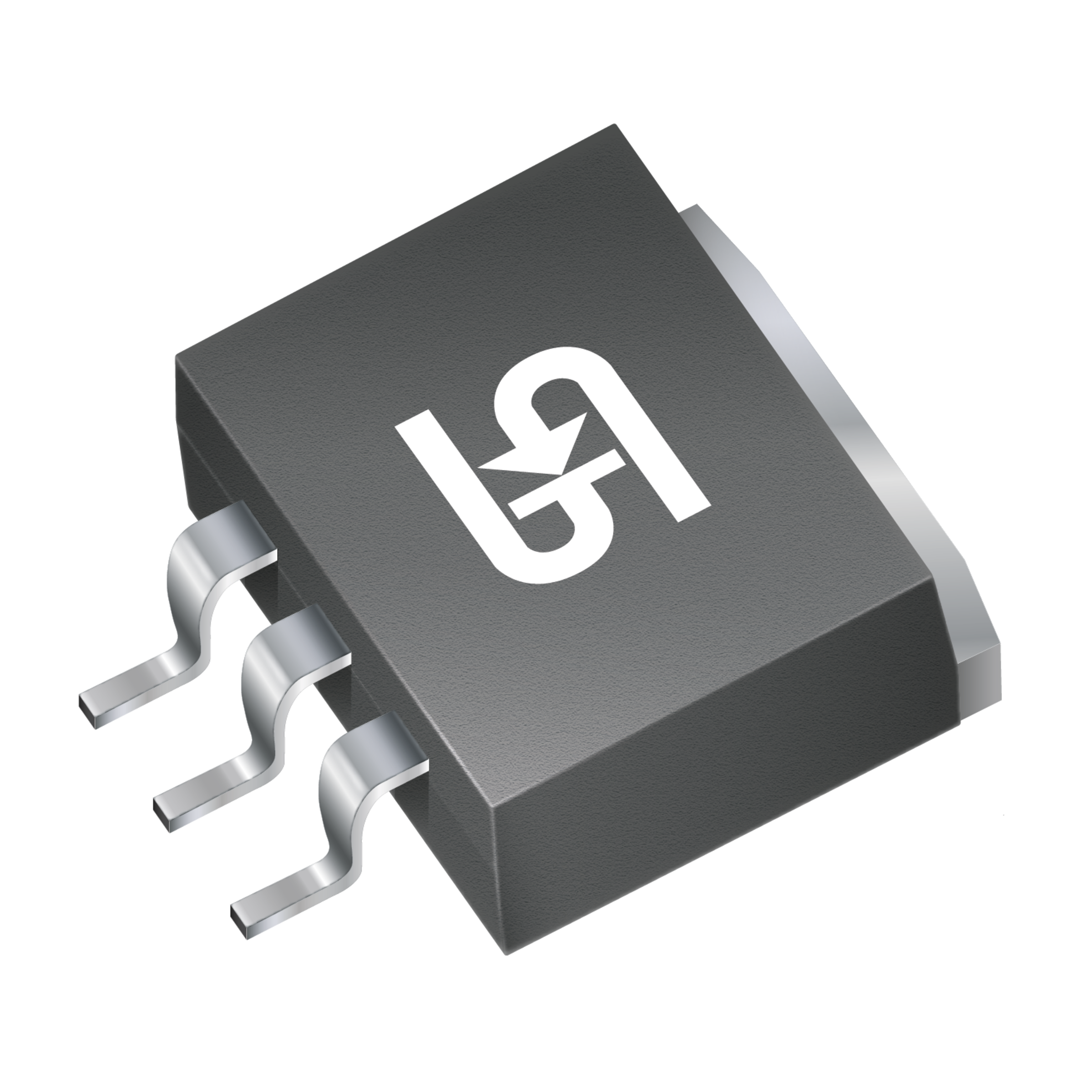

TS2937CM50 RNG
Taiwan Semiconductor LDO Voltage Regulator 500mA 26V TO-263(D2PAK)
Manufacturer Part No.
TS2937CM50 RNG
Schukat Part No.
TS2937CM-5.0
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.100 Pcs. in stock
Planned delivery time
Ø 49 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- LDO Voltage Regulator
- Supply Voltage Min.
- 0 V
- Supply Voltage Max.
- 26 V
- Output Voltage Min./Fixed
- 5 V
- Output current
- 500 mA
500 mA - Number of Channels
- 1
- Droput Voltage
- 0.6 V
- Output Type
- fixed
- Manufacturer Package
- TO-263 (D2PAK)
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Electrical properties
- Number of Channels
- 1
- Supply Voltage Min.
- 0 V
- Output Current 1
- 500 mA
- Droput Voltage
- 0.6 V
- Supply Voltage Max.
- 26 V
- Output current
- 500 mA
- 500 mA
- Output Voltage Min./Fixed
- 5 V
- Output Type
- fixed
