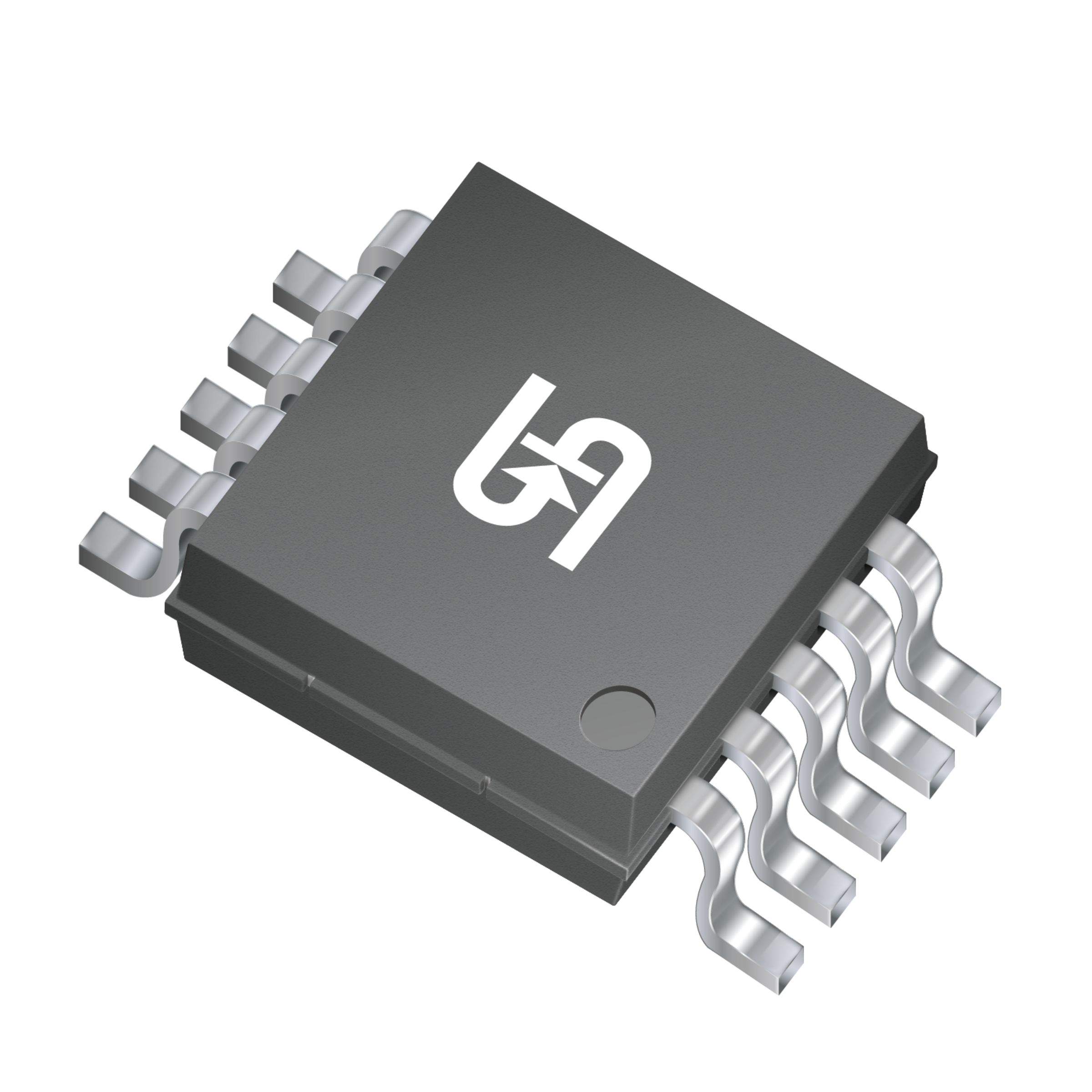

TS19503CB10H RBG
Taiwan Semiconductor LED Motion Driver 1 2.000mA 1.000kHz MSOP-10 AEC-Q100
Manufacturer Part No.
TS19503CB10H RBG
Schukat Part No.
TS19503CB10H RBG
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
9.975 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- LED Motion Driver
- Supply Voltage Min.
- 4.5 V
- Supply Voltage Max.
- 75 V
- Number of Channels
- 1
- Output current
- 2,000 mA
- Switching frequency
- 1,000 kHz
- Manufacturer Package
- MSOP-10
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Electrical properties
- Number of Channels
- 1
- Supply Voltage Min.
- 4.5 V
- Output current
- 2,000 mA
- Supply Voltage Max.
- 75 V
- Switching frequency
- 1,000 kHz
Safety/Certifications
- Qualification
- AEC-Q100
