TQM84KDCU6 RFG

Taiwan Semiconductor SMD/SMT Small Signal MOSFET P-Channel -0,17A 0,32W 6.000mOhm  SOT-363 AEC-Q101

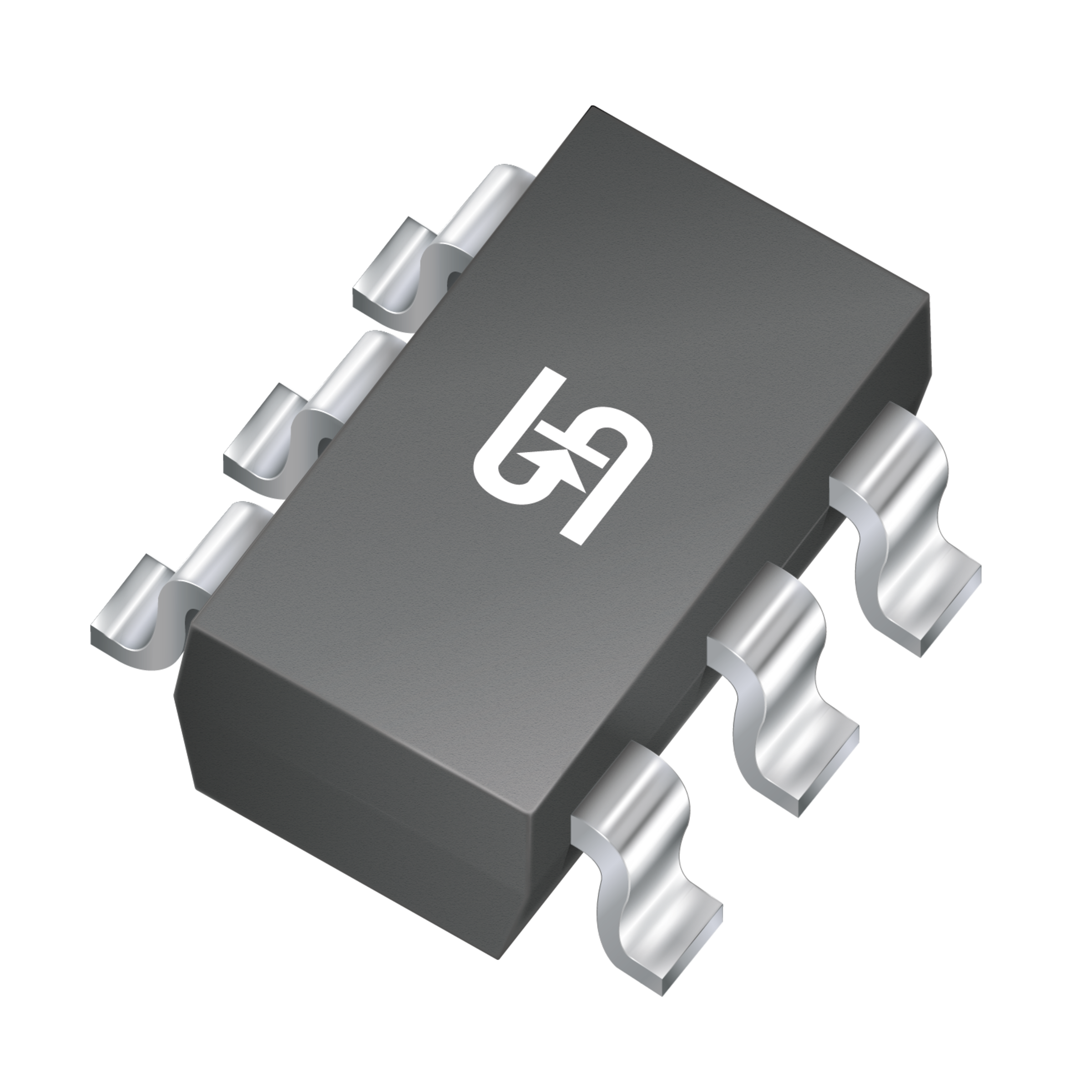

Image similar
NEW
Manufacturer Part No.
TQM84KDCU6 RFG
Schukat Part No.
TQM84KDCU6 RFG
Manufacturer
Taiwan Semiconductor
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

6.000 Pcs. in stock

Planned delivery time
Ø 25 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Number of Channels
2
Polarity
P-Channel
(Id) Continuous Drain Current
-0,17 A
-0,17 A
(Pd) Power Dissipation
0.32 W
(RDS(on)) Drain-Source Widerstand max.
6,000 mOhm
Manufacturer Package
SOT-363
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Taiwan Semiconductor
Type
  • Small Signal MOSFET
Series
  • TQM84_
Packaging
  • Reel
Assembly Type
  • SMD/SMT
Pin Count
  • 6
Manufacturer Package
  • SOT-363

Operating conditions

Operating Temperature Min.
  • -55 °C
Operating Temperature Max.
  • 150 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 150 °C

Electrical properties

(Uds) Max. Drain-Source Voltage Q1
  • -60 V
(Uds) Max. Drain-Source Voltage
  • -60 V
  • -60 V
(Id) Continuous Drain Current Q1
  • -0.17 A
(Id) Continuous Drain Current
  • -0,17 A
  • -0,17 A
(Ugs) Gate-Source Voltage Q1
  • 20 V V
(Ugs) Gate-Source Voltage
  • 20 V
  • 20 V
Number of Channels
  • 2
Polarity
  • P-Channel
(Pd) Power Dissipation
  • 0.32 W
(RDS(on)) Drain-Source Widerstand max.
  • 6,000 mOhm
(Qg) Gate Charge Q1
  • 1 nC
(Qg) Gate Charge
  • 1 nC
  • 1 nC

Safety/Certifications

Qualification
  • AEC-Q101
