TQL820CA14V33 RLG

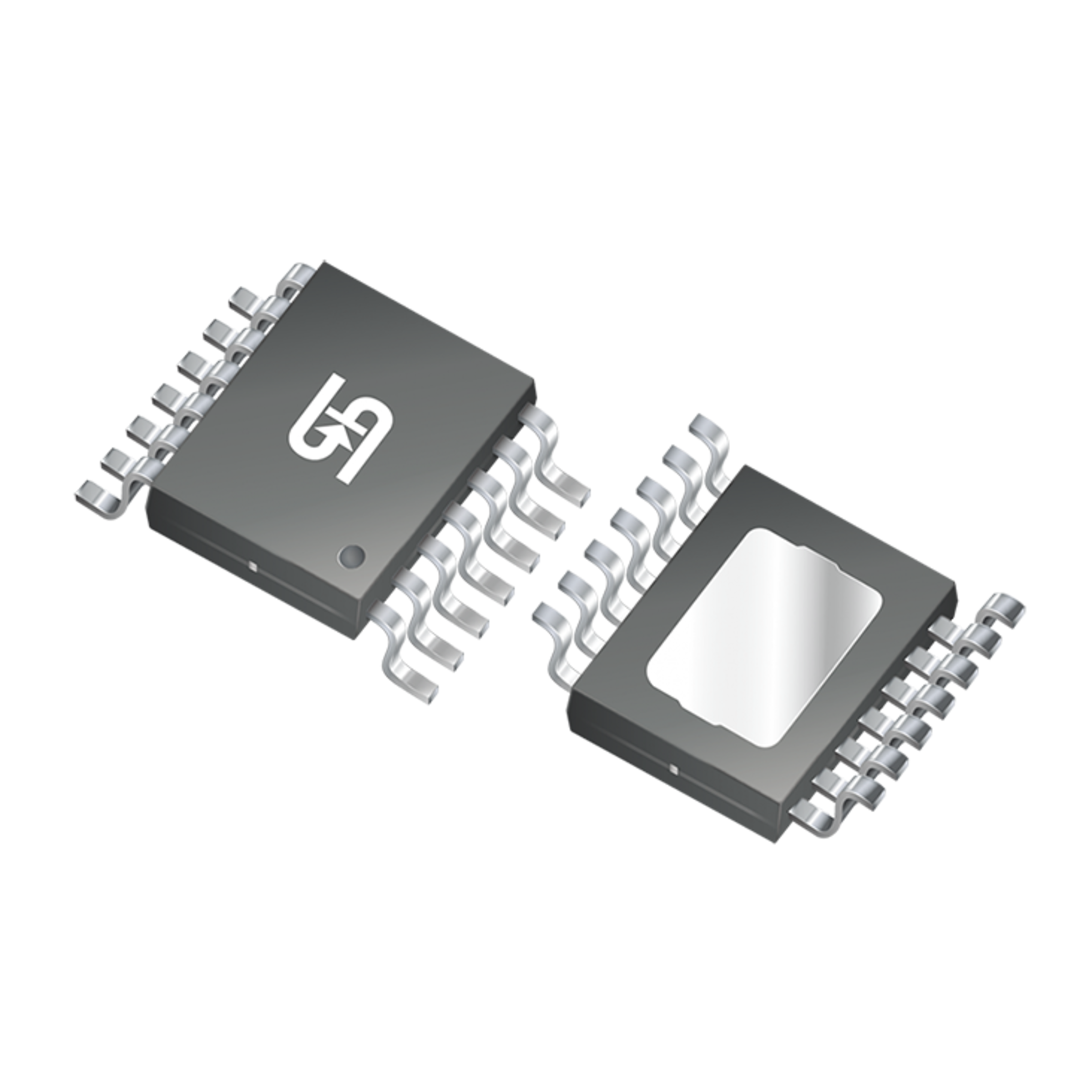

Taiwan Semiconductor LDO Voltage Regulator 200mA 50V TSSOP-14EP AEC-Q100
Manufacturer Part No.
TQL820CA14V33 RLG
Schukat Part No.
TQL820CA14V33 RLG
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.000 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- LDO Voltage Regulator
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 50 V
- Output Voltage Min./Fixed
- 3.3 V
- Output current
- 200 mA
200 mA - Number of Channels
- 1
- Droput Voltage
- 0.11 V
- Manufacturer Package
- TSSOP-14EP
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 150 °C
Electrical properties
- Number of Channels
- 1
- Supply Voltage Min.
- 3 V
- Output Current 1
- 200 mA
- Droput Voltage
- 0.11 V
- Supply Voltage Max.
- 50 V
- Output current
- 200 mA
- 200 mA
- Output Voltage Min./Fixed
- 3.3 V
Safety/Certifications
- Qualification
- AEC-Q100
