TESDL24VB17P1Q1 RNG

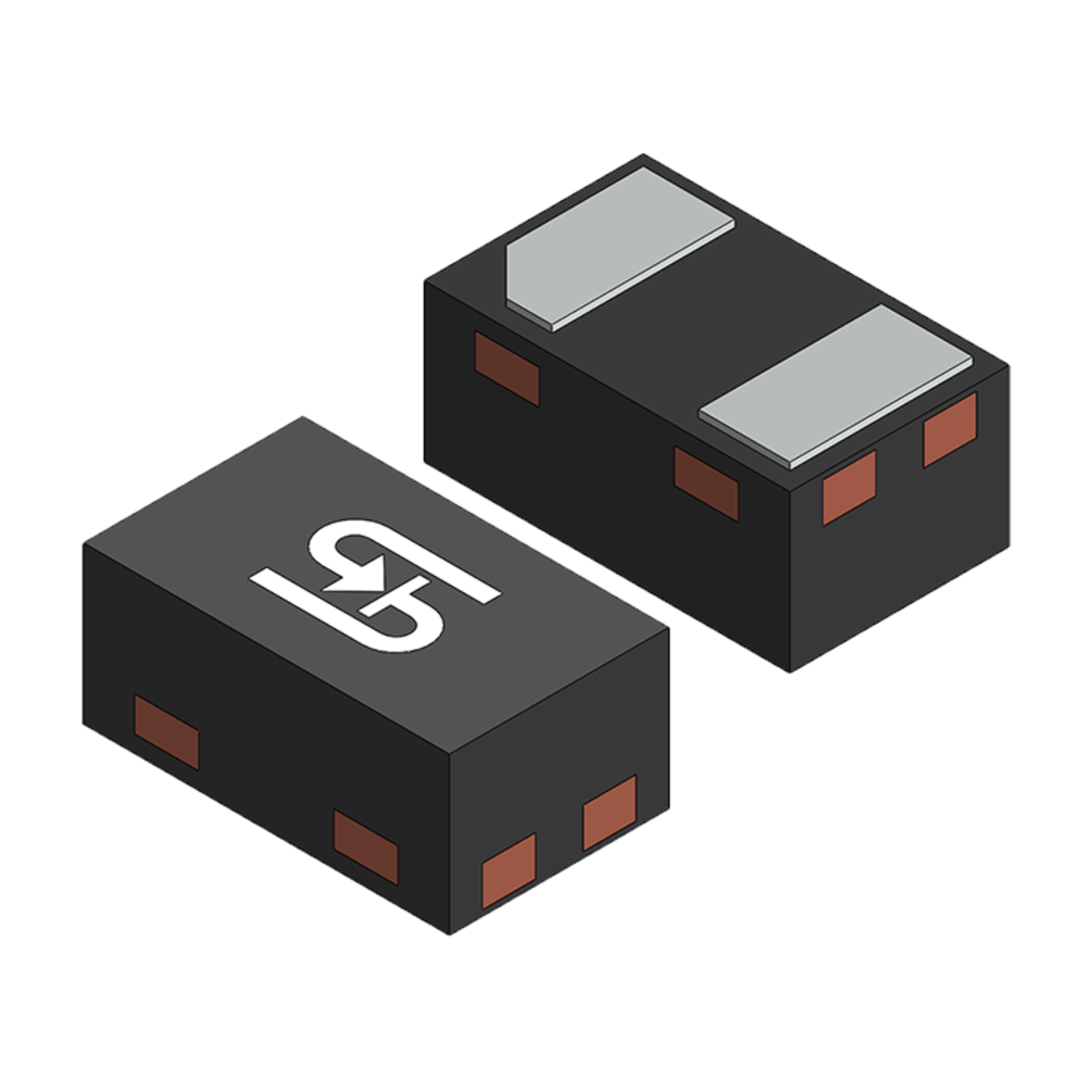

Taiwan Semiconductor SMD/SMT ESD Protection Diode Bidirectional 150W DFN1006-2L
NEW
Manufacturer Part No.
TESDL24VB17P1Q1 RNG
Schukat Part No.
TESDL24VB17P1Q1RNG
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 27/2026
10.000 Pcs.
10.000 Pcs.
Planned delivery time
Ø 103 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Polarity
- Bidirectional
- ((Pppm) Peak PulsePower Dissapation
- 150 W
- (Uesd) ESD Voltage Contact
- 30 kV
- (Uesd) ESD Voltage Air Gap
- 30 kV
- Number of Channels
- 1
- RoHS-Conform
Specifications
Open all
Operating conditions
- Barrier Layer temperature, min. (TJ)
- -55 °C
- Barrier Layer Temperature, max. (TJ)
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- Polarity
- Bidirectional
- ((Pppm) Peak PulsePower Dissapation
- 150 W
- (Uesd) ESD Voltage Contact
- 30 kV
- (Uesd) ESD Voltage Air Gap
- 30 kV
Output
- Number of Channels
- 1
