TESDH5V0U04P2Q1 RNG

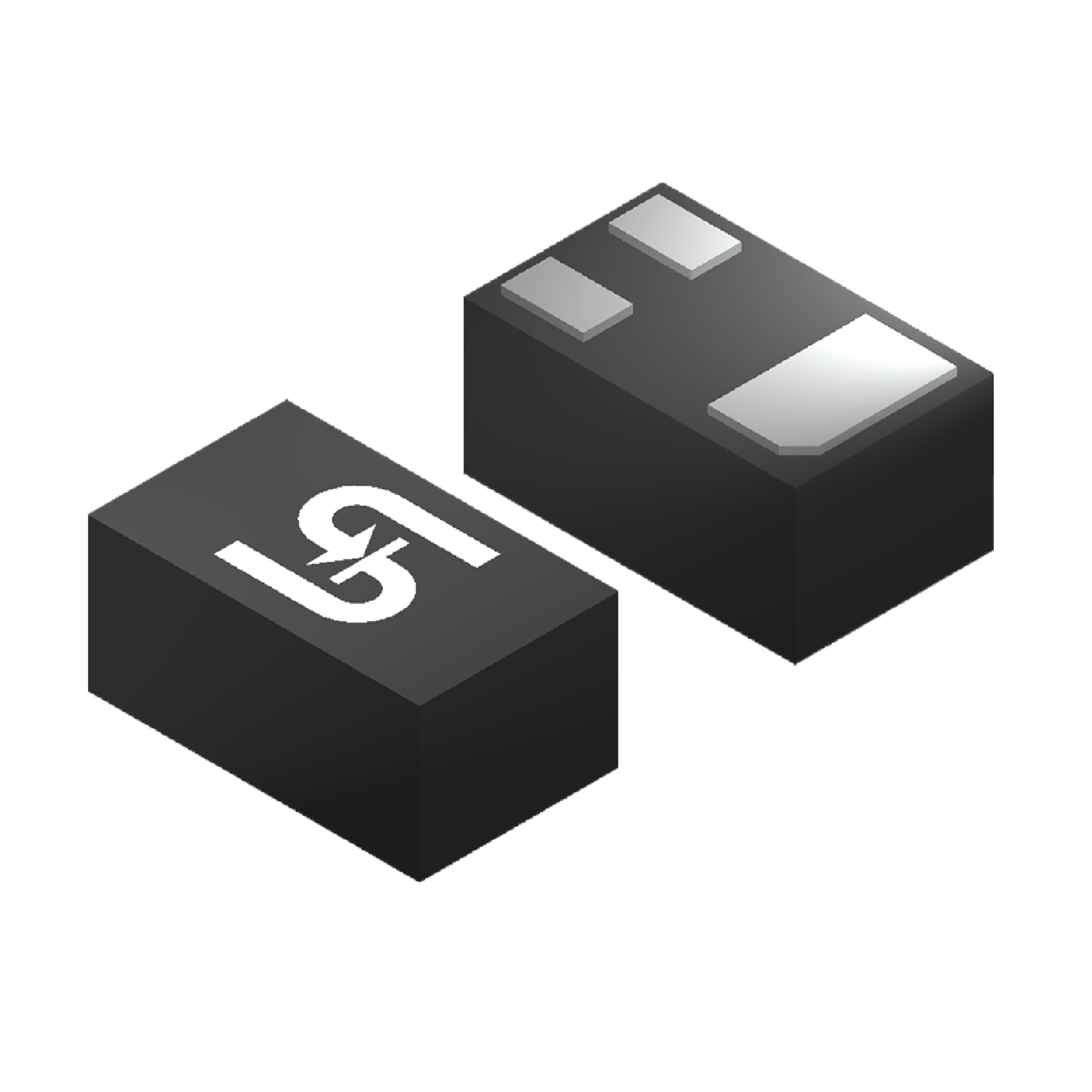

Taiwan Semiconductor SMD/SMT ESD Protection Diode Unidirectional 60W DFN1006-3L
Manufacturer Part No.
TESDH5V0U04P2Q1 RNG
Schukat Part No.
TESDH5V0U04P2Q1RNG
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20.000 Pcs. in stock
Planned delivery time
Ø 27 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Polarity
- Unidirectional
- (Pppm) Spitzenimpuls-Verlustleist.
- 60 W
- (Uesd) ESD Voltage Contact
- 20 kV
- (Uesd) ESD Voltage Air Gap
- 20 kV
- Number of Channels
- 2
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- Polarity
- Unidirectional
- (Cd) Diode Capacitance
- 0.65 pF
- (Pppm) Spitzenimpuls-Verlustleist.
- 60 W
- (Uesd) ESD Voltage Contact
- 20 kV
- (Uesd) ESD Voltage Air Gap
- 20 kV
Output
- Number of Channels
- 2
