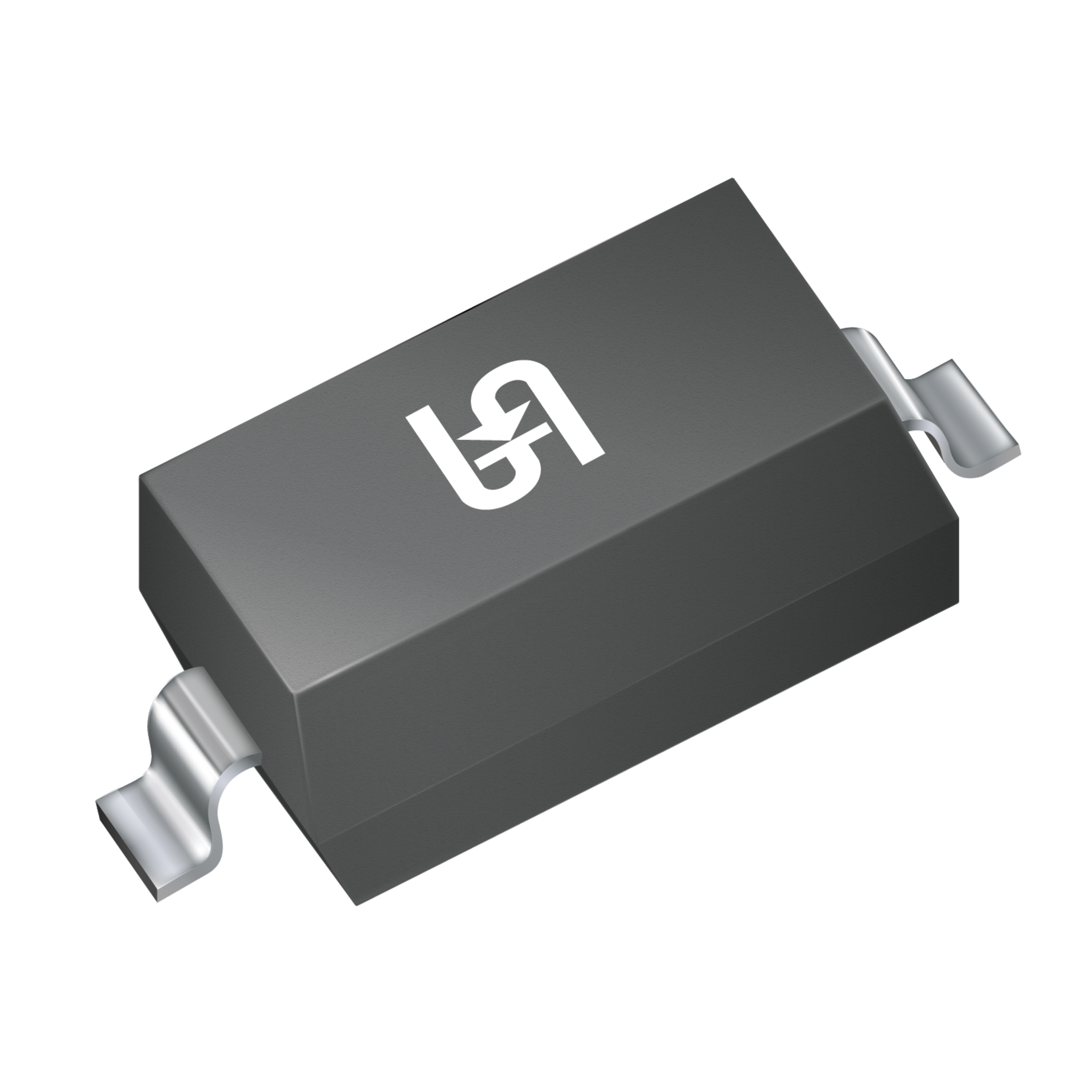

RB500V-40H RRG
Taiwan Semiconductor SMD/SMT Schottky Diode 0,45V 100mA 1000mA SOD-323 AEC-Q101
NEW
Manufacturer Part No.
RB500V-40H RRG
Schukat Part No.
RB500V-40H RRG
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 31/2026
6.000 Pcs.
6.000 Pcs.
Planned delivery time
Ø 28 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 0.45 V
- (If) Forward Current
- 100 mA
- Peak Let-Through Surrent Max.
- 1,000 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 45 V
- (Ir) Reverse Current
- 1,000 nA
- RoHS-Conform
Specifications
Open all
Operating conditions
- Barrier Layer temperature, min. (TJ)
- -55 °C
- Barrier Layer Temperature, max. (TJ)
- 125 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- (Uf) Forward Voltage
- 0.45 V
- (If) Forward Current
- 100 mA
- Peak Let-Through Surrent Max.
- 1,000 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 45 V
- (Ir) Reverse Current
- 1,000 nA
- (Cd) Diode Capacitance
- 6 pF
Safety/Certifications
- Qualification
- AEC-Q101
