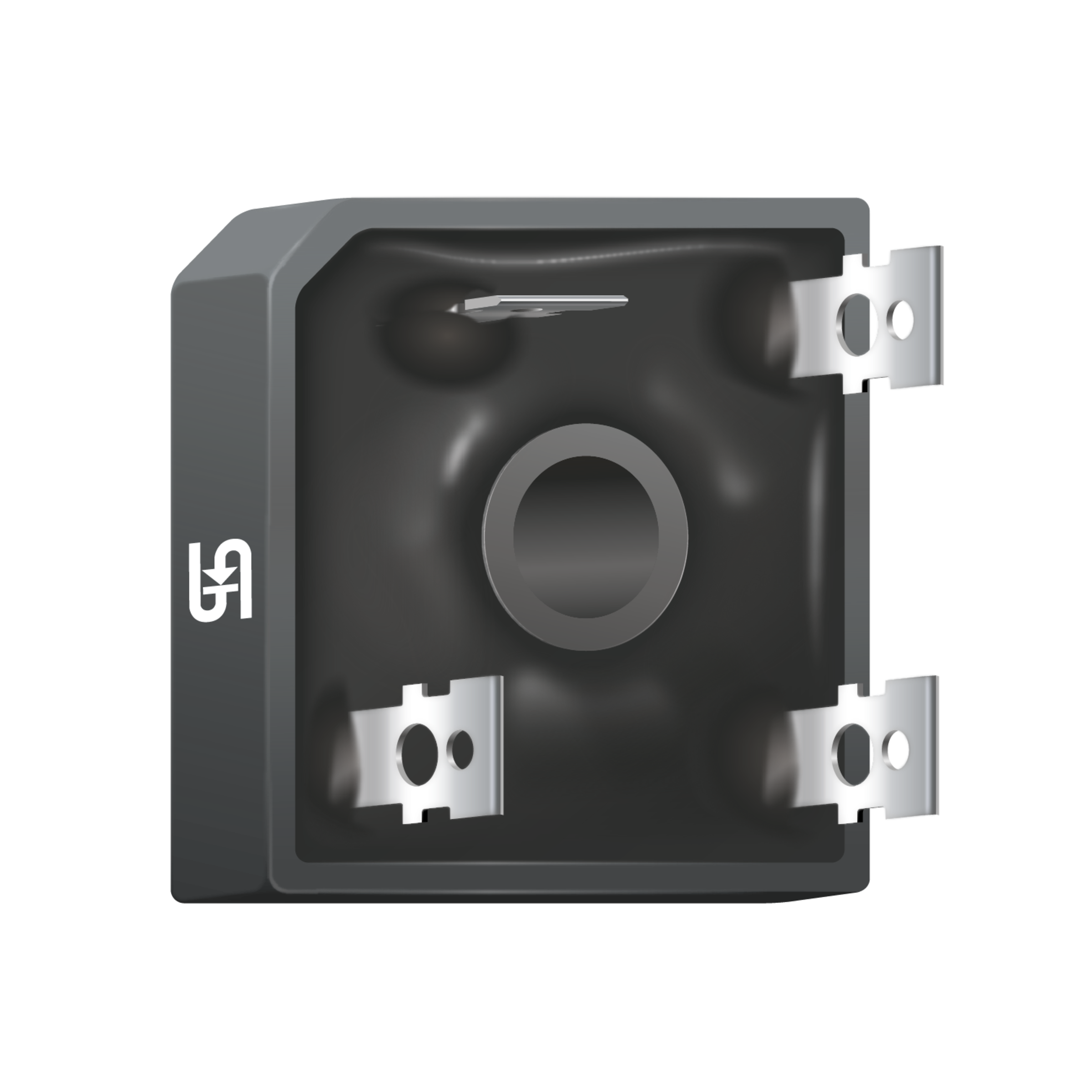

GBPC5001
Taiwan Semiconductor Screw Mount Power Bridge Rectifier 50A 70V 100V 1,1V GBPC-4
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
95 Pcs. in stock
Planned delivery time
Ø 112 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 1.1 V
- (If) Forward Current
- 50 A
- (Urms) RMS Voltage
- 70 V
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 100 V
- Manufacturer Package
- GBPC-4
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (Uf) Forward Voltage
- 1.1 V
- (Urms) RMS Voltage
- 70 V
- (If) Forward Current
- 50 A
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 100 V
- (Ir) Reverse Current
- 10 µA
Safety/Certifications
- Approvals
- UL
