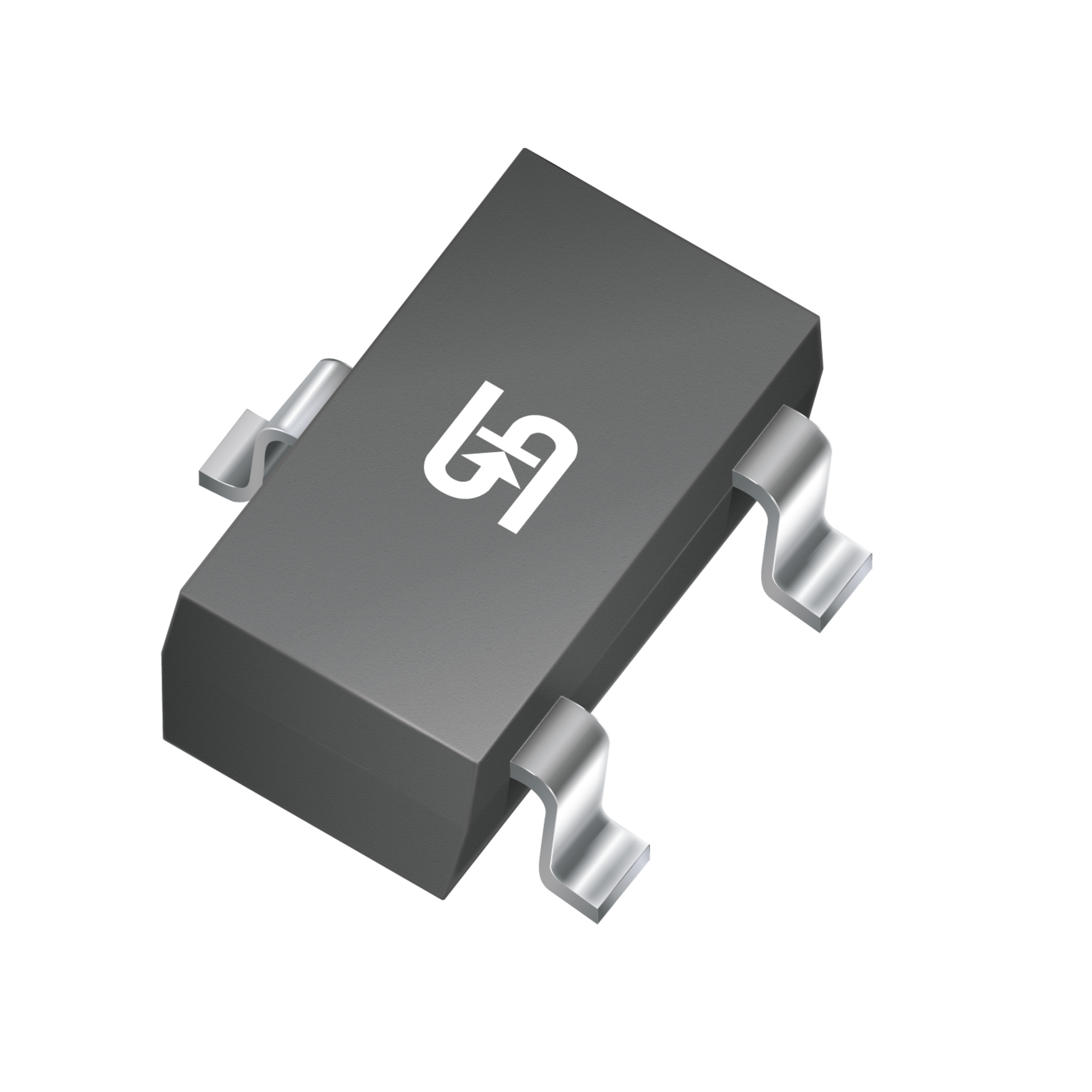

BAV99W RFG
Taiwan Semiconductor SMD/SMT Si Standard Diode 85V 1,25V 150mA SOT-323
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
18.500 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 3000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 1.25 V
- (If) Forward Current
- 150 mA
- Peak Let-Through Surrent Max.
- 4,000 mA
- (Ur) Reverse Voltage
- 75 V
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (Uf) Forward Voltage
- 1.25 V
- (If) Forward Current
- 150 mA
- Peak Let-Through Surrent Max.
- 4,000 mA
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 85 V
- (Ur) Reverse Voltage
- 75 V
- (Ir) Reverse Current
- 1,000 nA
- (Pd) Power Dissipation
- 0.2 W
- Reset Time
- 4 ns
