1SMA200Z

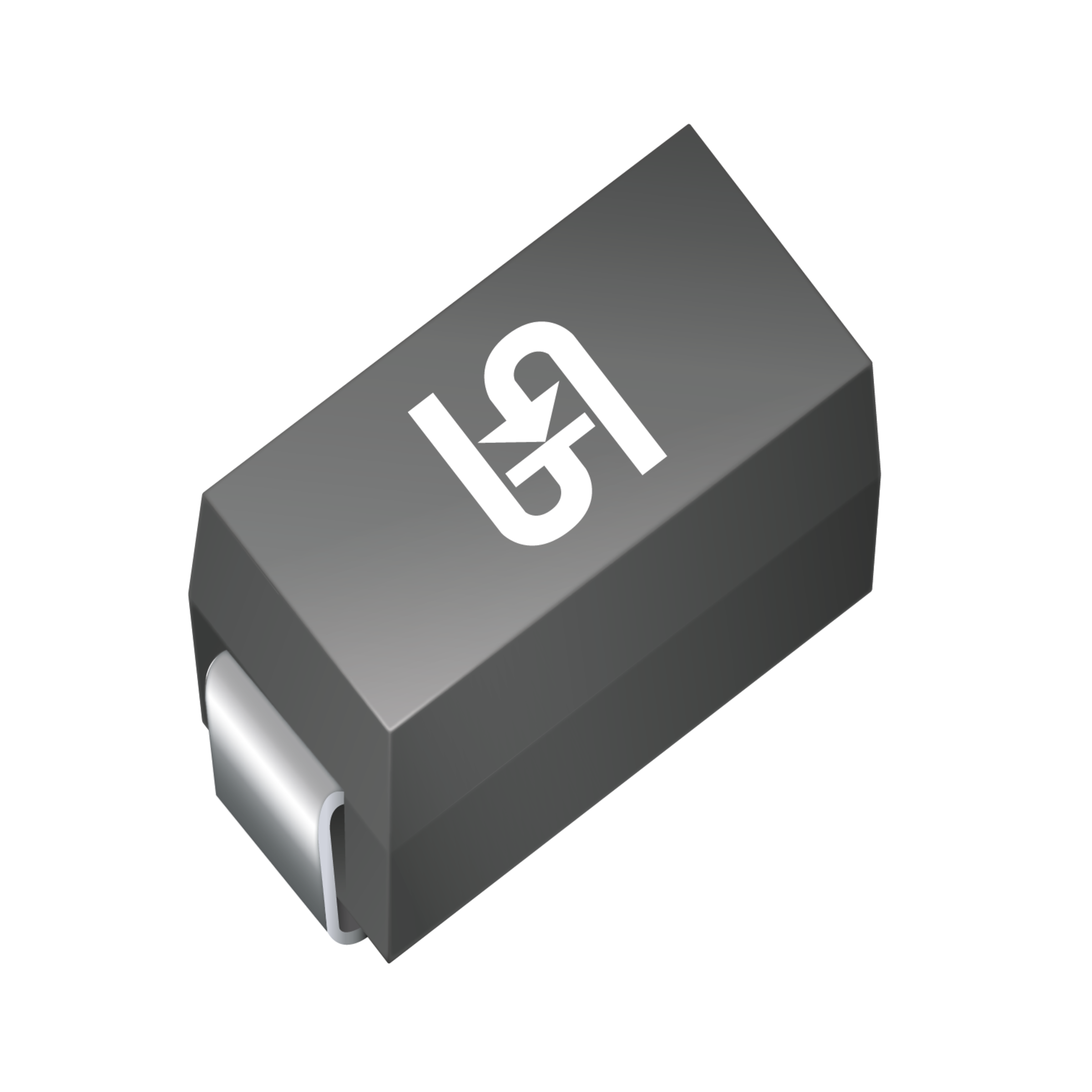

Taiwan Semiconductor SMD/SMT Zener Diode 200V 1W DO-214AC (SMA)

Image similar
Manufacturer Part No.
1SMA200Z
Schukat Part No.
1SMA200Z
Manufacturer
Taiwan Semiconductor
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

5.500 Pcs. in stock

Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 7500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

(Uz) Zener Voltage
200 V
(Pd) Power Dissipation
1 W
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Taiwan Semiconductor
Type
  • Zener Diode
Series
  • 1SMA
Product group
  • V4477 TSC SMD Z-Diodes 1W 1SMA_ SMA
Packaging
  • Reel
Assembly Type
  • SMD/SMT
Manufacturer Package
  • DO-214AC (SMA)
Configuration
  • Single

Operating conditions

Operating Temperature Min.
  • -55 °C
Operating Temperature Max.
  • 175 °C
Storage Temperature Min.
  • -55 °C
Storage Temperature Max.
  • 175 °C

Electrical properties

(Pd) Power Dissipation
  • 1 W
(Uz) Zener Voltage
  • 200 V
