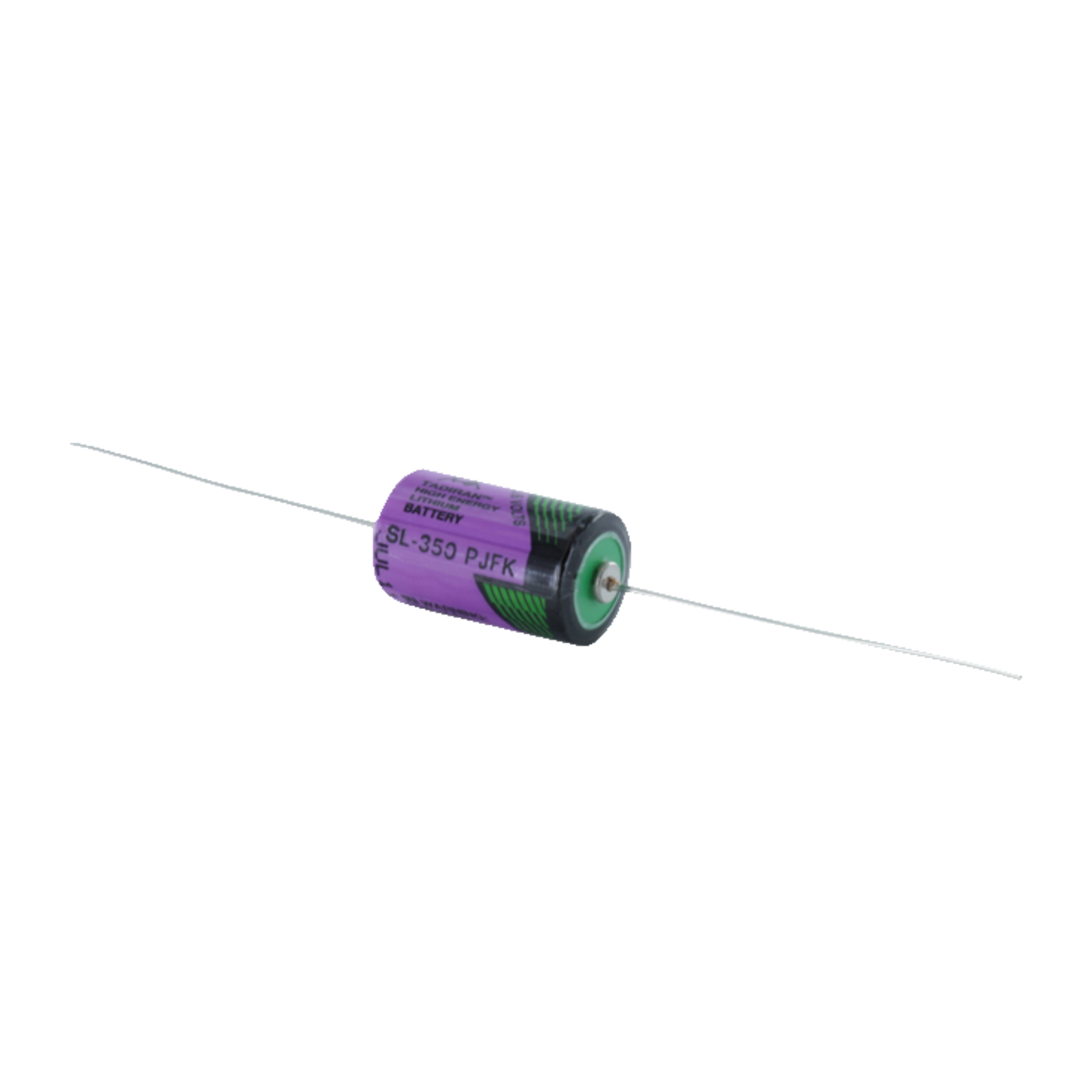

SL-350/P
Tadiran Lithium thionyl chloride (LiSOCl2) Round Cell SL-300 3,6V ER14250 1/2AA Axial Leads
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 27/2026
25 Pcs.
25 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
- Rated Voltage
- 3.6 V
- Nominal capacity
- 1,200 mAh
- Chemical system
- Lithium thionyl chloride (LiSOCl2)
- IEC Code
- ER14250
- Other designation
- 1/2AA
Specifications
Open all
Operating conditions
- Operating temperature min.
- -55 °C
- Operating temperature max.
- 85 °C
- Shelf life (years)
- 10
Electrical features
- Nominal capacity
- 1,200 mAh
- Energy storage, capacity
- 4.32 Wh
- Rated Voltage
- 3.6 V
Hazardous Substances/Goods
- UN Number (Dangerous Goods)
- 3090 - Lithium Metal Battery
Documents
LTN-060-26-z-BIS-1.pdf
T-36-06-SOCl2_SL_general-Rev-P.pdf
technische-broschuere-ltc-batterien.pdf
Test_Summary_SL-350.pdf
