8-1415546-7

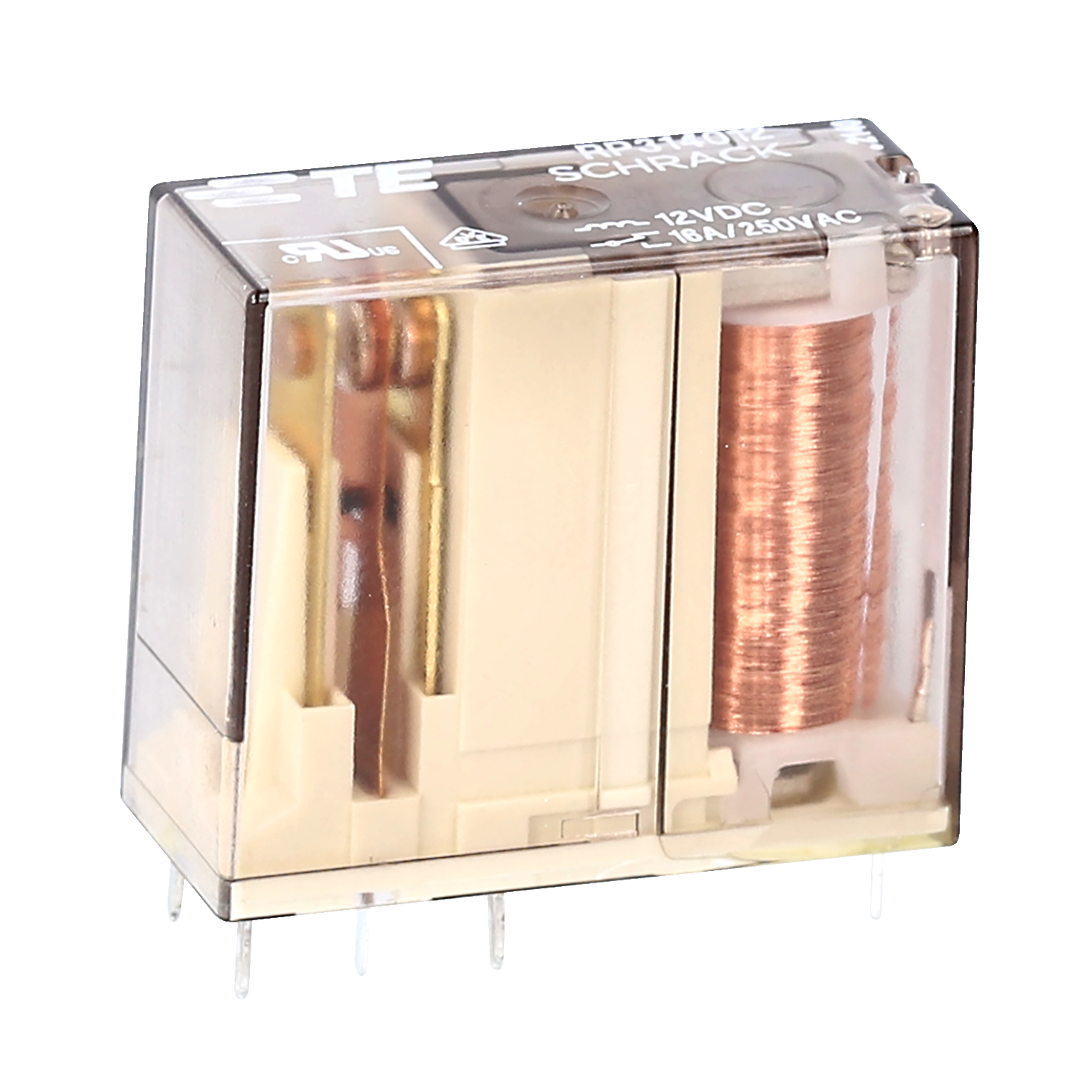

TE Connectivity PC relay RPII/1 THT SPDT 16A 12VDC 270Ohm 29mmx12,6mmx25,5mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 38/2026
500 Pcs.
500 Pcs.
Planned delivery time
Ø 39 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RPII/1

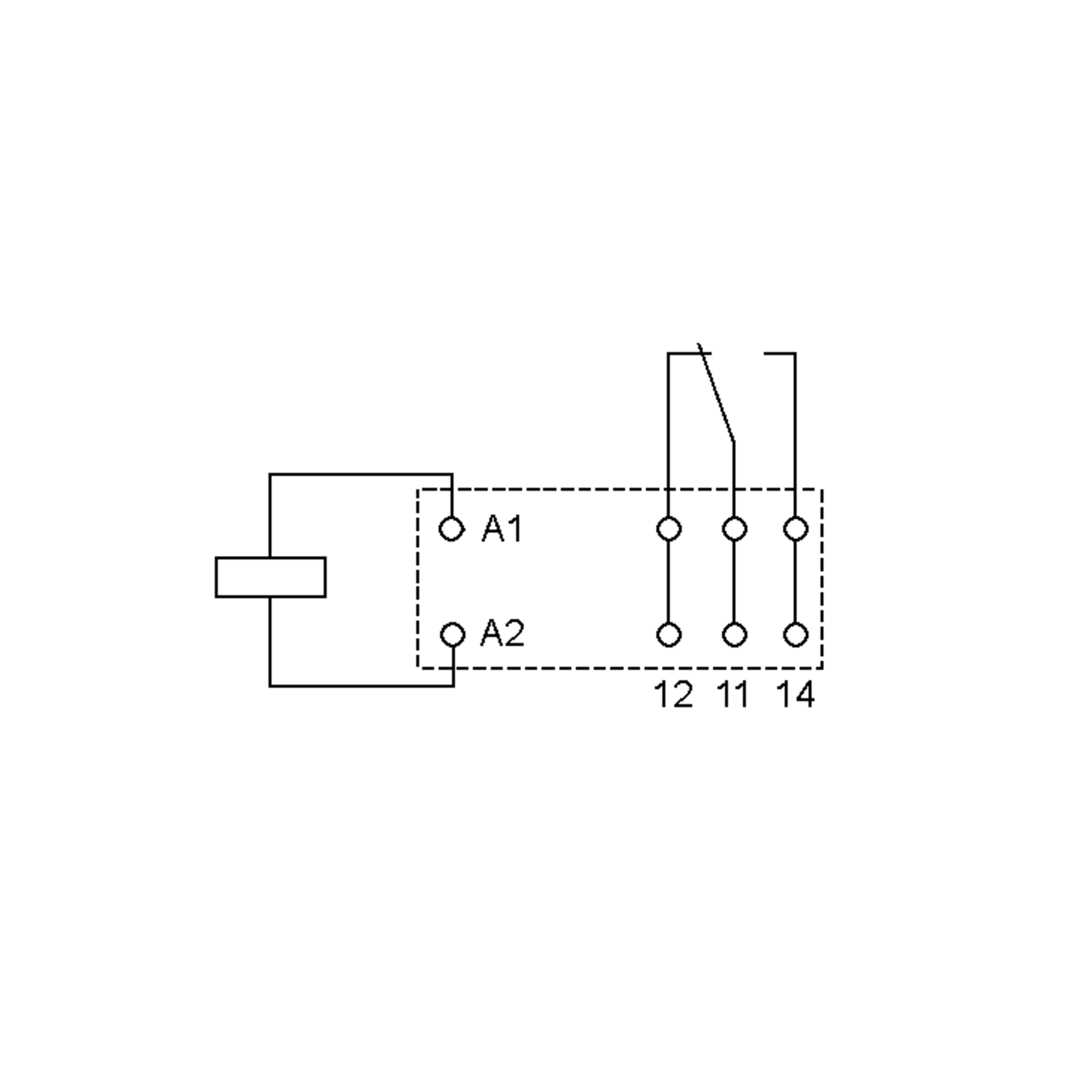

- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 270 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

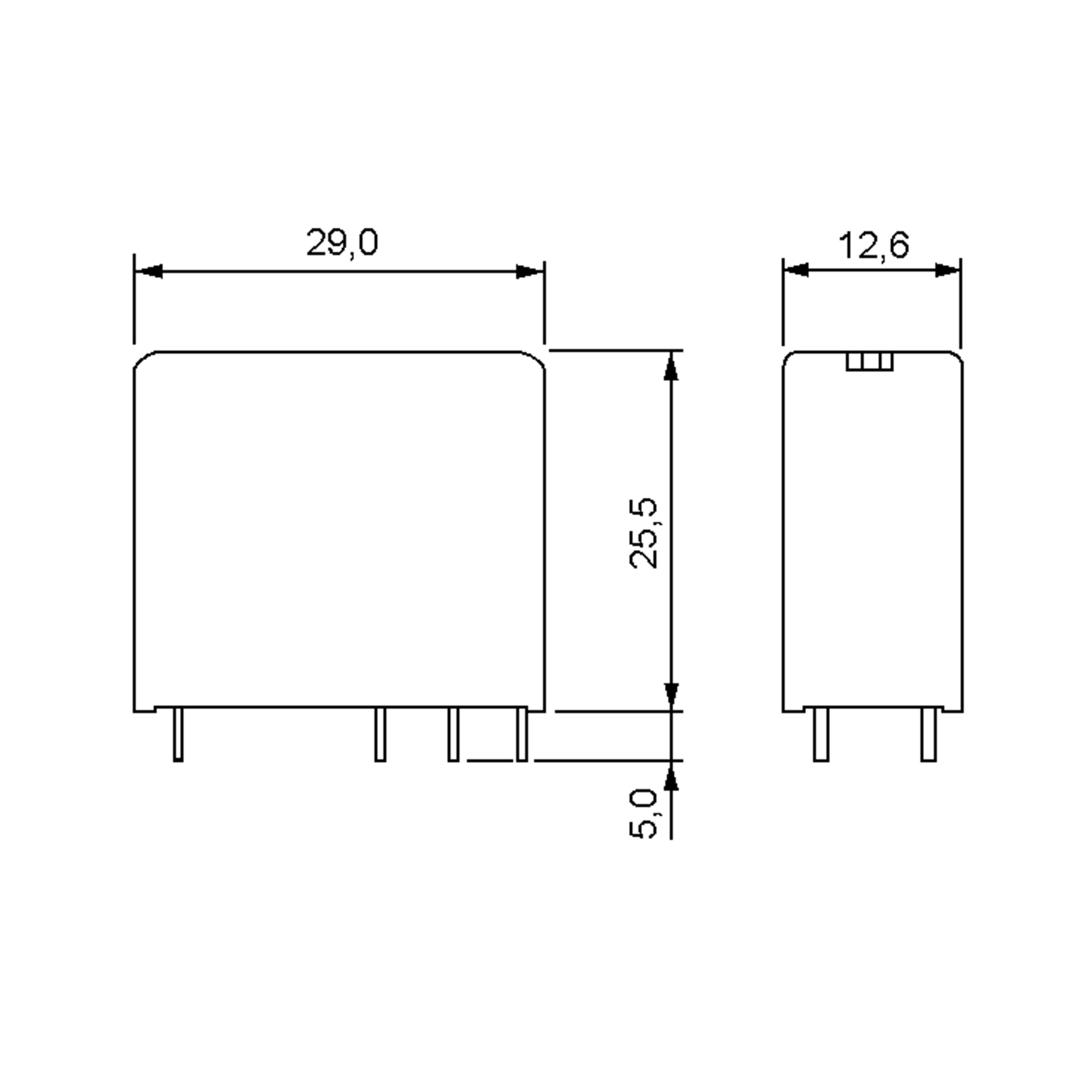

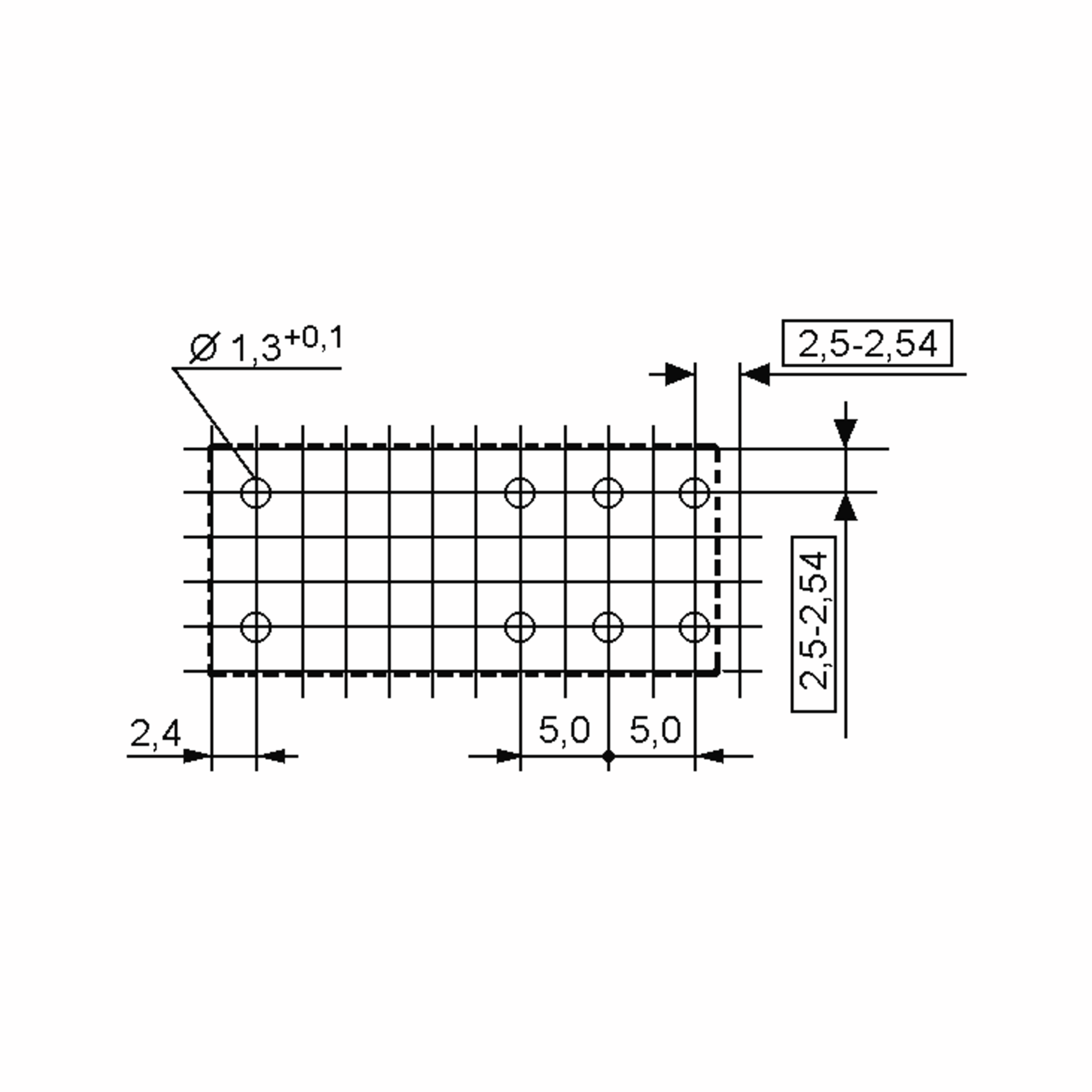

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.6 mm
- Dimension: Height
- 25.5 mm
- Weight
- 19 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Inrush current
- 25 A
- Contact: Switching Capacity (VA)
- 4,000 VA
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 270 Ohm
- Inductor power
- 500 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 8.4 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 8 ms
- Drop-out time
- 2 ms
- Mechanical service life
- 20 x 10^6 operations
- Service life, electrical
- see data sheet
- Vibration resistance
- NO/NC: 10 g / 2 g
- Soldering temperature, max.
- 270°C / 10s
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 61810
- Protection class RT
- RTII
