8-1415535-6

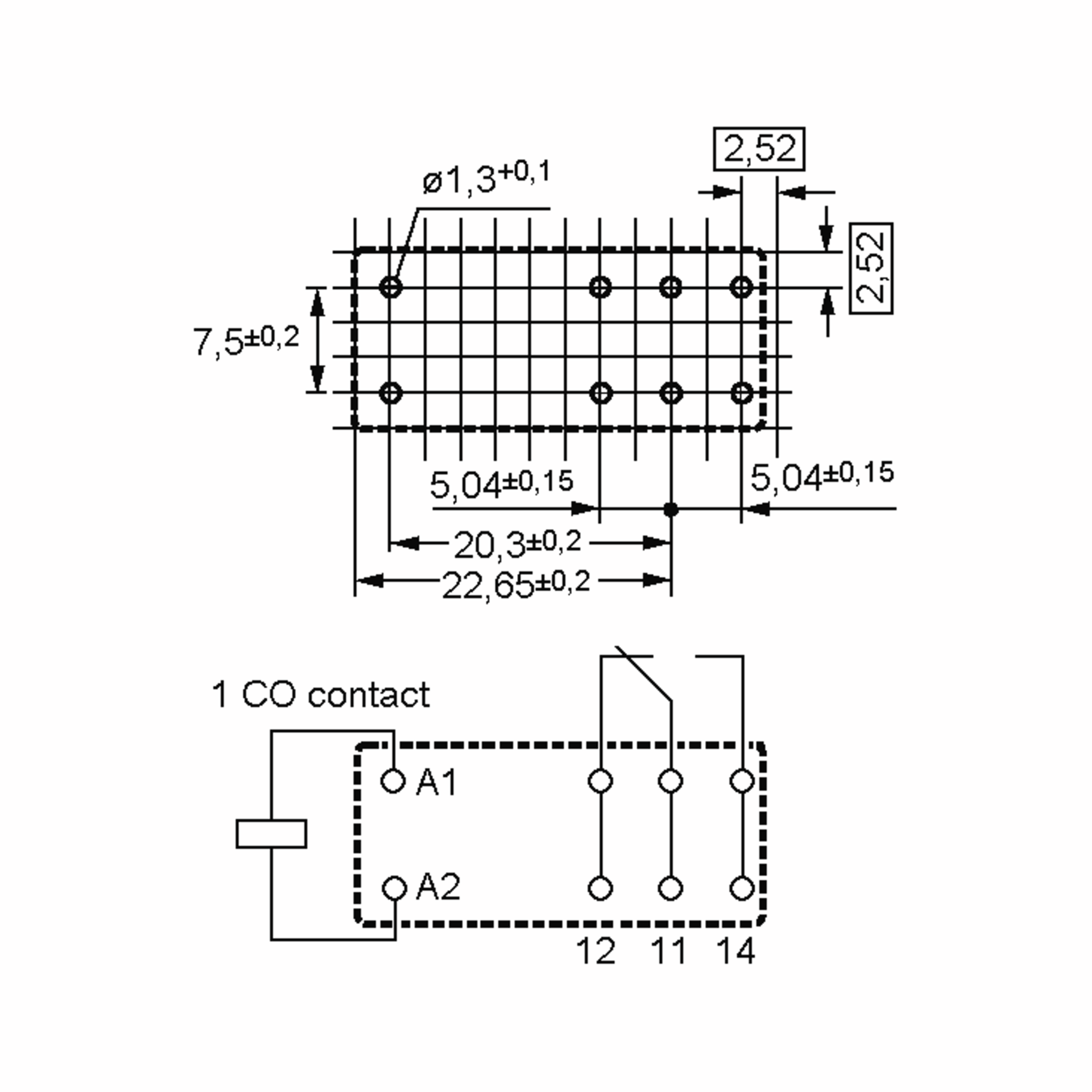

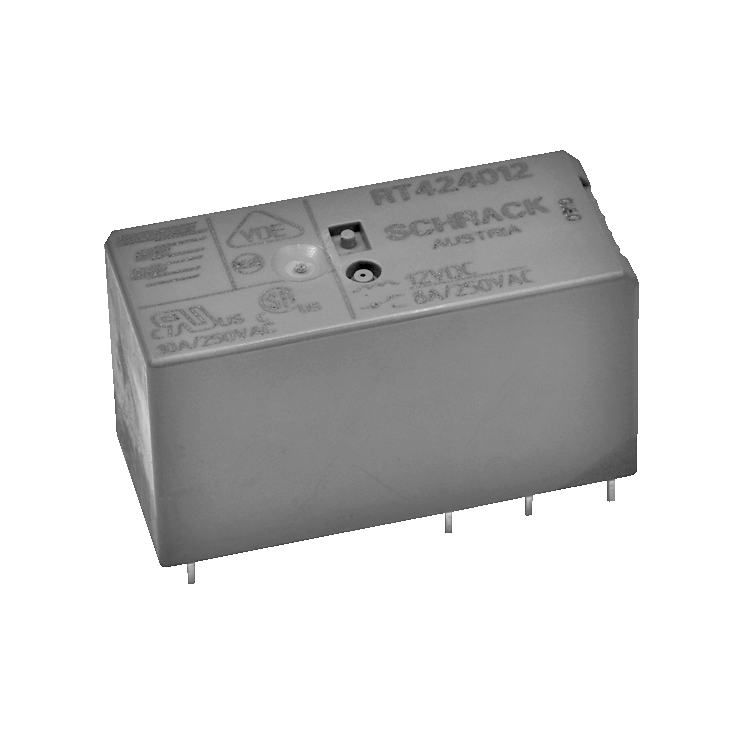

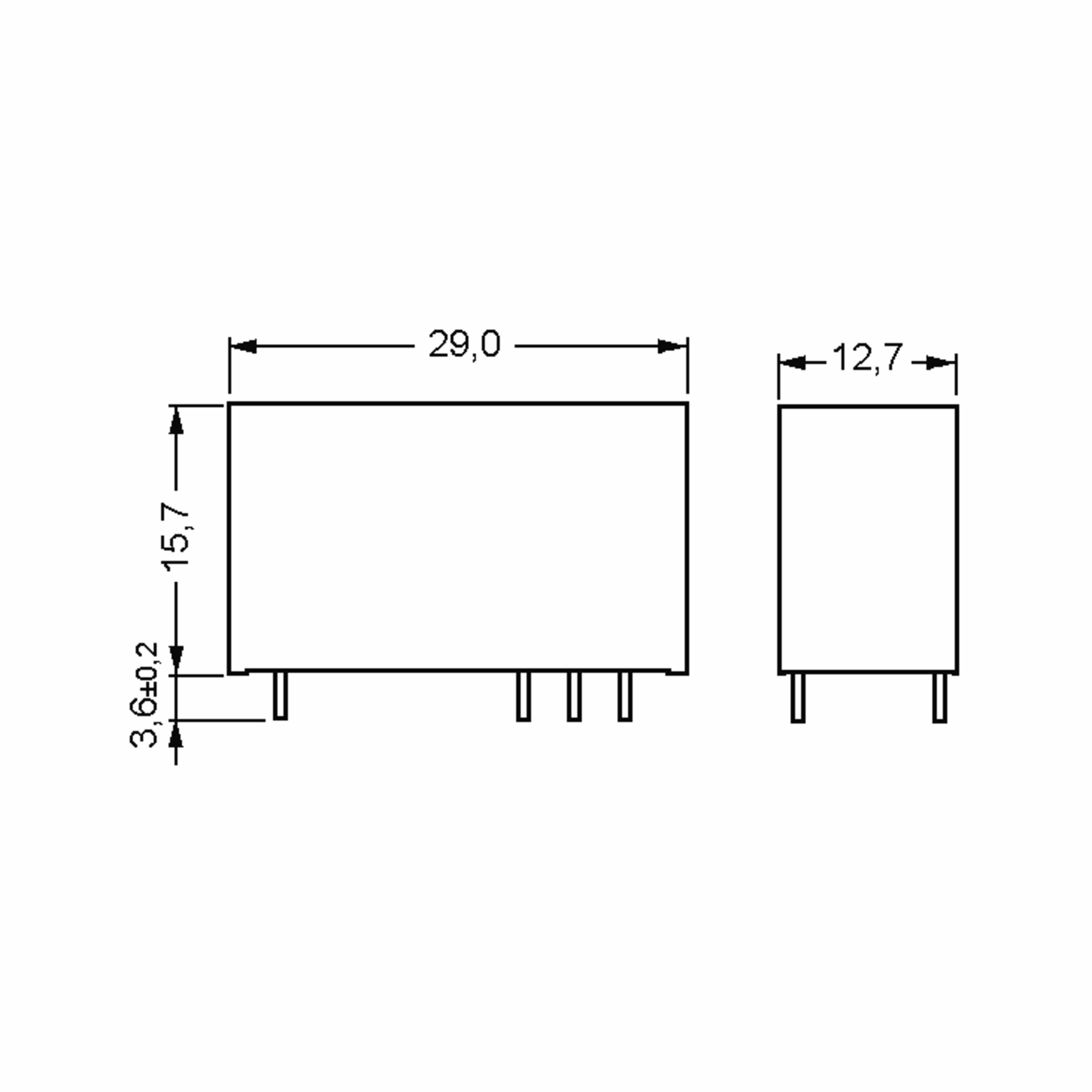

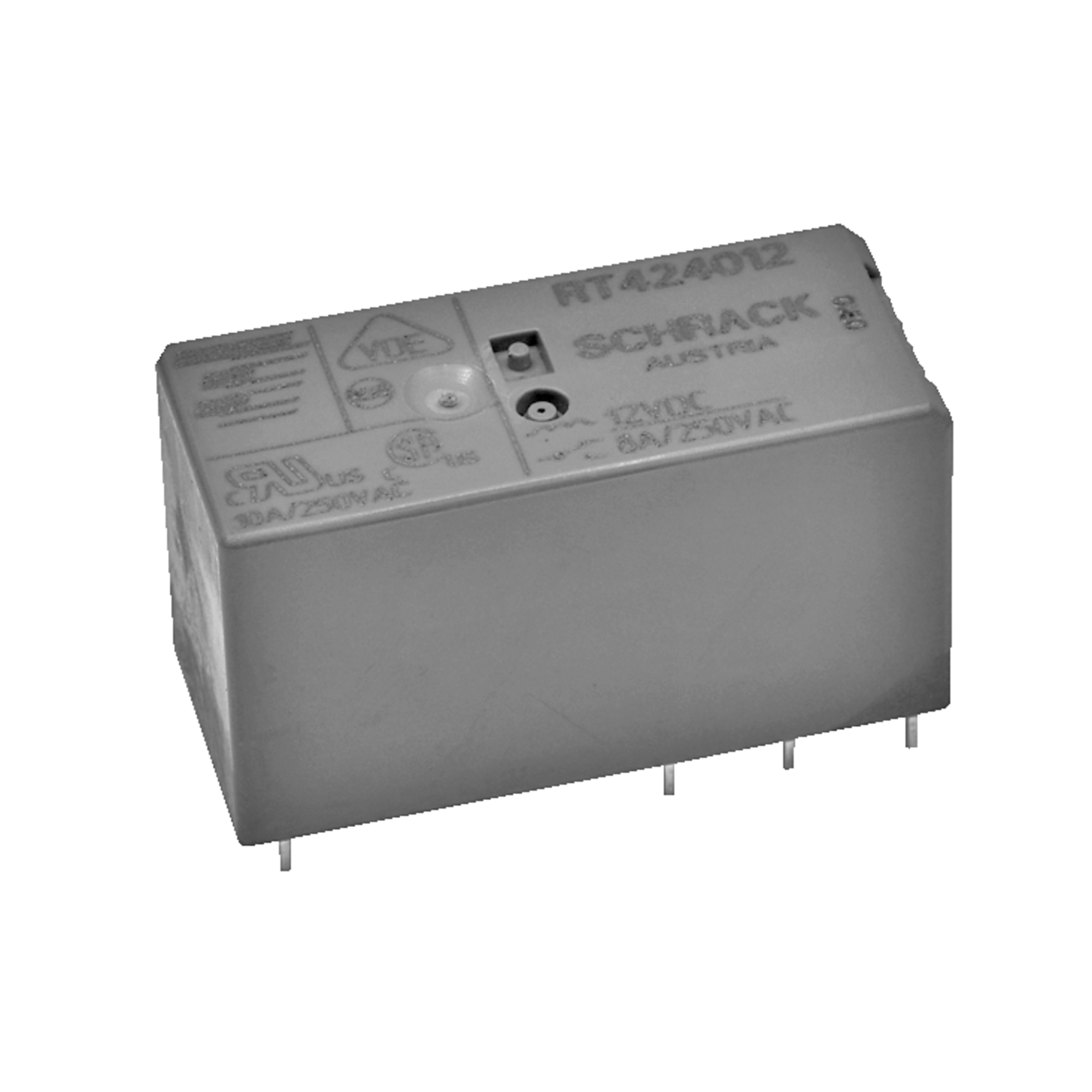

TE Connectivity PC relay RT1 THT SPDT 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
380 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 03.05.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RT1
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 360 Ohm
- Protection class RT
- RTII
- RoHS-Conform
