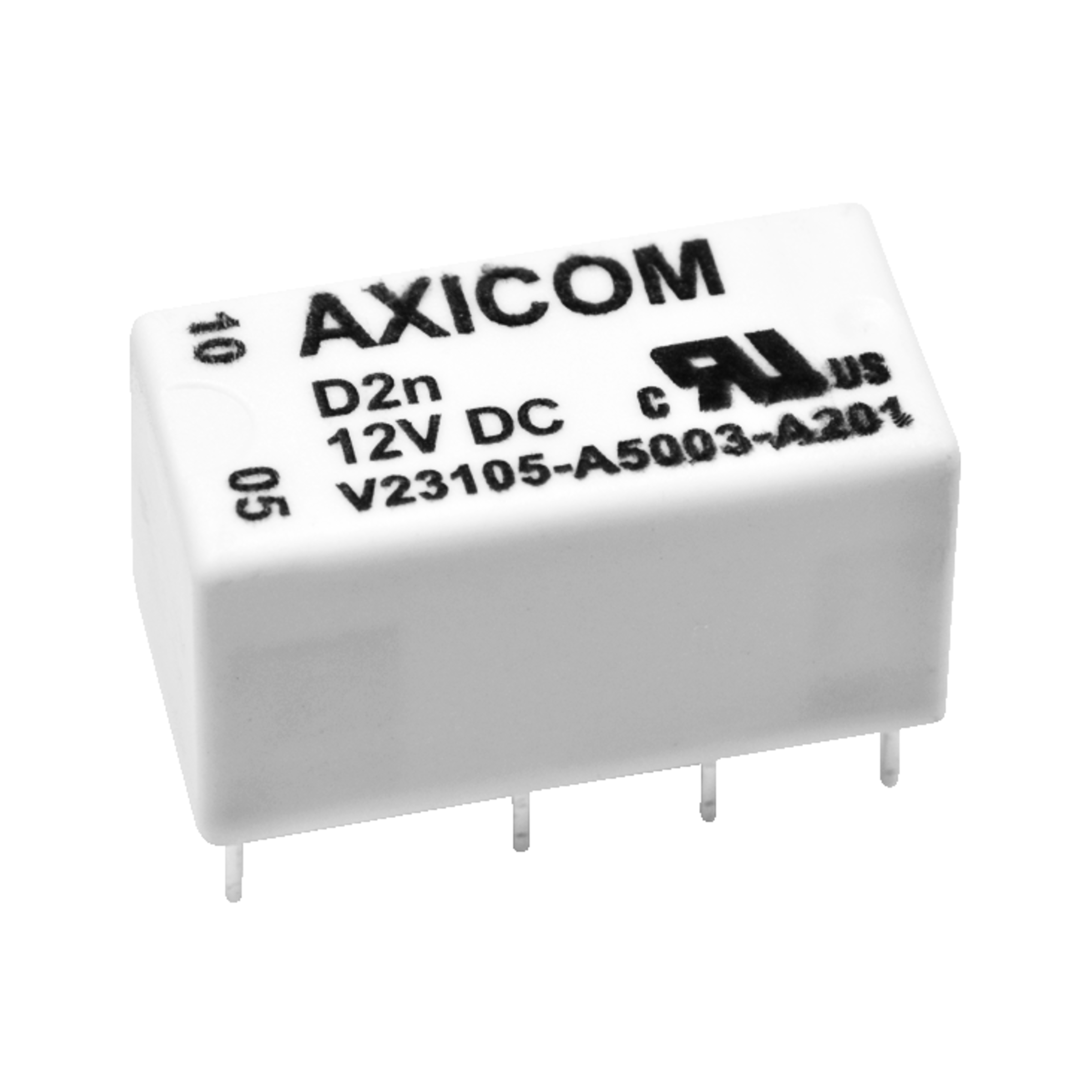

TE Connectivity PC relay D2N V23105 THT DPDT 2A 5VDC 167Ohm 20,2mmx10mmx11mm RTIII
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 31.10.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- D2N V23105
- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 2 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 167 Ohm
- Protection Class
- IP67
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

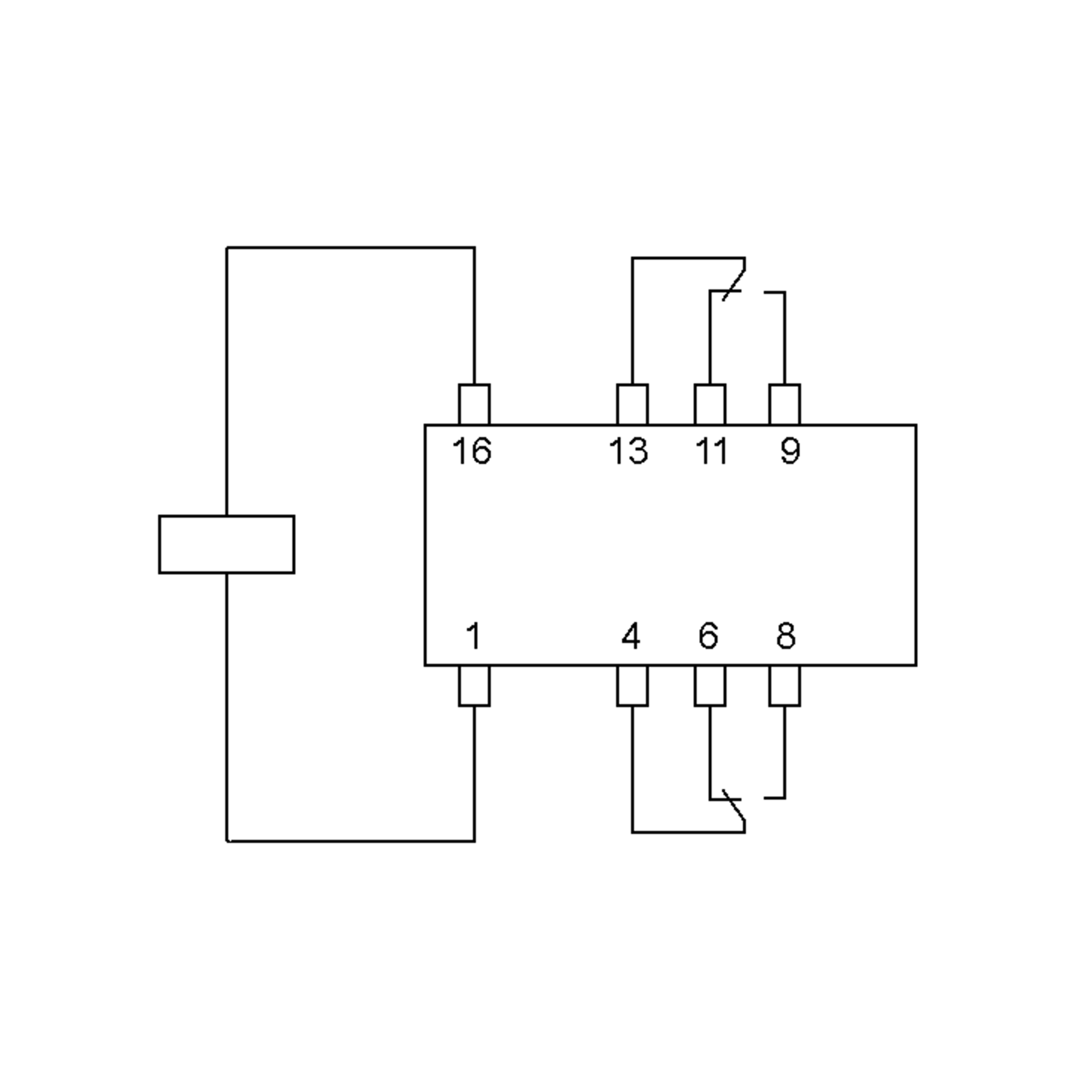

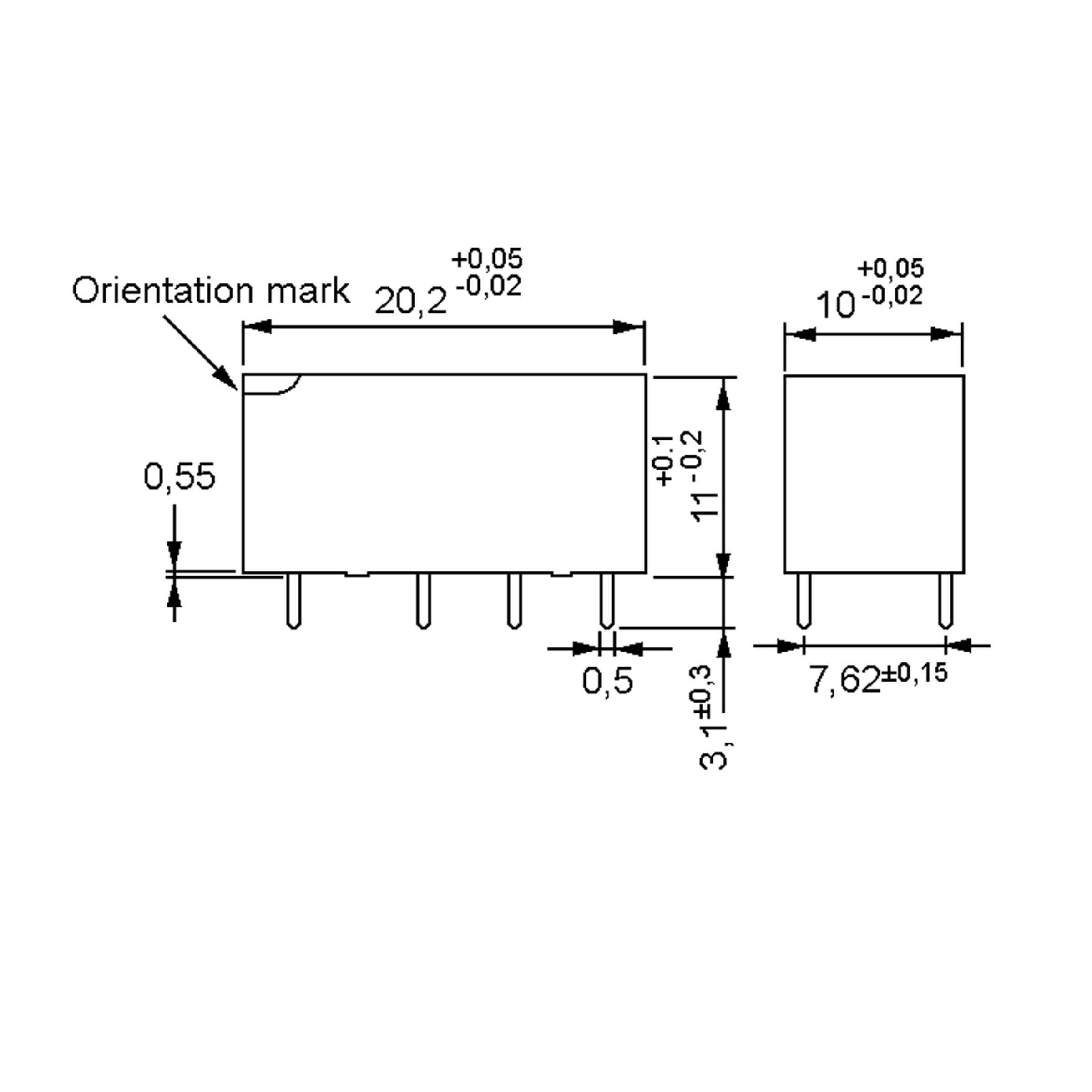

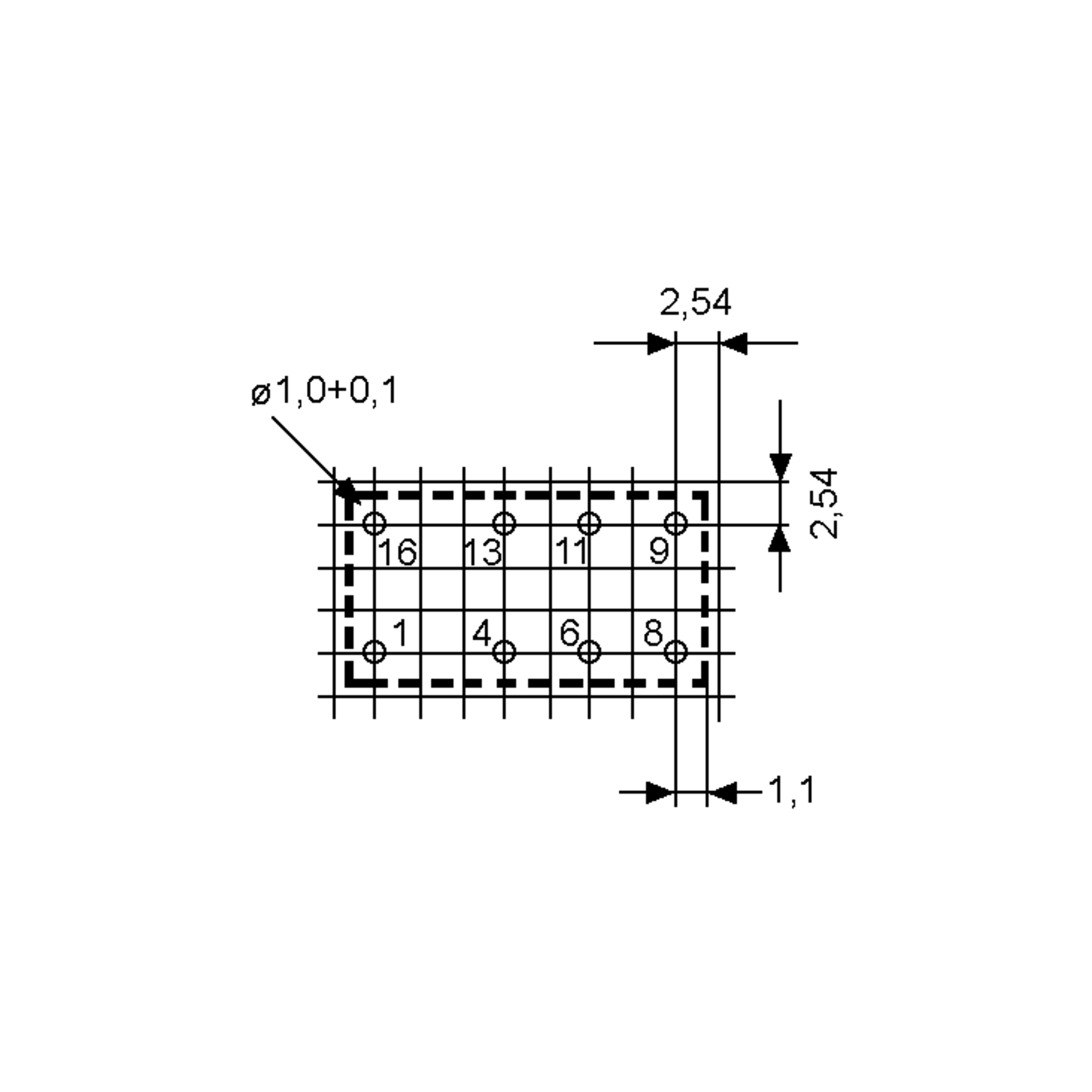

Dimensions and Weights
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 11 mm
- Weight
- 6 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 2 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Switching Voltage, max. DC
- 220 V DC
- Contact: Continuous Current
- 3 A
- Contact: Inrush current
- 3 A
- Contact: Switching Capacity (VA)
- 125 VA
- Contact: Switching Load (W)
- 60 W
- Coil design
- monostable
- Coil resistance
- 167 Ohm
- Inductor power
- 200 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Operating Voltage, min.
- 3.5 V
- Coil: Operating Voltage, max.
- 10.1 V
- Coil: Drop-out Voltage
- 0.25 V
- Test voltage contact/contact
- 750 V AC
- Test voltage coil/contact
- 1,000 V AC
- Mechanical service life
- 15 x 10^6 operations
- Service life, electrical
- see data sheet
- Insulation resistance
- 1.000 MOhm
Safety/Certifications
- Approvals
- cULus
- Standards
- FCC Part 68
- Protection Class
- IP67
- Protection class RT
- RTIII
