8-1393239-8

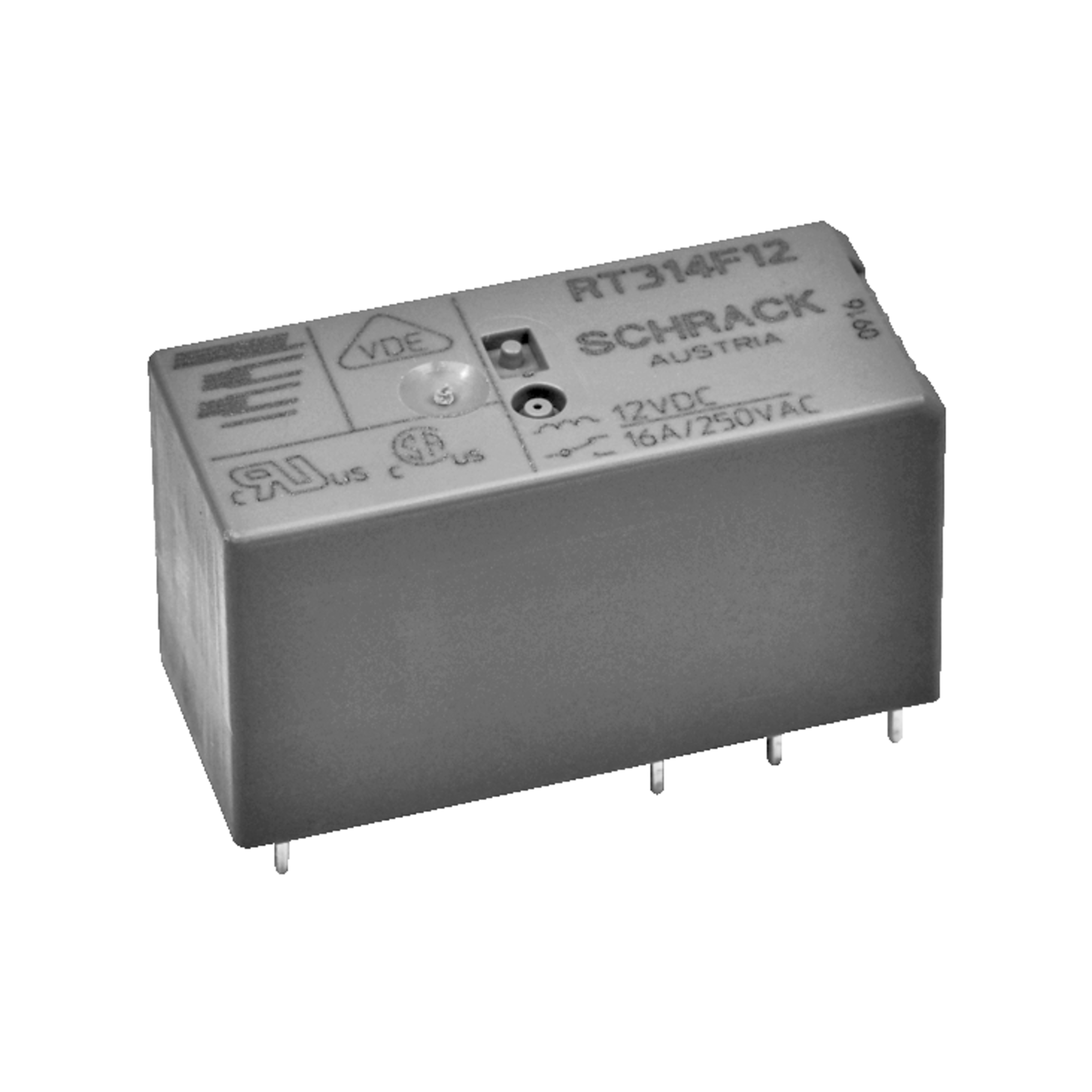

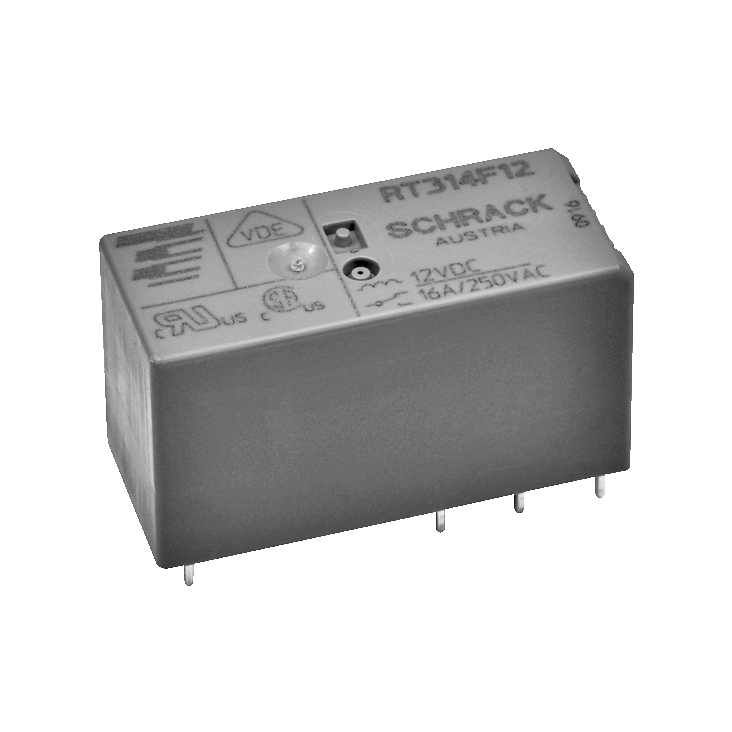

TE Connectivity PC relay RT1 Bistabil THT SPDT 16A 24VDC 886Ohm 29mmx12,7mmx15,7mm RTII
%
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.305 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RT1 Bistabil

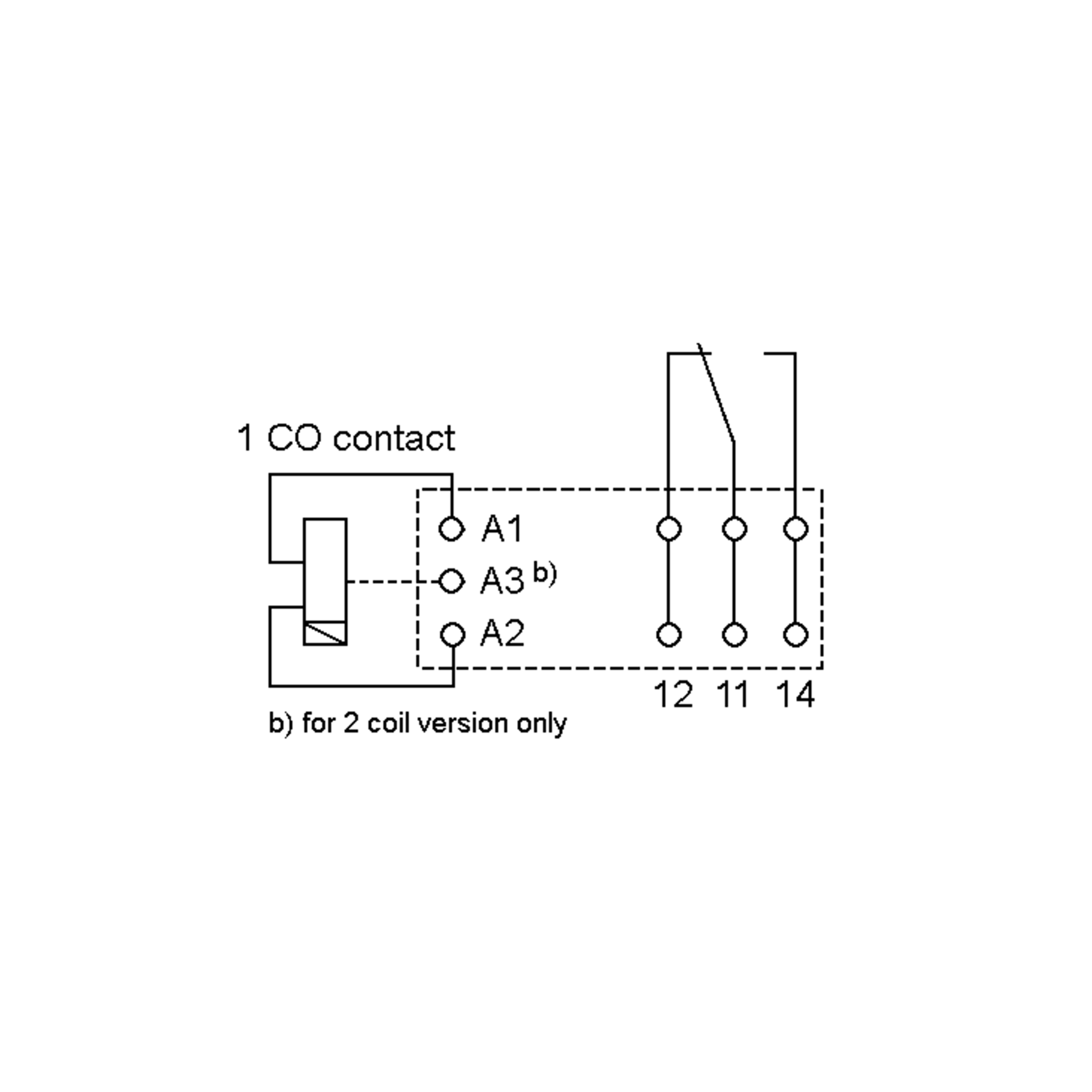

- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 886 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

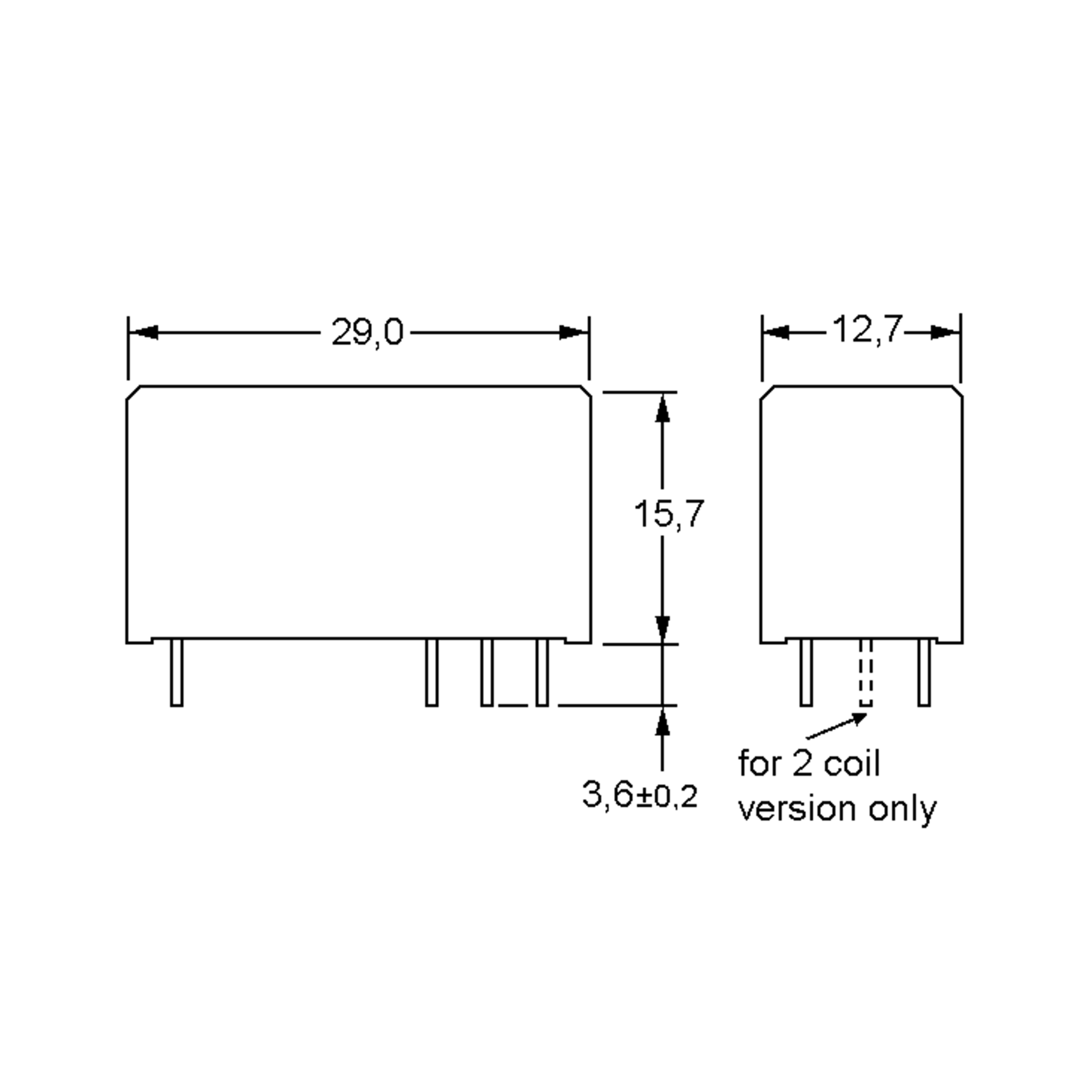

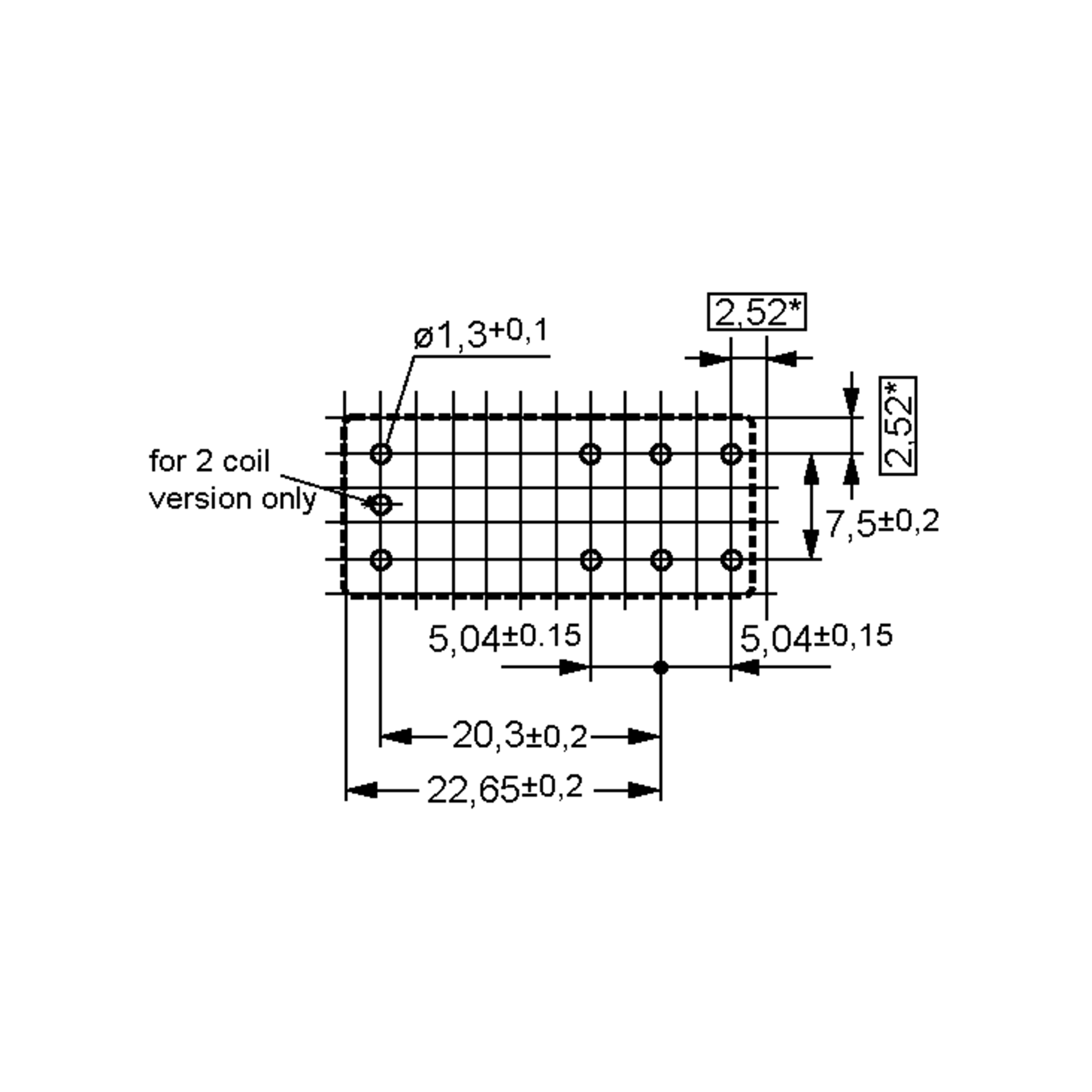

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 16 A
- Contact: Inrush current
- 30 A
- Contact: Switching Capacity (VA)
- 4,000 VA
- Creepage distance
- 10 mm
- Coil design
- bistable
- Coil resistance
- 886 Ohm
- Inductor power
- 650 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, max.
- 36 V
- Coil: Pick-up voltage
- 16.8 V
- Coil: Drop-out Voltage
- 13.2 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 5 x 10^6 operations
- Service life, electrical
- see data sheet
- Soldering temperature, max.
- 270°C / 10s
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 60640-1
- Protection class RT
- RTII
