8-1393215-8

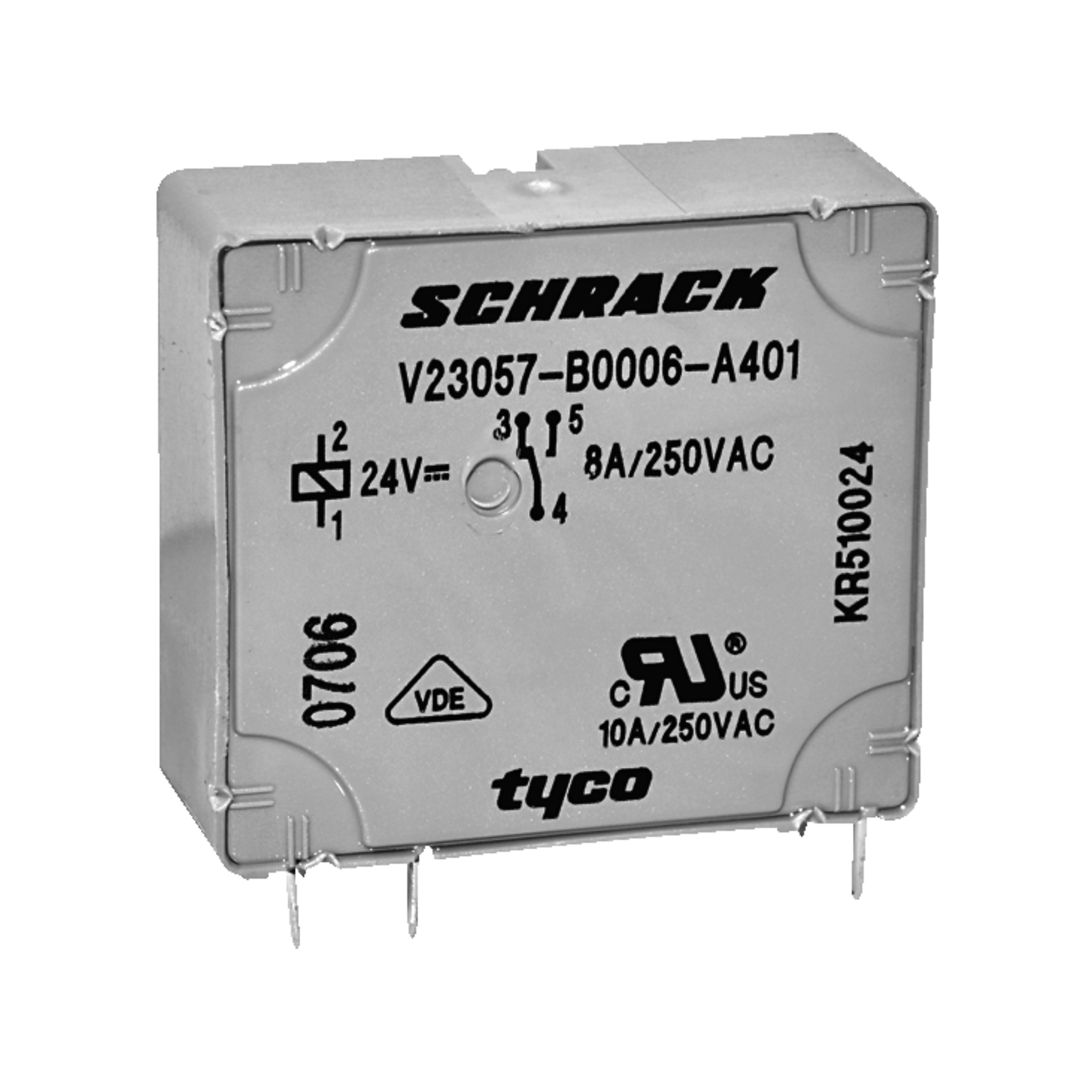

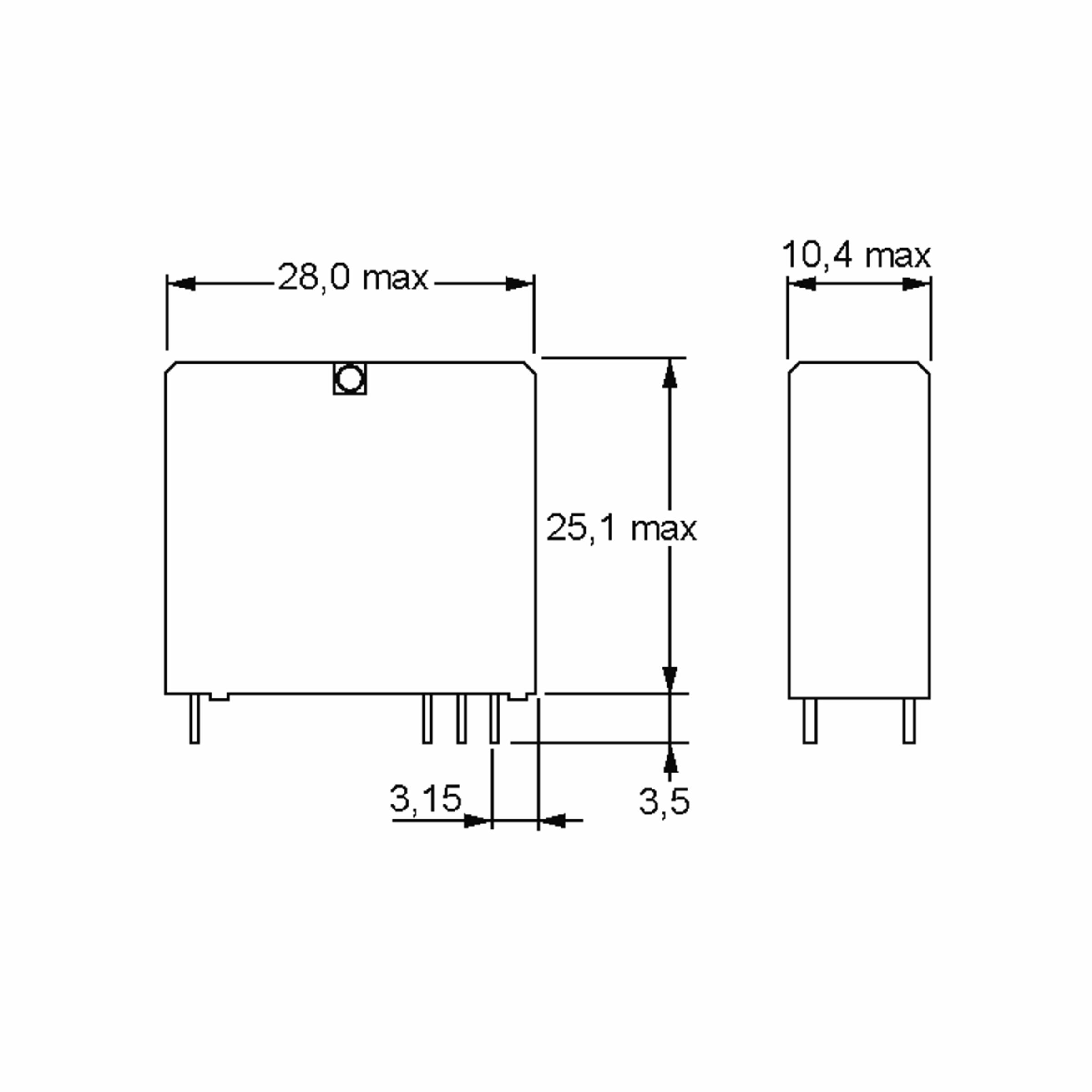

TE Connectivity PC relay E V23057 THT SPDT 8A 24VDC 1.200Ohm 28mmx10,4mmx25,1mm RTIII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 29.06.2024
Discontinued by manufacturer without replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- E V23057
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 8 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 1,200 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
