6-1393243-3
TE Connectivity PC relay RT2 THT DPDT 8A 12VDC 360Ohm 29mmx12,5mmx15,7mm RTII
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5.240 Pcs. in stock
Next Stock Receipt
Week 20/2026
2.620 Pcs.
2.620 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RT2
- contacts

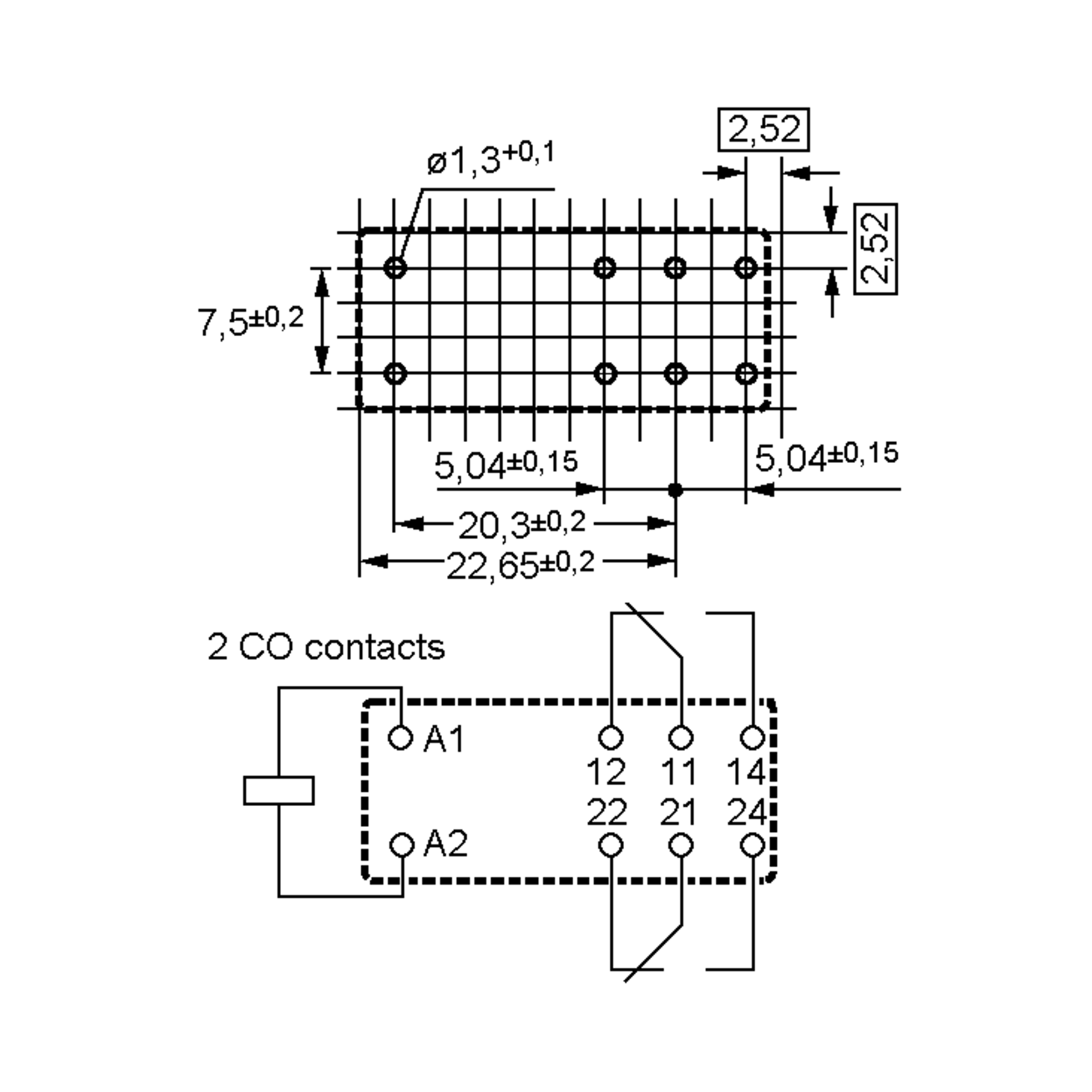

- DPDT
- Contact: Switching Current (min/typ/max)
- 8 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 360 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

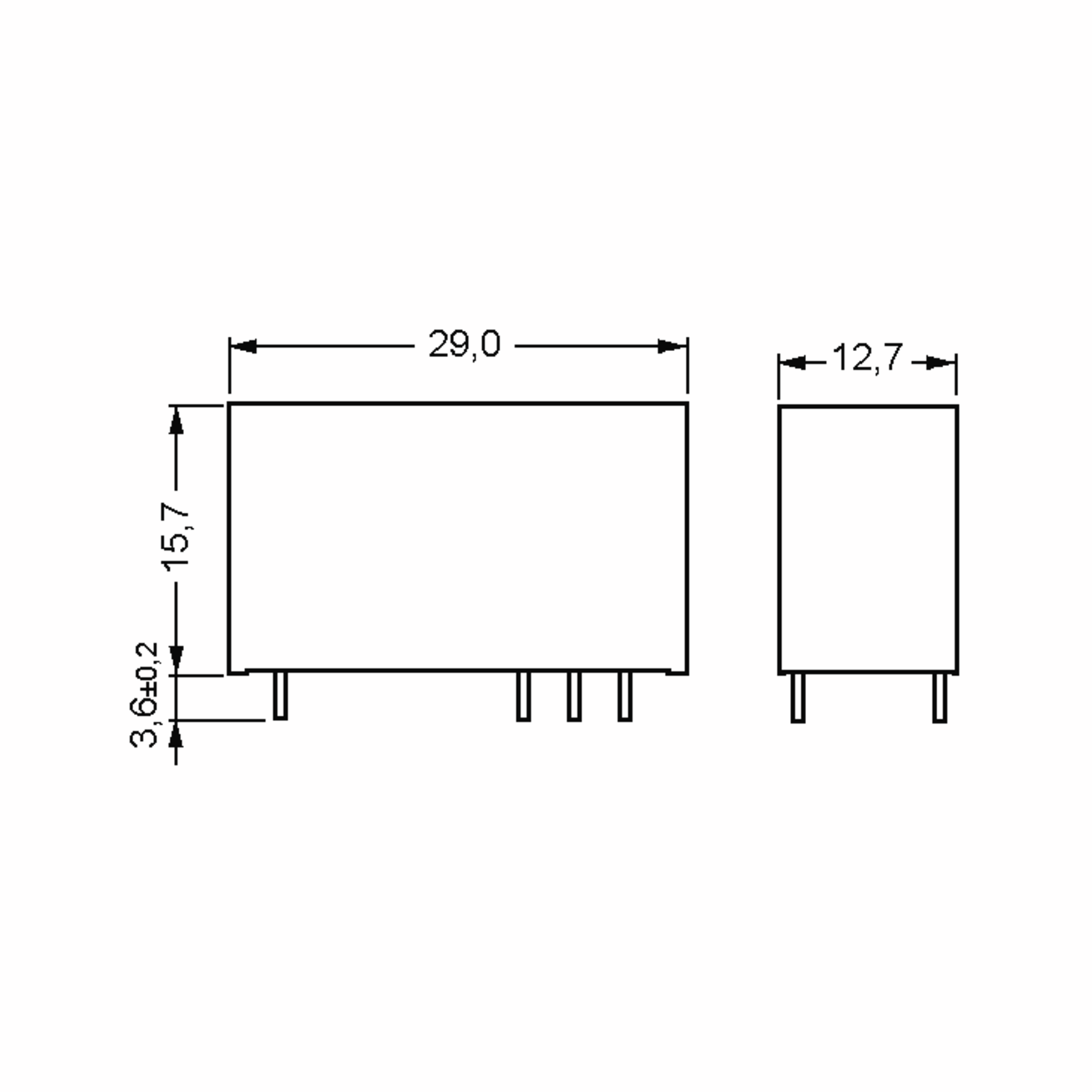

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.5 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 8 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 8 A
- Contact: Inrush current
- 15 A
- Contact: Switching Capacity (VA)
- 2,000 VA
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 360 Ohm
- Inductor power
- 400 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Pick-up voltage
- 8.4 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage contact/contact
- 2,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 7 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 30 x 10^6 operations
- Service life, electrical
- see data sheet
Safety/Certifications
- Approvals
- VDE
- cCSA
- cULus
- Standards
- IEC 60664-1
- Protection class RT
- RTII
Conformity
- REACH Notice
- REACh Art. 33: contains 4,4'-isopropylidenediphenol CAS# 80-05-7
