6-1393234-7

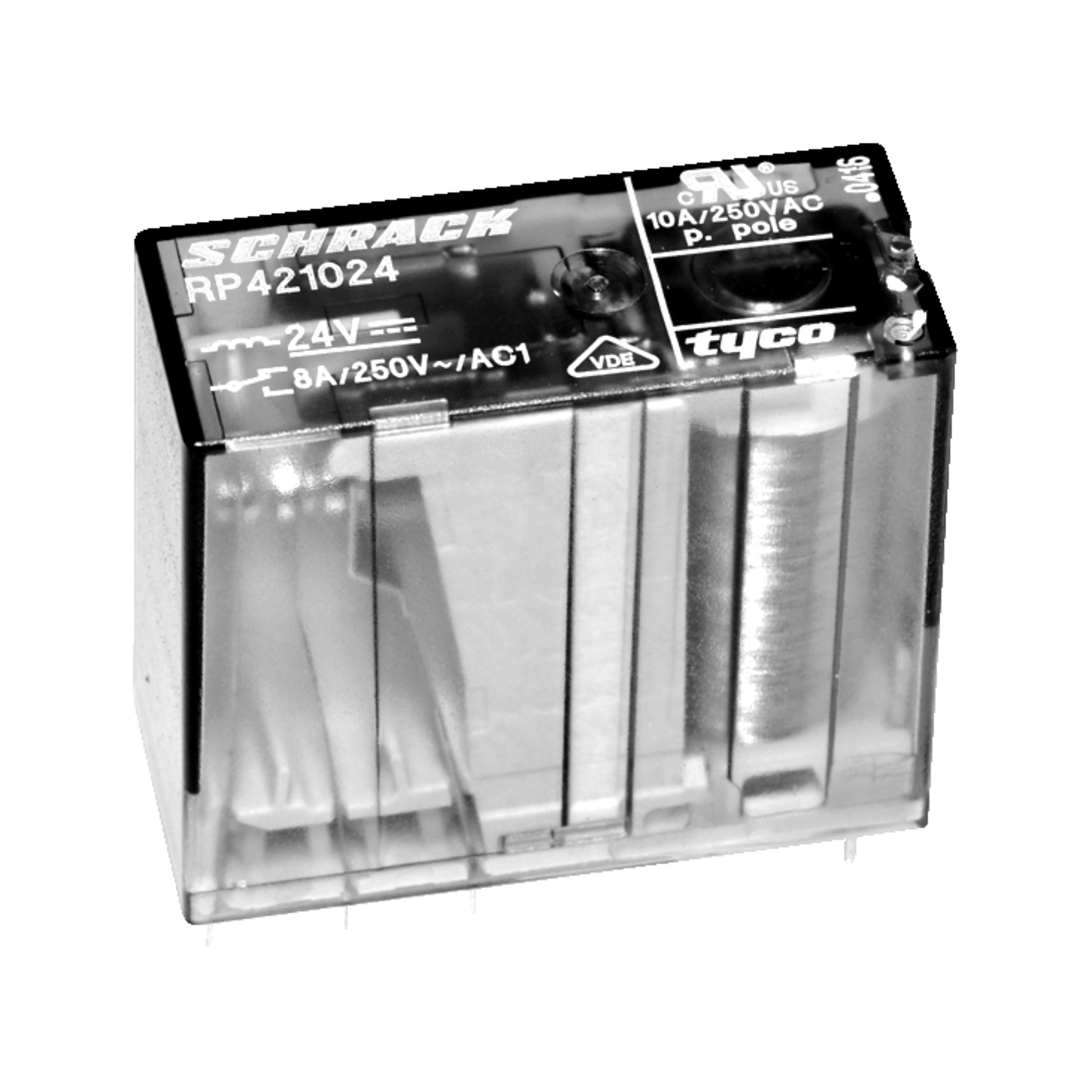

TE Connectivity PC relay RPII/2 THT DPDT 8A 12VDC 270Ohm 29mmx12,6mmx25,5mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
200 Pcs. in stock
Next Stock Receipt
Week 20/2026
100 Pcs.
100 Pcs.
Planned delivery time
Ø 31 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RPII/2

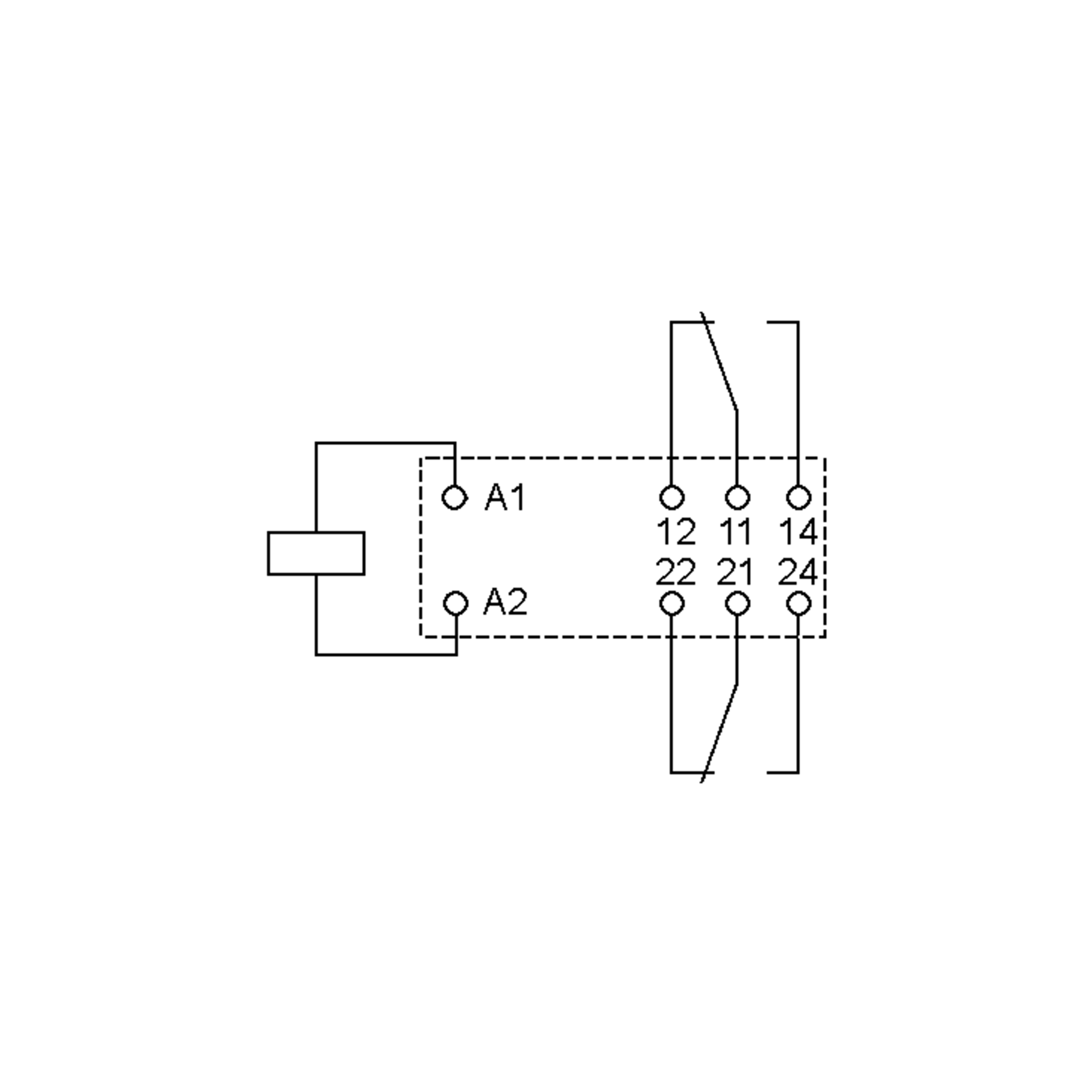

- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 8 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 270 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

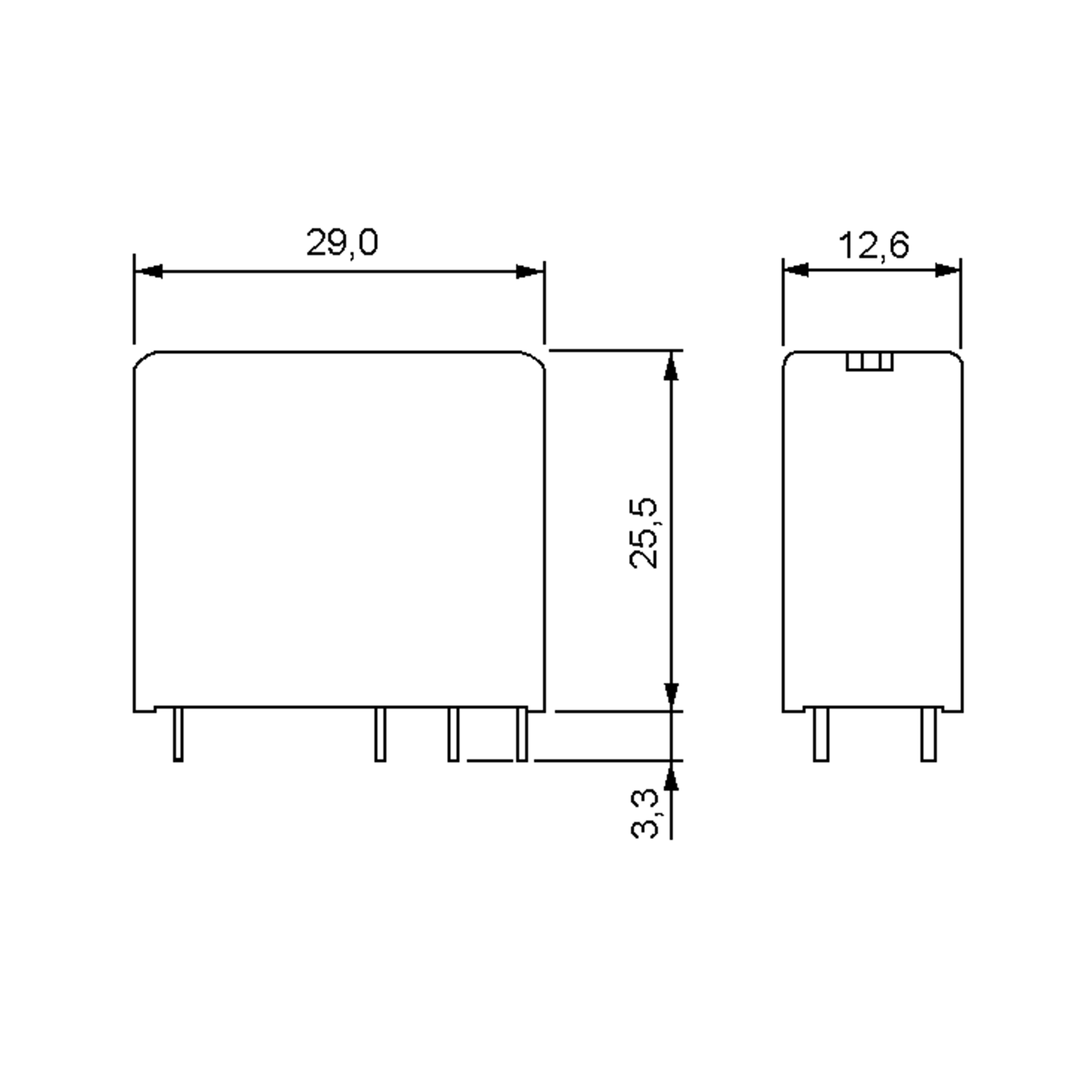

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.6 mm
- Dimension: Height
- 25.5 mm
- Weight
- 18 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 8 A
- Contact: Switching Voltage, max. AC
- 440 V AC
- Contact: Switching Capacity (VA)
- 2,000 VA
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 270 Ohm
- Inductor power
- 500 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, max.
- 21.6 V
- Coil: Pick-up voltage
- 8.4 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage contact/contact
- 2,500 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 9 ms
- Drop-out time
- 3 ms
- Vibration resistance
- NO/NC: 11 g / 1,5 g
- Impact resistance, functional
- 10 g
Safety/Certifications
- Approvals
- VDE
- cULus
- Protection class RT
- RTII
