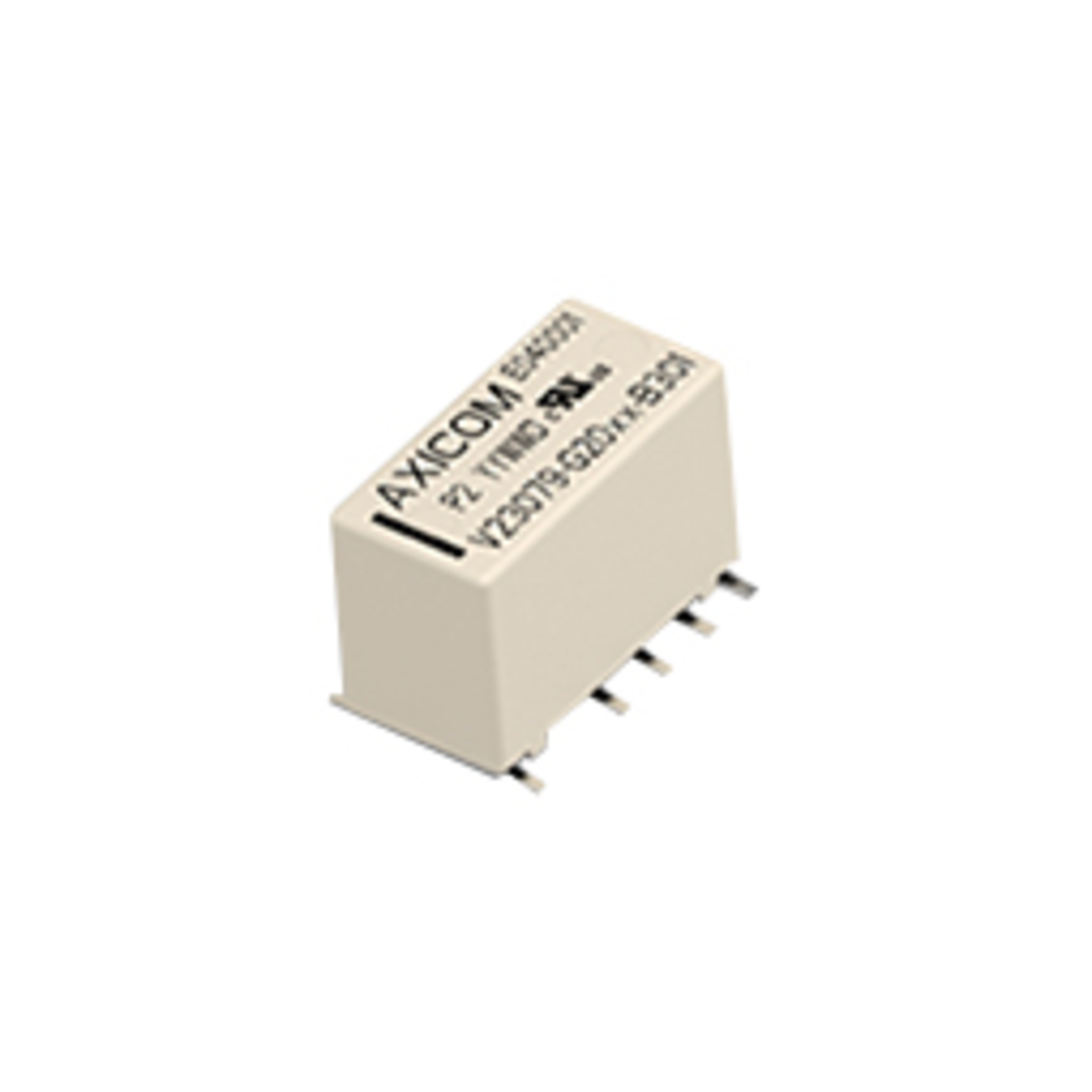

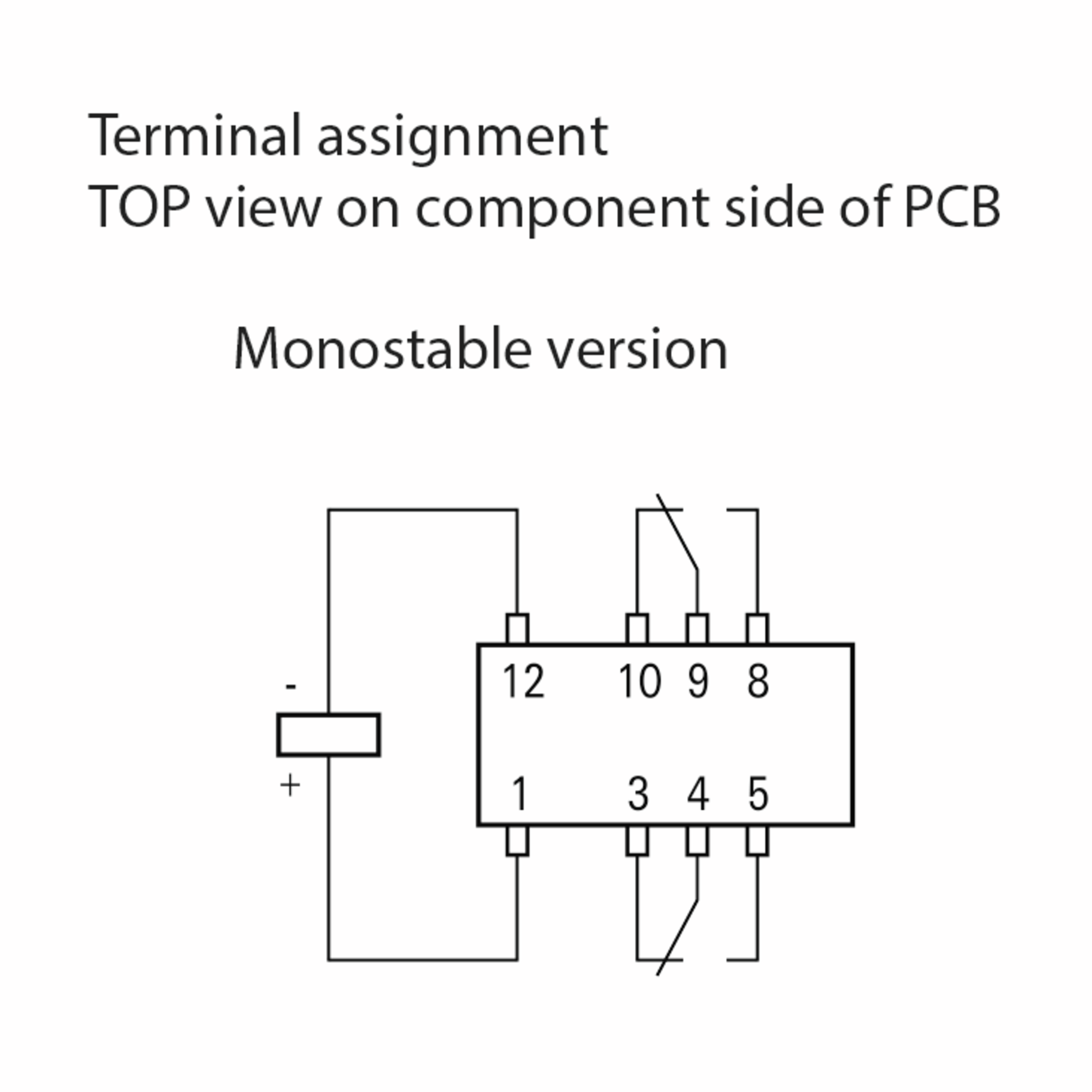

TE Connectivity PC relay P2 V23079 SMD DPDT 2A 12VDC 720Ohm 14,5mmx7,2mmx10,4mm RTIII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
75 Pcs. in stock
Planned delivery time
Ø 1 Week
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 400 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- P2 V23079
- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 2 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 720 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

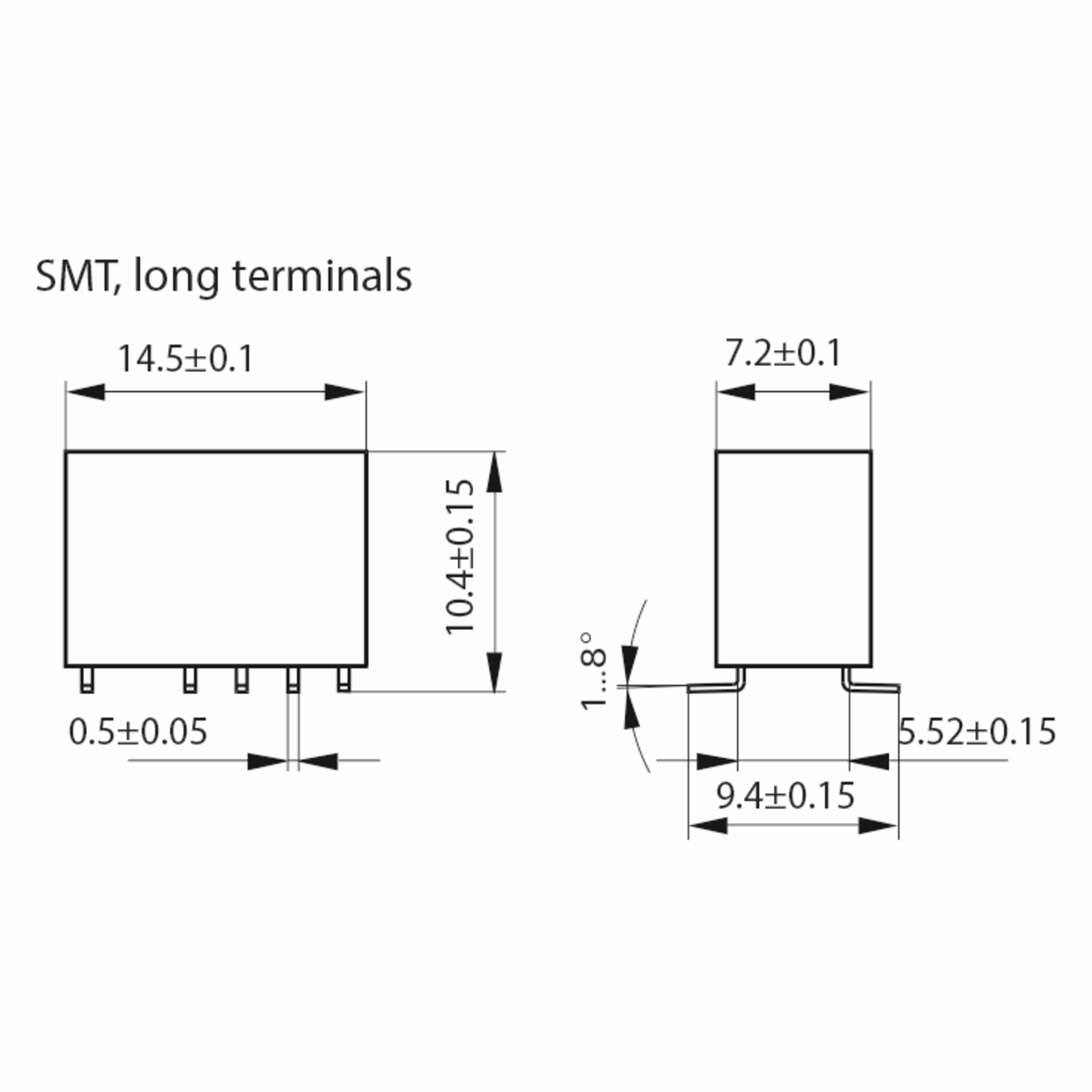

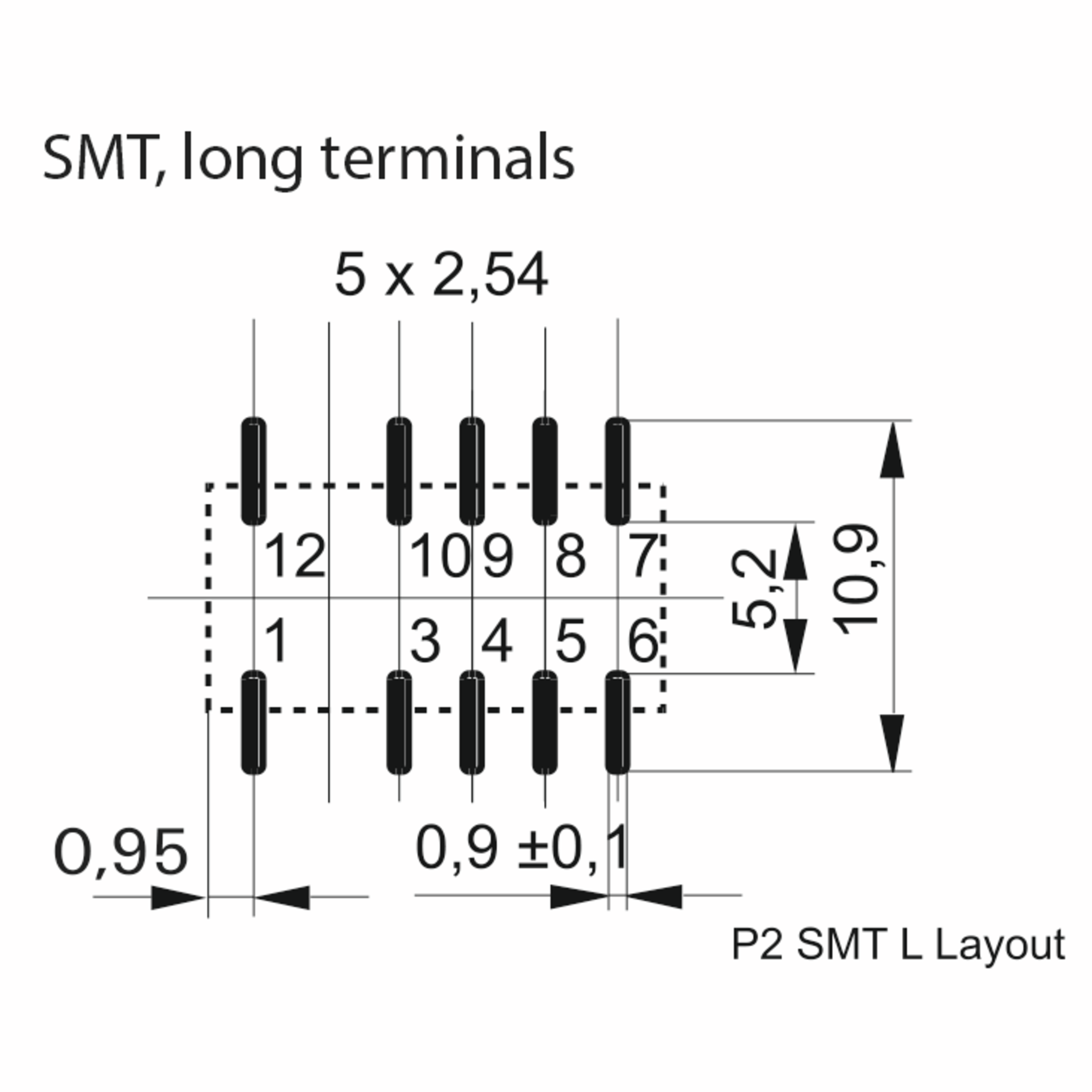

Dimensions and Weights
- Dimension: Length
- 14.5 mm
- Dimension: Width
- 7.2 mm
- Dimension: Height
- 10.4 mm
- Weight
- 2.8 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact design
- Bifurcated
- Contact: Switching Current (min/typ/max)
- 2 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Switching Voltage, max. DC
- 220 V DC
- Contact: Carry Current
- 2 A
- Contact: Switching Capacity (VA)
- 62.5 VA
- Contact: Switching Load (W)
- 60 W
- Contact resistance
- 50 mOhm
- Coil design
- monostable
- Coil resistance
- 720 Ohm
- Inductor power
- 200 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 9 V
- Coil: Operating Voltage, max.
- 24.2 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,500 V AC
- Response time
- 2 ms
- Drop-out time
- 2 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- see data sheet
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 35 g
- Impact resistance, functional
- 100 g
Safety/Certifications
- Approvals
- cULus
- Standards
- IEC 61810, IEC/EN 60950 IEC Ref. Cert. No. 327
- Protection class RT
- RTIII
