TE Connectivity PC relay RZ THT SPST-NO 12A 5VDC 60Ohm 29mmx12,7mmx15,7mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 10 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1500 or multiple of 1500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RZ

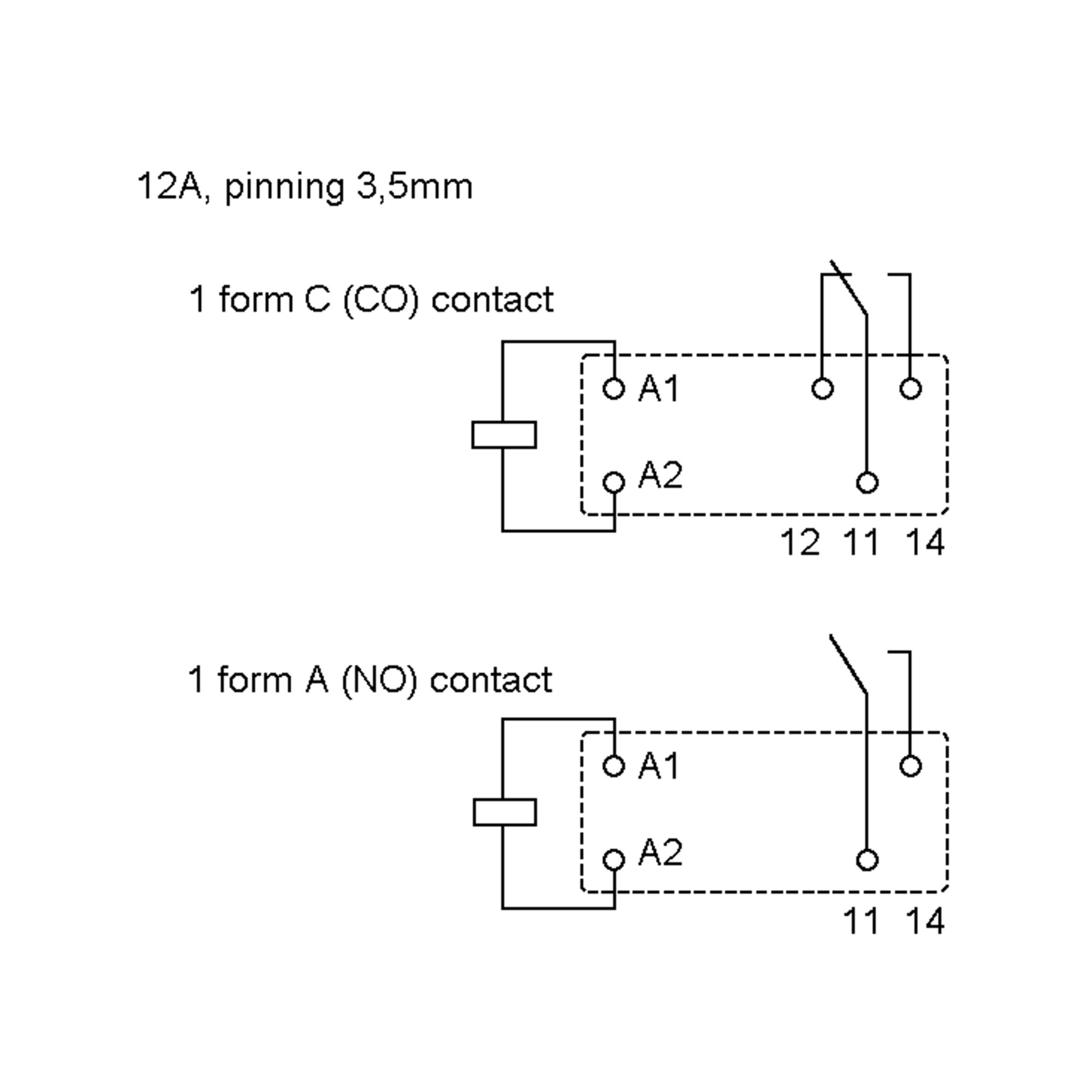

- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 12 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 60 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all
Dimensions and Weights

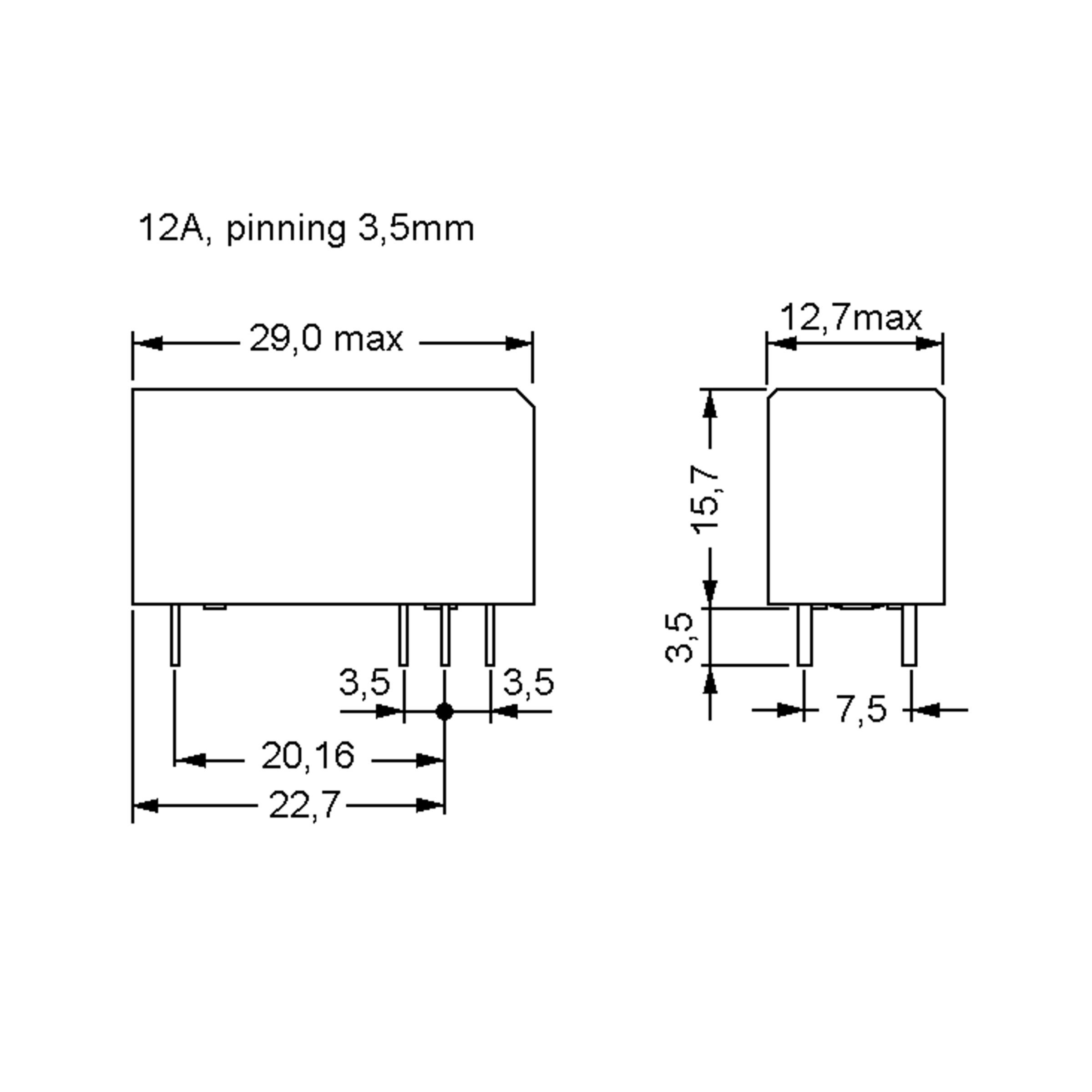

- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 10 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 12 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Inrush current
- 30 A
- Contact: Switching Capacity (VA)
- 3,000 VA
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 60 Ohm
- Inductor power
- 420 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Pick-up voltage
- 3.5 V
- Coil: Drop-out Voltage
- 0.5 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 8 ms
- Drop-out time
- 6 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- see data sheet
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
- Standards
- IEC 60335-1
- Protection class RT
- RTII
