3-1461491-0

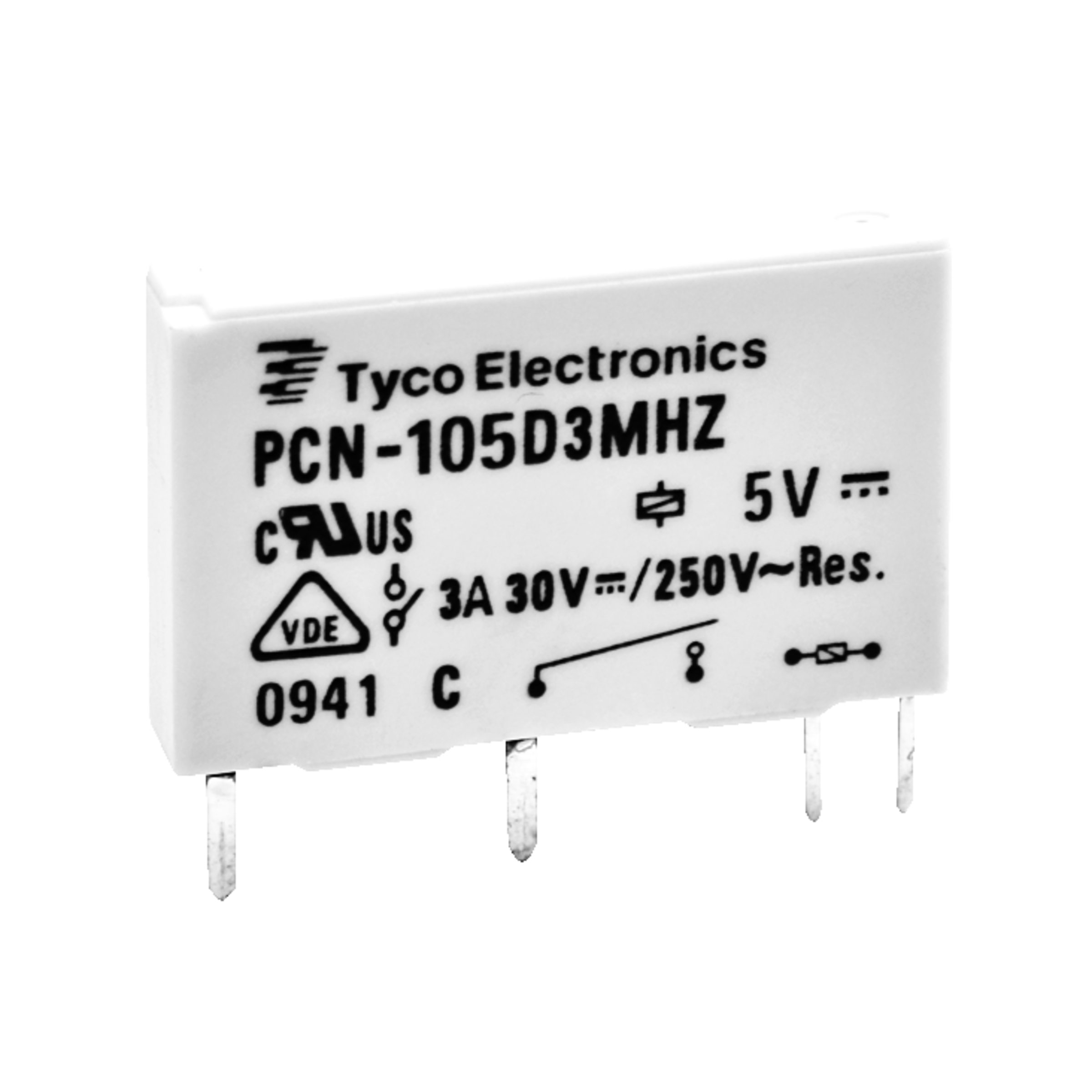

TE Connectivity PC relay PCN THT SPST-NO 3A 5VDC 208Ohm 20mmx5mmx20mm RTIII
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
990 Pcs. in stock
Next Stock Receipt
Week 23/2026
50 Pcs.
50 Pcs.
Planned delivery time
Ø 29 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- PCN
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 3 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 208 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

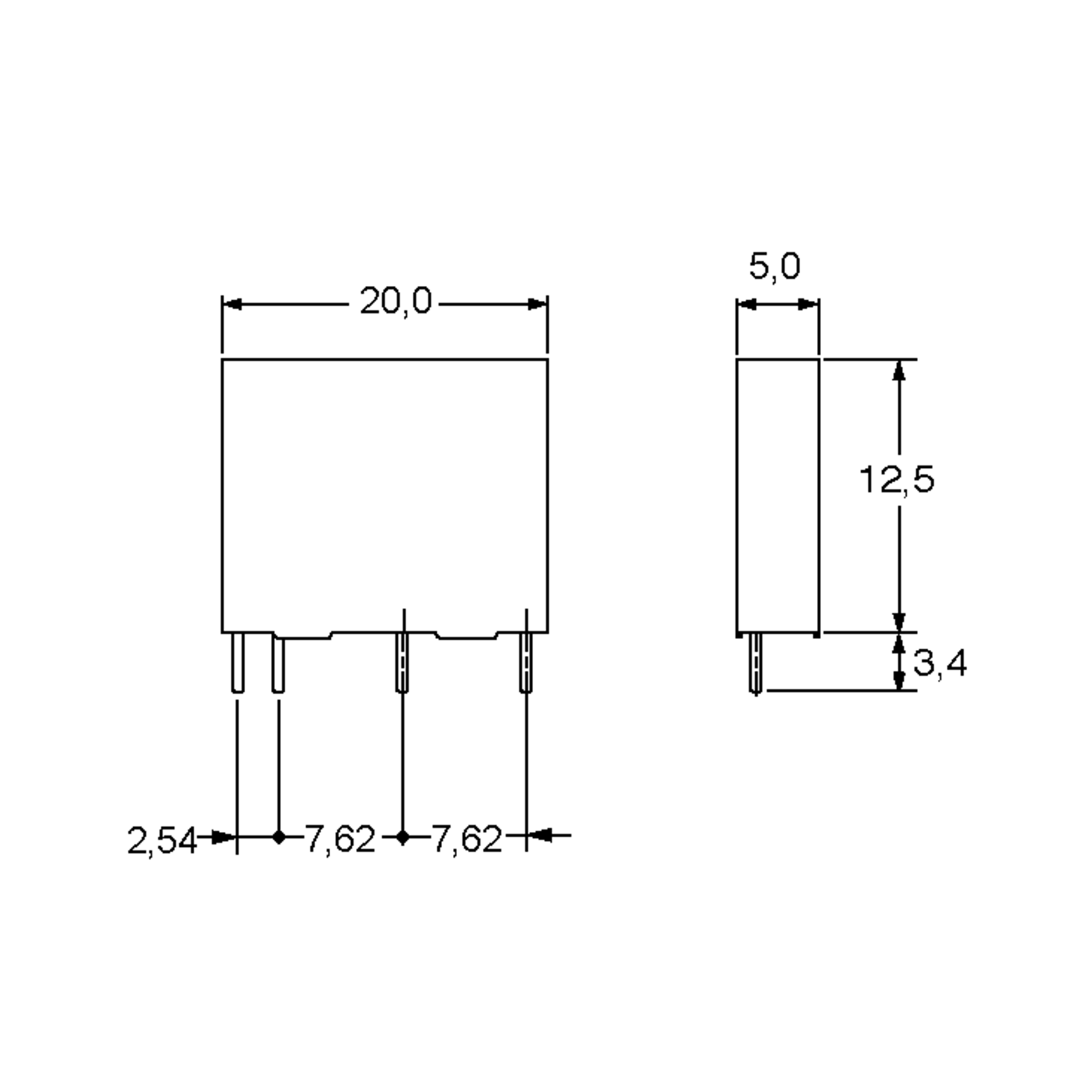

Dimensions and Weights
- Dimension: Length
- 20 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 20 mm
- Weight
- 5.4 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact design
- Bifurcated
- Contact: Switching Current (min/typ/max)
- 3 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Switching Voltage, max. DC
- 30 V DC
- Contact: Continuous Current
- 5 A
- Contact: Switching Capacity (VA)
- 750 VA
- Contact resistance
- 30 mOhm
- Creepage distance
- 3.5 mm
- Coil design
- monostable
- Coil resistance
- 208 Ohm
- Inductor power
- 120 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Pick-up voltage
- 3.5 V
- Coil: Drop-out Voltage
- 0.5 V
- Test voltage open contacts
- 750 V AC
- Test voltage coil/contact
- 3,000 V AC
- Response time
- 5 ms
- Drop-out time
- 2 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- see data sheet
- Vibration resistance
- 1,5 mm DA
- Soldering temperature, max.
- 260°C / 5s
Safety/Certifications
- Approvals
- CQC
- VDE
- cULus
- Standards
- EN 60664-1, IEC 60068-2-20
- Protection class RT
- RTIII
