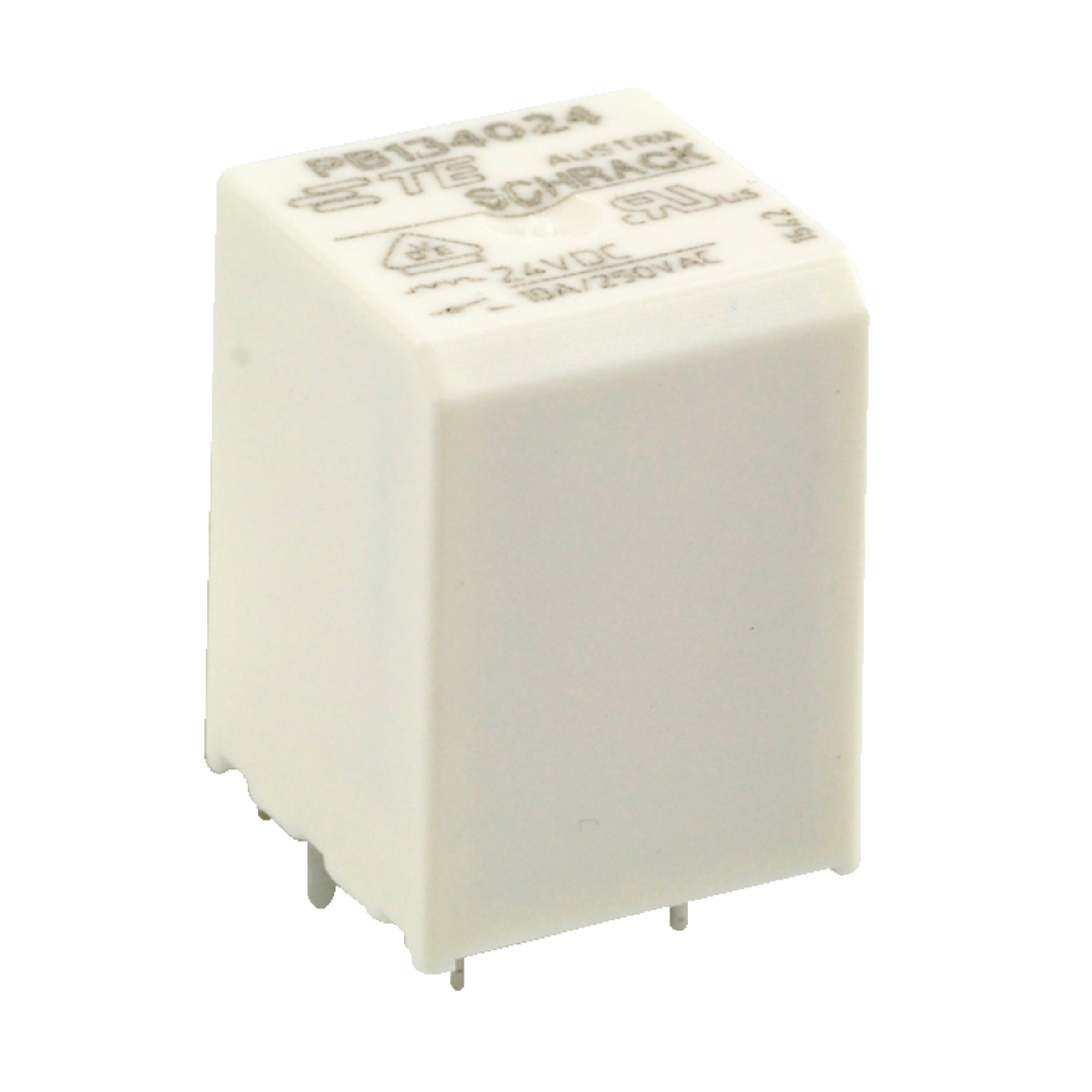

TE Connectivity PC relay PB THT SPST-NO 10A 24VDC 1.600Ohm 15mmx15mmx20mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
170 Pcs. in stock
Planned delivery time
Ø 7 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1050 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 35 or multiple of 35)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series

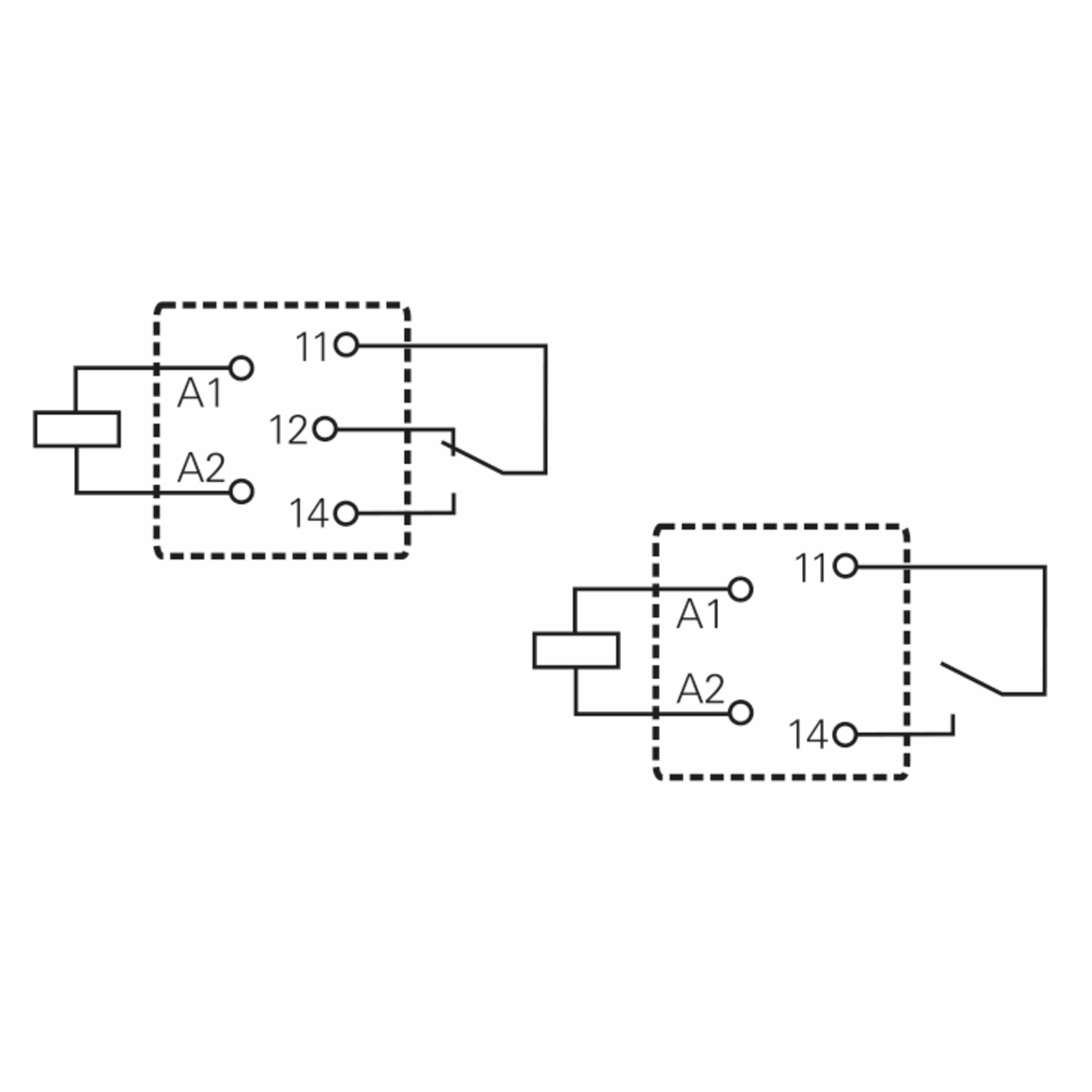

- PB
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 1,600 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

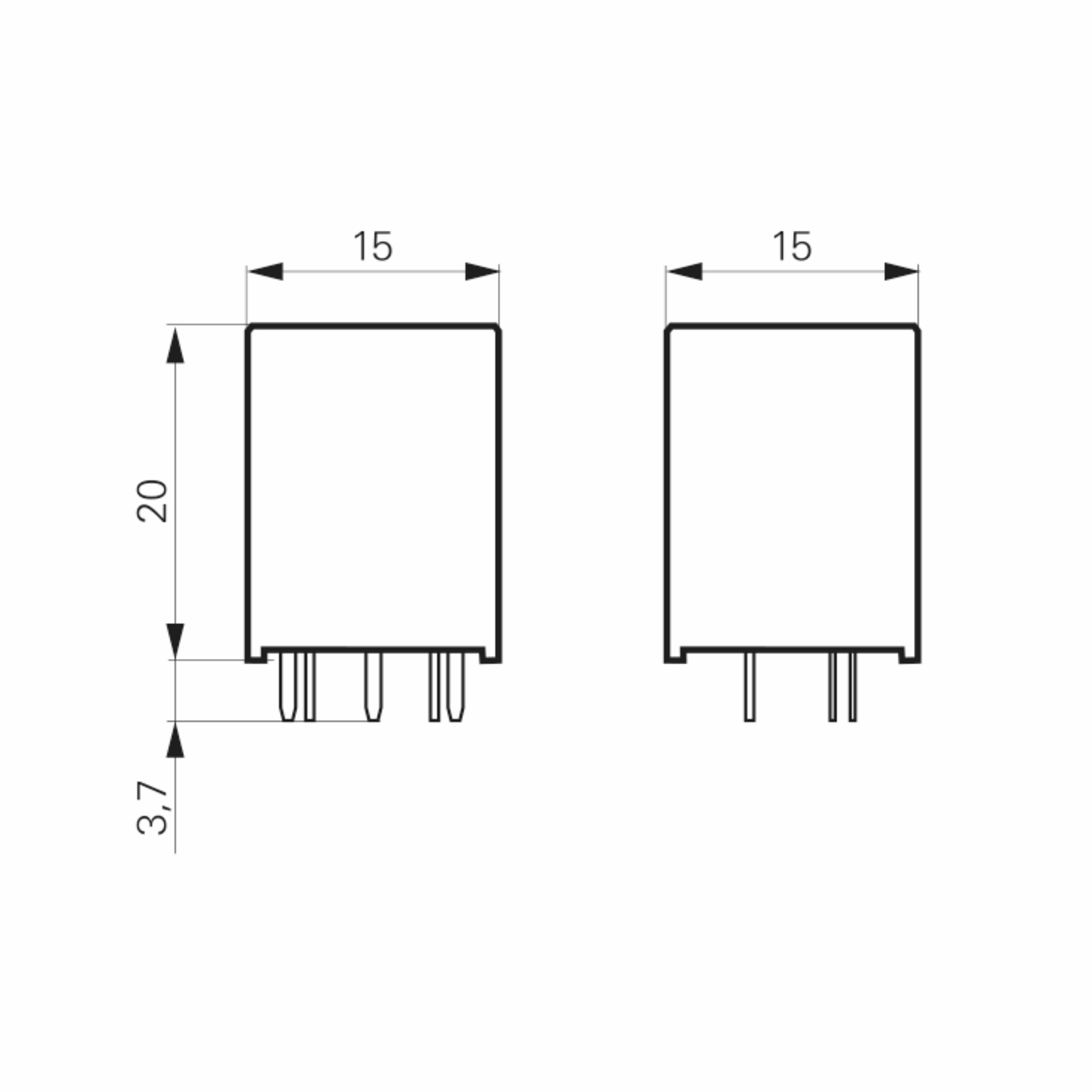

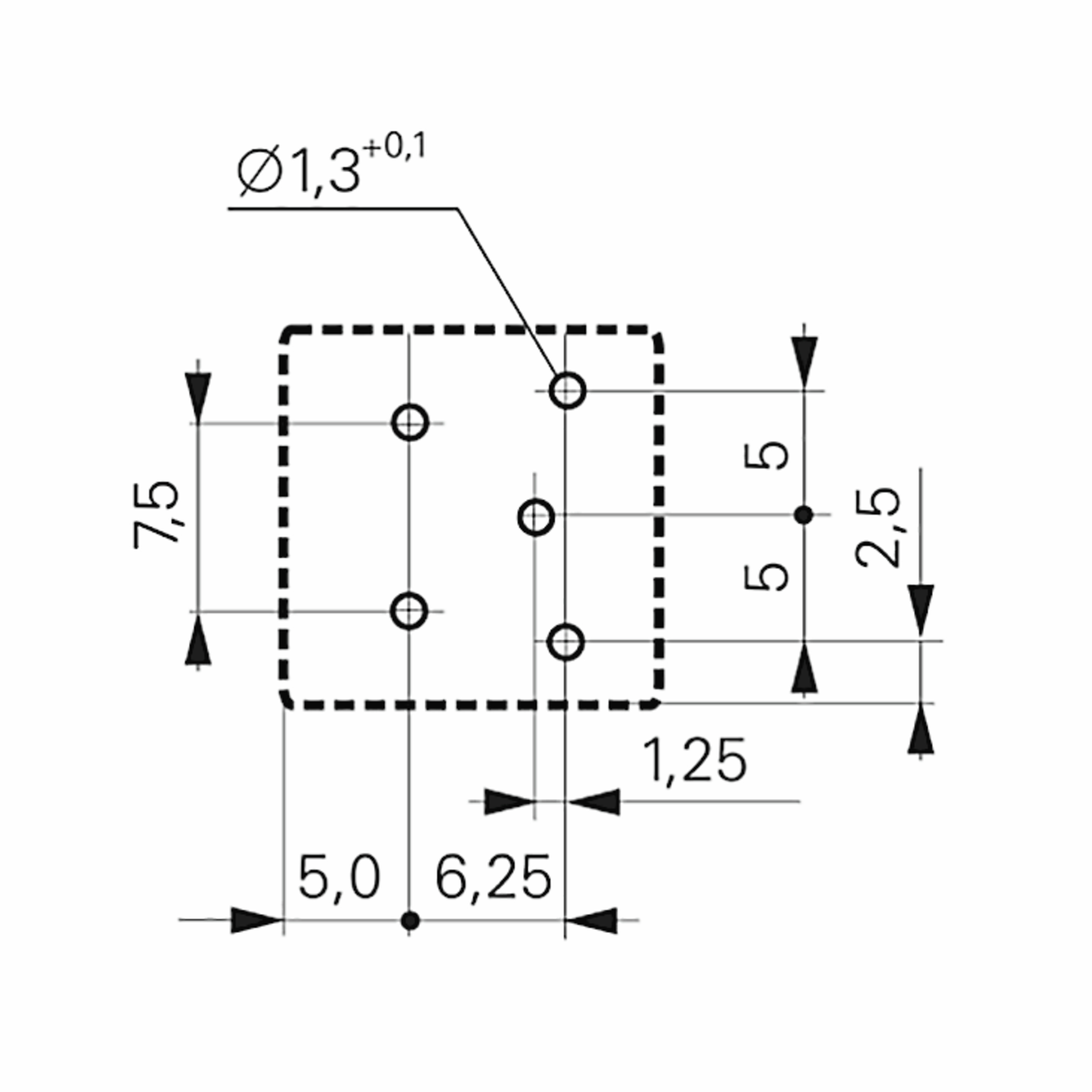

Dimensions and Weights
- Dimension: Length
- 15 mm
- Dimension: Width
- 15 mm
- Dimension: Height
- 20 mm
- Weight
- 5.4 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Capacity (VA)
- 2,500 VA
- Creepage distance
- 5 mm
- Coil design
- monostable
- Coil resistance
- 1,600 Ohm
- Inductor power
- 360 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Pick-up voltage
- 18 V
- Coil: Drop-out Voltage
- 2.4 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 2,500 V AC
- Response time
- 10 ms
- Drop-out time
- 20 ms
- Mechanical service life
- 5 x 10^6 operations
- Service life, electrical
- see data sheet
- Vibration resistance
- 10 g
- Impact resistance, functional
- 100 g
- Soldering temperature, max.
- 270°C / 10s
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 60335-1, IEC 61810
- Protection class RT
- RTII
