3-1393239-5
TE Connectivity PC relay RT1 THT SPST-NO 12A 230VAC 32.500Ohm 29mmx12,7mmx15,7mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1500 or multiple of 1500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RT1
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 12 A
- Coil: Nominal Voltage AC
- 230 V AC
- Coil resistance
- 32,500 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

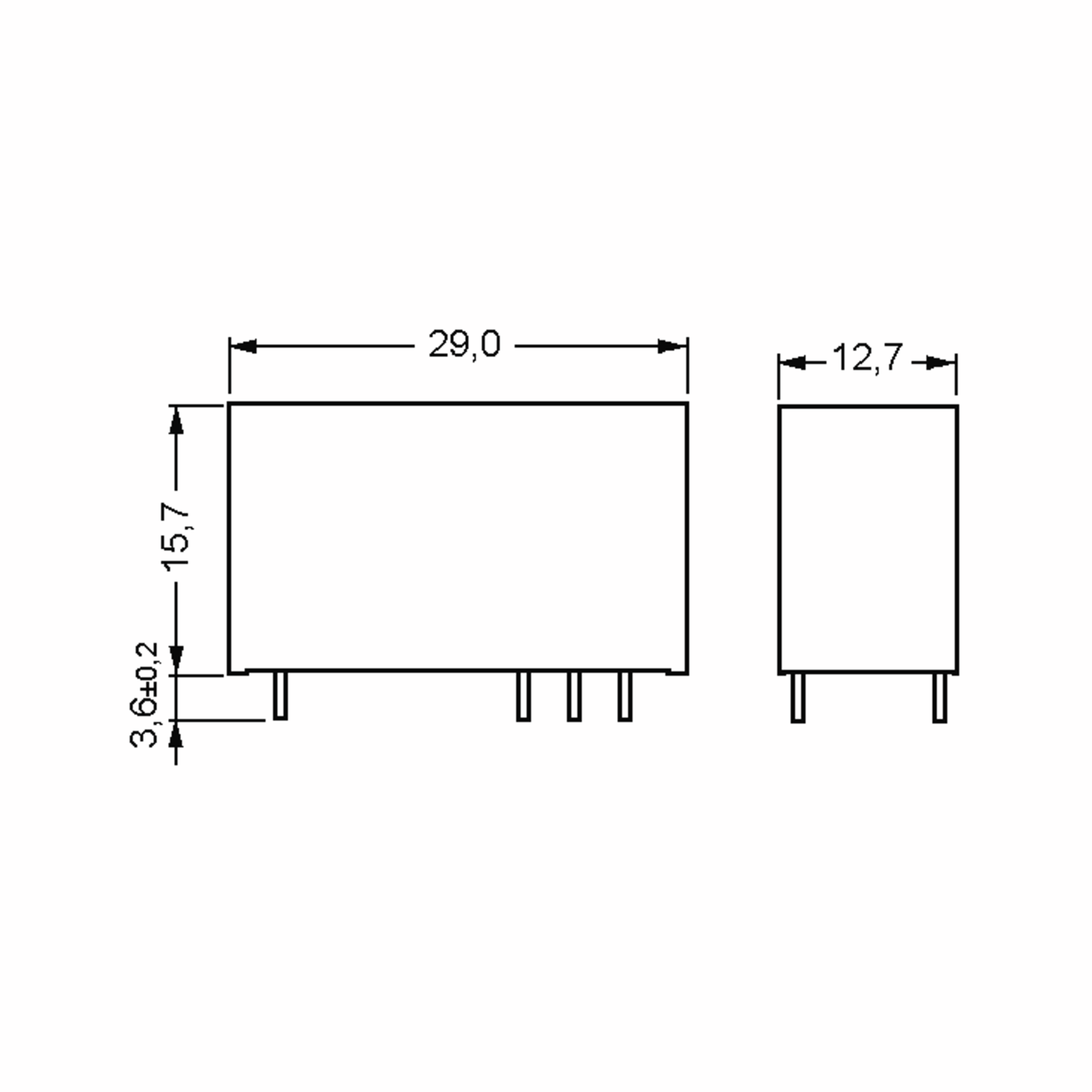

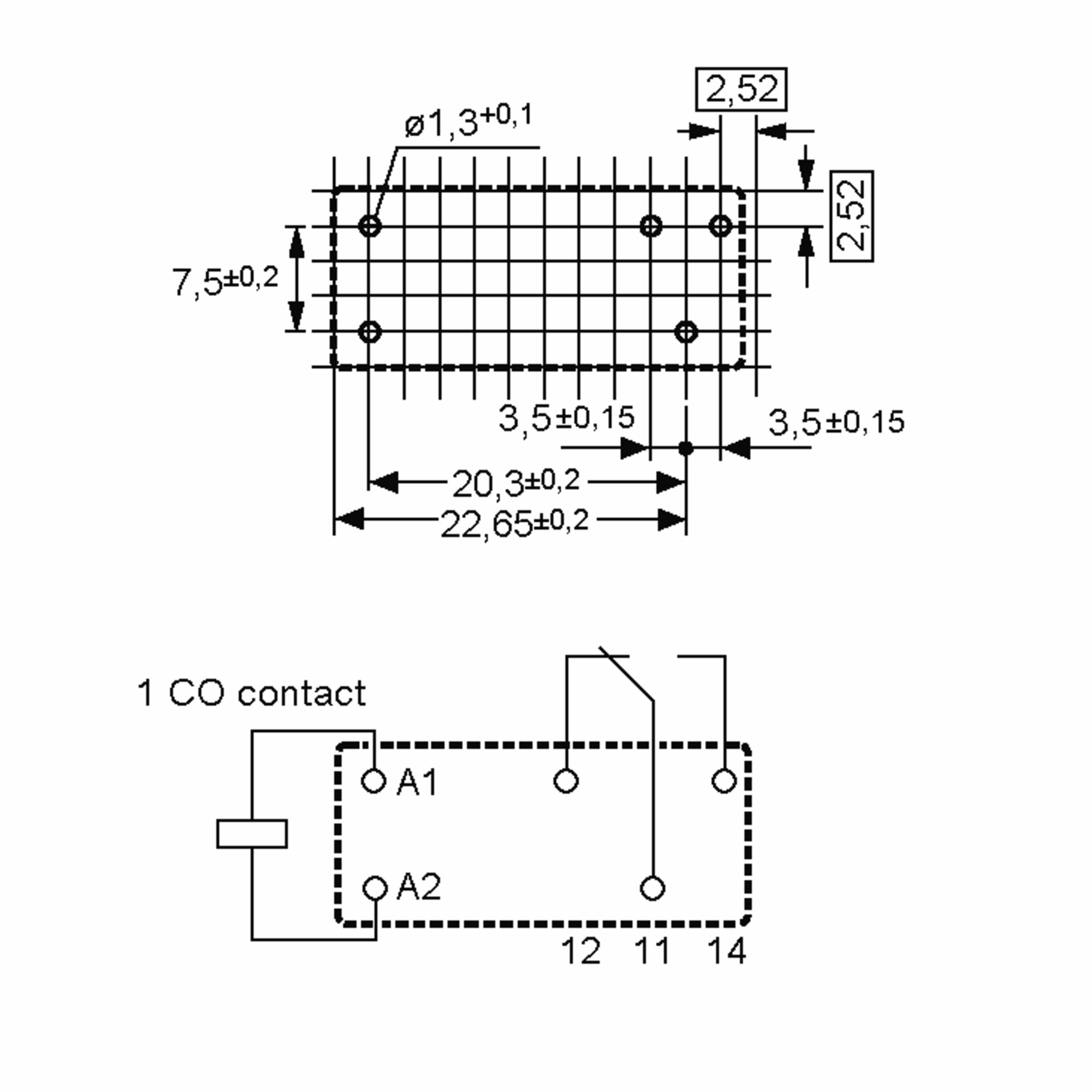

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 12 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Capacity (VA)
- 3,000 VA
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 32,500 Ohm
- Coil: Nominal Voltage AC
- 230 V AC
- Coil: Pick-up voltage
- 172.5 V
- Coil: Drop-out Voltage
- 34.5 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 8 ms
- Drop-out time
- 6 ms
- Mechanical service life
- 30 x 10^6 operations
- Service life, electrical
- see data sheet
- Soldering temperature, max.
- 270°C / 10s
Safety/Certifications
- Approvals
- CQC
- VDE
- cCSA
- cULus
- Standards
- IEC 60664-1
- Protection class RT
- RTII
