2-1419142-2

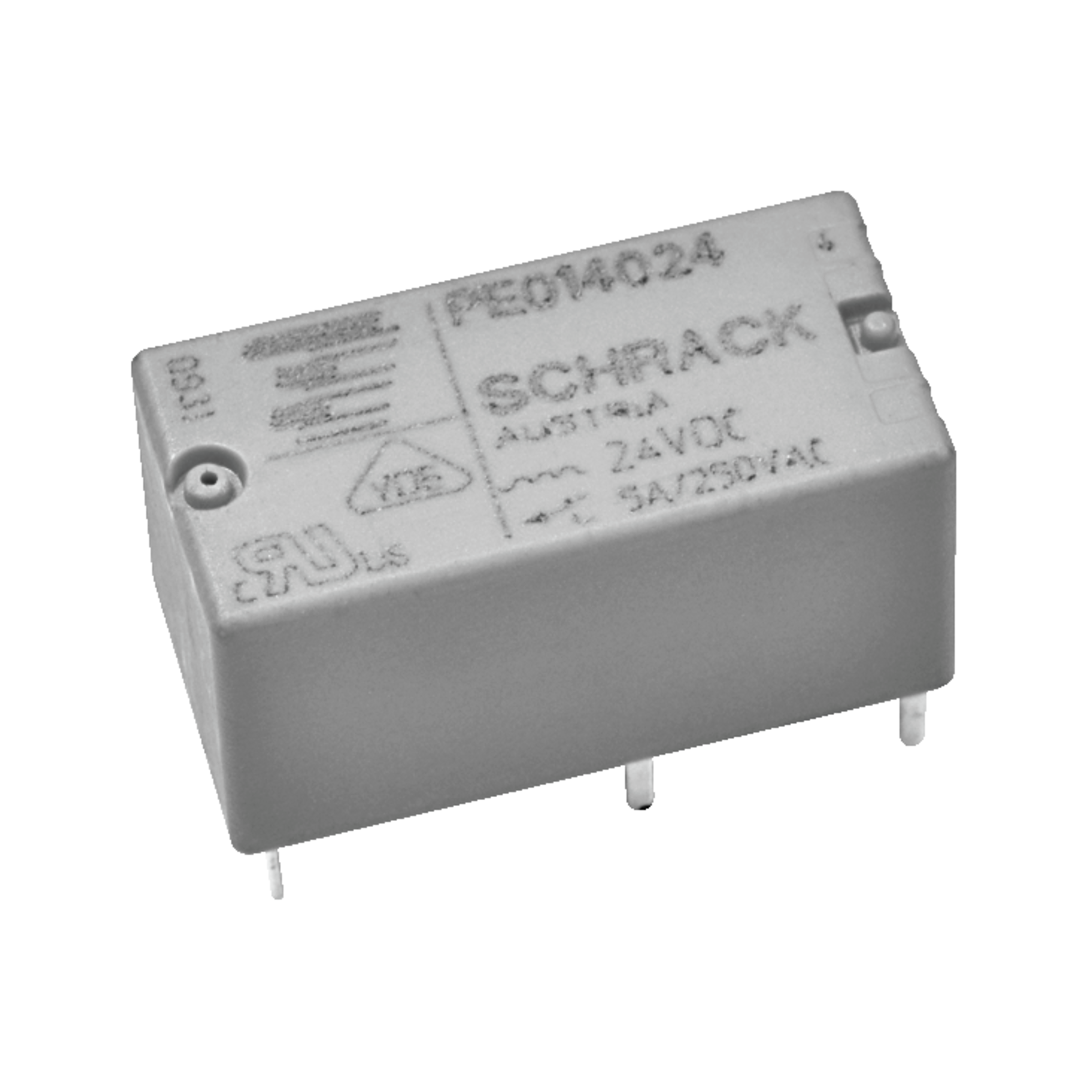

TE Connectivity PC relay PE THT SPDT 5A 3VDC 45Ohm 20mmx10mmx10mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
75 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice

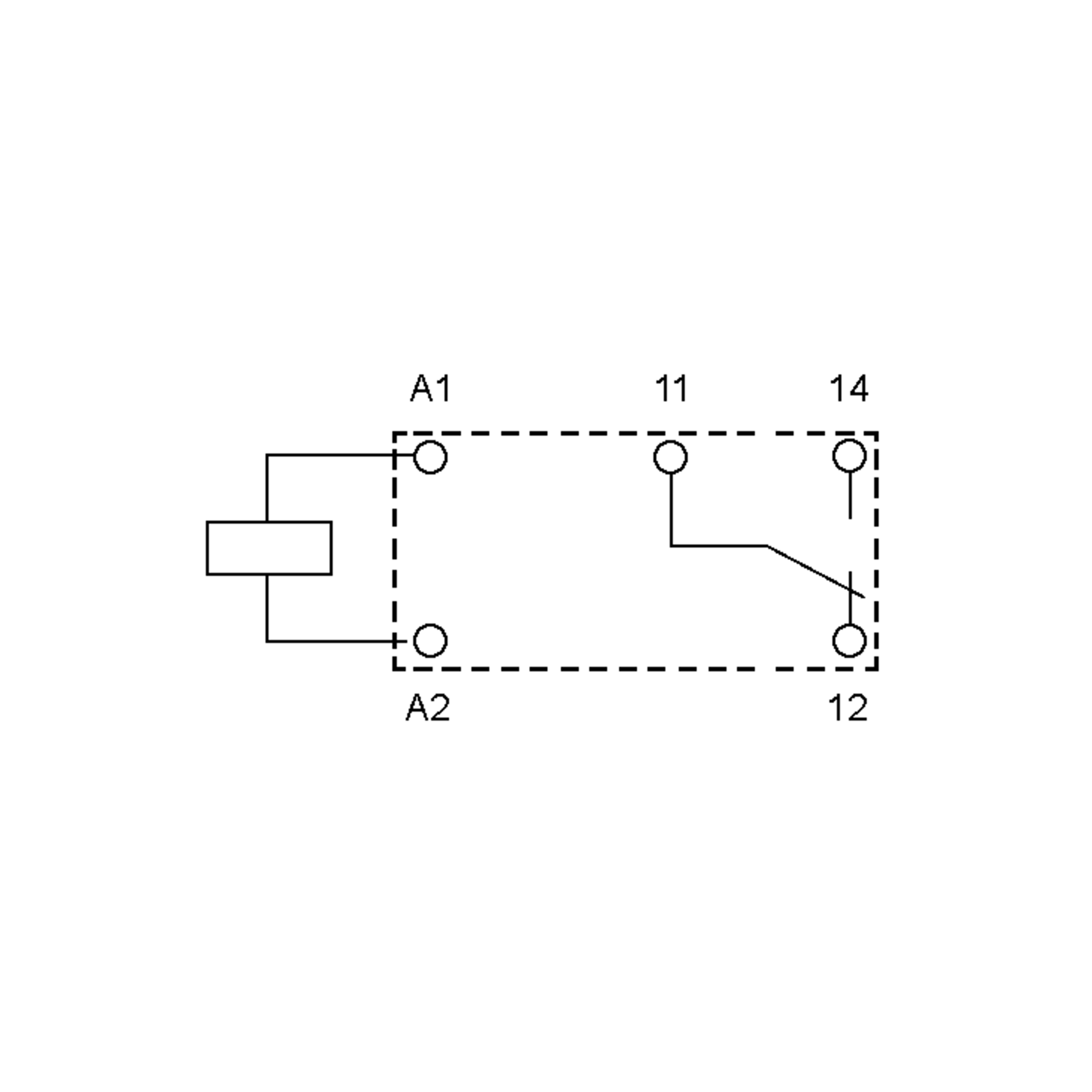

- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- PE
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 5 A
- Coil: Nominal Voltage DC
- 3 V DC
- Coil resistance
- 45 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

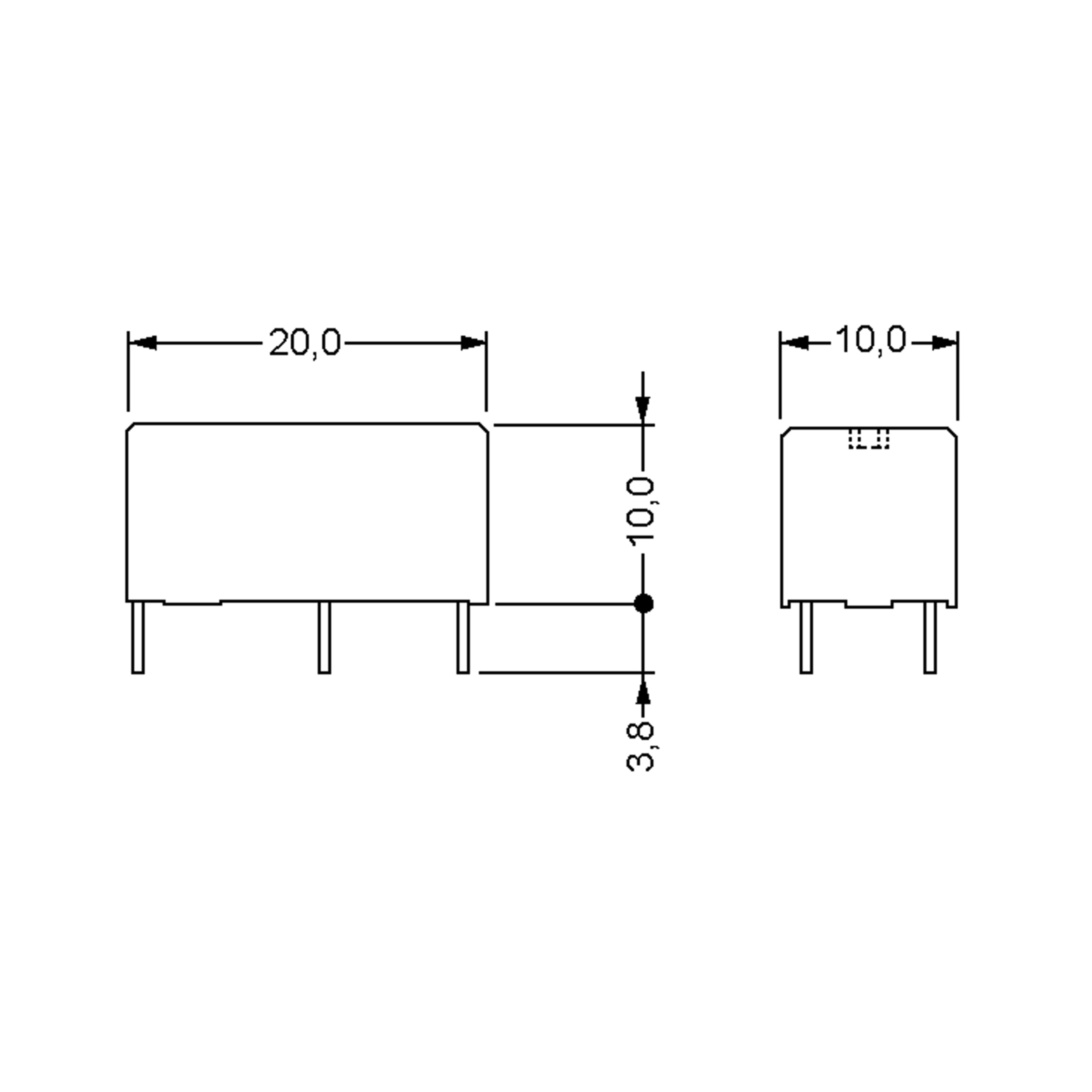

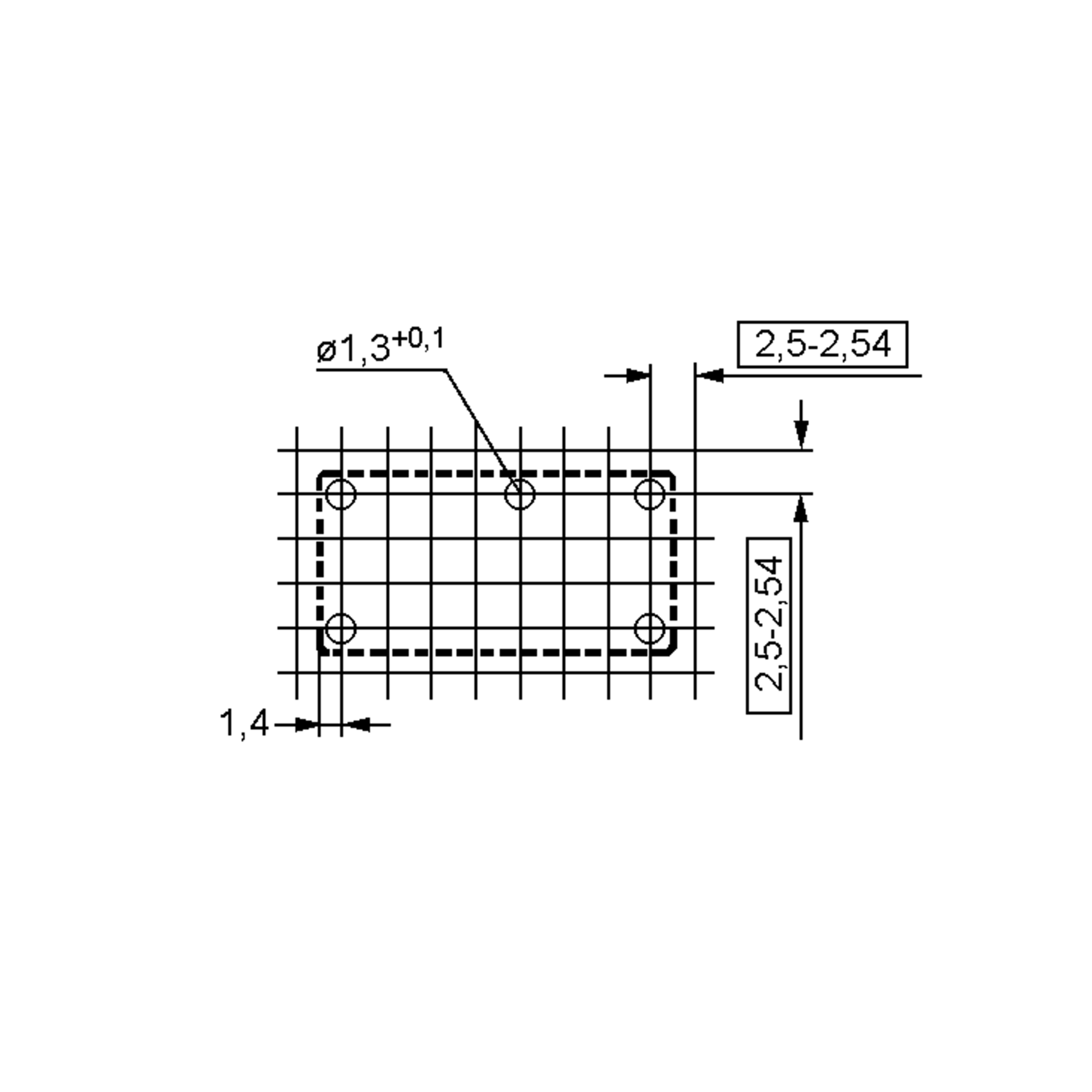

Dimensions and Weights
- Dimension: Length
- 20 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 10 mm
- Weight
- 5 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 5 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Capacity (VA)
- 1,250 VA
- Creepage distance
- 4 mm
- Coil design
- monostable
- Coil resistance
- 45 Ohm
- Inductor power
- 200 mW
- Coil: Nominal Voltage DC
- 3 V DC
- Coil: Pick-up voltage
- 2.25 V
- Coil: Drop-out Voltage
- 0.3 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 8 ms
- Drop-out time
- 8 ms
- Mechanical service life
- 15 x 10^6 operations
- Service life, electrical
- see data sheet
- Insulation resistance
- 1.000 MOhm
- Vibration resistance
- 5 g
- Impact resistance, functional
- 5 g
- Soldering temperature, max.
- 260°C / 10s
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 61810, IEC 60664-1
- Protection class RT
- RTII
Conformity
- REACH Notice
- REACh Art. 33: contains 4,4'-isopropylidenediphenol CAS# 80-05-7
