2-1393240-3
TE Connectivity PC relay RT1 Inrush THT SPDT-NO 16A 12VDC 360Ohm 29mmx12,7mmx15,7mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
510 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- RT1 Inrush

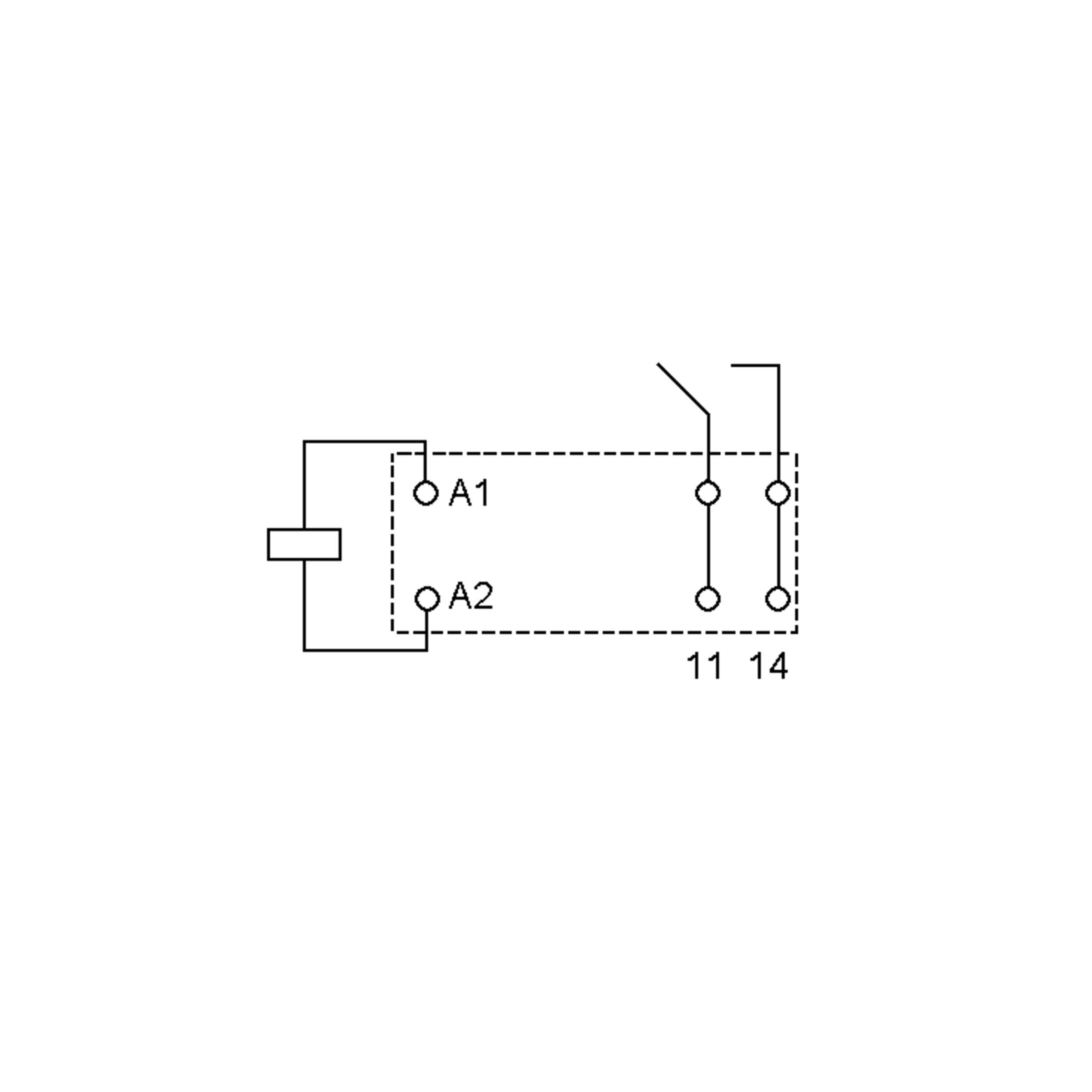

- contacts
- SPDT-NO
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 360 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

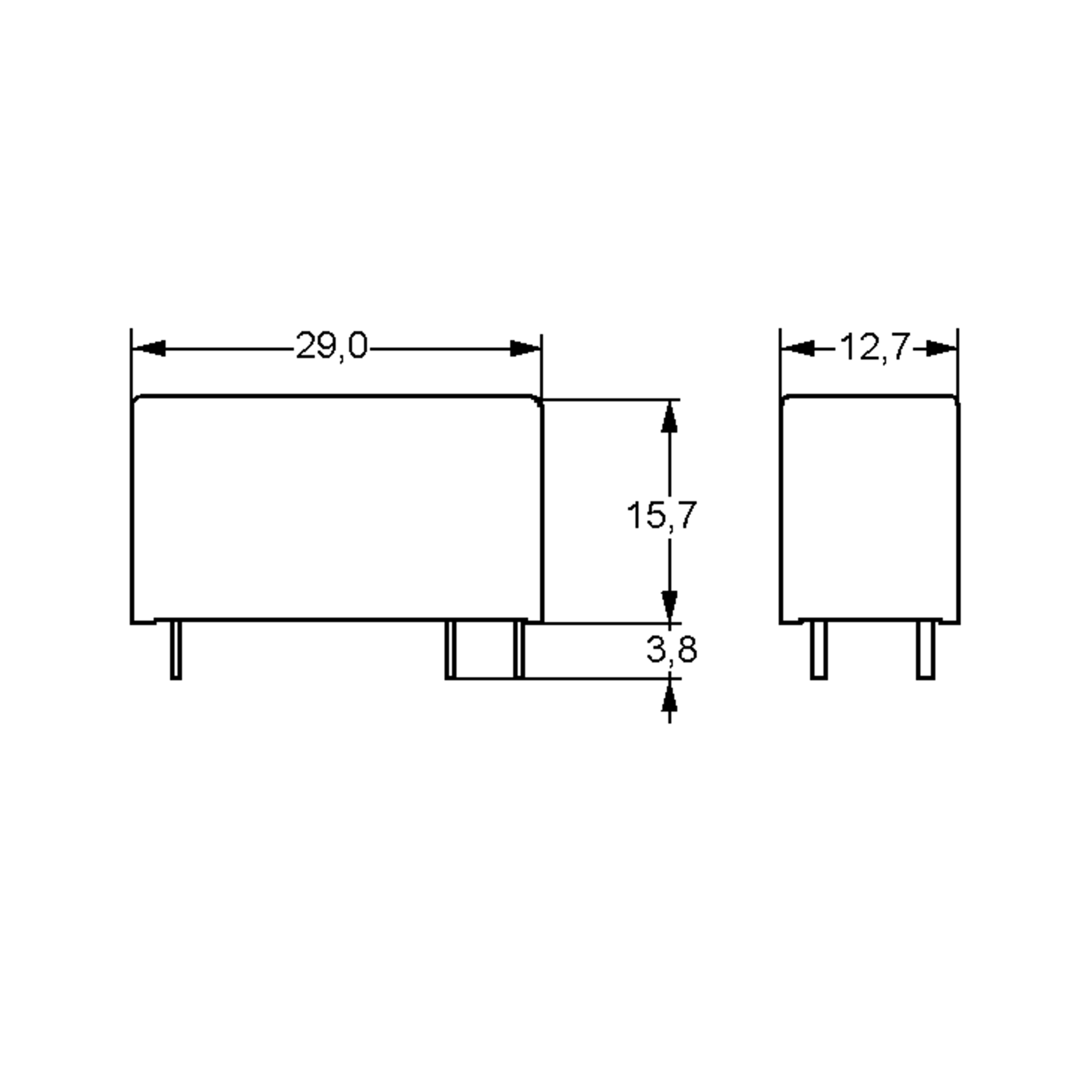

Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.7 mm
- Dimension: Height
- 15.7 mm
- Weight
- 14 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 16 A
- Contact: Switching Capacity (VA)
- 4,000 VA
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 360 Ohm
- Inductor power
- 400 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Pick-up voltage
- 8.4 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage open contacts
- 1,250 V AC
- Test voltage coil/contact
- 5,000 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 30 x 10^6 operations
- Service life, electrical
- see data sheet
- Vibration resistance
- NO/NC: 20 g / 5 g
- Soldering temperature, max.
- 270°C / 10s
Safety/Certifications
- Approvals
- VDE
- cCSA
- cULus
- Standards
- IEC 61810
- Protection class RT
- RTII
Conformity
- REACH Notice
- REACh Art. 33: contains 4,4'-isopropylidenediphenol CAS# 80-05-7
