2-1393222-0

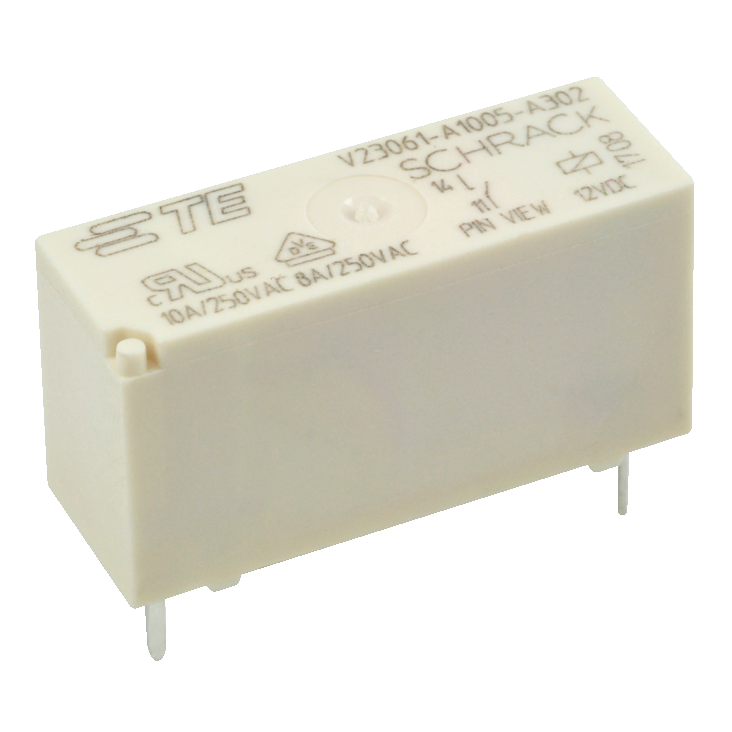

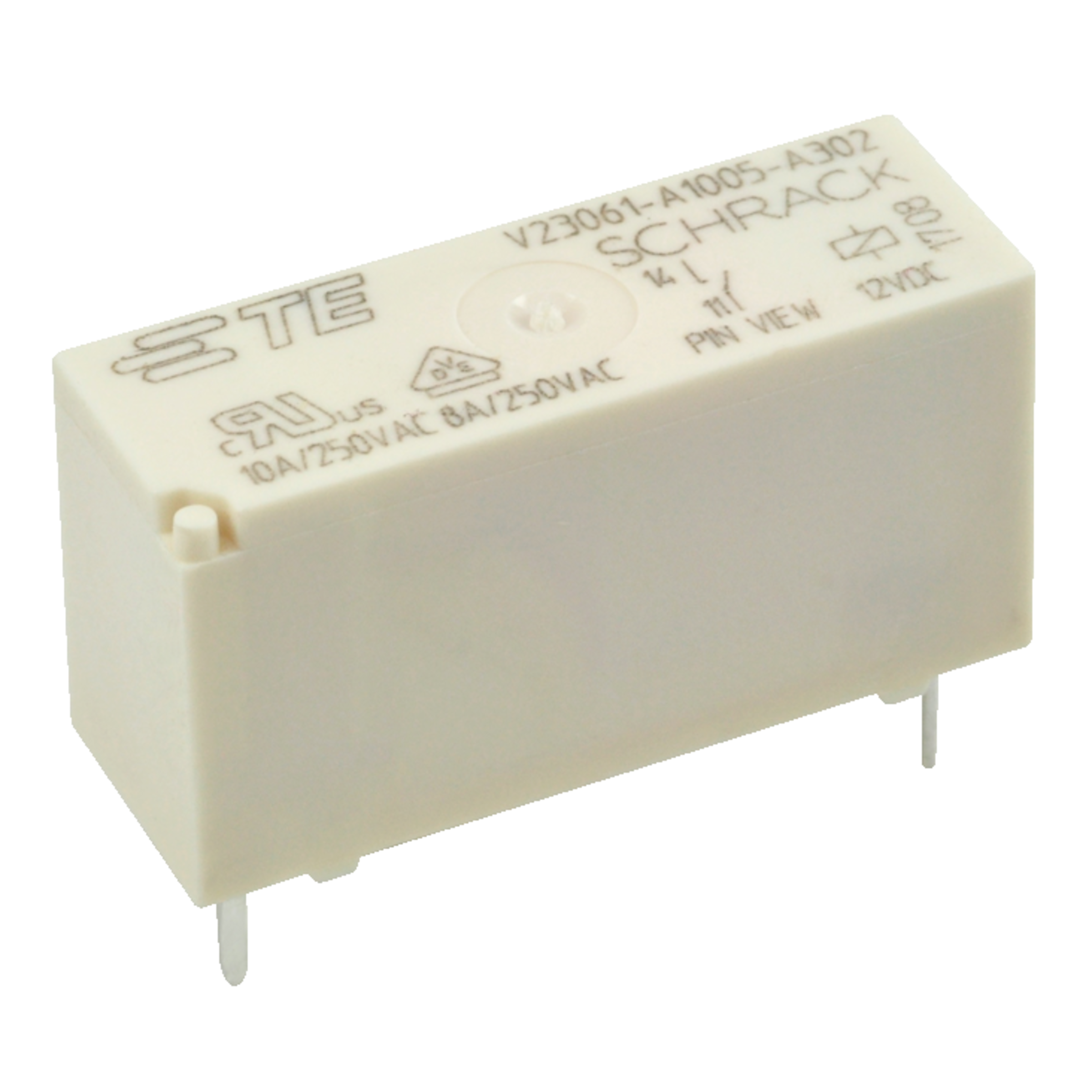

TE Connectivity PC relay MSR V23061 THT SPST-NO 8A 12VDC 652Ohm 30mmx10mmx15mm RTIII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
160 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- MSR V23061
- contacts

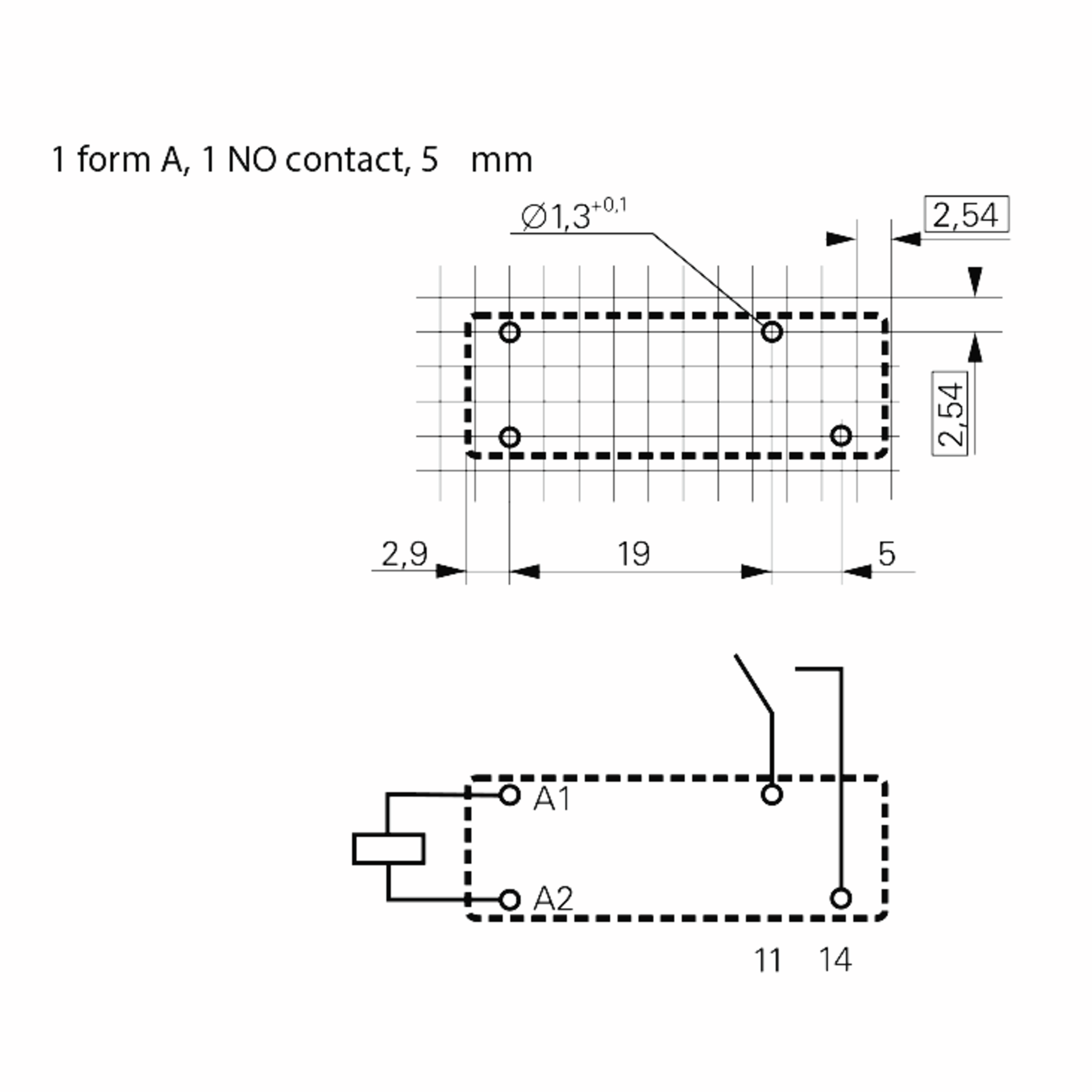

- SPST-NO
- Contact: Switching Current (min/typ/max)
- 8 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 652 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

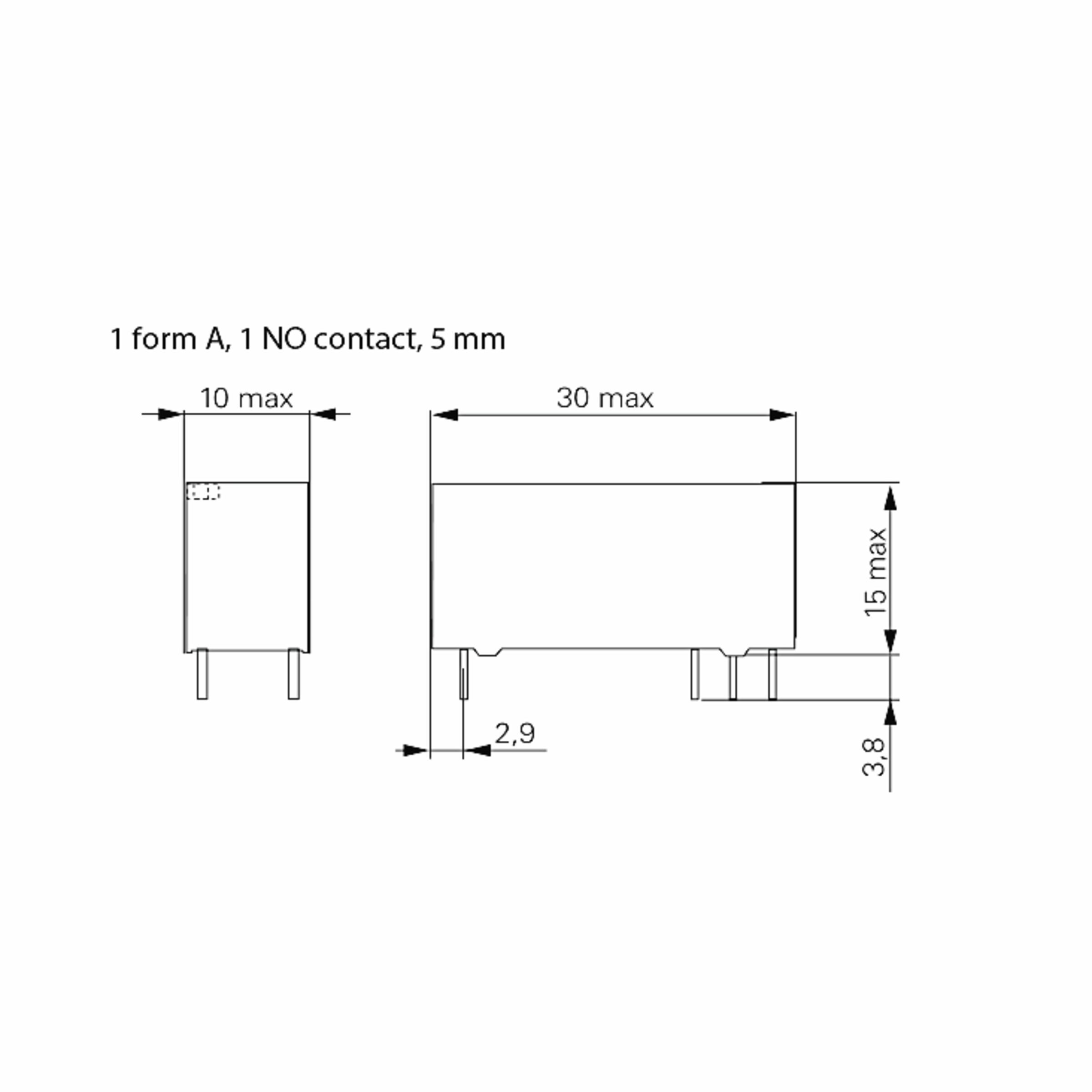

Dimensions and Weights
- Dimension: Length
- 30 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 15 mm
- Weight
- 11 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 8 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Inrush current
- 15 A
- Contact: Switching Capacity (VA)
- 2,000 VA
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 652 Ohm
- Inductor power
- 221 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 8.2 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Vibration resistance
- 10 g
- Impact resistance, functional
- NO/NC: 10 g / 4 g
- Soldering temperature, max.
- 260°C / 5s
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 61810, EN 60730-1 , IEC 60068-2-20
- Protection class RT
- RTIII
