1-1393788-6

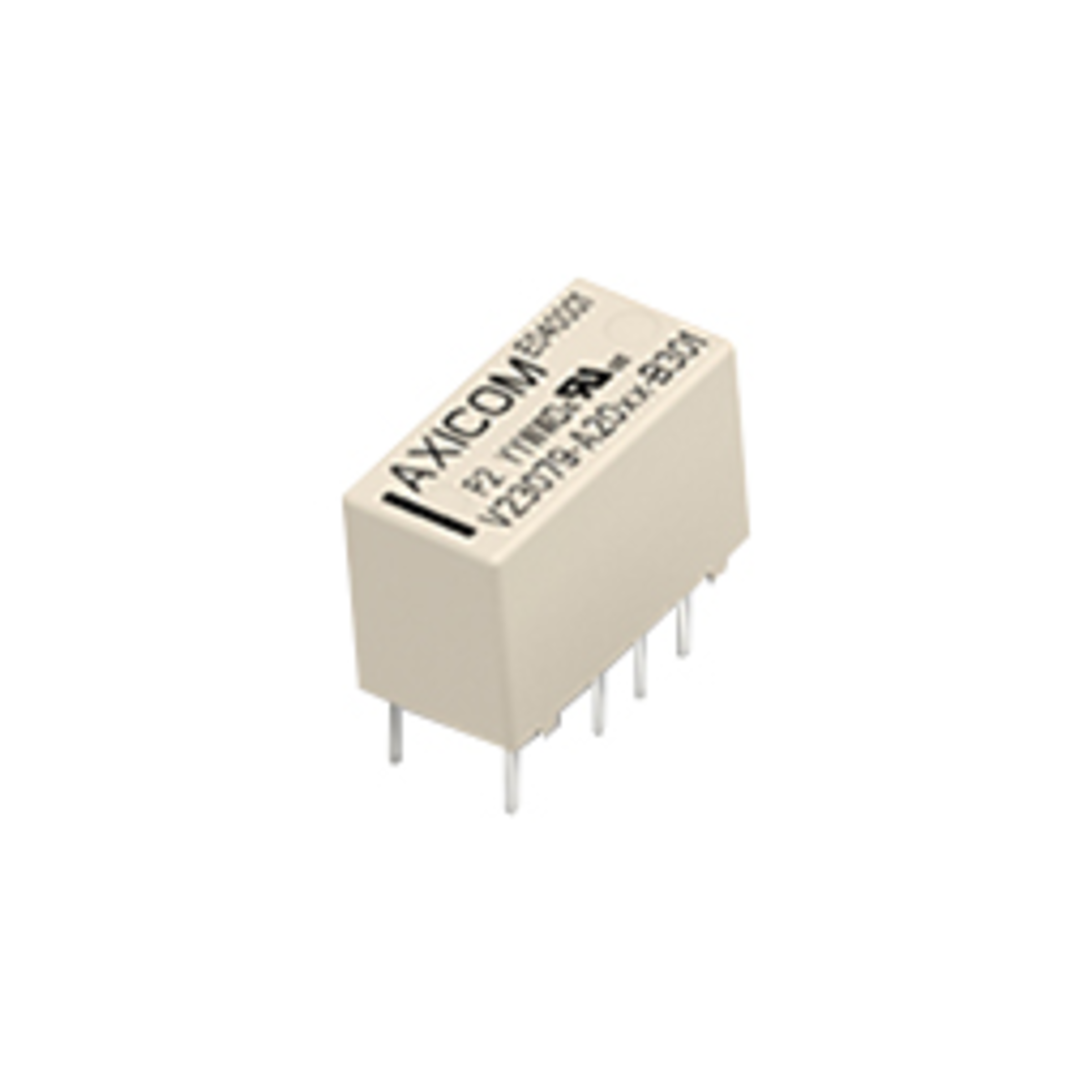

TE Connectivity Signal relay P2 V23079 THT DPDT 2A 24VDC 4.114Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
3.050 Pcs. in stock
Next Stock Receipt
Week 12/2025
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Signal relay
- Series
- P2 V23079
- Rated voltage DC
- 24 V DC
- Switching current
- 2 A

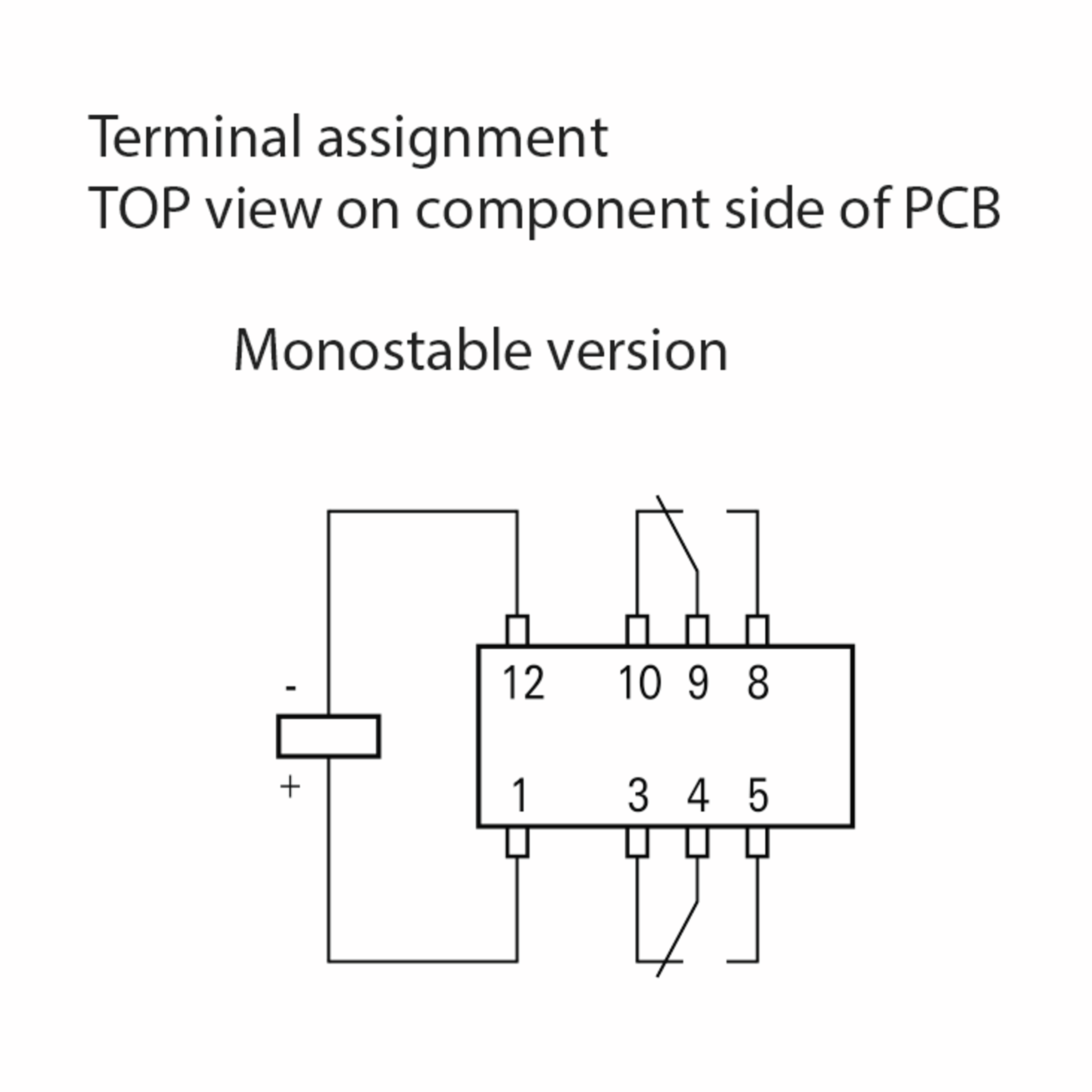

- contacts
- DPDT
- Coil resistance
- 4,114 Ohm
- Dimension: Length
- 14.5 mm
- Dimension: Width
- 7.2 mm
- Dimension: Height
- 9.8 mm
- RoHS-Conform
Specifications
Open all

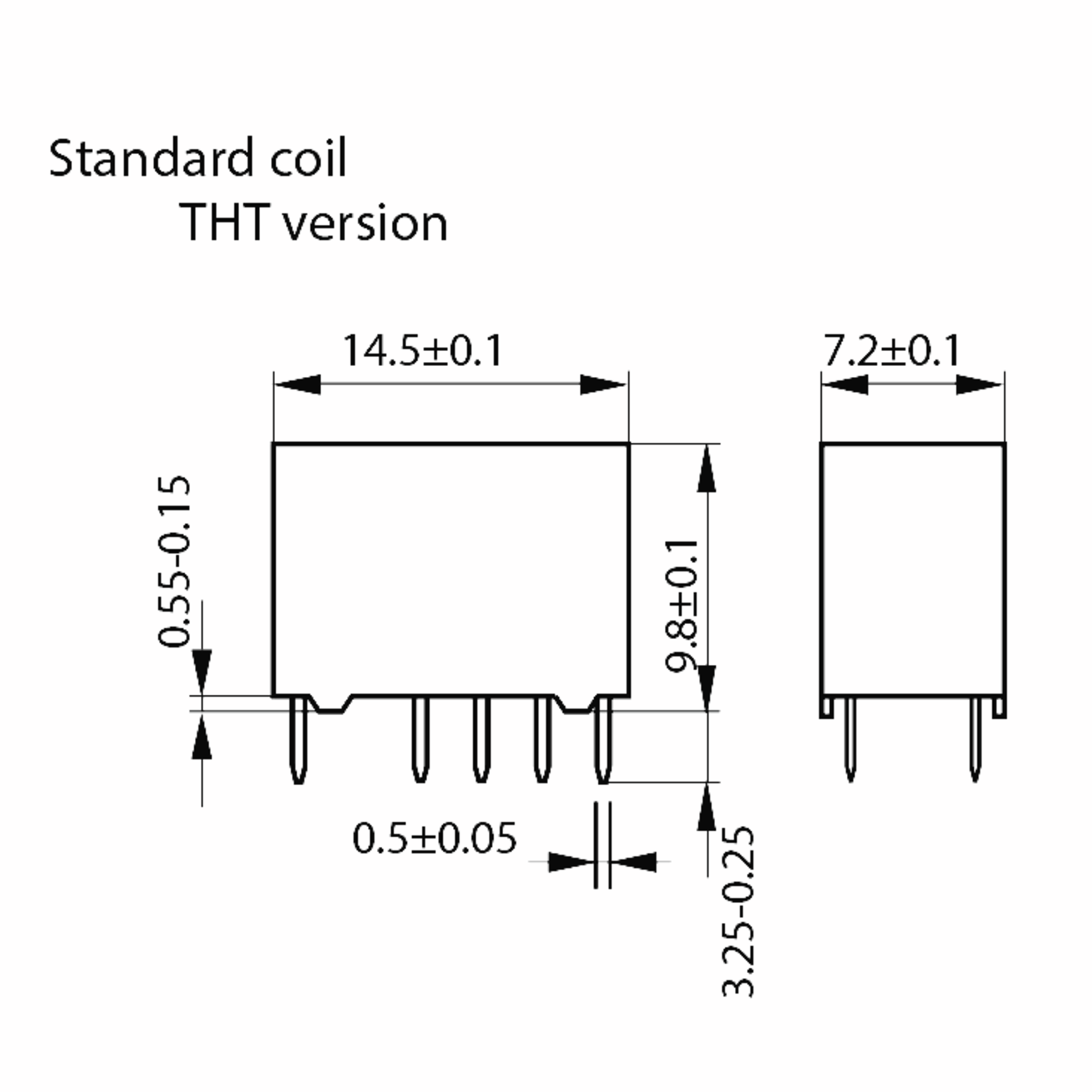

Dimensions and weights
- Dimension: Length
- 14.5 mm
- Dimension: Width
- 7.2 mm
- Dimension: Height
- 9.8 mm
- Weight
- 2.8 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- Contact design
- Switching voltage, max. AC
- 250 V AC
- Switching voltage, max. DC
- 220 V DC
- Response voltage
- 18 V
- Drop-out voltage
- 2.4 V
- Test voltage contact/contact
- 1,000 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 1,500 V AC
- Switching current
- 2 A
- Transport Current
- 2 A
- Rated power
- 140 mW
- Switching capacity (VA)
- 62.5 VA
- Switching capacity (W)
- 60 W
- Coil resistance
- 4,114 Ohm
- Contact resistance
- 50 mOhm
- Insulation resistance
- 1.000 MOhm
- Response time
- 2 ms
- Drop-out time
- 2 ms
- Vibration resistance
- 35 G
- Impact resistance, functional
- 100 G
Safety/Certifications
- Approvals
- cULus
- Standards
- IEC 61810, IEC/EN 60950 IEC Ref. Cert. No. 327
- Protection class RT
- RTIII
