1-1393258-5
TE Connectivity Forced-guided relay SR2M THT DPDT 6A 24VDC 823Ohm
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.024 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

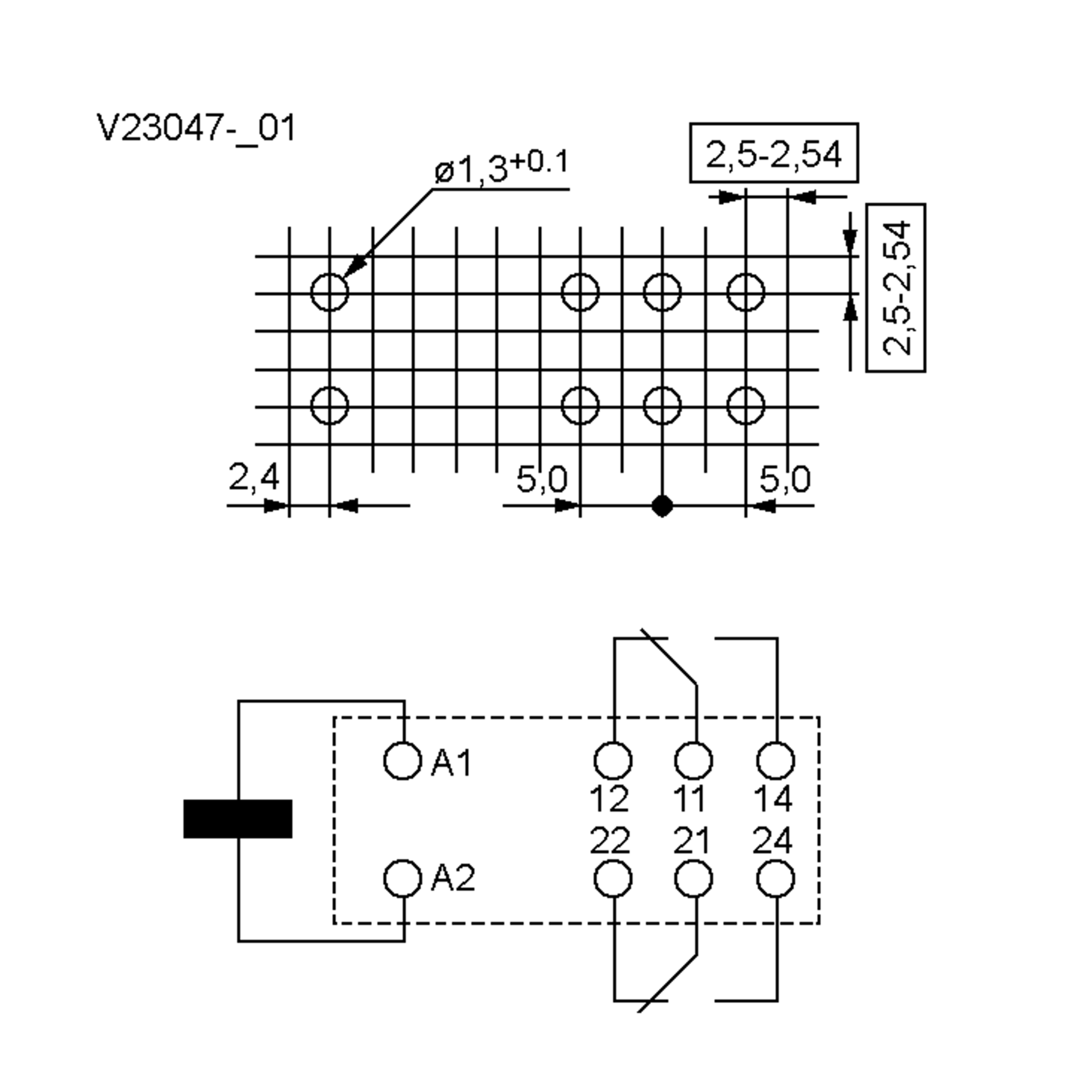

Fact Sheet
- Type
- Forced-guided relay
- Series
- SR2M
- Rated current
- 6 A
- Rated voltage DC
- 24 V DC
- Switching current
- 6 A
- contacts
- DPDT
- Coil resistance
- 823 Ohm
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.6 mm
- Dimension: Height
- 25.5 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.6 mm
- Dimension: Height
- 25.5 mm
- Weight
- 20 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- Switching voltage, max. AC
- 400 V AC
- Response voltage
- 18 V
- Drop-out voltage
- 2.4 V
- Test voltage contact/contact
- 3,000 V AC
- Test voltage open contacts
- 1,500 V AC
- Test voltage coil/contact
- 4,000 V AC
- Creepage distance
- 8 mm
- Rated current
- 6 A
- Switching current
- 6 A
- Rated power
- 700 mW
- Switching capacity (VA)
- 1,500 VA
- Coil resistance
- 823 Ohm
- Response time
- 10 ms
- Drop-out time
- 4 ms
Safety/Certifications
- Approvals
- CCC
- MOT
- VDE
- cULus
- Standards
- EN 50205, IEC 60947-5-1
- Protection class RT
- RTIII
Documents
ENG_DS_SR2M_1116.pdf
