1-1393223-7
TE Connectivity Power relay MSR V23061 THT SPDT 8A 24VDC 2.270Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
200 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 20 or multiple of 20)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- MSR V23061
- Rated voltage DC
- 24 V DC
- Switching current
- 8 A
- contacts

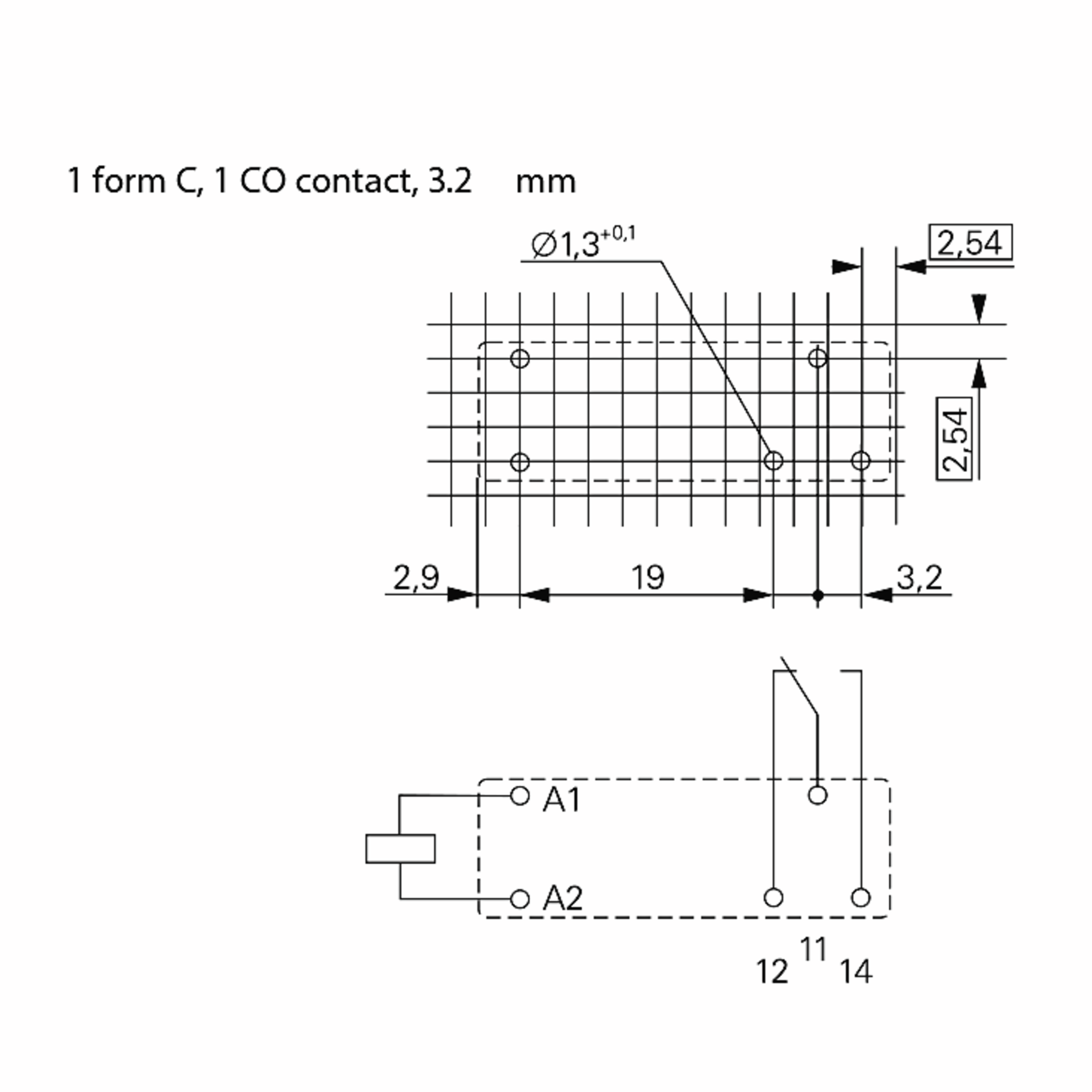

- SPDT
- Coil resistance
- 2,270 Ohm
- Dimension: Length
- 30 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 15 mm
- RoHS-Conform
Specifications
Open all

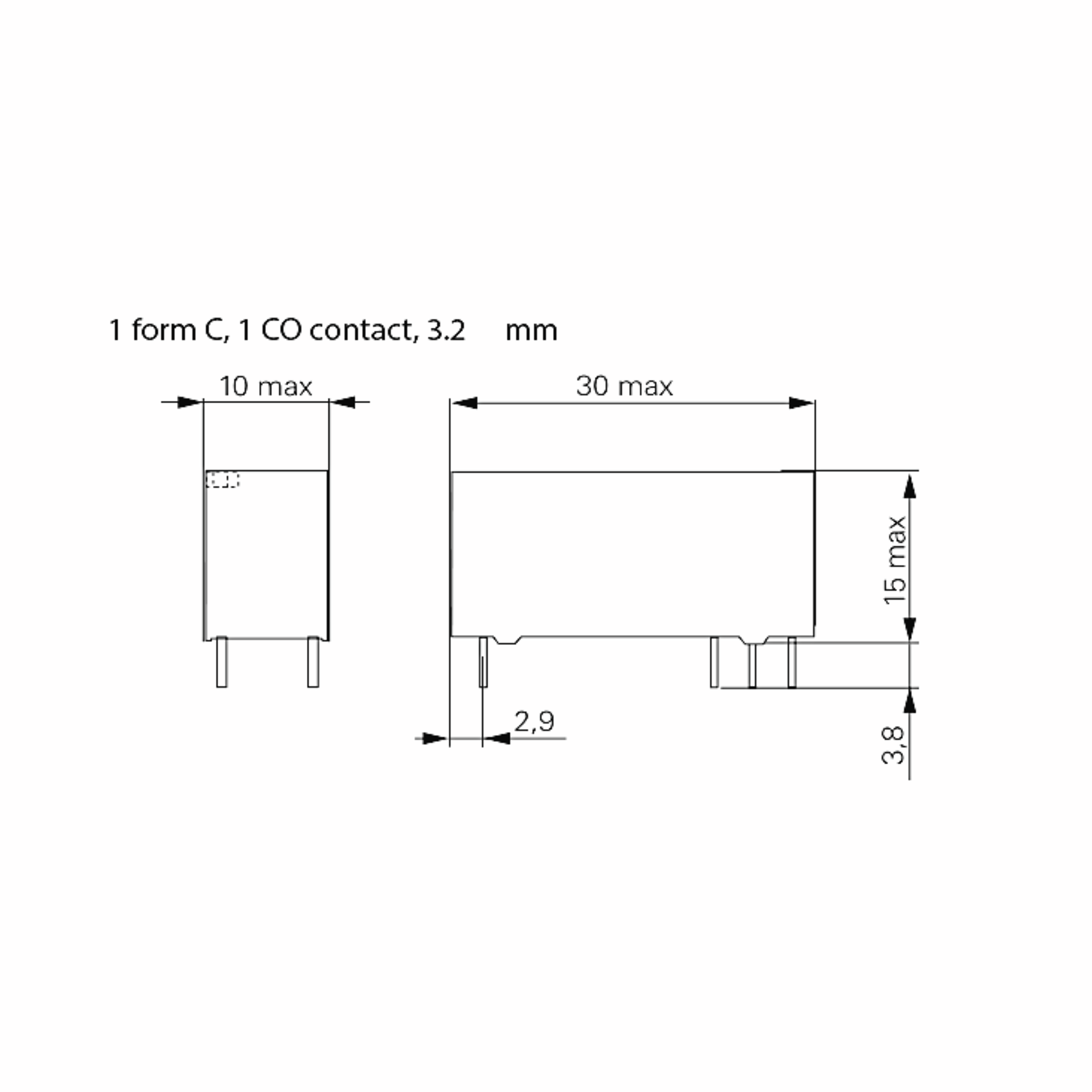

Dimensions and weights
- Dimension: Length
- 30 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 15 mm
- Weight
- 11 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- Switching voltage, max. AC
- 400 V AC
- Response voltage
- 16.3 V
- Drop-out voltage
- 2.4 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Creepage distance
- 8 mm
- Switching current
- 8 A
- Inrush current
- 15 A
- Rated power
- 254 mW
- Switching capacity (VA)
- 2,000 VA
- Coil resistance
- 2,270 Ohm
- Response time
- 10 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 10 G
- Impact resistance, functional
- NO/NC: 10 G / 4 G
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- IEC 61810, EN 60730-1 , IEC 60068-2-20
- Protection class RT
- RTIII
