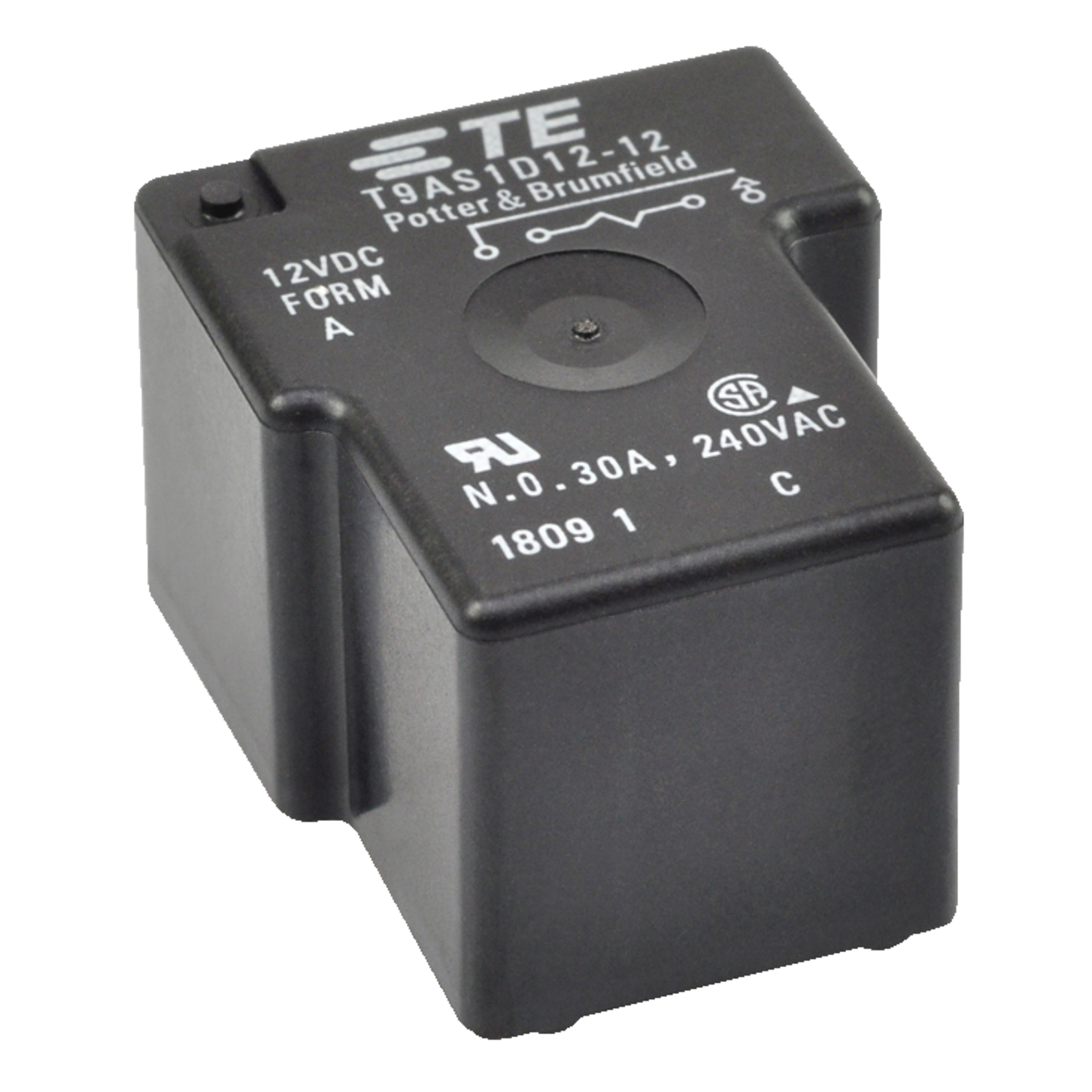

TE Connectivity PC relay T9A THT SPST-NO 30A 12VDC 144Ohm 32,51mmx27,43mmx20,4mm RTIII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
780 Pcs. in stock
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- T9A
- contacts

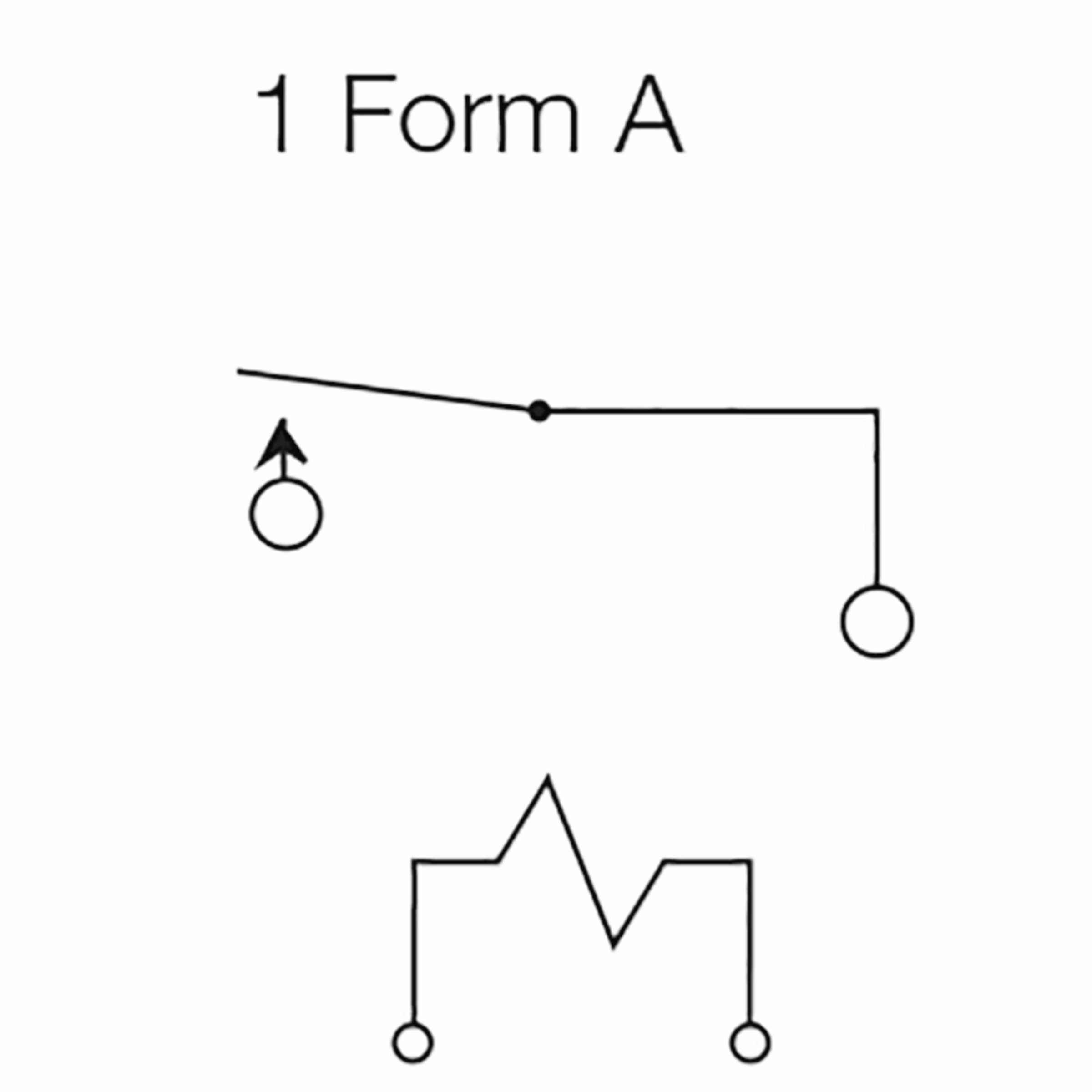

- SPST-NO
- Contact: Switching Current (min/typ/max)
- 30 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 144 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

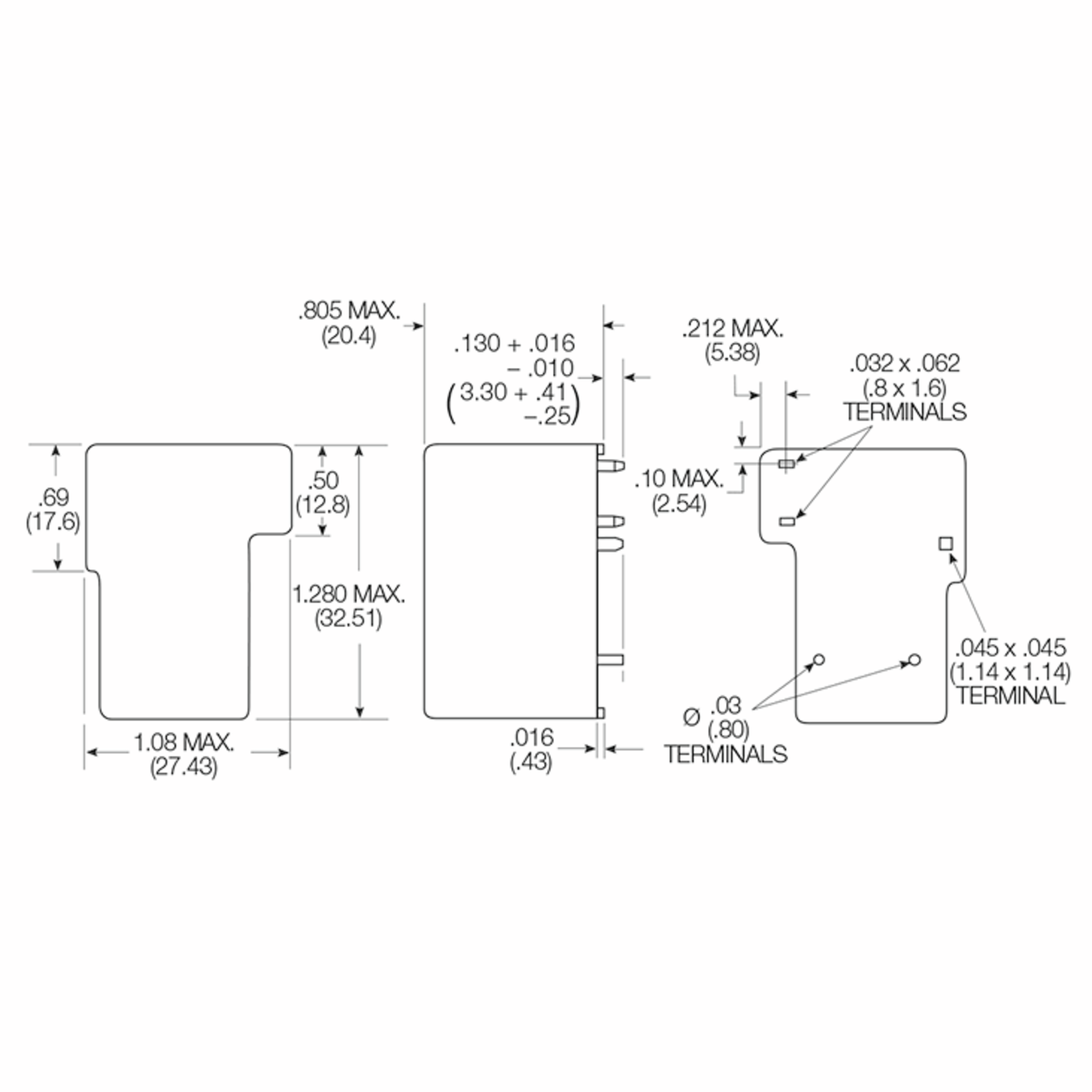

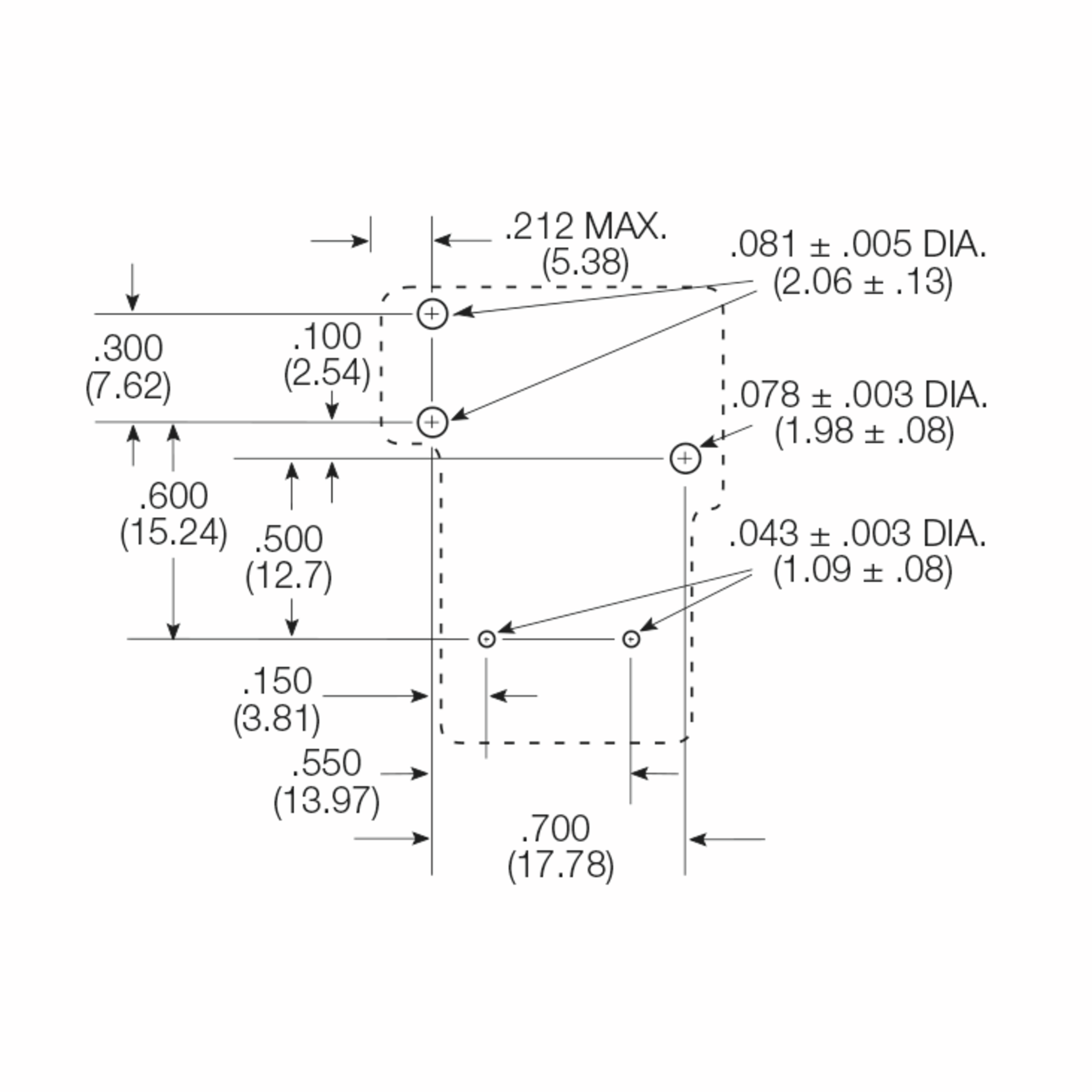

Dimensions and Weights
- Dimension: Length
- 32.51 mm
- Dimension: Width
- 27.43 mm
- Dimension: Height
- 20.4 mm
- Weight
- 26 g
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 30 A
- Contact: Switching Voltage, max. AC
- 277 V AC
- Contact: Continuous Current
- 30 A
- Contact resistance
- 75 mOhm
- Creepage distance
- 6.36 mm
- Coil design
- monostable
- Coil resistance
- 144 Ohm
- Inductor power
- 1,000 mW
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, max.
- 13.2 V
- Coil: Pick-up voltage
- 9 V
- Coil: Drop-out Voltage
- 1.2 V
- Test voltage open contacts
- 1,500 V AC
- Test voltage coil/contact
- 2,500 V AC
- Response time
- 15 ms
- Drop-out time
- 15 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 100,000 operations
Safety/Certifications
- Approvals
- UL
- cCSA
- Standards
- IEC 61810
- Protection class RT
- RTIII
Conformity
- REACH Notice
- REACh Art. 33: contains cadmium CAS# 7440-43-9
