0-794958-1

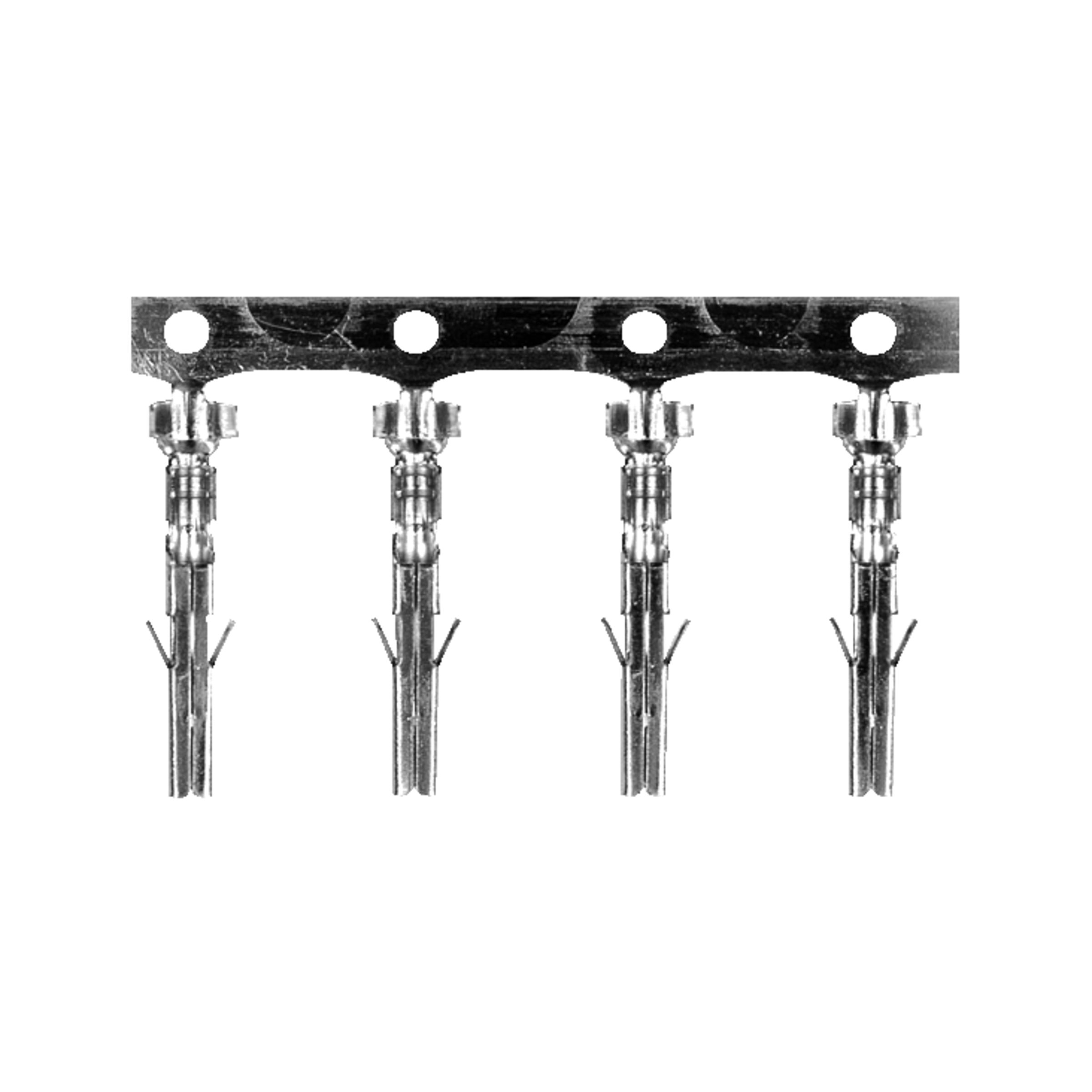

TE Connectivity Socket contact 794 VAL-U-LOK verzinnt Crimp
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
13.125 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 5000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Socket contact
- Connector Contact
- Crimp
- Series
- 794
- Design
- Contacts
- Operating Temperature Max.
- 105 °C
- Rated voltage AC
- 600 V AC
- Rated current
- 9 A
- Rated voltage DC
- 600 V DC
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights

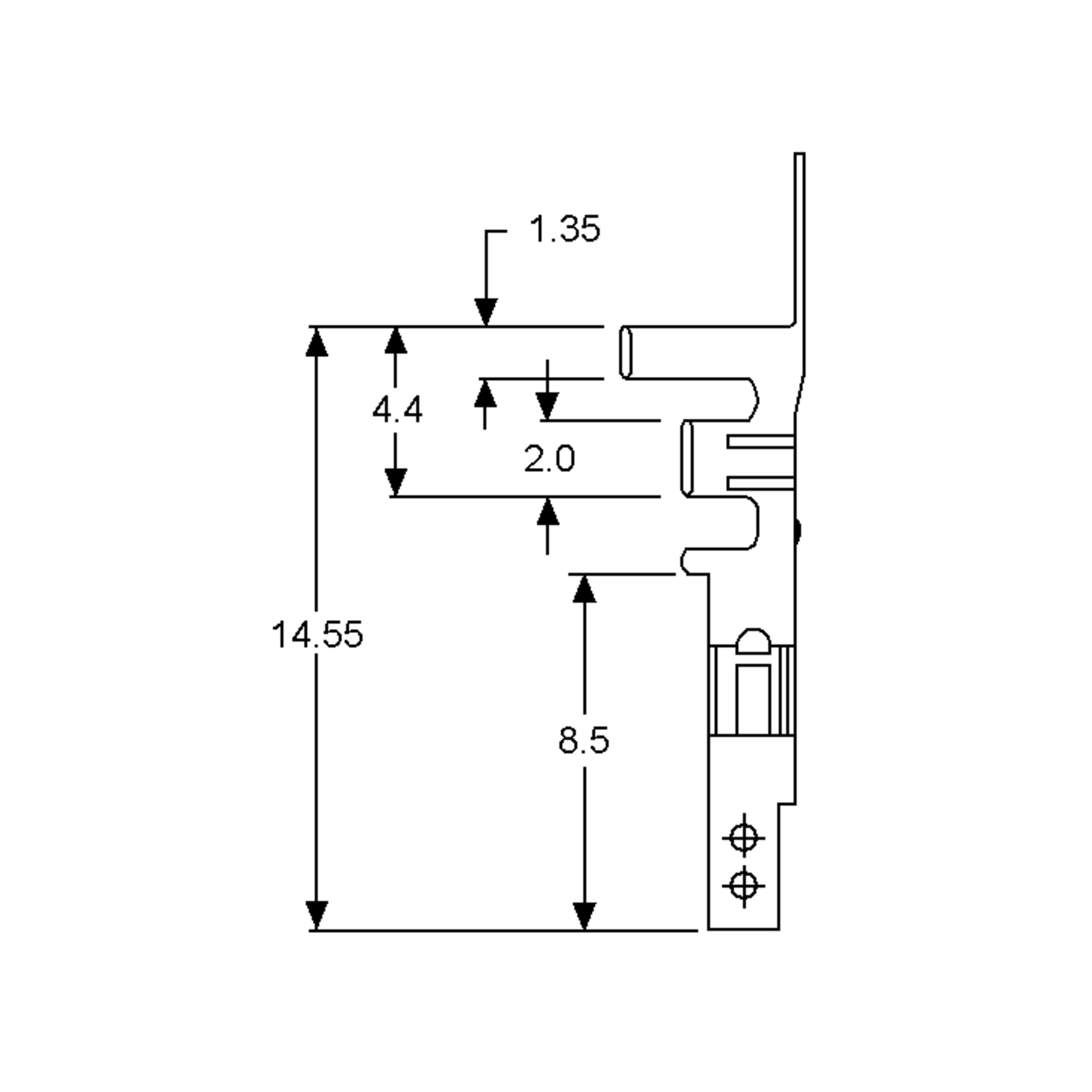

- Dimension: Length
- 14.55 mm
- Conductor cross-section, min.
- 0.326 mm²
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 9 A
- Rated voltage AC
- 600 V AC
- Rated voltage DC
- 600 V DC
Mechanical Features
- Contact Surface Input
- verzinnt
