0-172233-1
TE Connectivity 172 2pol. 4,14mm 9A 600VAC 1,25mm² verzinnt
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
675 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 172
- Colour
- natural
- Number of poles
- 2
- Dimension: Length
- 23.7 mm
- Rated current
- 9 A
- Rated voltage AC
- 600 V AC
- Pitch
- 4.14 mm
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
- RoHS-Conform
Specifications
Open all

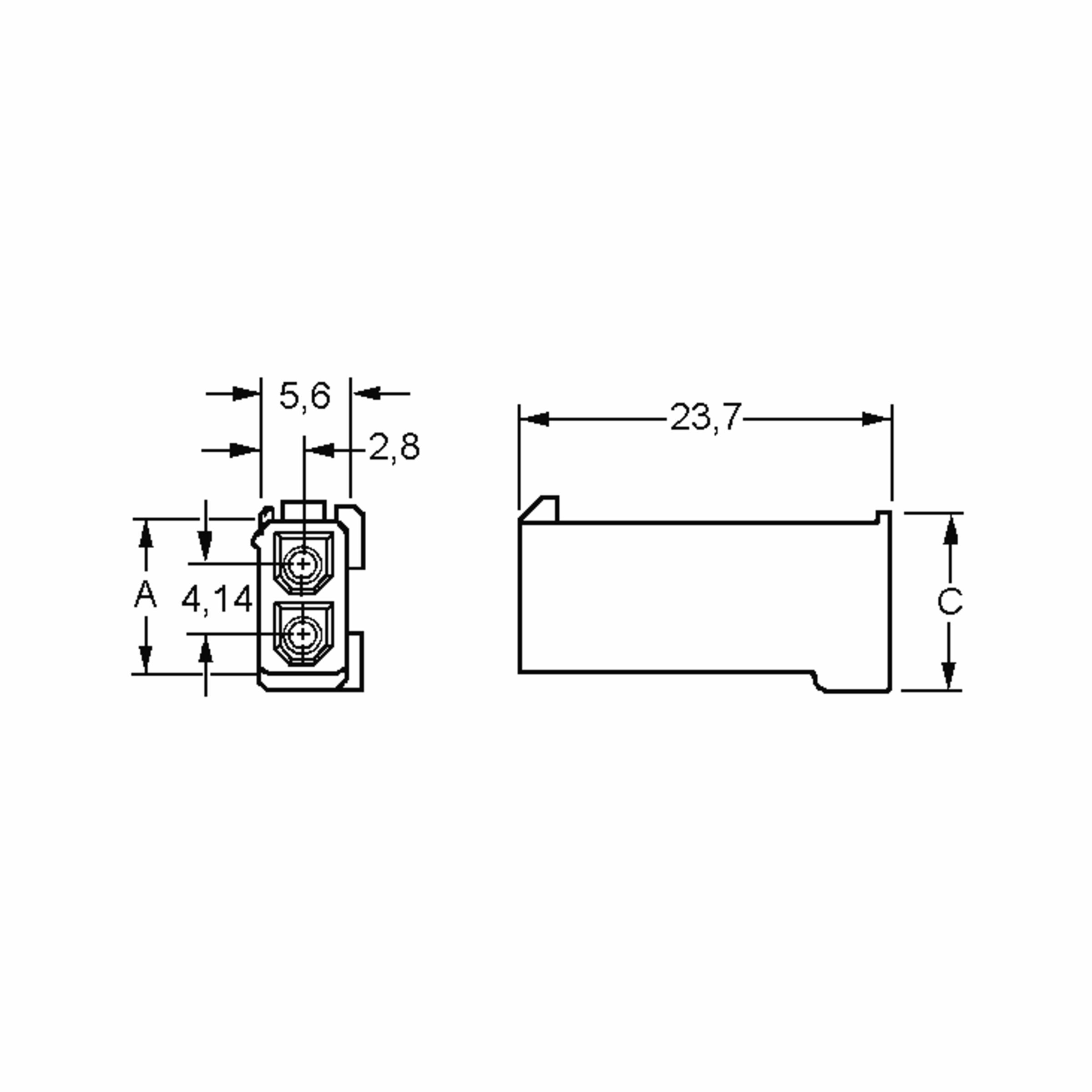

Dimensions and weights
- Dimension: Length
- 23.7 mm
- Width (incl. pins)
- 5.6 mm
- Height (incl. pins)
- 12.5 mm
- Pitch
- 4.14 mm
- Conductor cross-section, min.
- 0.3 mm²
- Conductor cross-section, max.
- 1.25 mm²
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 105 °C
Technical features
- Rated current
- 9 A
- Rated voltage AC
- 600 V AC
Mechanical features
- Kontaktbeschichtung Eingang
- verzinnt
