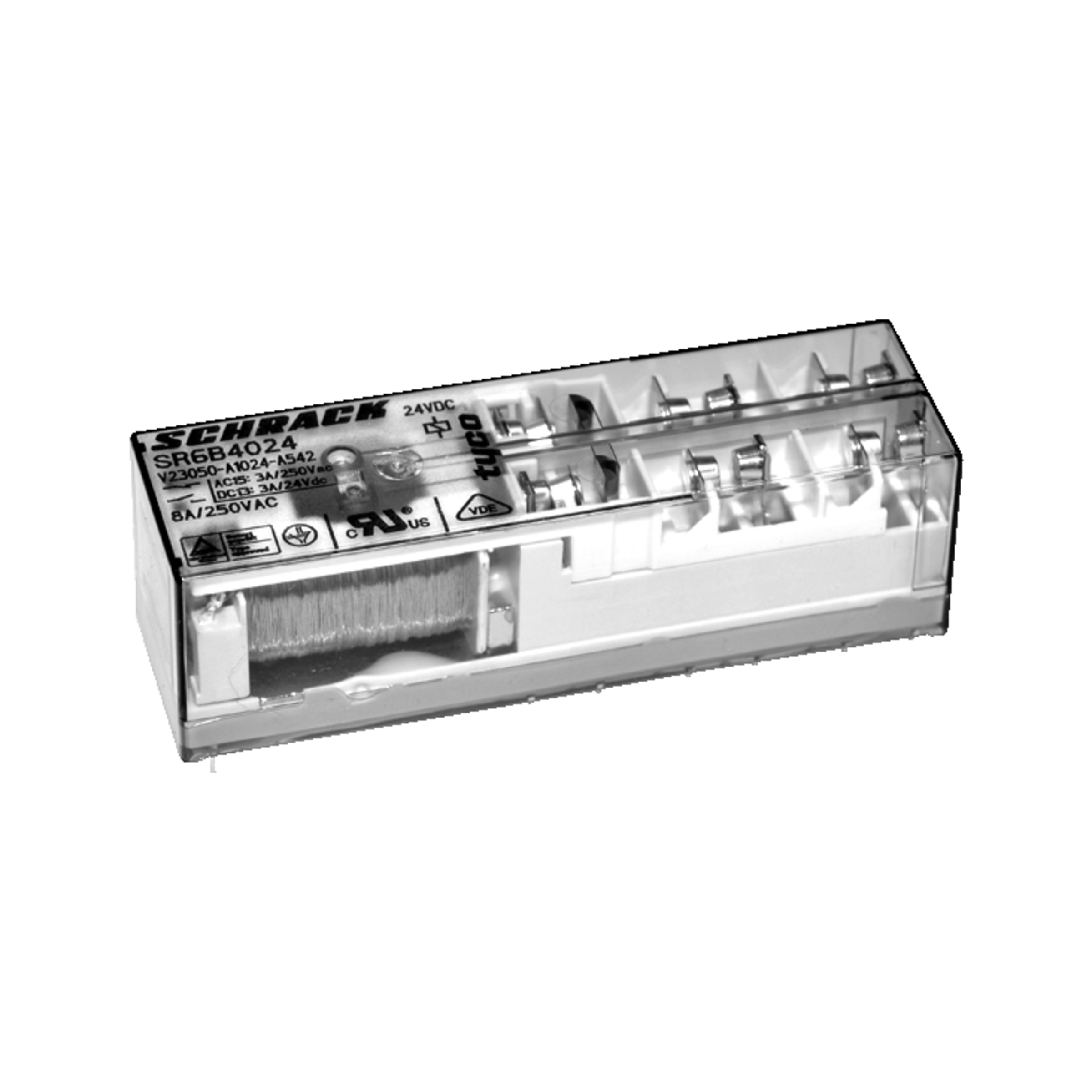

0-1415017-1
TE Connectivity Safety relay SR6 THT 5PDT-NO/SPDT-NC 8A 24VDC 480Ohm 55mmx16,5mmx16,5mm RTIII
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
143 Pcs. in stock
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- SR6

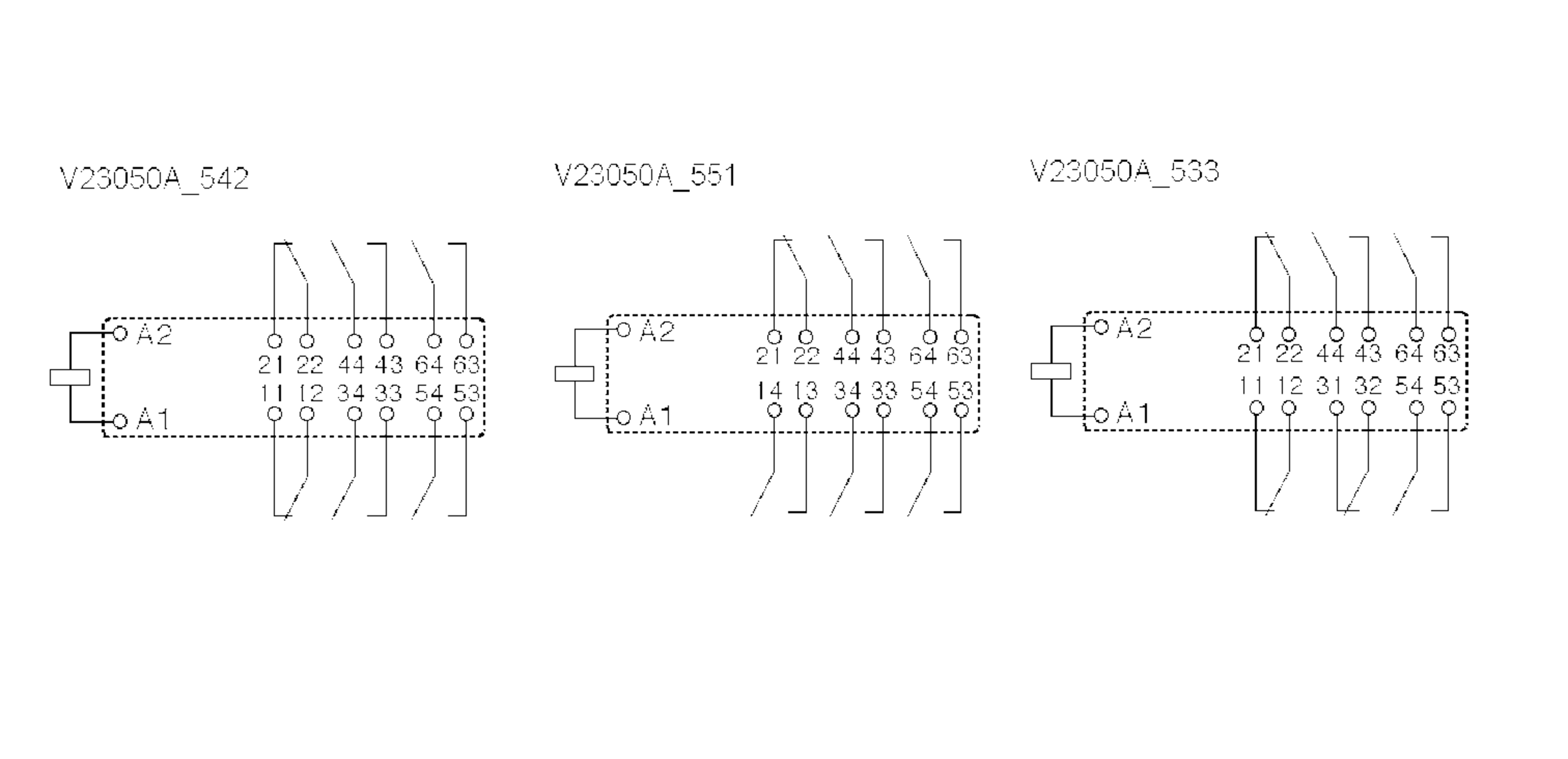

- contacts
- 5PDT-NO/SPDT-NC
- Contact: Switching Current (min/typ/max)
- 8 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 480 Ohm
- Protection class RT
- RTIII
- RoHS-Conform
Specifications
Open all

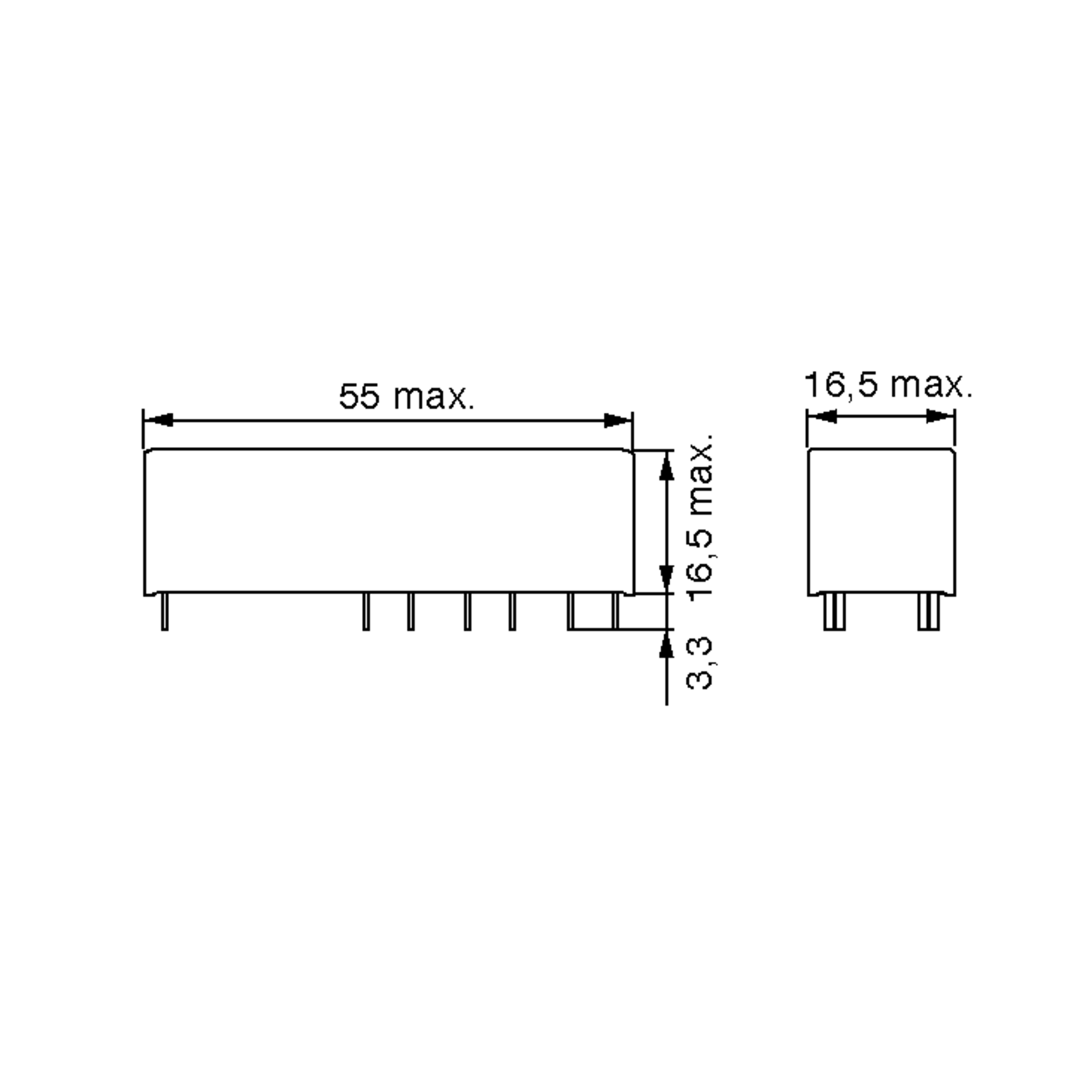

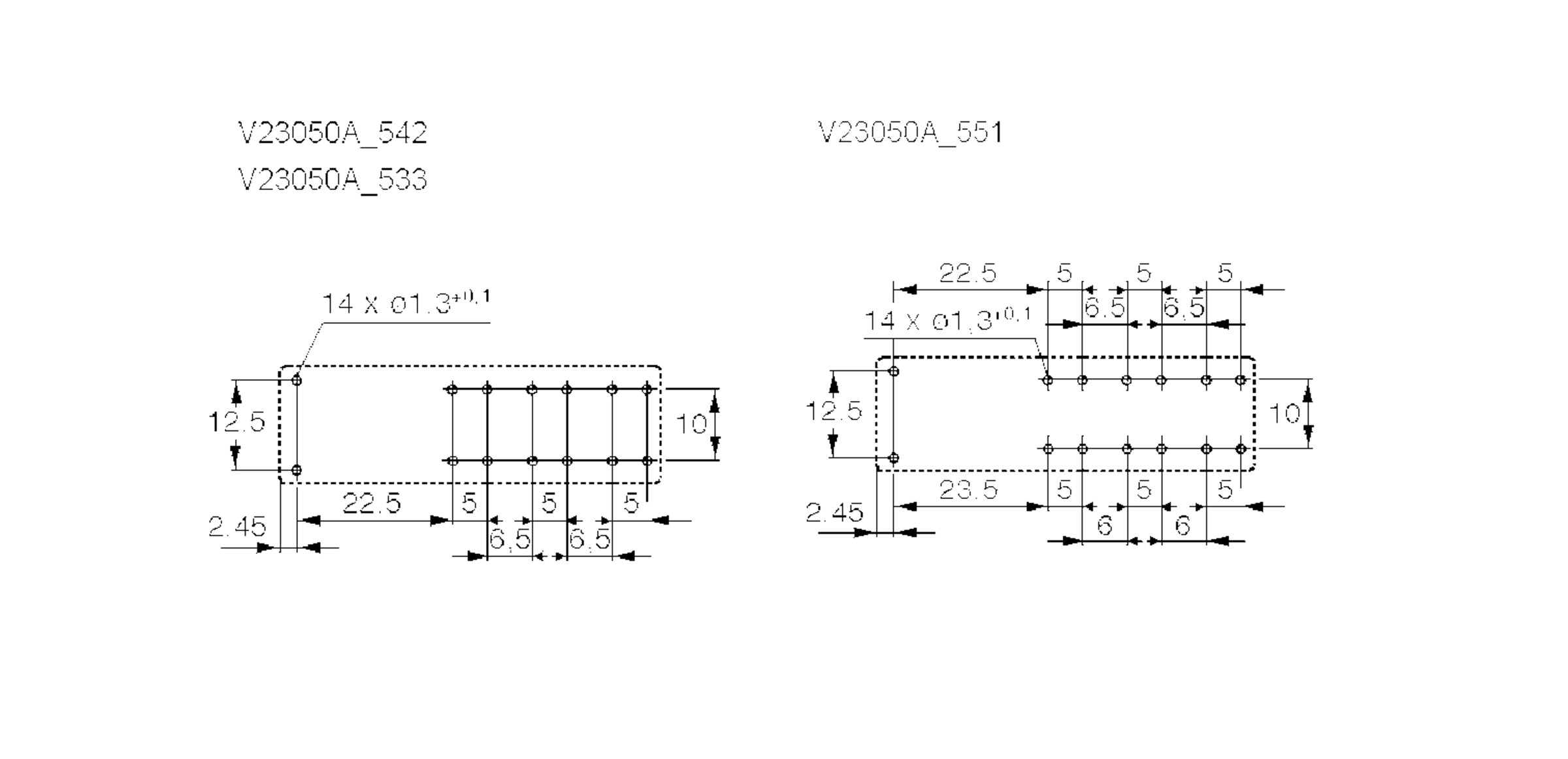

Dimensions and Weights
- Dimension: Length
- 55 mm
- Dimension: Width
- 16.5 mm
- Dimension: Height
- 16.5 mm
- Weight
- 30 g
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 8 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Rated Current
- 8 A
- Contact: Switching Capacity (VA)
- 2,000 VA
- Creepage distance
- 5.5 mm
- Coil design
- monostable
- Coil resistance
- 480 Ohm
- Inductor power
- 1,200 mW
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Pick-up voltage
- 18 V
- Coil: Drop-out Voltage
- 2.4 V
- Test voltage contact/contact
- 3,000 V AC
- Test voltage open contacts
- 1,500 V AC
- Test voltage coil/contact
- 3,000 V AC
Safety/Certifications
- Approvals
- CCC
- MOT
- VDE
- cULus
- Standards
- EN 50205, IEC 60947-5-1
- Protection class RT
- RTIII
Conformity
- REACH Notice
- REACh Art. 33: contains 4,4'-isopropylidenediphenol CAS# 80-05-7
