0-1393236-7
TE Connectivity Power relay SNR V23092 THT SPDT 6A 12VDC 848Ohm
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.180 Pcs. in stock
Next Stock Receipt
Week 03/2025
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- SNR V23092
- Rated voltage DC
- 12 V DC
- Switching current
- 6 A

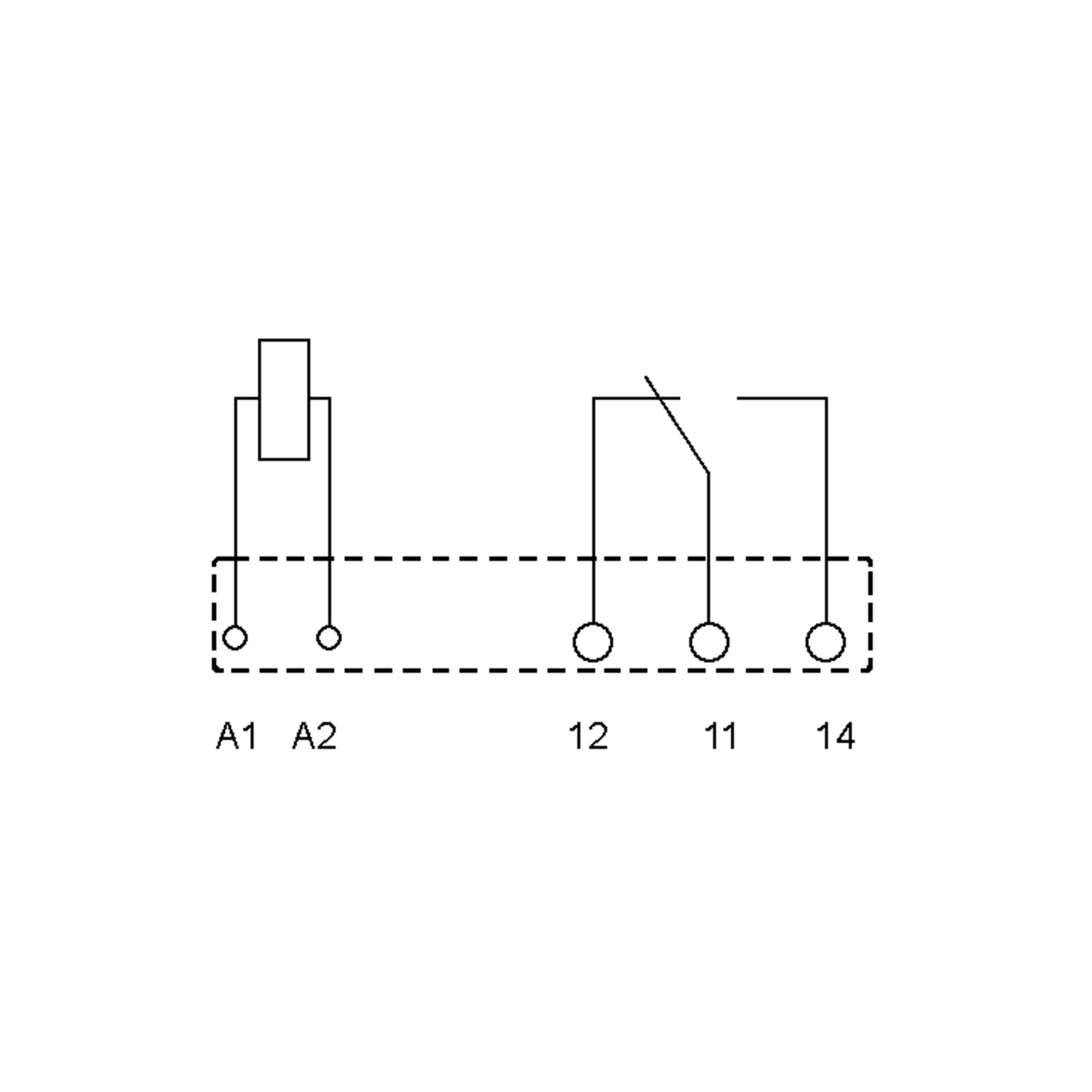

- contacts
- SPDT
- Coil resistance
- 848 Ohm
- Dimension: Length
- 28 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 15 mm
- RoHS-Conform
Specifications
Open all

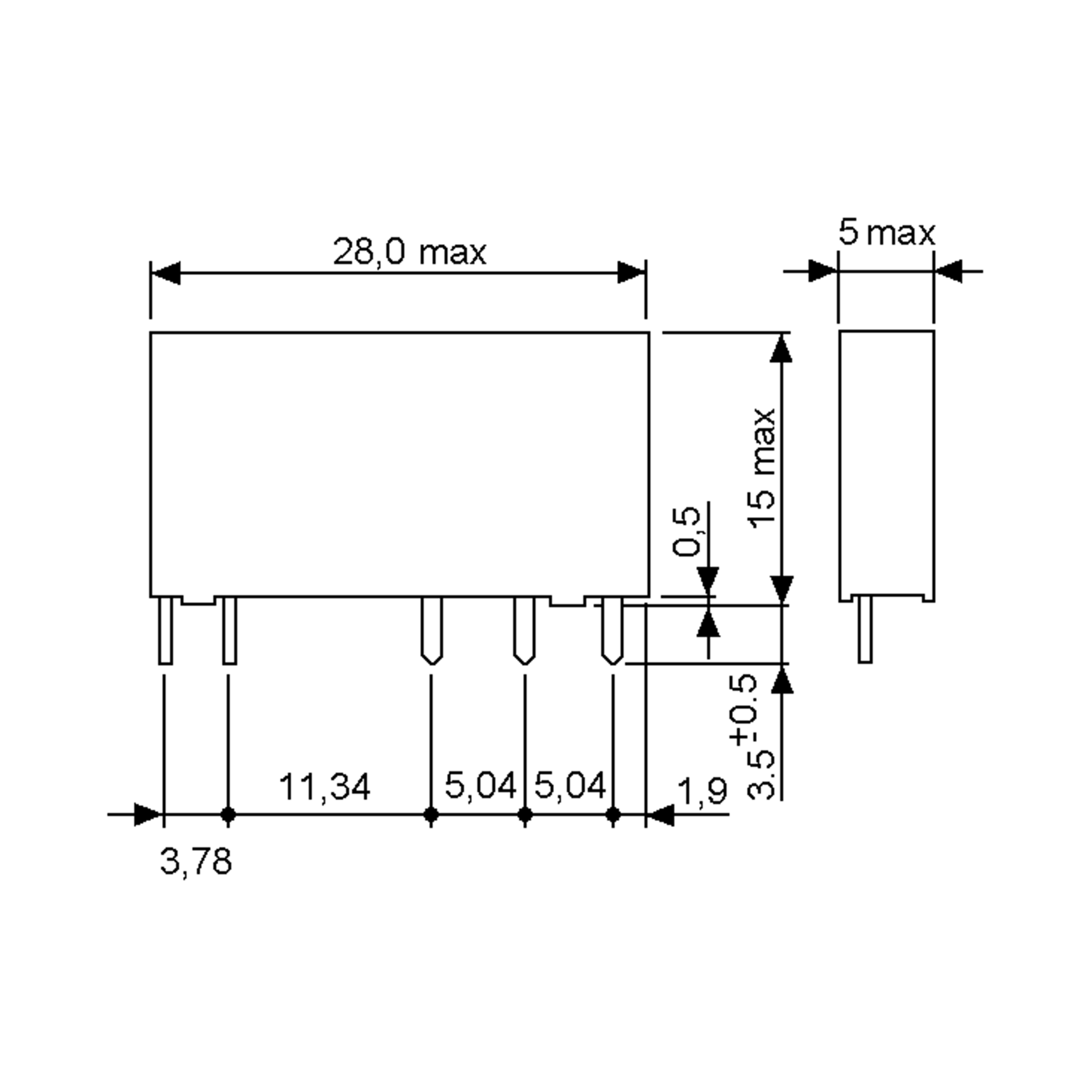

Dimensions and weights
- Dimension: Length
- 28 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 15 mm
- Weight
- 6 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 400 V AC
- Response voltage
- 8.4 V
- Drop-out voltage
- 0.6 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Creepage distance
- 8 mm
- Switching current
- 6 A
- Inrush current
- 10 A
- Rated power
- 170 mW
- Switching capacity (VA)
- 1,500 VA
- Coil resistance
- 848 Ohm
- Response time
- 12 ms
- Drop-out time
- 5 ms
- Vibration resistance
- 10 G
- Impact resistance, functional
- 10 G
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- VDE 0631
- Protection class RT
- RTIII
