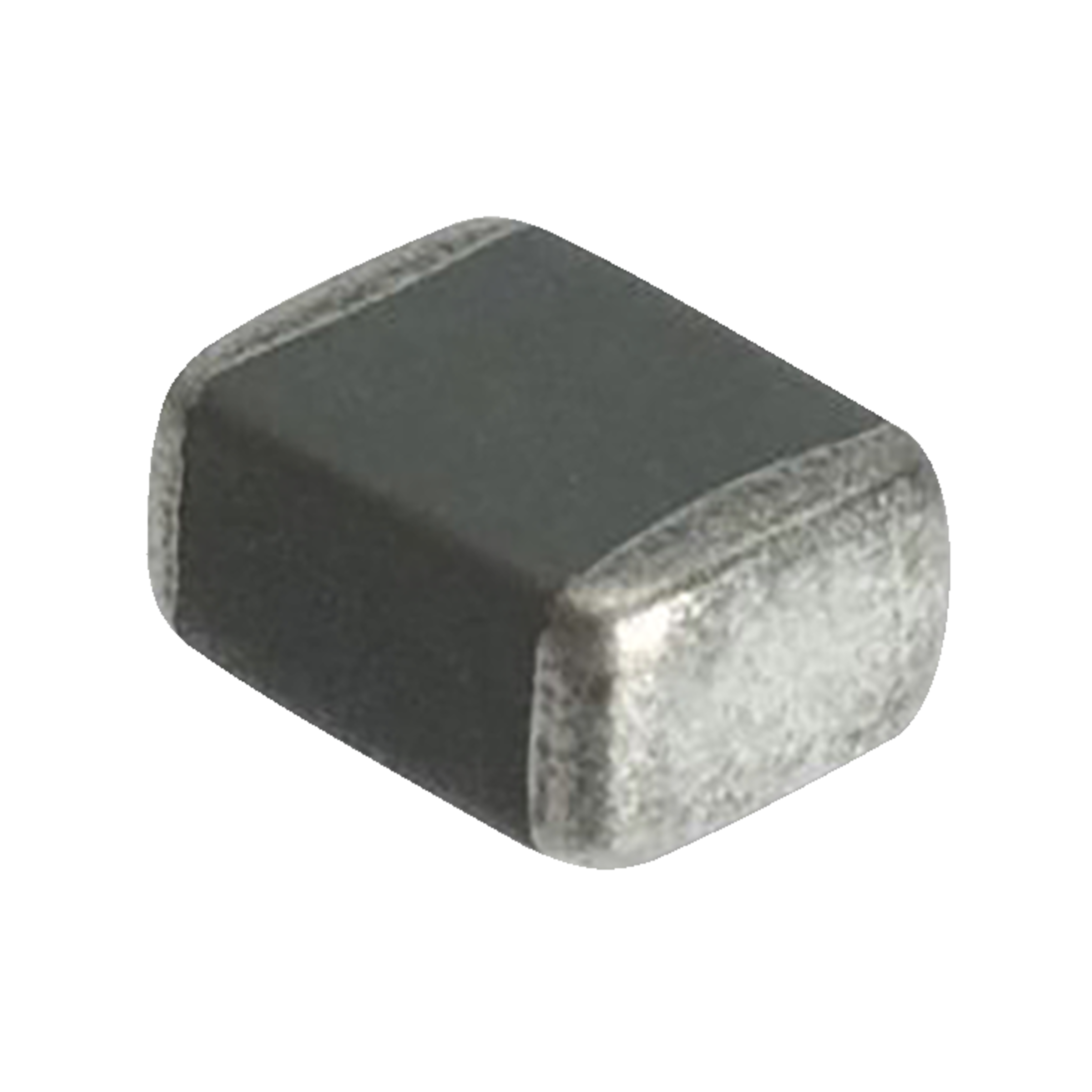

B59707A0120A062
TDK Electronics PTC resistor B59707 125Ohm 25% SMD 1210
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
8.800 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 125 Ohm
- Resistance tolerance
- 25 %
- Housing
- 1210
- RoHS-Conform
Specifications
Open all

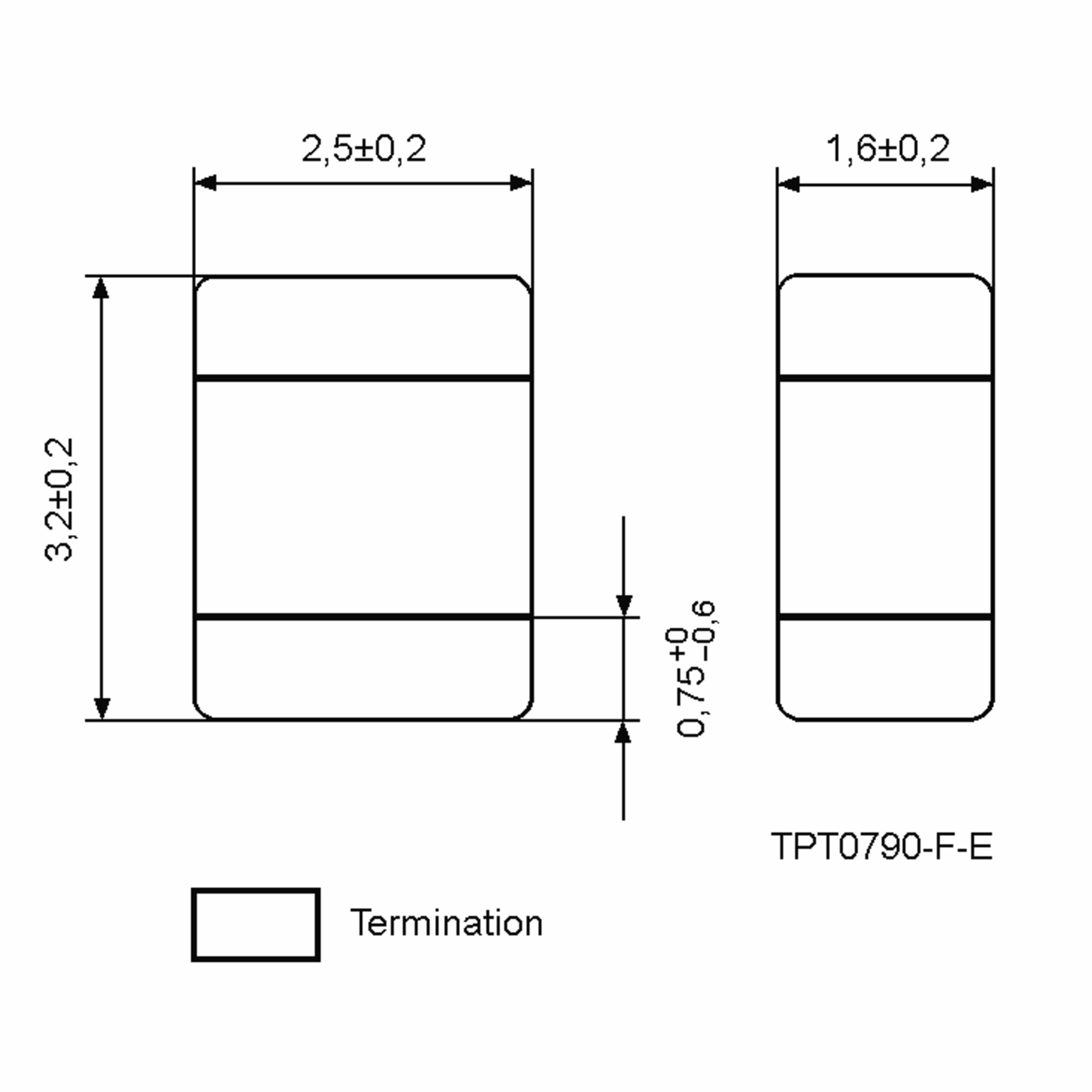

Dimensions and weights
- Dimension: Length
- 3.2 mm
- Dimension: Width
- 2.5 mm
- Dimension: Height
- 1.6 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Resistance value
- 125
- Resistance unit
- Ohm
- Resistance value
- 125 Ohm
- Resistance tolerance
- 25 %
- Rated current
- 50 mA
- Nominal temperature
- 120 °C
- Max. Operating voltage (DC)
- 80 V DC
- Max. Operating voltage (AC)
- 80 V AC
- Rated Voltage
- 63 V
- Max. permissible switching current at Umax
- 0.3 A
- Switching current
- 90 mA
- Residual current at Umax
- 50 mA
