B59052D1070A040
TDK Electronics PTC resistor B59052D1 100Ohm 25% THT P2,5mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
660 Pcs. in stock
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 800 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 100 Ohm
- Resistance tolerance
- 25 %
- Pitch
- 2.5 mm
- RoHS-Conform
Specifications
Open all

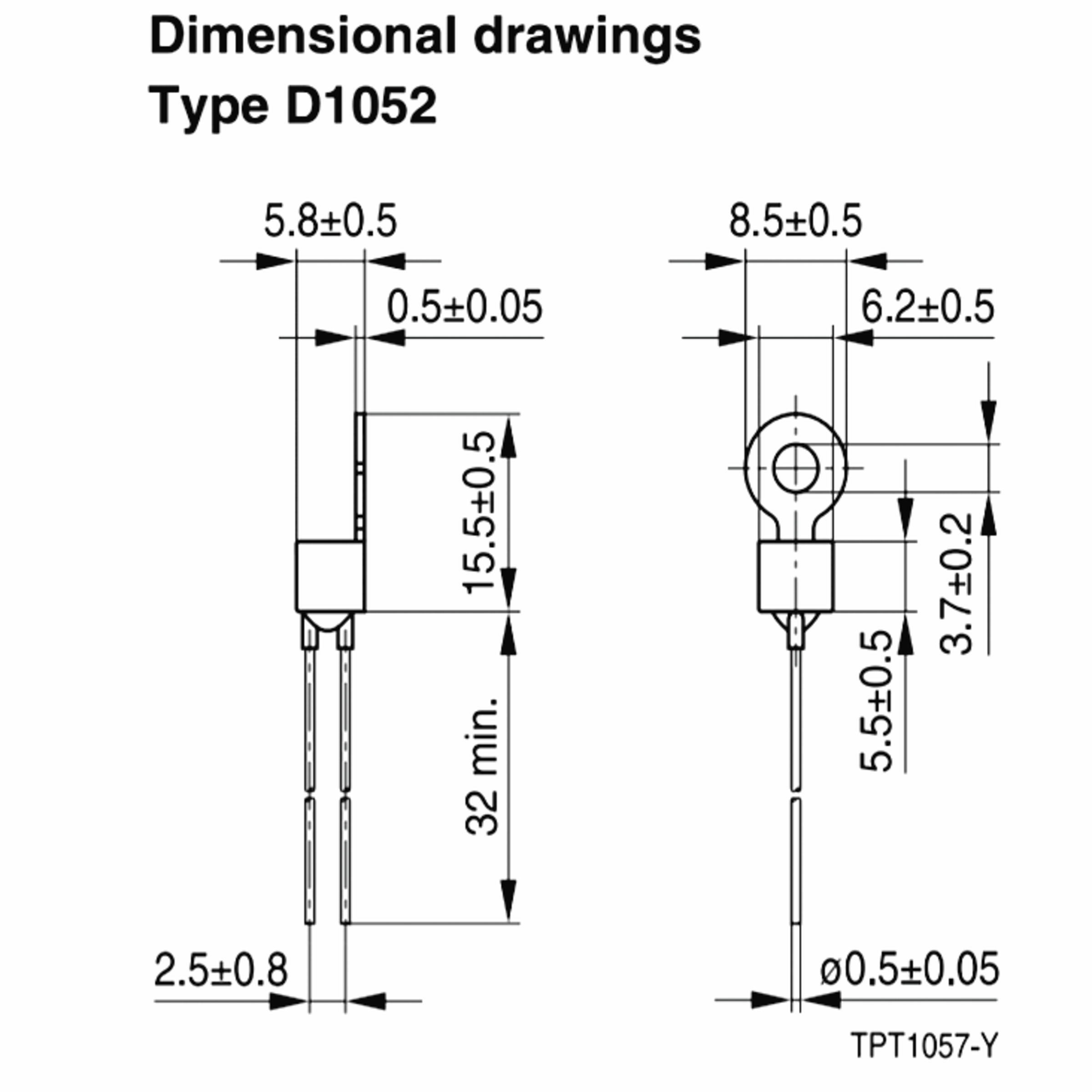

Dimensions and weights
- Dimension: Length
- 15.5 mm
- Dimension: Width
- 8.5 mm
- Dimension: Height
- 5.5 mm
- Pitch
- 2.5 mm
- Diameter, connecting wire
- 0.5 mm
Operating conditions
- Operating Temperature Min.
- 0 °C
- Operating Temperature Max.
- 40 °C
Technical features
- Resistance value
- 100
- Resistance unit
- Ohm
- Resistance value
- 100 Ohm
- Resistance tolerance
- 25 %
- Max. Operating voltage (DC)
- 30 V DC
- Rated Voltage
- 30 V
- Response time, max.
- 20 ns
