B57703M0103G040

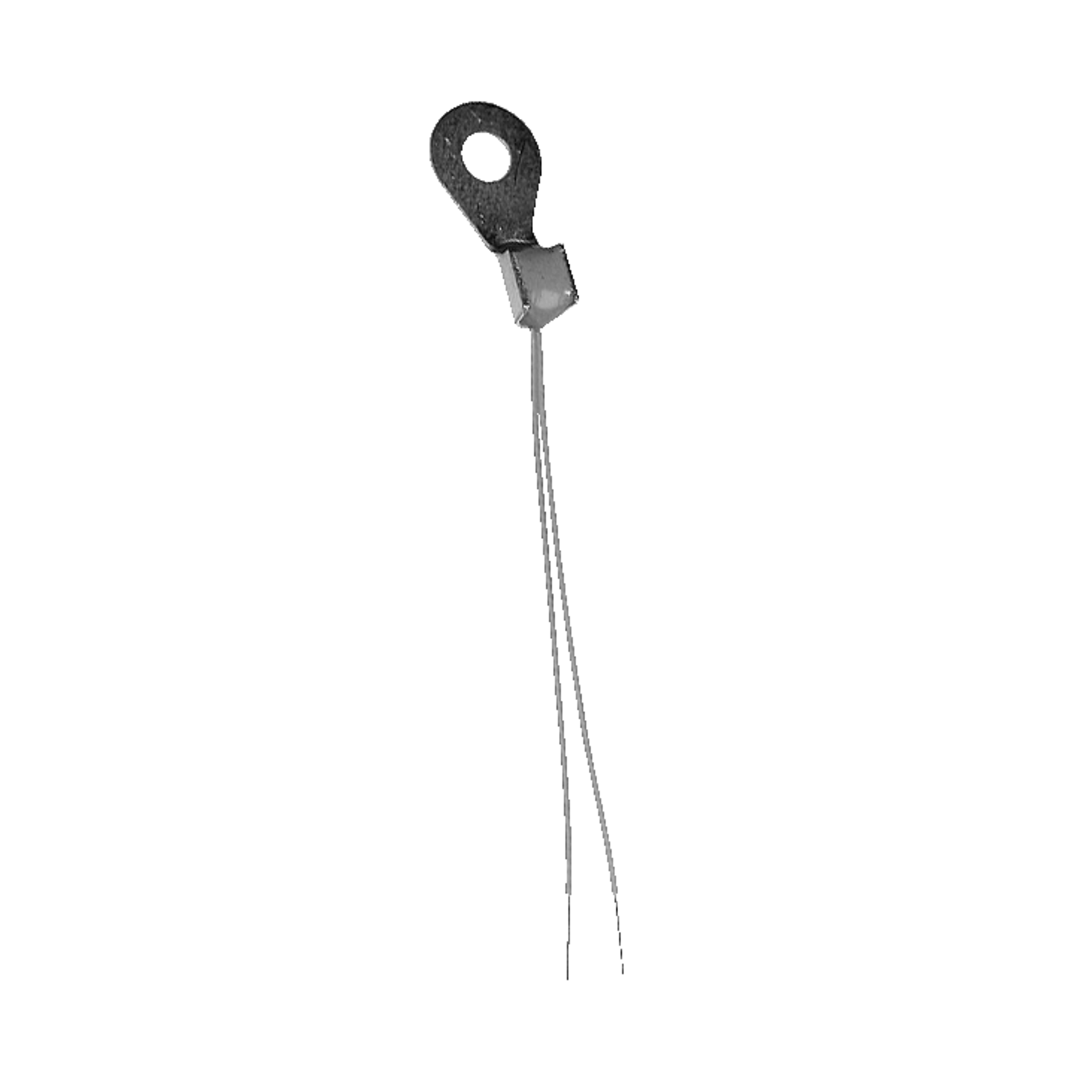

TDK Electronics NTC resistor B57703M 10kOhm 2% THT
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.285 Pcs. in stock
Next Stock Receipt
Week 51/2024
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Resistance value
- 10 kOhm
- Resistance tolerance
- 2 %
- Rated power
- 0.15 W
- RoHS-Conform
Specifications
Open all

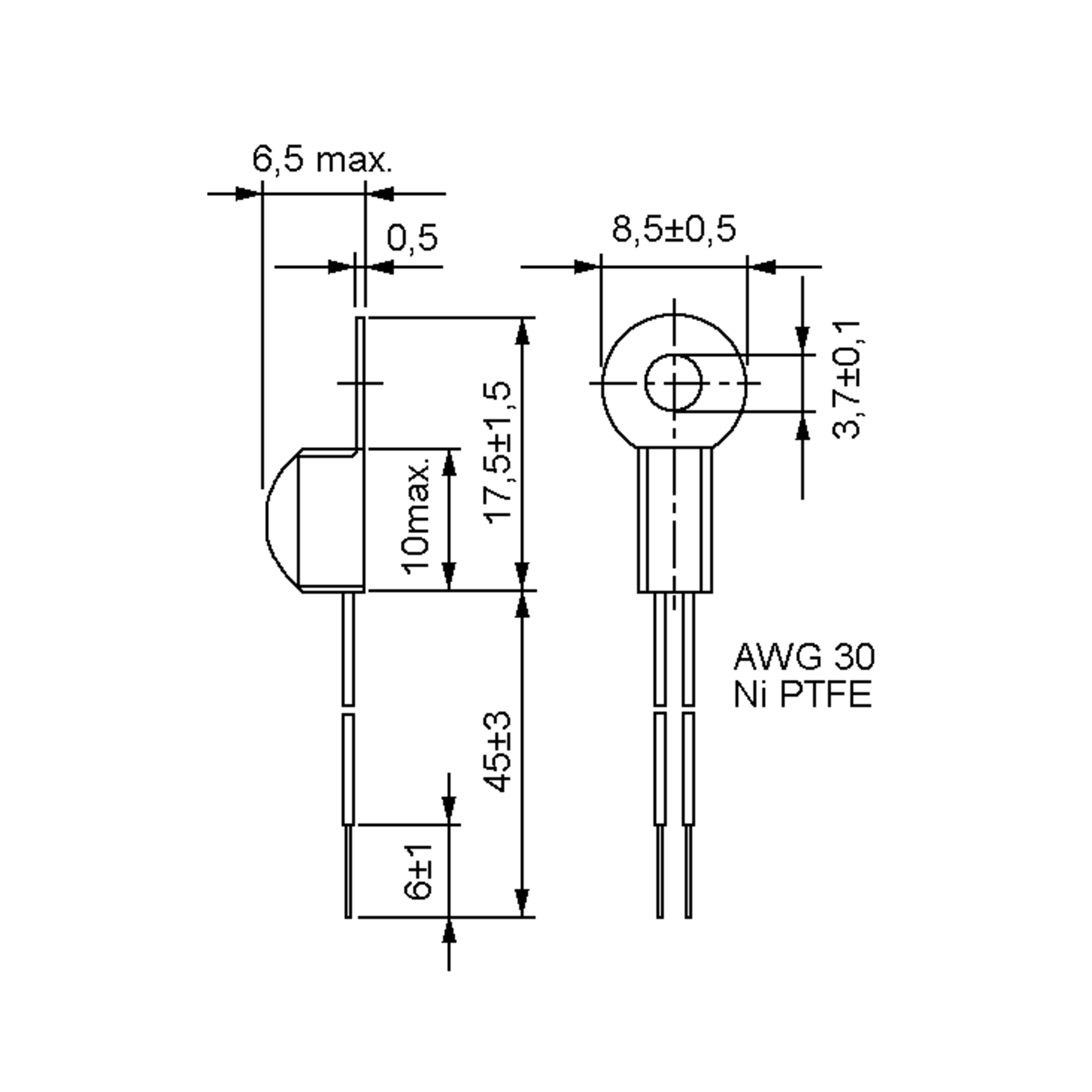

Dimensions and weights
- Dimension: Width
- 6.5 mm
- Dimension: Height
- 62.5 mm
- Weight
- 0.8 g
- Diameter, resistor body
- 8.5 mm
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 125 °C
Technical features
- Resistance value
- 10
- Resistance unit
- kOhm
- Resistance value
- 10 kOhm
- Resistance tolerance
- 2 %
- Nominal temperature
- 25 °C
- Rated power
- 0.15 W
- Test voltage
- 1,000 V
- Thermal conductivity (air)
- 3 mW/K
- Heat capacity
- 150 mJ/K
- Thermal cooling time constant (air)
- 50
- Climate category
- 55/125/56
Safety/Certifications
- Approvals
- UL
- Standards
- IEC60068-1
