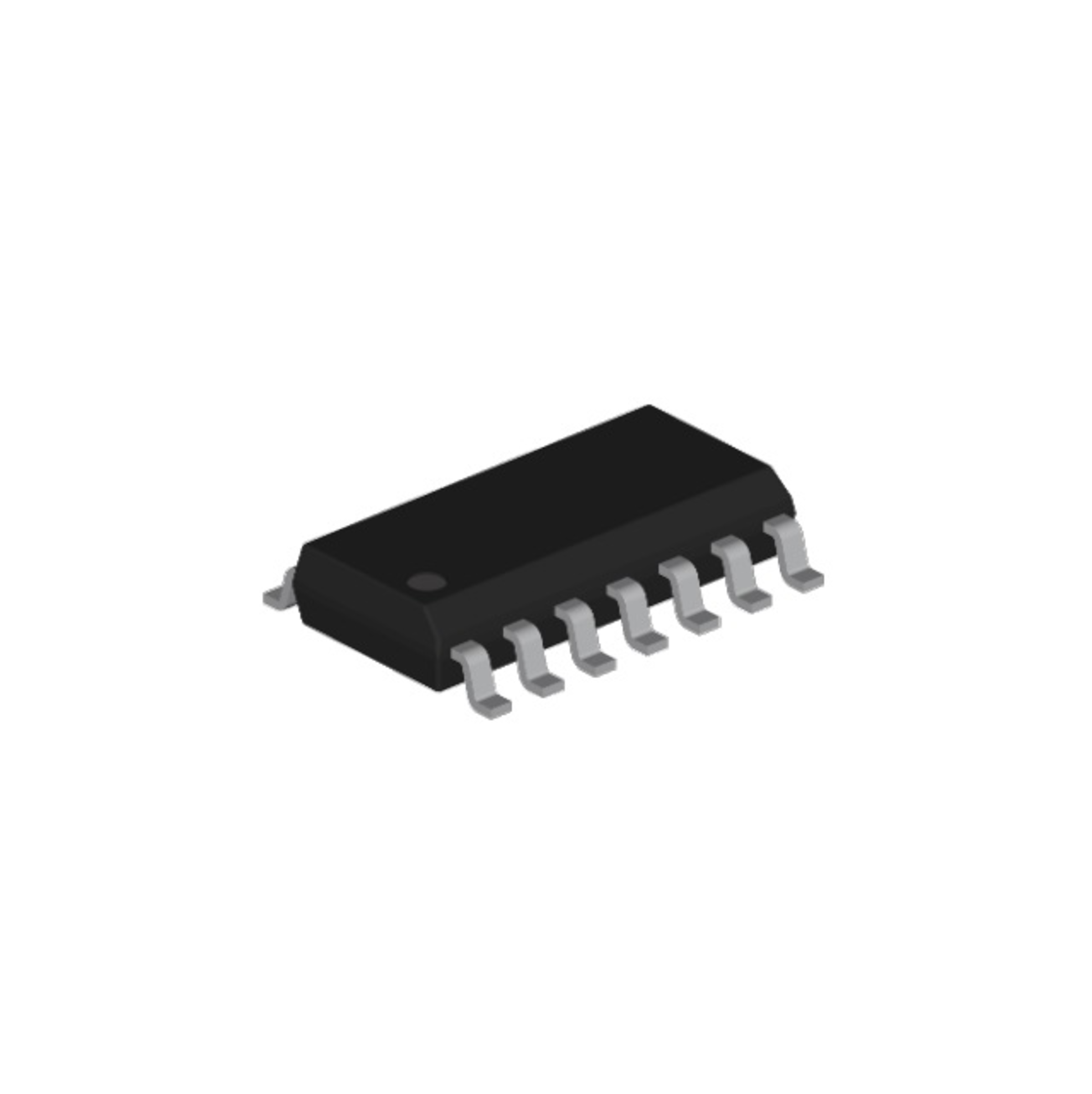

CD4066BD
TAEJIN SMD/SMT Bilateral Switch IC 4 SOP-14
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2.500 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 50 or multiple of 50)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Bilateral Switch IC
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 18 V
- Number of Channels
- 4
- (RON) ON Resistance typ.
- 200 Ohm
- (RON) ON Resistance max.
- 320 Ohm
- Manufacturer Package
- SOP-14
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature, min. (TA)
- -55 °C
- Operating Temperature, max. (TA)
- 125 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical Properties
- (RON) ON Resistance typ.
- 200 Ohm
- (RON) ON Resistance max.
- 320 Ohm
- Number of Channels
- 4
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 18 V
