Results (319)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Input voltage min. DC | Input voltage max. DC | Output voltage | Output current | Operating mode | Package/Case | Efficiency | Operating Temperature Min. | Operating Temperature Max. | Connection type, output | Application | Standards (safety) | Dimension: Length | Dimension: Width | Dimension: Height | Features | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
226 |  | Manufacturers Part No. RPL-20-T(RPL-20-T) Recom DC/DC switching regulator (non-isolated) buck 5V 20A LGA | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 260 or mul. of 1) | Recom | 4.0 V | 16.0 V | 5.0 V | 20.0 A | buck | LGA | 94.0 % | -40.0 °C | 69.0 °C | SMD | ITE Industry | 7.0 mm | 7.0 mm | 4.4 mm | Adjustable Output Voltage DC-OK-Signal Remote Function | Tray | ||||||
227 | | Manufacturers Part No. R-78T5.0-1.0/AC-TRAY(R-78T5.0-1.0/AC-T) Recom DC/DC switching regulator (non-isolated) buck 5V 1A Open Frame | Customer Part No. Customer Project No. | 33 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 8.0 V | 42.0 V | 5.0 V | 1.0 A | buck | Open Frame | 92.0 % | -40.0 °C | 55.0 °C | SMD | ITE Industry | 23.0 mm | 27.2 mm | 10.0 mm | Peak Power | Tray | ||||||
228 | | Manufacturers Part No. RPMGH5.0-40(RPMGH5.0-40) Recom DC/DC switching regulator (non-isolated) buck 5V 40A 1/2 Brick | Customer Part No. Customer Project No. | 6 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock) | (at least 11 or mul. of 1) | Recom | 18.0 V | 75.0 V | 5.0 V | 40.0 A | buck | 1/2 Brick | 91.0 % | -40.0 °C | 120.0 °C | THT | ITE Industry | 57.9 mm | 61.0 mm | 15.0 mm | Adjustable Output Voltage Remote Function Remote Sense | Tray | ||||||
229 | | Manufacturers Part No. RPMGH12-40(RPMGH12-40) Recom DC/DC switching regulator (non-isolated) buck 12V 40A 1/2 Brick | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 18.0 V | 75.0 V | 12.0 V | 40.0 A | buck | 1/2 Brick | 95.0 % | -40.0 °C | 120.0 °C | THT | ITE Industry | 57.9 mm | 61.0 mm | 15.0 mm | Adjustable Output Voltage Remote Function Remote Sense | Tray | ||||||
230 | | Manufacturers Part No. RPMGE5.0-10(RPMGE5.0-10) Recom DC/DC switching regulator (non-isolated) buck 5V 10A 1/8 Brick | Customer Part No. Customer Project No. | 13 Pcs. Planned Delivery Time Ø 30 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 18.0 V | 75.0 V | 5.0 V | 10.0 A | buck | 1/8 Brick | 91.0 % | -40.0 °C | 120.0 °C | THT | ITE Industry | 56.4 mm | 22.9 mm | 12.0 mm | Adjustable Output Voltage Remote Function Remote Sense | Tray | ||||||
231 | | Manufacturers Part No. RPMGE12-10(RPMGE12-10) Recom DC/DC switching regulator (non-isolated) buck 12V 10A 1/8 Brick | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Recom | 18.0 V | 75.0 V | 12.0 V | 10.0 A | buck | 1/8 Brick | 95.0 % | -40.0 °C | 120.0 °C | THT | ITE Industry | 56.4 mm | 22.9 mm | 12.0 mm | Adjustable Output Voltage Remote Function Remote Sense | Tray | ||||||
232 | | Manufacturers Part No. R-7815-0.5(R-7815-0.5) Recom DC/DC switching regulator (non-isolated) buck 15,00V 0,500A SIP3 TOP | Customer Part No. Customer Project No. | 142 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 18.0 V | 32.0 V | 15.0 V | 0.5 A | buck | SIP3 | 97.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 7.55 mm | 10.2 mm | Remote Function | Tube | |||||
233 | | Manufacturers Part No. R-78E5.0-0.5(R-78E5.0-0.5) Recom DC/DC switching regulator (non-isolated) buck 5,00V 0,500A SIP3 TOP | Customer Part No. Customer Project No. | 5.911 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 7.0 V | 28.0 V | 5.0 V | 0.5 A | buck | SIP3 | 92.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.6 mm | 8.5 mm | 10.4 mm | Tube | ||||||
234 | | Manufacturers Part No. RPMA5.0-4.5/OF(RPMA5.0-4.5/OF) Recom DC/DC switching regulator (non-isolated) buck 5V 4,5A Open Frame | Customer Part No. Customer Project No. | 7 Pcs. Planned Delivery Time Ø 39 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 9.0 V | 53.0 V | 5.0 V | 4.5 A | buck | Open Frame | 96.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 19.1 mm | 23.4 mm | 9.6 mm | Adjustable Output Voltage Remote Function Remote Sense | Cardboard | ||||||
235 | | Manufacturers Part No. RPMA5.0-8.0/OF(RPMA5.0-8.0/OF) Recom DC/DC switching regulator (non-isolated) buck 5V 8A Open Frame | Customer Part No. Customer Project No. | 4 Pcs. Planned Delivery Time Ø 39 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 9.0 V | 53.0 V | 5.0 V | 8.0 A | buck | Open Frame | 96.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 19.1 mm | 23.4 mm | 9.6 mm | Adjustable Output Voltage Remote Function Remote Sense | Cardboard | ||||||
236 | | Manufacturers Part No. N7809-1PH(N7809-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 1A Open Frame | Customer Part No. Customer Project No. | 3 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 36.0 V | 9.0 V | 1.0 A | buck | Open Frame | 95.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
237 | | Manufacturers Part No. N7815-1PH(N7815-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 1A Open Frame | Customer Part No. Customer Project No. | 19 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 18.0 V | 15.0 V | 1.0 A | buck | Open Frame | 88.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
238 | | Manufacturers Part No. N7815-1C(N7815-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 1A Enclosed | Customer Part No. Customer Project No. | 13 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 20.0 V | 36.0 V | 15.0 V | 1.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
239 | | Manufacturers Part No. N7812-1CW(N7812-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 1A Enclosed | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 16.0 V | 36.0 V | 12.0 V | 1.0 A | buck | Enclosed | 95.5 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
240 | | Manufacturers Part No. N7809-1PV(N7809-1PV) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 1A Open Frame | Customer Part No. Customer Project No. | 10 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 36.0 V | 9.0 V | 1.0 A | buck | Open Frame | 95.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
241 | | Manufacturers Part No. N7803-1PH(N7803-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 1A Open Frame | Customer Part No. Customer Project No. | 54 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 36.0 V | 3.3 V | 1.0 A | buck | Open Frame | 91.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
242 | | Manufacturers Part No. N7809-1C(N7809-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 1A Enclosed | Customer Part No. Customer Project No. | 6 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 36.0 V | 9.0 V | 1.0 A | buck | Enclosed | 95.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||

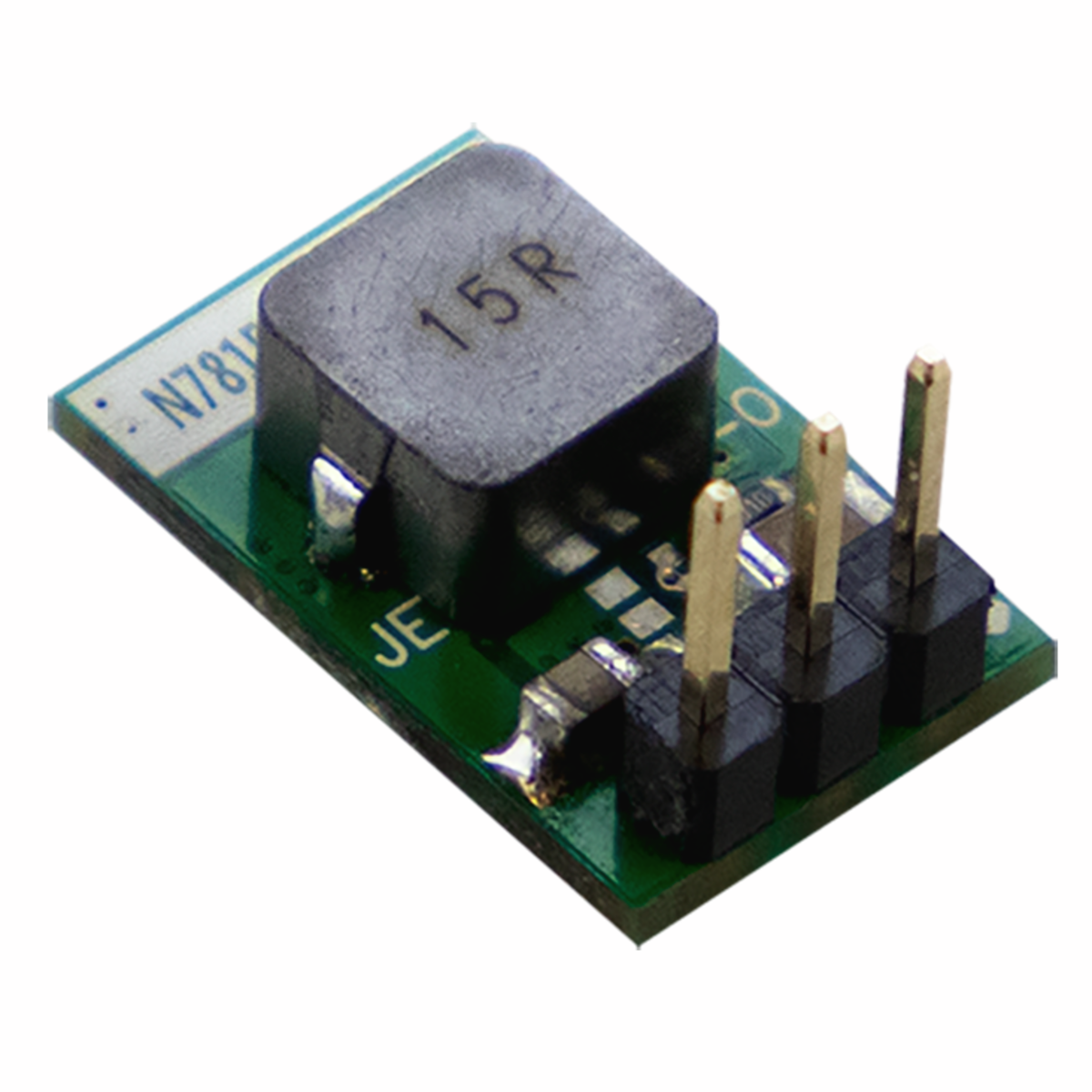

243 | | Manufacturers Part No. N7805-1PH(N7805-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 1A Open Frame | Customer Part No. Customer Project No. | 110 Pcs. Planned Delivery Time Ø 21 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 27.0 V | 5.0 V | 1.0 A | buck | Open Frame | 88.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
244 | | Manufacturers Part No. N7805-1C(N7805-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 1A Enclosed | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 36.0 V | 5.0 V | 1.0 A | buck | Enclosed | 93.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
245 | | Manufacturers Part No. N7803-1C(N7803-1C) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 1A Enclosed | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 36.0 V | 3.3 V | 1.0 A | buck | Enclosed | 91.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
246 | | Manufacturers Part No. N7815-1CW(N7815-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 1A Enclosed | Customer Part No. Customer Project No. | 74 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 20.0 V | 36.0 V | 15.0 V | 1.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
247 | | Manufacturers Part No. N7812-1PH(N7812-1PH) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 1A Open Frame | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 20.0 V | 12.0 V | 1.0 A | buck | Open Frame | 89.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
248 | | Manufacturers Part No. N7805-1PV(N7805-1PV) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 1A Open Frame | Customer Part No. Customer Project No. | 116 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 27.0 V | 5.0 V | 1.0 A | buck | Open Frame | 88.5 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 10.5 mm | 7.5 mm | 16.0 mm | Tube | |||||||
249 | | Manufacturers Part No. N7805-1CW(N7805-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 1A Enclosed | Customer Part No. Customer Project No. | 453 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 36.0 V | 5.0 V | 1.0 A | buck | Enclosed | 93.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
250 | | Manufacturers Part No. N7803-1CW(N7803-1CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 1A Enclosed | Customer Part No. Customer Project No. | 70 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 36.0 V | 3.3 V | 1.0 A | buck | Enclosed | 91.5 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm |
