Results (312)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Input voltage min. DC | Input voltage max. DC | Output voltage | Output current | Operating mode | Package/Case | Efficiency | Operating Temperature Min. | Operating Temperature Max. | Connection type, output | Application | Standards (safety) | Dimension: Length | Dimension: Width | Dimension: Height | Features | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
176 |  | Manufacturers Part No. R-78HB9.0-0.5L(R-78HB9.0-0.5L) Recom DC/DC switching regulator (non-isolated) buck 9,00V 0,500A SIP3 | Customer Part No. Customer Project No. | 62 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 14.0 V | 72.0 V | 9.0 V | 0.5 A | buck | SIP3 | 92.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
177 | | Manufacturers Part No. R-78B3.3-1.5(R-78B3.3-1.5) Recom DC/DC switching regulator (non-isolated) buck 3,30V 1,500A SIP3 | Customer Part No. Customer Project No. | 95 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.75 V | 18.0 V | 3.3 V | 1.5 A | buck | SIP3 | 91.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||

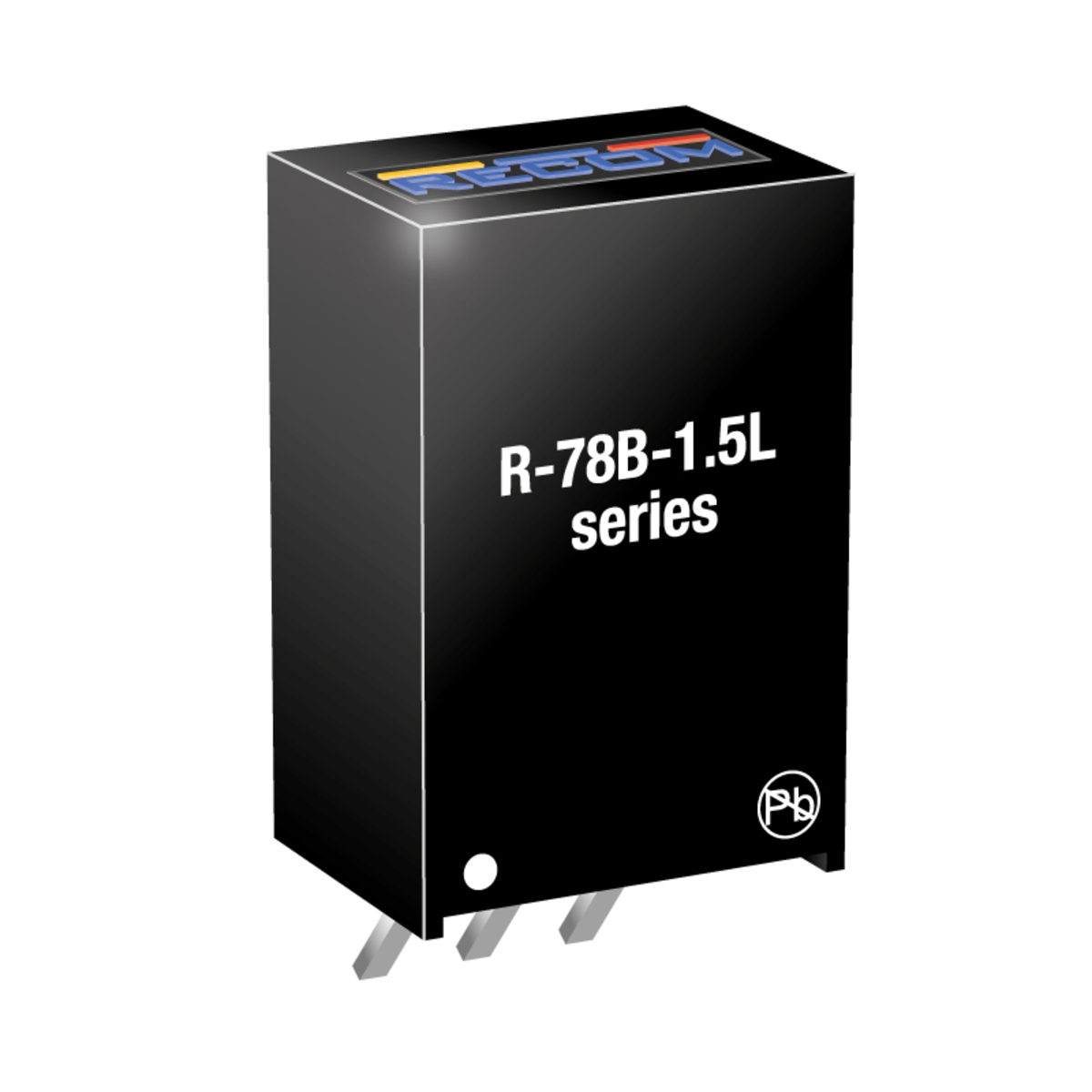

178 | | Manufacturers Part No. R-78B3.3-1.5L(R-78B3.3-1.5L) Recom DC/DC switching regulator (non-isolated) buck 3,30V 1,500A SIP3 | Customer Part No. Customer Project No. | 322 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.75 V | 18.0 V | 3.3 V | 1.5 A | buck | SIP3 | 91.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
179 | | Manufacturers Part No. R-78B5.0-1.5(R-78B5.0-1.5) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,500A SIP3 | Customer Part No. Customer Project No. | 360 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 6.5 V | 18.0 V | 5.0 V | 1.5 A | buck | SIP3 | 94.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
180 | | Manufacturers Part No. R-78B5.0-1.5L(R-78B5.0-1.5L) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,500A SIP3 | Customer Part No. Customer Project No. | 289 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 6.5 V | 18.0 V | 5.0 V | 1.5 A | buck | SIP3 | 94.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||

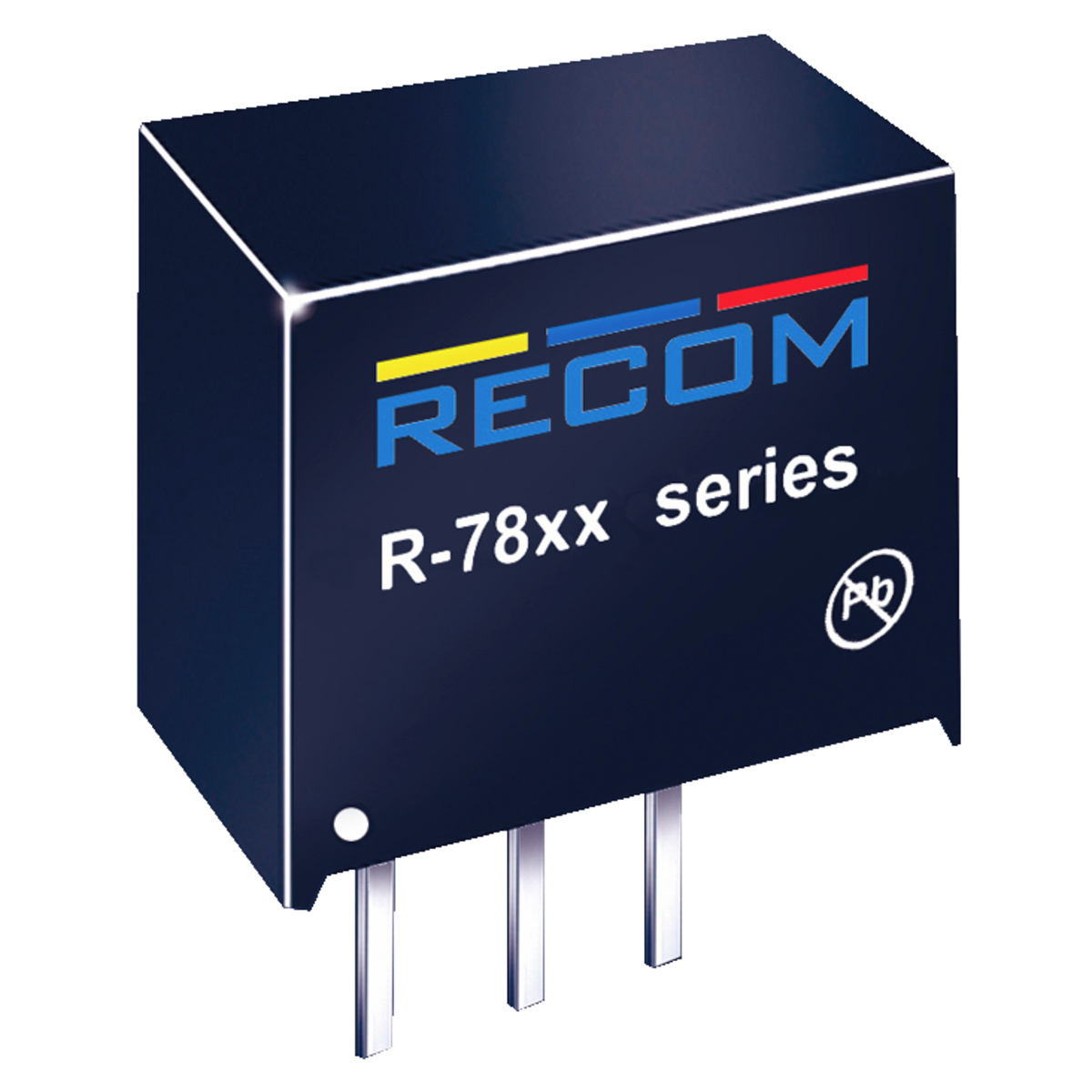

181 | | Manufacturers Part No. R-781.8-1.0(R-781.8-1.0) Recom DC/DC switching regulator (non-isolated) buck 1,80V 1,000A SIP3 | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.75 V | 18.0 V | 1.8 V | 1.0 A | buck | SIP3 | 82.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 7.55 mm | 10.2 mm | Tube | ||||||
182 | | Manufacturers Part No. R-782.5-1.0(R-782.5-1.0) Recom DC/DC switching regulator (non-isolated) buck 2,50V 1,000A SIP3 | Customer Part No. Customer Project No. | 86 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.75 V | 18.0 V | 2.5 V | 1.0 A | buck | SIP3 | 87.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 7.55 mm | 10.2 mm | Tube | ||||||
183 | | Manufacturers Part No. R-783.3-1.0(R-783.3-1.0) Recom DC/DC switching regulator (non-isolated) buck 3,30V 1,000A SIP3 | Customer Part No. Customer Project No. | 297 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.75 V | 18.0 V | 3.3 V | 1.0 A | buck | SIP3 | 90.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 7.55 mm | 10.2 mm | Tube | ||||||
184 | | Manufacturers Part No. R-785.0-1.0(R-785.0-1.0) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,000A SIP3 TOP | Customer Part No. Customer Project No. | 149 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 6.5 V | 18.0 V | 5.0 V | 1.0 A | buck | SIP3 | 94.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 7.55 mm | 10.2 mm | Tube | ||||||
185 | | Manufacturers Part No. R-78AA12-0.5SMD(R-78AA12-0.5SMD) Recom DC/DC switching regulator (non-isolated) buck 12,00V 0,500A SMD | Customer Part No. Customer Project No. | 33 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 15.0 V | 32.0 V | 12.0 V | 0.5 A | buck | SMD | 97.0 % | -40.0 °C | 71.0 °C | SMD | ITE Industry | EN 60950-1 IEC 60950-1 | 15.3 mm | 9.6 mm | 8.8 mm | Adjustable Output Voltage Remote Function | Tube | |||||
186 | | Manufacturers Part No. R-78HB6.5-0.5(R-78HB6.5-0.5) Recom DC/DC switching regulator (non-isolated) buck 6,50V 0,500A SIP3 | Customer Part No. Customer Project No. | 23 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 9.0 V | 72.0 V | 6.5 V | 0.5 A | buck | SIP3 | 91.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
187 | | Manufacturers Part No. R-78HB6.5-0.5L(R-78HB6.5-0.5L) Recom DC/DC switching regulator (non-isolated) buck 6,50V 0,500A SIP3 | Customer Part No. Customer Project No. | 268 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 9.0 V | 72.0 V | 6.5 V | 0.5 A | buck | SIP3 | 91.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||

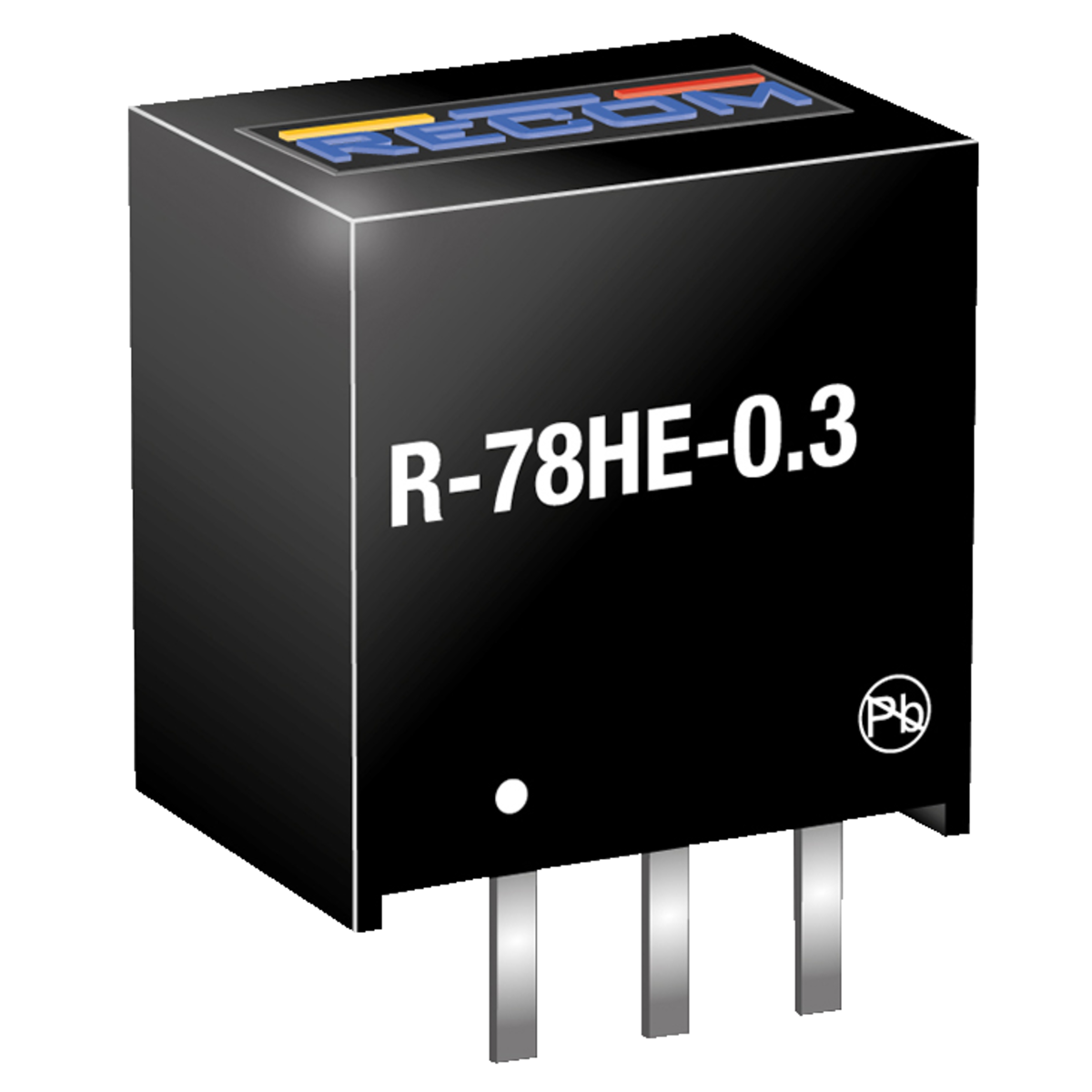

188 | | Manufacturers Part No. R-78HE5.0-0.3(R-78HE5.0-0.3) Recom DC/DC switching regulator (non-isolated) buck 5,00V 0,300A SIP3 | Customer Part No. Customer Project No. | 74 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 6.5 V | 72.0 V | 5.0 V | 0.3 A | buck | SIP3 | 83.0 % | -40.0 °C | 105.0 °C | THT | ITE Industry | 11.5 mm | 8.5 mm | 12.5 mm | Tube | |||||||
189 | | Manufacturers Part No. R-78AA6.5-0.5SMD(R-78AA6.5-0.5SMD) Recom DC/DC switching regulator (non-isolated) buck 6,50V 0,500A SMD | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Recom | 8.0 V | 32.0 V | 6.5 V | 0.5 A | buck | SMD | 95.0 % | -40.0 °C | 71.0 °C | SMD | ITE Industry | EN 60950-1 IEC 60950-1 | 15.3 mm | 9.6 mm | 8.8 mm | Adjustable Output Voltage Remote Function | Tube | |||||
190 | | Manufacturers Part No. R-7815-0.5(R-7815-0.5) Recom DC/DC switching regulator (non-isolated) buck 15,00V 0,500A SIP3 TOP | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 18.0 V | 32.0 V | 15.0 V | 0.5 A | buck | SIP3 | 97.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 7.55 mm | 10.2 mm | Remote Function | Tube | |||||
191 | | Manufacturers Part No. R-78B12-1.0(R-78B12-1.0) Recom DC/DC switching regulator (non-isolated) buck 12,00V 1,000A SIP3 | Customer Part No. Customer Project No. | 64 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 16.0 V | 32.0 V | 12.0 V | 1.0 A | buck | SIP3 | 96.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
192 | | Manufacturers Part No. R-783.3-0.5(R-783.3-0.5) Recom DC/DC switching regulator (non-isolated) buck 3,30V 0,500A SIP3 TOP | Customer Part No. Customer Project No. | 2.118 Pcs. Planned Delivery Time Ø 18 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.75 V | 32.0 V | 3.3 V | 0.5 A | buck | SIP3 | 91.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 7.55 mm | 10.2 mm | Remote Function | Tube | |||||
193 | | Manufacturers Part No. R-78B15-1.0L(R-78B15-1.0L) Recom DC/DC switching regulator (non-isolated) buck 15,00V 1,000A SIP3 | Customer Part No. Customer Project No. | 18 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 20.0 V | 32.0 V | 15.0 V | 1.0 A | buck | SIP3 | 97.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
194 | | Manufacturers Part No. R-78B3.3-1.0L(R-78B3.3-1.0L) Recom DC/DC switching regulator (non-isolated) buck 3,30V 1,000A SIP3 | Customer Part No. Customer Project No. | 99 Pcs. Planned Delivery Time Ø 10 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.75 V | 32.0 V | 3.3 V | 1.0 A | buck | SIP3 | 89.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
195 | | Manufacturers Part No. R-78T12-1.0/FC-TRAY(R-78T12-1.0/FC-T) Recom DC/DC switching regulator (non-isolated) buck 12,00V 1A Open Frame | Customer Part No. Customer Project No. | 48 Pcs. Planned Delivery Time Ø 52 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 15.0 V | 42.0 V | 12.0 V | 1.0 A | buck | Open Frame | 63.0 % | -40.0 °C | 55.0 °C | SMD | ITE Industry | 23.0 mm | 29.4 mm | 8.0 mm | Peak Power | Tray | ||||||
196 | | Manufacturers Part No. R-78B5.0-1.0L(R-78B5.0-1.0L) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,000A SIP3 | Customer Part No. Customer Project No. | 172 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 6.5 V | 32.0 V | 5.0 V | 1.0 A | buck | SIP3 | 93.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
197 | | Manufacturers Part No. R-78B9.0-1.0(R-78B9.0-1.0) Recom DC/DC switching regulator (non-isolated) buck 9,00V 1,000A SIP3 | Customer Part No. Customer Project No. | 55 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 12.0 V | 32.0 V | 9.0 V | 1.0 A | buck | SIP3 | 95.0 % | -40.0 °C | 71.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
198 | | Manufacturers Part No. R-78B3.3-2.0(R-78B3.3-2.0) Recom DC/DC switching regulator (non-isolated) buck 3,30V 2,000A SIP3 | Customer Part No. Customer Project No. | 117 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.75 V | 32.0 V | 3.3 V | 2.0 A | buck | SIP3 | 92.0 % | -40.0 °C | 70.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
199 | | Manufacturers Part No. R-78C5.0-1.0(R-78C5.0-1.0) Recom DC/DC switching regulator (non-isolated) buck 5,00V 1,000A SIP3 TOP | Customer Part No. Customer Project No. | 2.270 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 8.0 V | 42.0 V | 5.0 V | 1.0 A | buck | SIP3 | 93.0 % | -40.0 °C | 68.0 °C | THT | ITE Industry | EN 60950-1 IEC 60950-1 | 11.6 mm | 8.5 mm | 10.4 mm | Tube | ||||||
200 | | Manufacturers Part No. R-78B5.0-2.0(R-78B5.0-2.0) Recom DC/DC switching regulator (non-isolated) buck 5,00V 2,000A SIP3 TOP | Customer Part No. Customer Project No. | 222 Pcs. Planned Delivery Time Ø 17 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 6.5 V | 32.0 V | 5.0 V | 2.0 A | buck | SIP3 | 94.0 % | -40.0 °C | 70.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube |
