Results (312)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Input voltage min. DC | Input voltage max. DC | Output voltage | Output current | Operating mode | Package/Case | Efficiency | Operating Temperature Min. | Operating Temperature Max. | Connection type, output | Application | Standards (safety) | Dimension: Length | Dimension: Width | Dimension: Height | Features | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

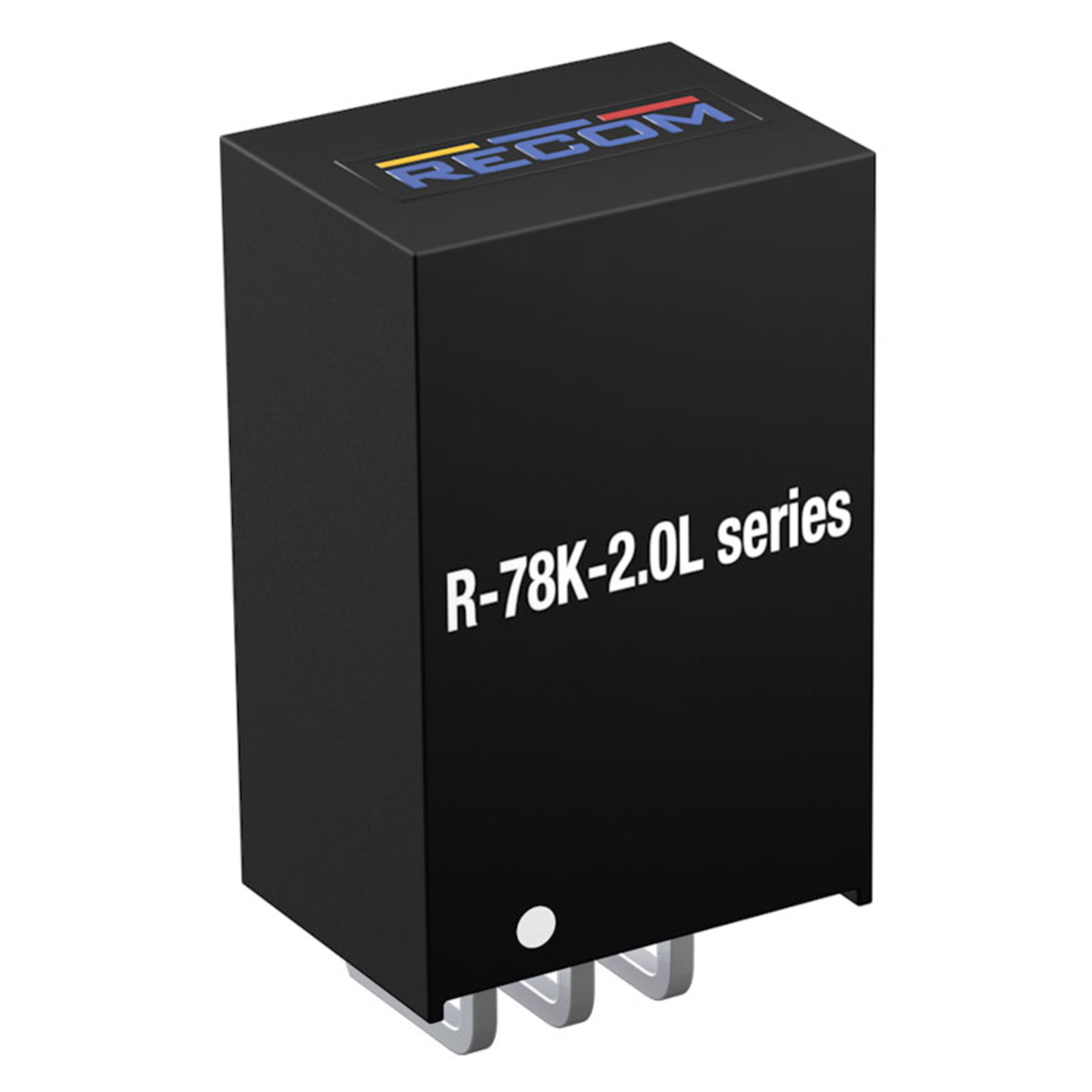

276 |  | Manufacturers Part No. R-78K1.8-2.0L(R-78K1.8-2.0L) Recom DC/DC switching regulator (non-isolated) buck 1,8V 2A SIP3 | Customer Part No. Customer Project No. | 37 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.5 V | 36.0 V | 1.8 V | 2.0 A | buck | SIP3 | 85.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
277 | | Manufacturers Part No. R-78K2.5-2.0L(R-78K2.5-2.0L) Recom DC/DC switching regulator (non-isolated) buck 2,5V 2A SIP3 | Customer Part No. Customer Project No. | 43 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.5 V | 36.0 V | 2.5 V | 2.0 A | buck | SIP3 | 88.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
278 | | Manufacturers Part No. R-78K3.3-2.0L(R-78K3.3-2.0L) Recom DC/DC switching regulator (non-isolated) buck 3,3V 2A SIP3 | Customer Part No. Customer Project No. | 47 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.5 V | 36.0 V | 3.3 V | 2.0 A | buck | SIP3 | 85.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
279 | | Manufacturers Part No. R-78K5.0-2.0L(R-78K5.0-2.0L) Recom DC/DC switching regulator (non-isolated) buck 5V 2A SIP3 | Customer Part No. Customer Project No. | 27 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 6.5 V | 36.0 V | 5.0 V | 2.0 A | buck | SIP3 | 85.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
280 | | Manufacturers Part No. R-78K9.0-2.0L(R-78K9.0-2.0L) Recom DC/DC switching regulator (non-isolated) buck 9V 2A SIP3 | Customer Part No. Customer Project No. | 38 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 11.0 V | 36.0 V | 9.0 V | 2.0 A | buck | SIP3 | 95.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
281 | | Manufacturers Part No. R-78K12-2.0L(R-78K12-2.0L) Recom DC/DC switching regulator (non-isolated) buck 12V 2A SIP3 | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 14.0 V | 36.0 V | 12.0 V | 2.0 A | buck | SIP3 | 96.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||
282 | | Manufacturers Part No. R-78K15-2.0L(R-78K15-2.0L) Recom DC/DC switching regulator (non-isolated) buck 15V 2A SIP3 | Customer Part No. Customer Project No. | 32 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 18.0 V | 36.0 V | 15.0 V | 2.0 A | buck | SIP3 | 96.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 8.5 mm | 17.5 mm | Tube | ||||||

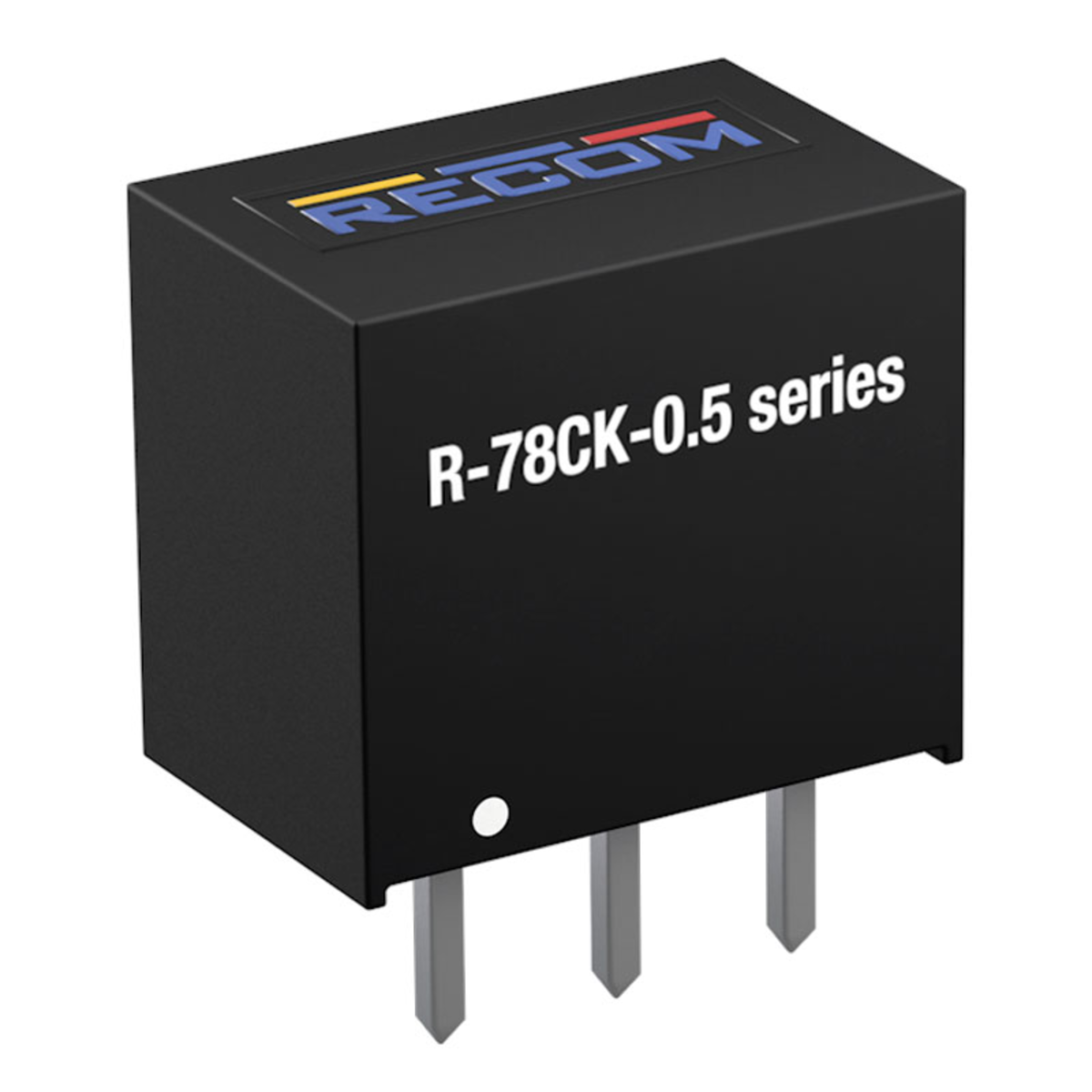

283 | | Manufacturers Part No. R-78CK3.3-0.5(R-78CK3.3-0.5) Recom DC/DC switching regulator (non-isolated) buck 3,3V 0,5A SIP3 | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 5.0 V | 40.0 V | 3.3 V | 0.5 A | buck | SIP3 | 91.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 7.55 mm | 10.2 mm | Tube | ||||||
284 | | Manufacturers Part No. R-78CK5.0-0.5(R-78CK5.0-0.5) Recom DC/DC switching regulator (non-isolated) buck 5V 0,5A SIP3 | Customer Part No. Customer Project No. | 86 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 6.5 V | 40.0 V | 5.0 V | 0.5 A | buck | SIP3 | 94.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 7.55 mm | 10.2 mm | Tube | ||||||
285 | | Manufacturers Part No. R-78CK12-0.5(R-78CK12-0.5) Recom DC/DC switching regulator (non-isolated) buck 12V 0,5A SIP3 | Customer Part No. Customer Project No. | 53 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 15.0 V | 40.0 V | 12.0 V | 0.5 A | buck | SIP3 | 96.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 7.55 mm | 10.2 mm | Tube | ||||||
286 | | Manufacturers Part No. R-78CK15-0.5(R-78CK15-0.5) Recom DC/DC switching regulator (non-isolated) buck 15V 0,5A SIP3 | Customer Part No. Customer Project No. | 43 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 18.0 V | 40.0 V | 15.0 V | 0.5 A | buck | SIP3 | 96.0 % | -40.0 °C | 100.0 °C | THT | ITE Industry | EN 62368-1 IEC 62368-1 | 11.5 mm | 7.55 mm | 10.2 mm | Tube | ||||||

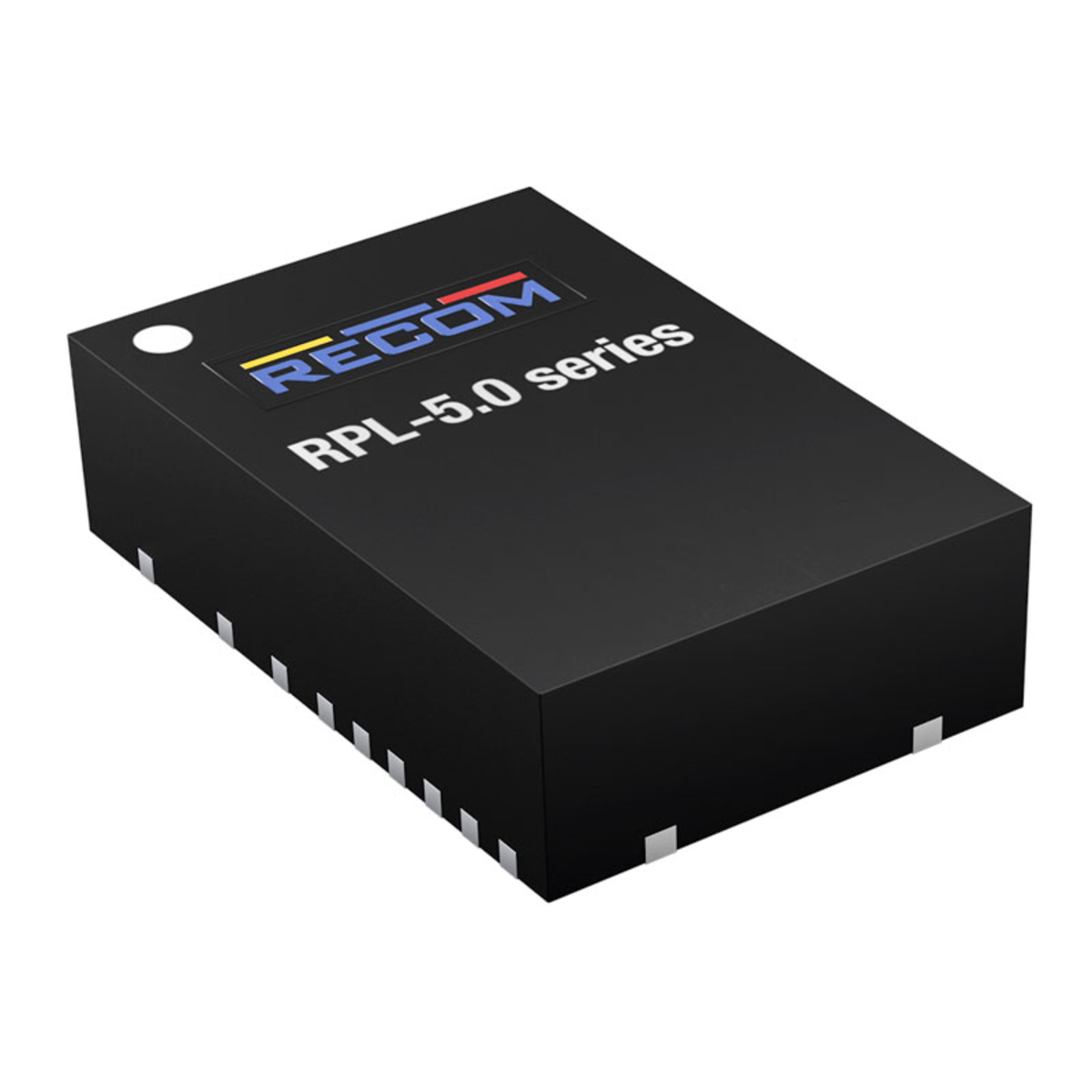

287 | | Manufacturers Part No. RPL-5.0-CT(RPL-5.0-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 5A QFN | Customer Part No. Customer Project No. | 134 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.75 V | 17.0 V | 5.0 V | 5.0 A | buck | QFN | 90.0 % | -40.0 °C | 77.0 °C | SMD | ITE Industry | 4.0 mm | 6.0 mm | 1.6 mm | Adjustable Output Voltage DC-OK-Signal Remote Function | Bag | ||||||
288 | | Manufacturers Part No. RPL-5.0-R(RPL-5.0-R) Recom DC/DC switching regulator (non-isolated) buck 5V 5A QFN | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 500 or mul. of 1) | Recom | 2.75 V | 17.0 V | 5.0 V | 5.0 A | buck | QFN | 90.0 % | -40.0 °C | 77.0 °C | SMD | ITE Industry | 4.0 mm | 6.0 mm | 1.6 mm | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | ||||||

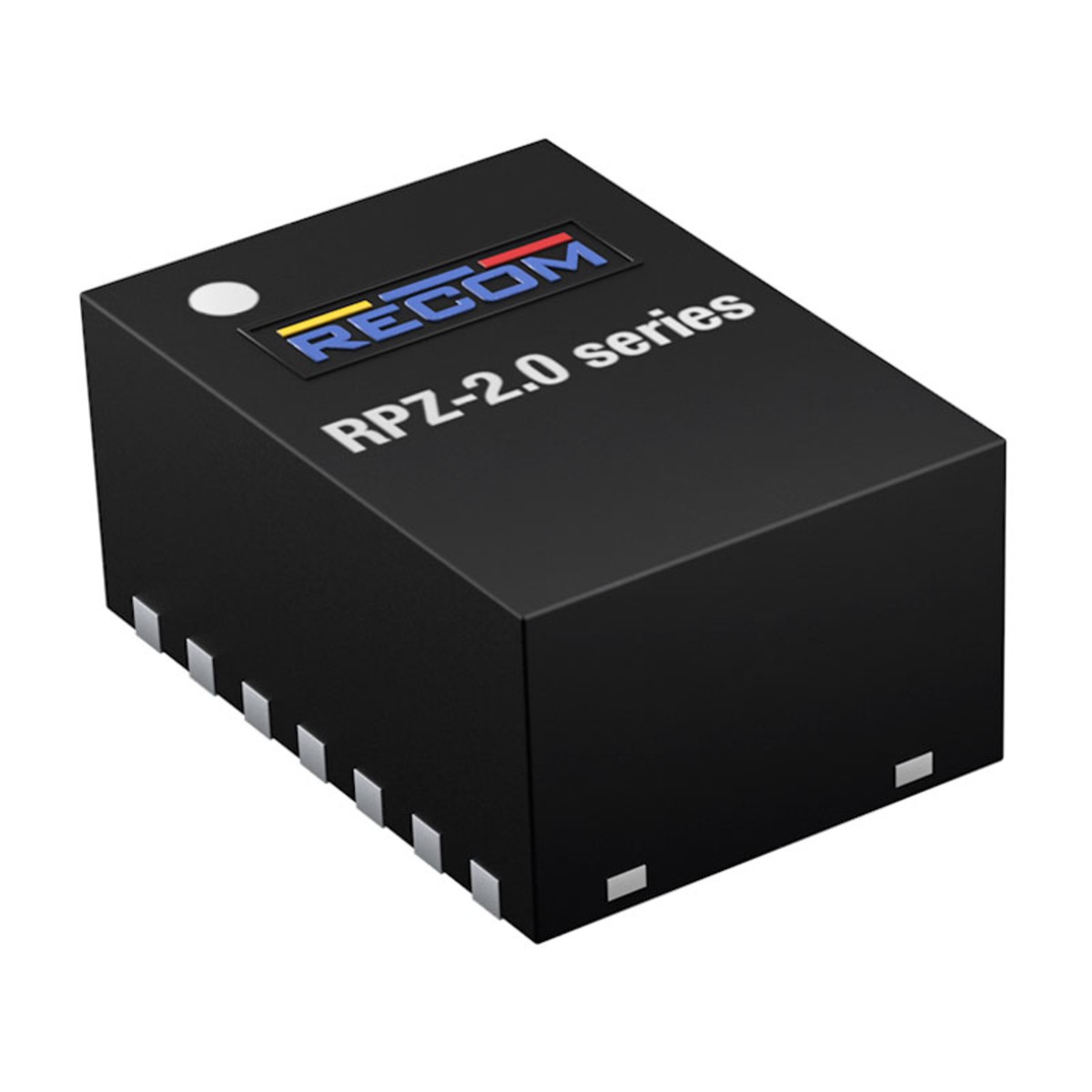

289 | | Manufacturers Part No. RPZ-2.0-CT(RPZ-2.0-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 2A QFN | Customer Part No. Customer Project No. | 150 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.75 V | 6.0 V | 5.0 V | 2.0 A | buck | QFN | 90.0 % | -40.0 °C | 102.0 °C | SMD | ITE Industry | 2.5 mm | 3.5 mm | 1.6 mm | Adjustable Output Voltage DC-OK-Signal Remote Function Remote Sense | Bag | ||||||

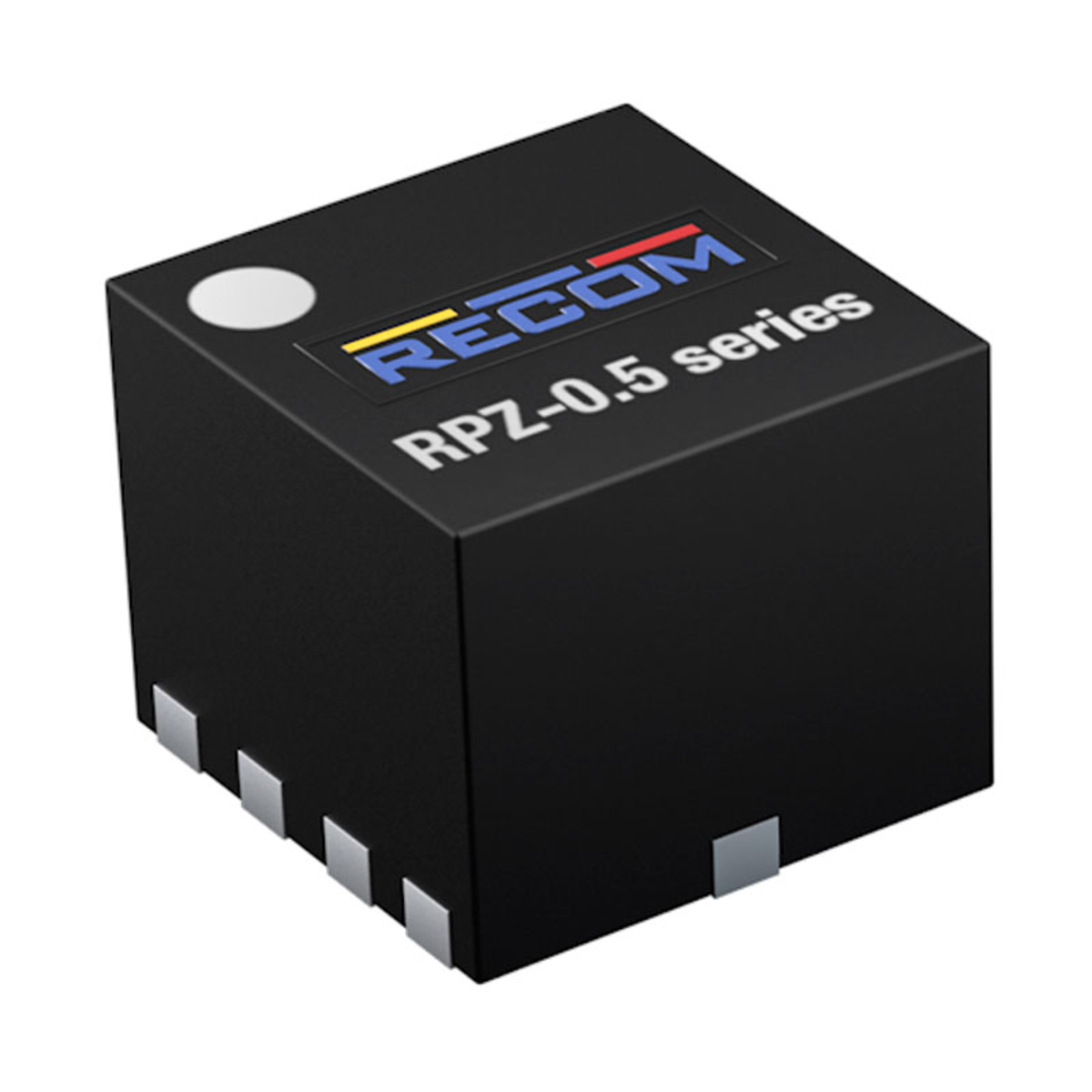

290 | | Manufacturers Part No. RPZ-0.5-CT(RPZ-0.5-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 0,5A QFN | Customer Part No. Customer Project No. | 148 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.3 V | 5.5 V | 5.0 V | 0.5 A | buck | QFN | 88.0 % | -40.0 °C | 116.0 °C | SMD | ITE Industry | 2.0 mm | 2.0 mm | 1.6 mm | Adjustable Output Voltage Remote Function | Bag | ||||||
291 | | Manufacturers Part No. RPZ-3.0A-CT(RPZ-3.0A-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 3A QFN | Customer Part No. Customer Project No. | 150 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.75 V | 6.0 V | 5.0 V | 3.0 A | buck | QFN | 92.0 % | -40.0 °C | 75.0 °C | SMD | ITE Industry | 2.5 mm | 3.5 mm | 1.6 mm | Adjustable Output Voltage DC-OK-Signal Remote Function Remote Sense | Bag | ||||||
292 | | Manufacturers Part No. RPZ-0.5-R(RPZ-0.5-R) Recom DC/DC switching regulator (non-isolated) buck 5V 0,5A QFN | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 500 or mul. of 1) | Recom | 2.3 V | 5.5 V | 5.0 V | 0.5 A | buck | QFN | 88.0 % | -40.0 °C | 116.0 °C | SMD | ITE Industry | 2.0 mm | 2.0 mm | 1.6 mm | Adjustable Output Voltage Remote Function | Reel | ||||||
293 | | Manufacturers Part No. RPZ-2.0-R(RPZ-2.0-R) Recom DC/DC switching regulator (non-isolated) buck 5V 2A QFN | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 500 or mul. of 1) | Recom | 2.75 V | 6.0 V | 5.0 V | 2.0 A | buck | QFN | 90.0 % | -40.0 °C | 102.0 °C | SMD | ITE Industry | 2.5 mm | 3.5 mm | 1.6 mm | Adjustable Output Voltage DC-OK-Signal Remote Function Remote Sense | Reel | ||||||
294 | | Manufacturers Part No. RPZ-1.0-CT(RPZ-1.0-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 1A QFN | Customer Part No. Customer Project No. | 150 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.3 V | 5.5 V | 5.0 V | 1.0 A | buck | QFN | 88.0 % | -40.0 °C | 101.0 °C | SMD | ITE Industry | 2.0 mm | 2.0 mm | 1.6 mm | Adjustable Output Voltage Remote Function | Bag | ||||||
295 | | Manufacturers Part No. RPZ-1.0-R(RPZ-1.0-R) Recom DC/DC switching regulator (non-isolated) buck 5V 1A QFN | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 500 or mul. of 1) | Recom | 2.3 V | 5.5 V | 5.0 V | 1.0 A | buck | QFN | 88.0 % | -40.0 °C | 101.0 °C | SMD | ITE Industry | 2.0 mm | 2.0 mm | 1.6 mm | Adjustable Output Voltage Remote Function | Reel | ||||||
296 | | Manufacturers Part No. RPZ-3.0A-R(RPZ-3.0A-R) Recom DC/DC switching regulator (non-isolated) buck 5V 3A QFN | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 500 or mul. of 1) | Recom | 2.75 V | 6.0 V | 5.0 V | 3.0 A | buck | QFN | 92.0 % | -40.0 °C | 75.0 °C | SMD | ITE Industry | 2.5 mm | 3.5 mm | 1.6 mm | Adjustable Output Voltage DC-OK-Signal Remote Function Remote Sense | Reel | ||||||

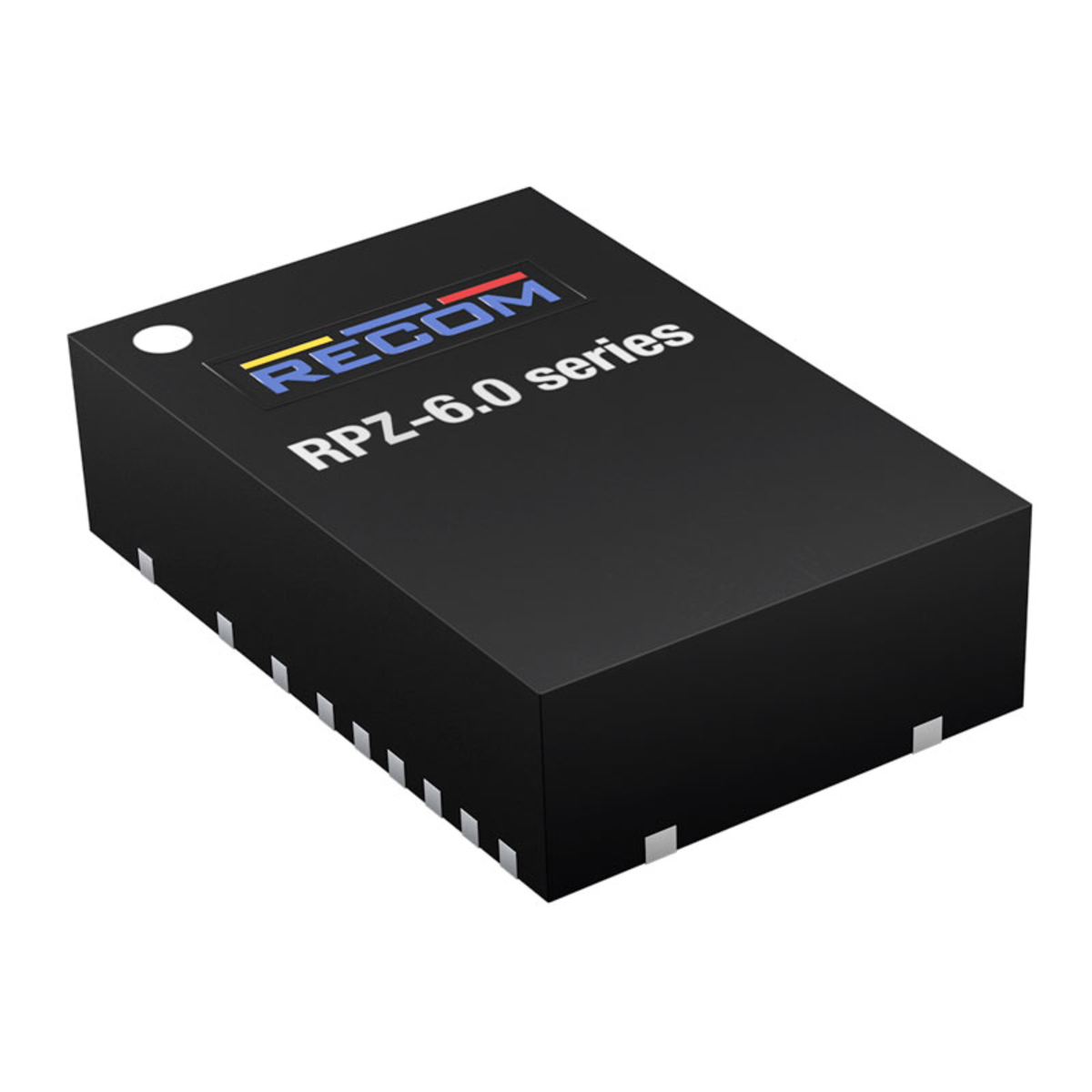

297 | | Manufacturers Part No. RPZ-6.0-R(RPZ-6.0-R) Recom DC/DC switching regulator (non-isolated) buck 5V 6A QFN | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 6 Weeks Available on order | (at least 500 or mul. of 1) | Recom | 2.75 V | 7.0 V | 5.0 V | 6.0 A | buck | QFN | 90.0 % | -40.0 °C | 78.0 °C | SMD | ITE Industry | 4.0 mm | 6.0 mm | 1.6 mm | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel | ||||||
298 | | Manufacturers Part No. RPZ-6.0-CT(RPZ-6.0-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 6A QFN | Customer Part No. Customer Project No. | 147 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 2.75 V | 7.0 V | 5.0 V | 6.0 A | buck | QFN | 90.0 % | -40.0 °C | 78.0 °C | SMD | ITE Industry | 4.0 mm | 6.0 mm | 1.6 mm | Adjustable Output Voltage DC-OK-Signal Remote Function | Bag | ||||||
299 | | Manufacturers Part No. RPL-10-CT(RPL-10-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 10A LGA | Customer Part No. Customer Project No. | 38 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.0 V | 16.0 V | 5.0 V | 10.0 A | buck | LGA | 94.0 % | -40.0 °C | 93.0 °C | SMD | ITE Industry | 7.0 mm | 7.0 mm | 4.4 mm | Adjustable Output Voltage DC-OK-Signal Remote Function | Bag | ||||||
300 | | Manufacturers Part No. RPH-3.0-CT(RPH-3.0-CT) Recom DC/DC switching regulator (non-isolated) buck 5V 3A QFN | Customer Part No. Customer Project No. | 37 Pcs. Planned Delivery Time Ø 6 Weeks Available (from stock) | (at least 1 or mul. of 1) | Recom | 4.5 V | 55.0 V | 5.0 V | 3.0 A | buck | QFN | 91.0 % | -40.0 °C | 86.0 °C | SMD | ITE Industry | 10.0 mm | 12.0 mm | 4.0 mm | Adjustable Output Voltage DC-OK-Signal Remote Function | Bag |
