Filter articles
Manufacturer
Manufacturer
Series
Series
Input voltage min. DC
Input voltage min. DC
Input voltage max. DC
Input voltage max. DC
Output voltage
Output voltage
Output current
Output current
Operating mode
Operating mode
Package/Case
Package/Case
Efficiency
Efficiency
Operating Temperature Min.
Operating Temperature Min.
Operating Temperature Max.
Operating Temperature Max.
Connection type, output
Connection type, output
Application
Application
Standards (safety)
Standards (safety)
Dimension: Length
Dimension: Length
Dimension: Width
Dimension: Width
Dimension: Height
Dimension: Height
Features
Features
Packaging
Packaging
Results (312)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Input voltage min. DC | Input voltage max. DC | Output voltage | Output current | Operating mode | Package/Case | Efficiency | Operating Temperature Min. | Operating Temperature Max. | Connection type, output | Application | Standards (safety) | Dimension: Length | Dimension: Width | Dimension: Height | Features | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
01 |  | Manufacturers Part No. N78018-2CW(N78018-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 1,8V 2A Enclosed | Customer Part No. Customer Project No. | 78 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 28.0 V | 1.8 V | 2.0 A | buck | Enclosed | 83.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
02 | | Manufacturers Part No. N78025-2CW(N78025-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 2,5V 2A Enclosed | Customer Part No. Customer Project No. | 75 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 32.0 V | 2.5 V | 2.0 A | buck | Enclosed | 88.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
03 | | Manufacturers Part No. N7805-2CH(N7805-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 2A Enclosed | Customer Part No. Customer Project No. | 49 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 32.0 V | 5.0 V | 2.0 A | buck | Enclosed | 92.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
04 | | Manufacturers Part No. N78065-2C(N78065-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 6,5V 2A Enclosed | Customer Part No. Customer Project No. | 18 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 10.0 V | 32.0 V | 6.5 V | 2.0 A | buck | Enclosed | 92.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
05 | | Manufacturers Part No. N7809-2CH(N7809-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 2A Enclosed | Customer Part No. Customer Project No. | 63 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 32.0 V | 9.0 V | 2.0 A | buck | Enclosed | 95.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
06 | | Manufacturers Part No. N7815-2C(N7815-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 2A Enclosed | Customer Part No. Customer Project No. | 40 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 18.0 V | 30.0 V | 15.0 V | 2.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
07 | | Manufacturers Part No. N78025-2C(N78025-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 2,5V 2A Enclosed | Customer Part No. Customer Project No. | 69 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 32.0 V | 2.5 V | 2.0 A | buck | Enclosed | 88.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
08 | | Manufacturers Part No. N7803-2CH(N7803-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 2A Enclosed | Customer Part No. Customer Project No. | 56 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 32.0 V | 3.3 V | 2.0 A | buck | Enclosed | 89.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
09 | | Manufacturers Part No. N7809-2C(N7809-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 2A Enclosed | Customer Part No. Customer Project No. | 69 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 32.0 V | 9.0 V | 2.0 A | buck | Enclosed | 95.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
10 | | Manufacturers Part No. N7812-2CH(N7812-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 2A Enclosed | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 16.0 V | 32.0 V | 12.0 V | 2.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
11 | | Manufacturers Part No. N78018-2C(N78018-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 1,8V 2A Enclosed | Customer Part No. Customer Project No. | 106 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 28.0 V | 1.8 V | 2.0 A | buck | Enclosed | 83.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
12 | | Manufacturers Part No. N7803-2C(N7803-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 2A Enclosed | Customer Part No. Customer Project No. | 37 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 32.0 V | 3.3 V | 2.0 A | buck | Enclosed | 89.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
13 | | Manufacturers Part No. N7805-2CW(N7805-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 2A Enclosed | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 32.0 V | 5.0 V | 2.0 A | buck | Enclosed | 92.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
14 | | Manufacturers Part No. N7812-2CW(N7812-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 2A Enclosed | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 16.0 V | 32.0 V | 12.0 V | 2.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
15 | | Manufacturers Part No. N78018-2CH(N78018-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 1,8V 2A Enclosed | Customer Part No. Customer Project No. | 67 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 28.0 V | 1.8 V | 2.0 A | buck | Enclosed | 83.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
16 | | Manufacturers Part No. N78025-2CH(N78025-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 2,5V 2A Enclosed | Customer Part No. Customer Project No. | 69 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 4.5 V | 32.0 V | 2.5 V | 2.0 A | buck | Enclosed | 88.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
17 | | Manufacturers Part No. N7803-2CW(N7803-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 3,3V 2A Enclosed | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 6.0 V | 32.0 V | 3.3 V | 2.0 A | buck | Enclosed | 89.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
18 | | Manufacturers Part No. N7805-2C(N7805-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 5V 2A Enclosed | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 8.0 V | 32.0 V | 5.0 V | 2.0 A | buck | Enclosed | 92.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
19 | | Manufacturers Part No. N78065-2CH(N78065-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 6,5V 2A Enclosed | Customer Part No. Customer Project No. | 53 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 10.0 V | 32.0 V | 6.5 V | 2.0 A | buck | Enclosed | 92.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
20 | | Manufacturers Part No. N78065-2CW(N78065-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 6,5V 2A Enclosed | Customer Part No. Customer Project No. | 57 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 10.0 V | 32.0 V | 6.5 V | 2.0 A | buck | Enclosed | 92.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
21 | | Manufacturers Part No. N7809-2CW(N7809-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 9V 2A Enclosed | Customer Part No. Customer Project No. | 27 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 13.0 V | 32.0 V | 9.0 V | 2.0 A | buck | Enclosed | 95.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||
22 | | Manufacturers Part No. N7812-2C(N7812-2C) MEAN WELL DC/DC switching regulator (non-isolated) buck 12V 2A Enclosed | Customer Part No. Customer Project No. | 74 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 16.0 V | 32.0 V | 12.0 V | 2.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
23 | | Manufacturers Part No. N7815-2CH(N7815-2CH) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 2A Enclosed | Customer Part No. Customer Project No. | 46 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 18.0 V | 30.0 V | 15.0 V | 2.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | THT | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | Tube | |||||||
24 | | Manufacturers Part No. N7815-2CW(N7815-2CW) MEAN WELL DC/DC switching regulator (non-isolated) buck 15V 2A Enclosed | Customer Part No. Customer Project No. | 8 Pcs. Available (from stock) | (at least 1 or mul. of 1) | MEAN WELL | 18.0 V | 30.0 V | 15.0 V | 2.0 A | buck | Enclosed | 96.0 % | -40.0 °C | 85.0 °C | Strand | ITE Industry | 11.5 mm | 9.0 mm | 17.5 mm | ||||||||

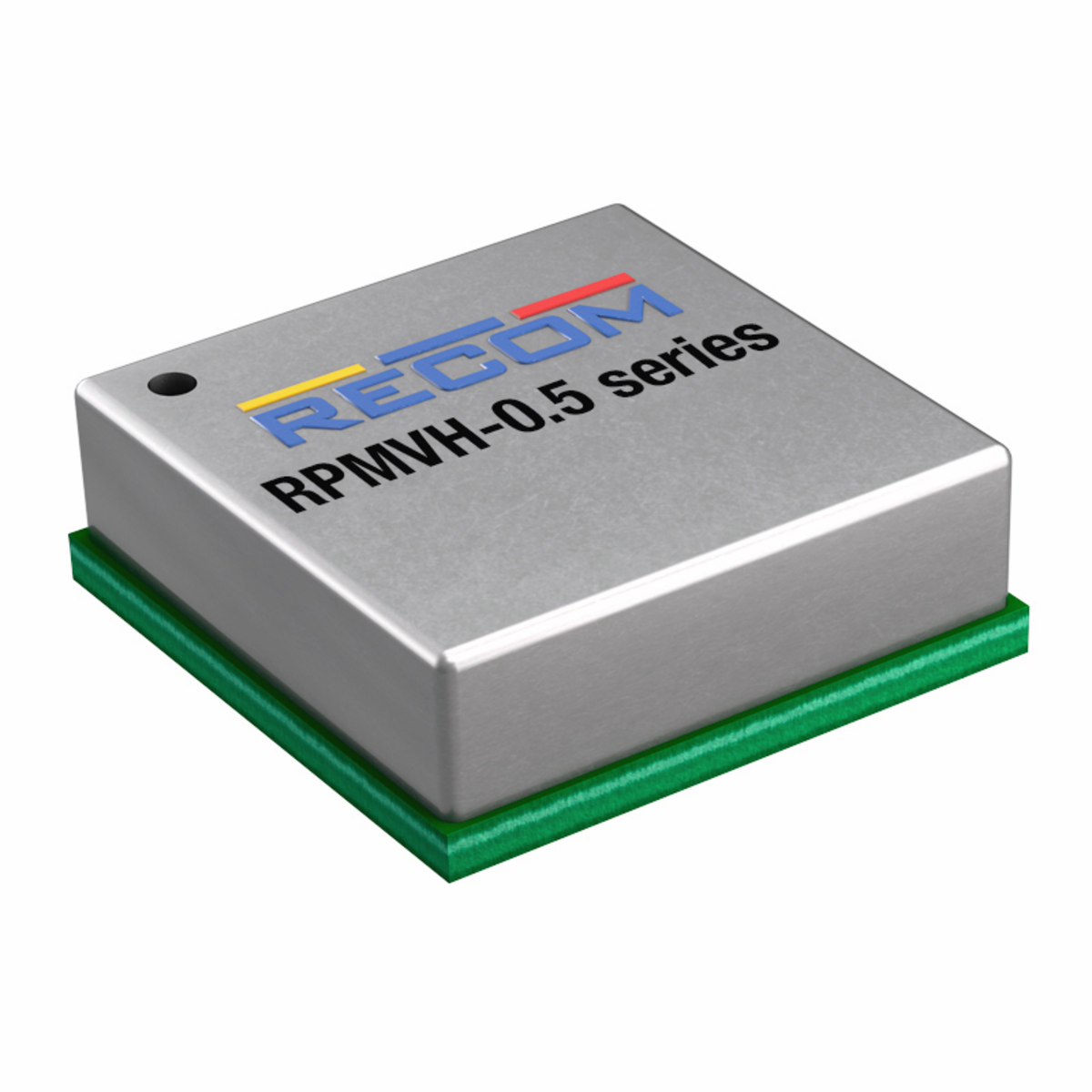

25 | | Manufacturers Part No. RPMVH3.3-0.5-R(RPMVH3.3-0.5-R) Recom DC/DC switching regulator (non-isolated) buck 3,3V 0,5A LGA New | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 10 Weeks Available on order | (at least 200 or mul. of 1) | Recom | 6.0 V | 115.0 V | 3.3 V | 0.5 A | buck | LGA | 71.0 % | -40.0 °C | 120.0 °C | SMD | ITE Industry | EN 62368-1 | 12.19 mm | 12.19 mm | 3.75 mm | Adjustable Output Voltage DC-OK-Signal Remote Function | Reel |
