PR152G-S

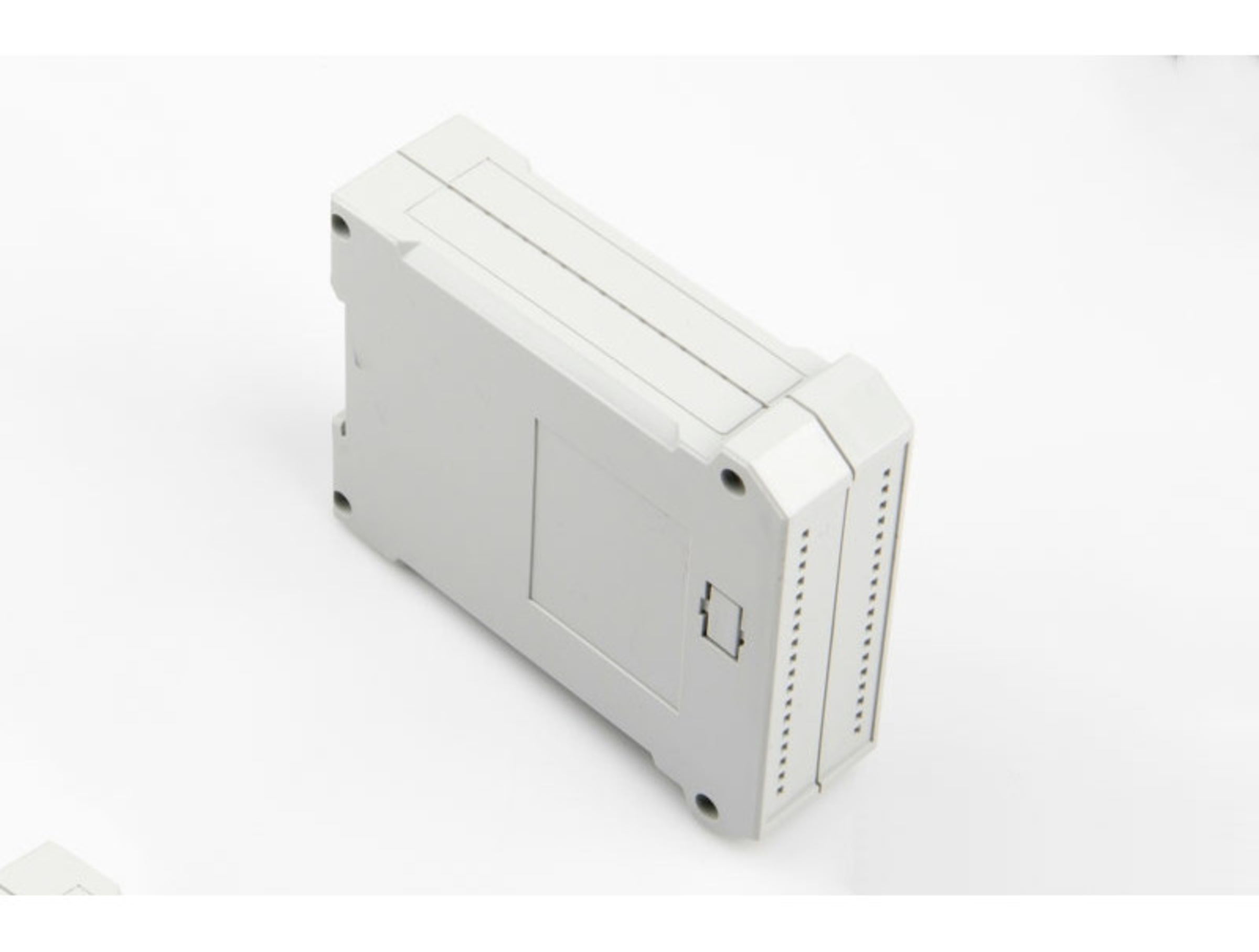

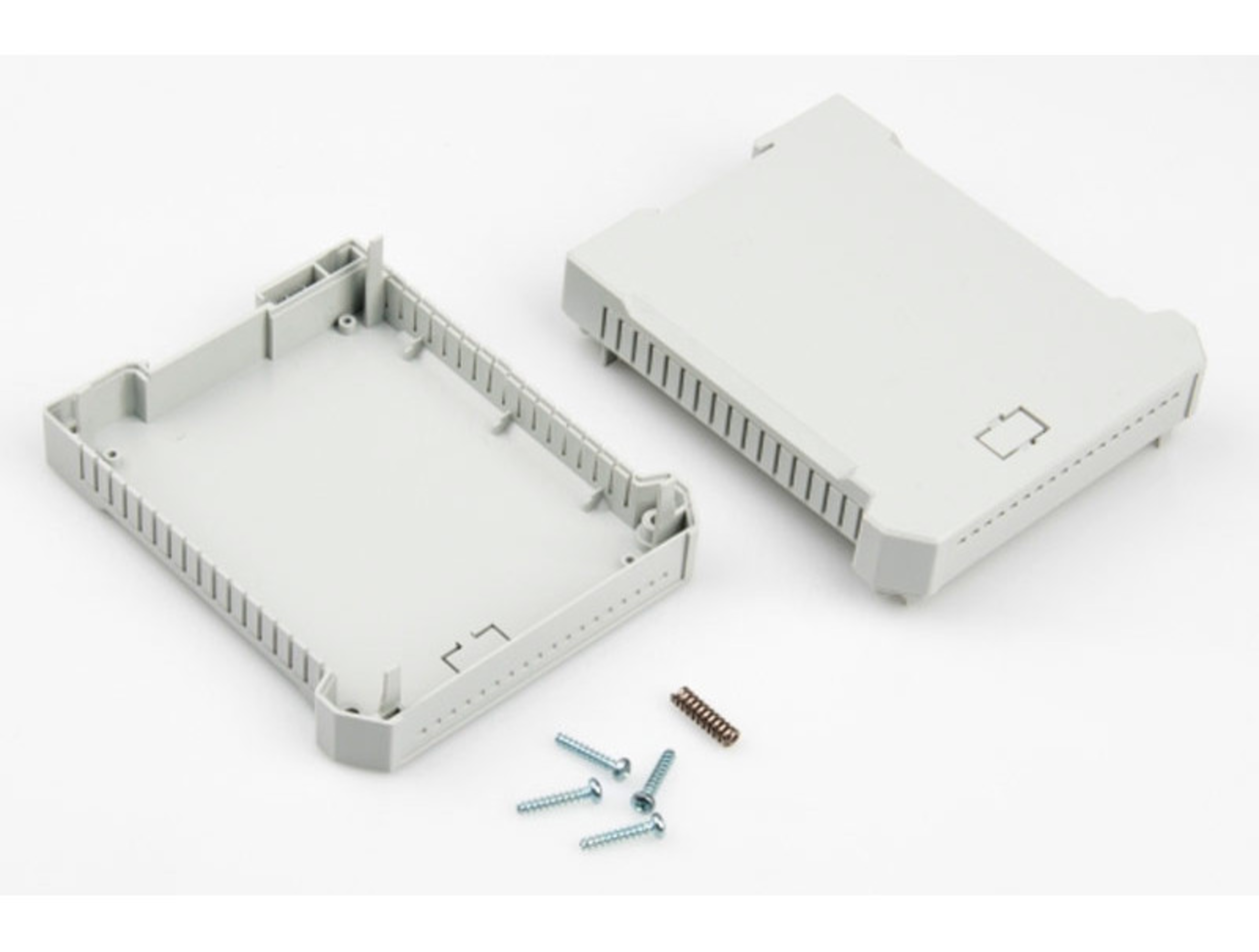

Supertronic PR152 DIN Rail Enclosure ABS (acrylonitrile butadiene styrene) 102mmx35mmx117mm gray IP44

PR152G-SPR152G-S
Manufacturer Part No.
PR152G-S
Schukat Part No.
PR152G-S
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
DIN Rail Enclosure
Assembly Type
DIN rail mounting
Dimension: Length
102 mm
Dimension: Width
35 mm
Dimension: Height
117 mm
Colour
gray
Colour: lid/panel/handle
gray
Material
ABS (acrylonitrile butadiene styrene)
Protection Class IP
IP44
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Supertronic
Series
  • PR152
Product group
  • G4718
Material
  • ABS (acrylonitrile butadiene styrene)
Colour
  • gray
Type
  • DIN Rail Enclosure
Colour: lid/panel/handle
  • gray
Assembly Type
  • DIN rail mounting
Product description
  • The PT152 model from Supertronic’s Terminaldin series is a plastic enclosure designed for DIN rail mounting and offers an effective and durable solution for housing electrical and electronic equipment. Manufactured from self-extinguishing UL94-V0 ABS, this enclosure guarantees safety and fire resistance, with external dimensions of 102 x 35 x 117 mm and internal dimensions of 77 x 24 x 106 mm. Its robust design and extremely durable plastic ensure reliable performance and easy installation, making it perfectly suited to a wide range of applications. Thanks to its time relays, specifically developed for device safety, it is ideally suited to protecting devices in contexts such as automation, IoT, test and measurement technology, smart home systems and KNX systems. The PT152 is available in standard colours such as black (RAL 9005) and grey (RAL 7035) and can also be customised via CNC machining and UV digital printing, enabling Supertronic to tailor the product to the specific requirements of any project, meeting the highest standards of quality and design.
Notice

Dimensions and Weights

Dimension: Length
  • 102 mm
Dimension: Width
  • 35 mm
Dimension: Height
  • 117 mm

Safety/Certifications

Protection Class IP
  • IP44
