PR132N-S

Supertronic PR132 DIN Rail Enclosure ABS (acrylonitrile butadiene styrene) 86mmx36mmx77mm black IP44

PR132N-SPR132N-S
Manufacturer Part No.
PR132N-S
Schukat Part No.
PR132N-S
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
DIN Rail Enclosure
Assembly Type
DIN rail mounting
Dimension: Length
86 mm
Dimension: Width
36 mm
Dimension: Height
77 mm
Specifications
Ventilation opening
Colour
black
Colour: lid/panel/handle
black
Material
ABS (acrylonitrile butadiene styrene)
Protection Class IP
IP44
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Supertronic
Series
  • PR132
Product group
  • G4718
Material
  • ABS (acrylonitrile butadiene styrene)
Colour
  • black
Type
  • DIN Rail Enclosure
Colour: lid/panel/handle
  • black
Assembly Type
  • DIN rail mounting
Specifications
  • Ventilation opening
Product description

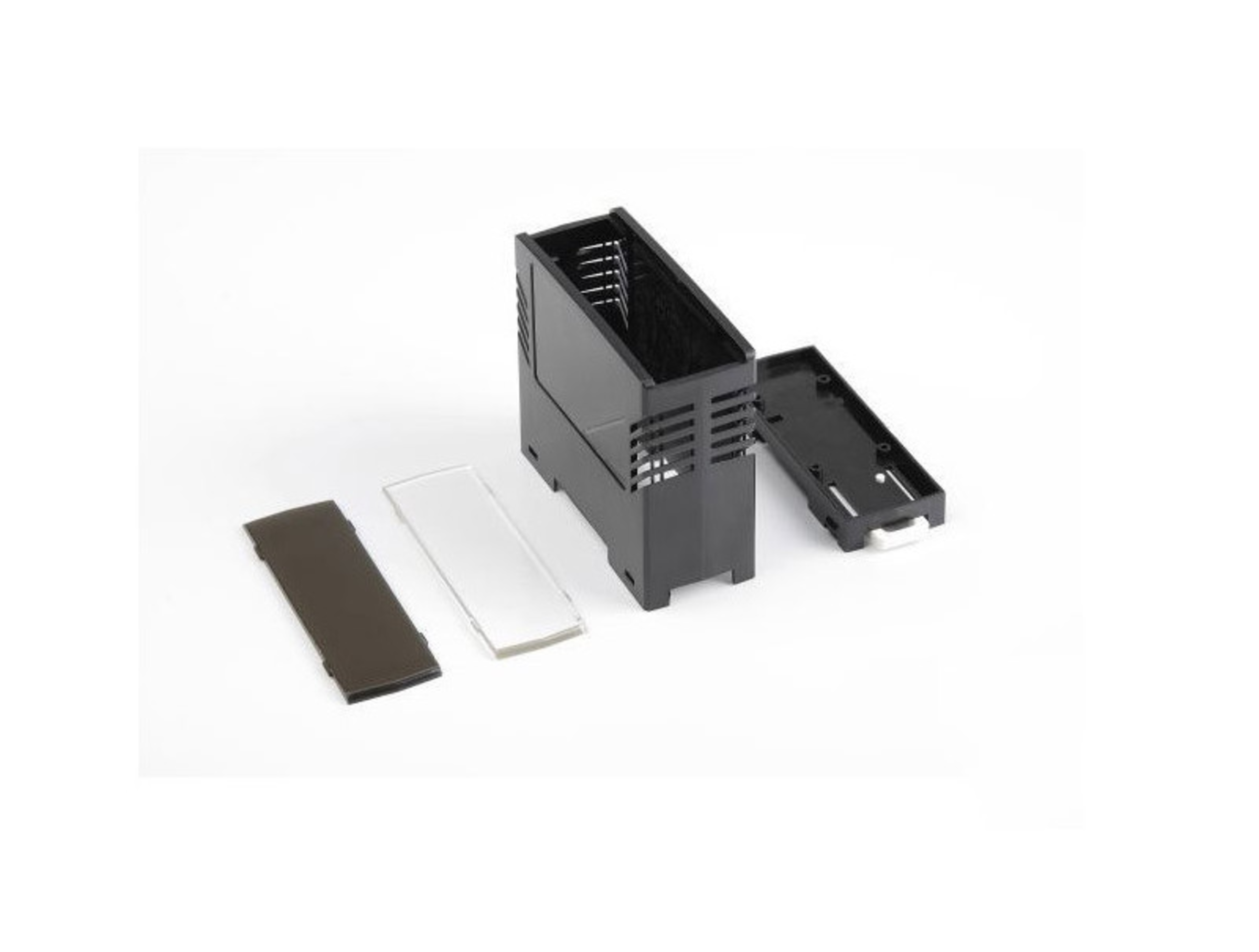

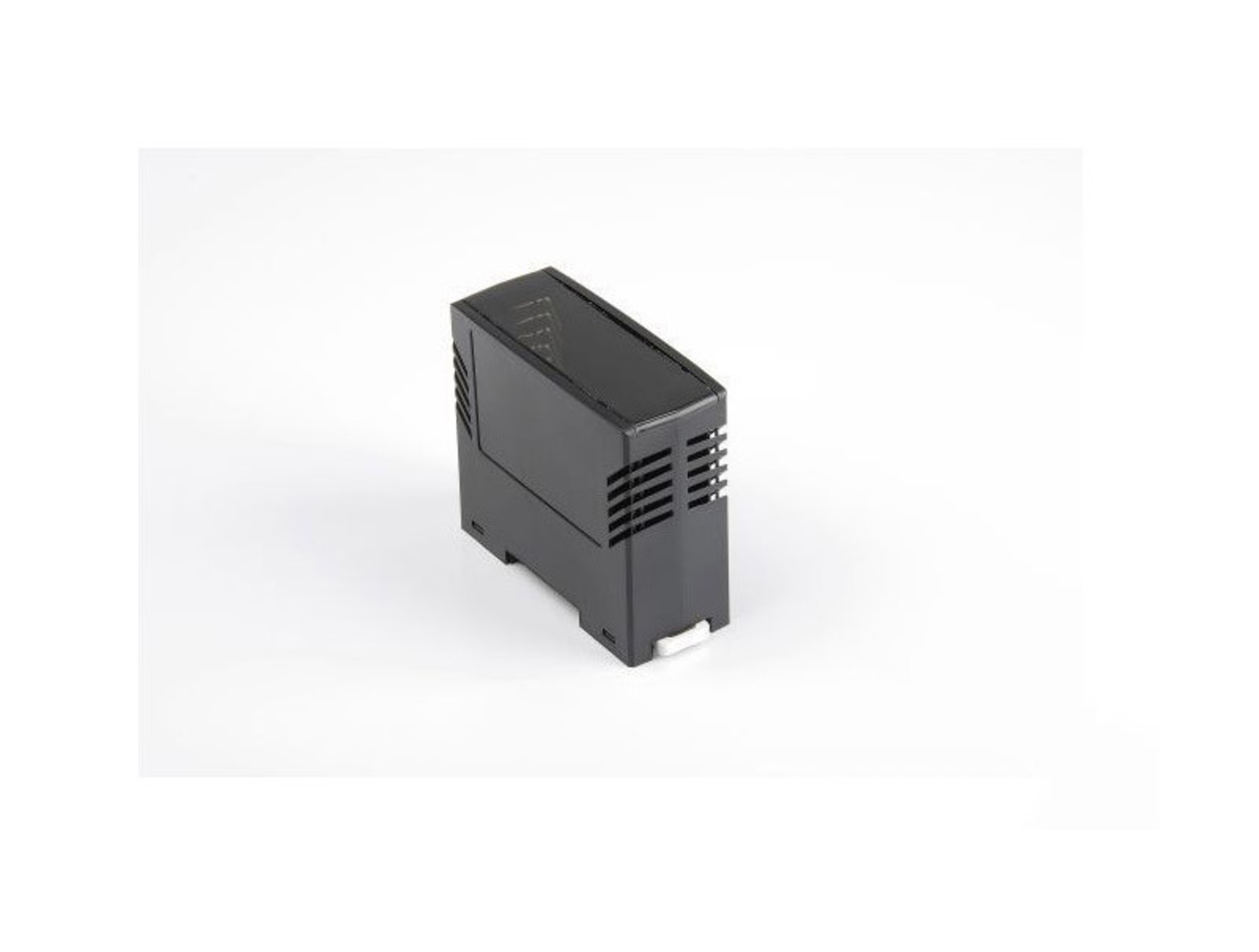

  • The PT132 model from Supertronic’s Rails series is a plastic enclosure designed for DIN rail mounting. This high-quality, durable enclosure is ideal for housing a wide range of electronic and electrical devices. Manufactured from self-extinguishing UL94-V0 ABS, this enclosure offers excellent protection against fire and other hazards, thereby ensuring the safety and protection of the devices housed within it. Its external dimensions are 86 x 36 x 77 mm and its internal dimensions are 81 x 31 x 61 mm. This makes it compact enough for small spaces, yet spacious enough to accommodate various devices. With panel options in clear, black and smoke, it blends in perfectly with various devices and environments. This enclosure is ideal for a wide range of applications, such as housing time relays, process automation, IoT connections, device testing and measurement, or use in smart homes, and stands out for its versatility and reliability. It is particularly suitable for applications including KNX systems. The PT132 is available in an elegant black finish (RAL 9005) and also offers customisation options via CNC machining and UV digital printing, enabling Supertronic to tailor the enclosure to the specific requirements of each project whilst maintaining a high standard of quality and design at all times.
Notice

Dimensions and Weights

Dimension: Length
  • 86 mm
Dimension: Width
  • 36 mm
Dimension: Height
  • 77 mm

Safety/Certifications

Protection Class IP
  • IP44
