PP122L-S

Supertronic PP122 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 208mmx106mmx56mm gray IP65

PP122GLPP122GL
Manufacturer Part No.
PP122L-S
Schukat Part No.
PP122GL
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 26.01.2022
Discontinued by manufacturer without replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Assembly Type
Screw mounting
Dimension: Length
208 mm
Dimension: Width
106 mm
Dimension: Height
56 mm
Design
Flange
Colour
gray
Material
ABS (Acrylonitrile Butadiene Styrene)
Protection Class IP
IP65
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP122
Product group
  • G4518
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • gray
Type
  • Wall/table housing
Assembly Type
  • Screw mounting
Type of Mounting
  • Screw
Design
  • Flange
Product description

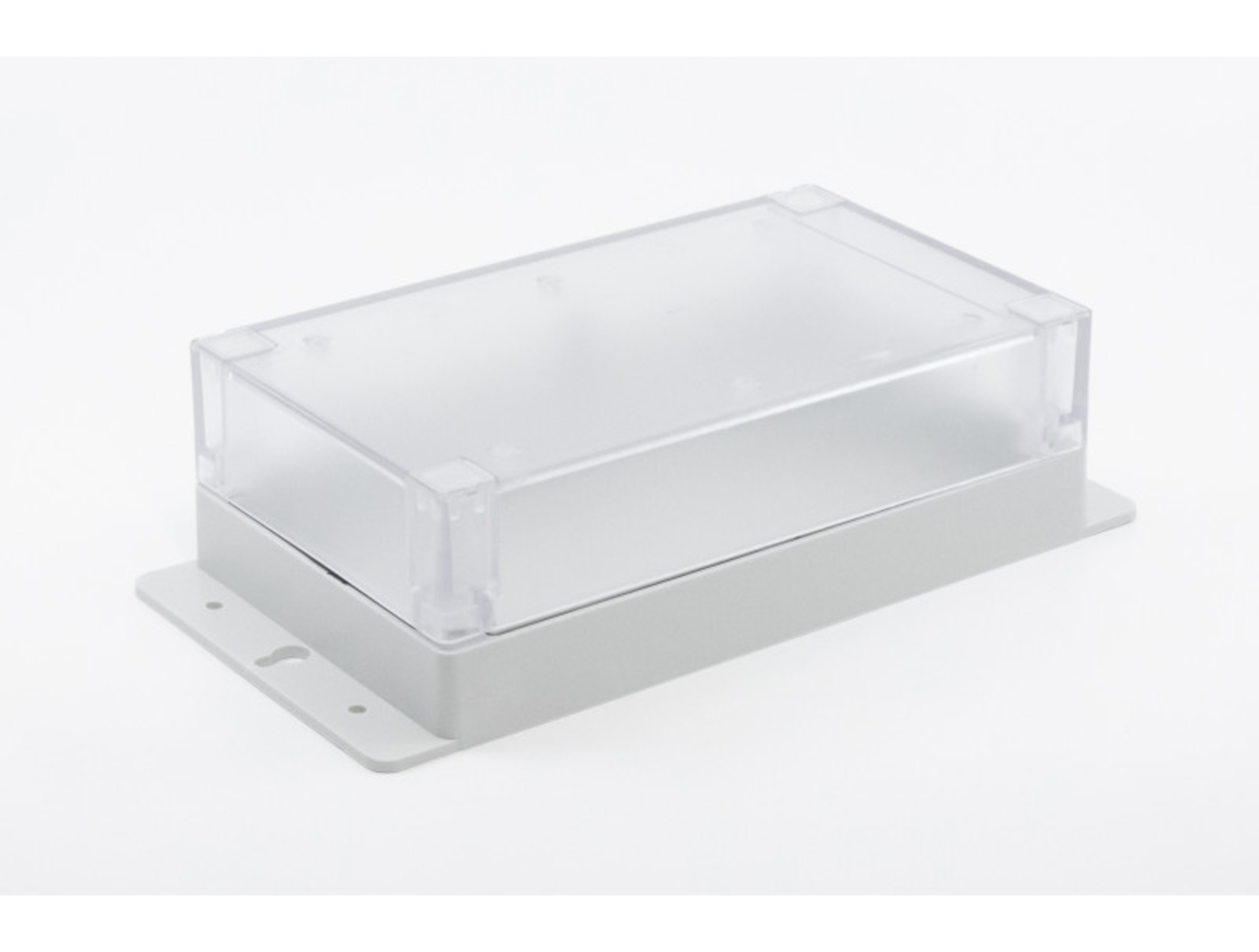

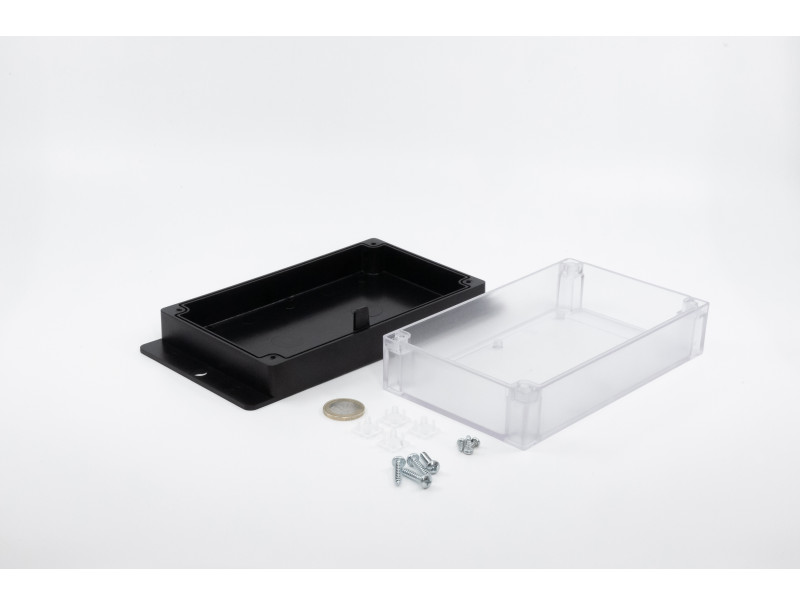

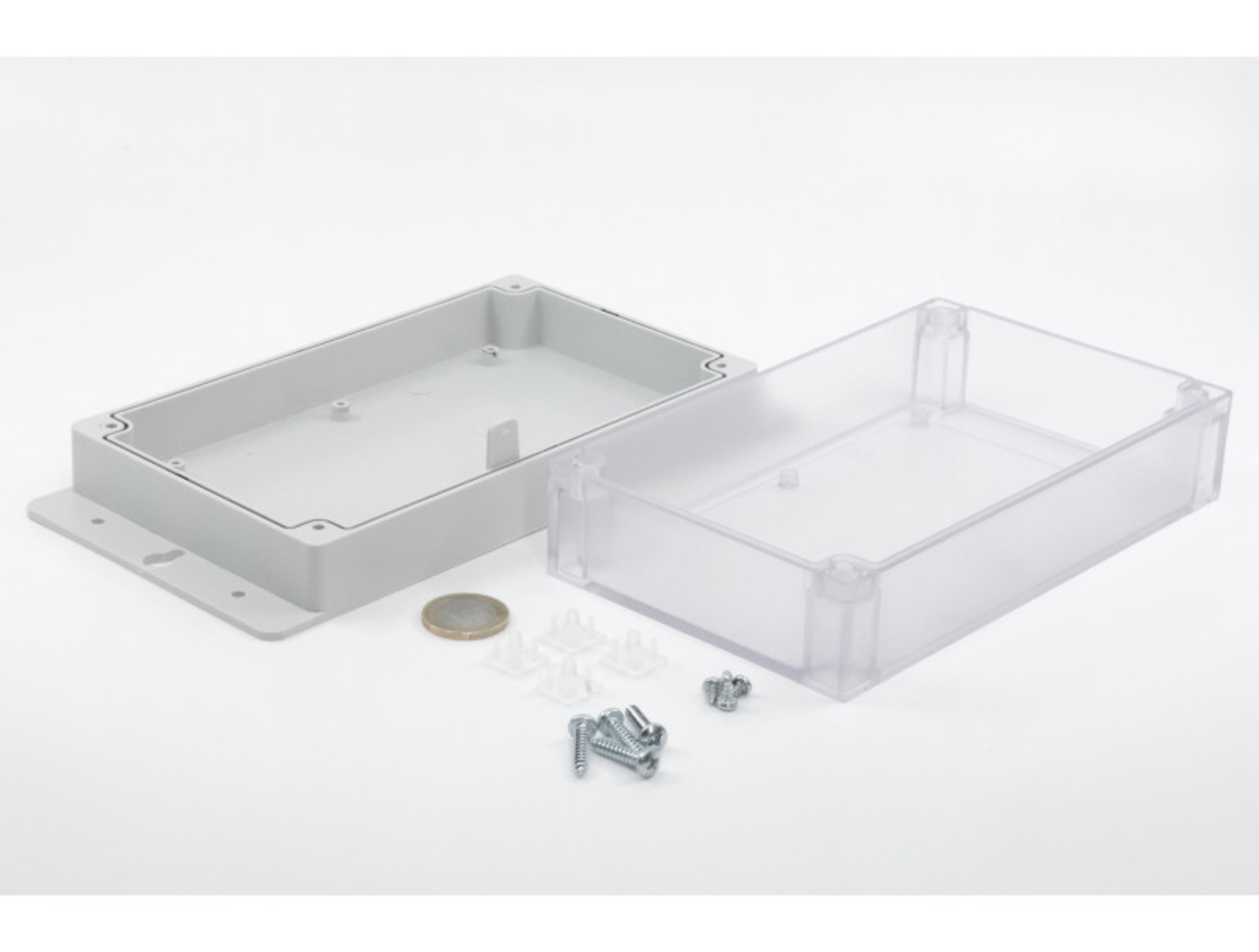

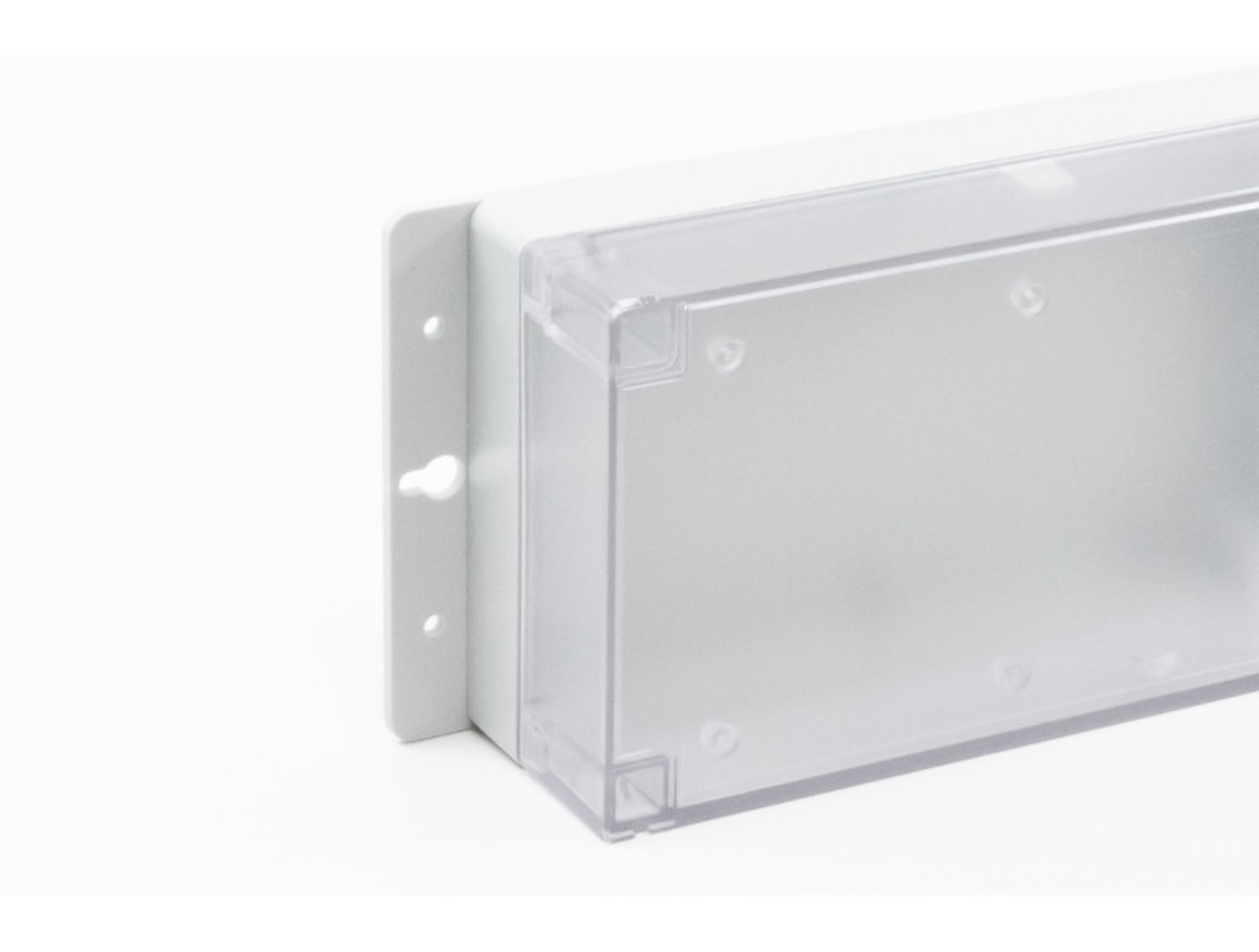

  • The PP112 model from Supertronic's Extrale series is a robust, IP65-rated plastic wall-mount enclosure, offering a high level of protection against water and dust, making it ideal for outdoor use. Constructed from durable UL94-HB-ABS, this rugged enclosure is designed for wall mounting. Its external dimensions are 208 x 106 x 56 mm, and its internal dimensions are 168 x 97 x 40 mm, providing ample space for a variety of devices. The enclosure features perforated side ribs for easy installation, a front closure with decorative flaps for an aesthetically pleasing finish, and a transparent lid for easy viewing of the contents. It is perfectly suited for embedded systems, transmitters, barometers, gas and humidity sensors, and temperature measurement and control applications requiring protection. The PP112 also offers the possibility of customization through CNC machining and UV digital printing, allowing Supertronic to adapt the enclosure to the specific requirements of each project while maintaining consistently high standards of quality and design.
Features

  • - Wall mounting enclosures made of ABS with flanged lid in black, white or grey
    - Consisting of lower and upper part
    - Partly with a recessed area on the upper side to accommodate a membrane keyboard
    - Protection class IP65, screws are covered by small lids

Notice

Dimensions and Weights

Dimension: Length
  • 208 mm
Dimension: Width
  • 106 mm
Dimension: Height
  • 56 mm

Safety/Certifications

Protection Class IP
  • IP65
